Sea Sonic

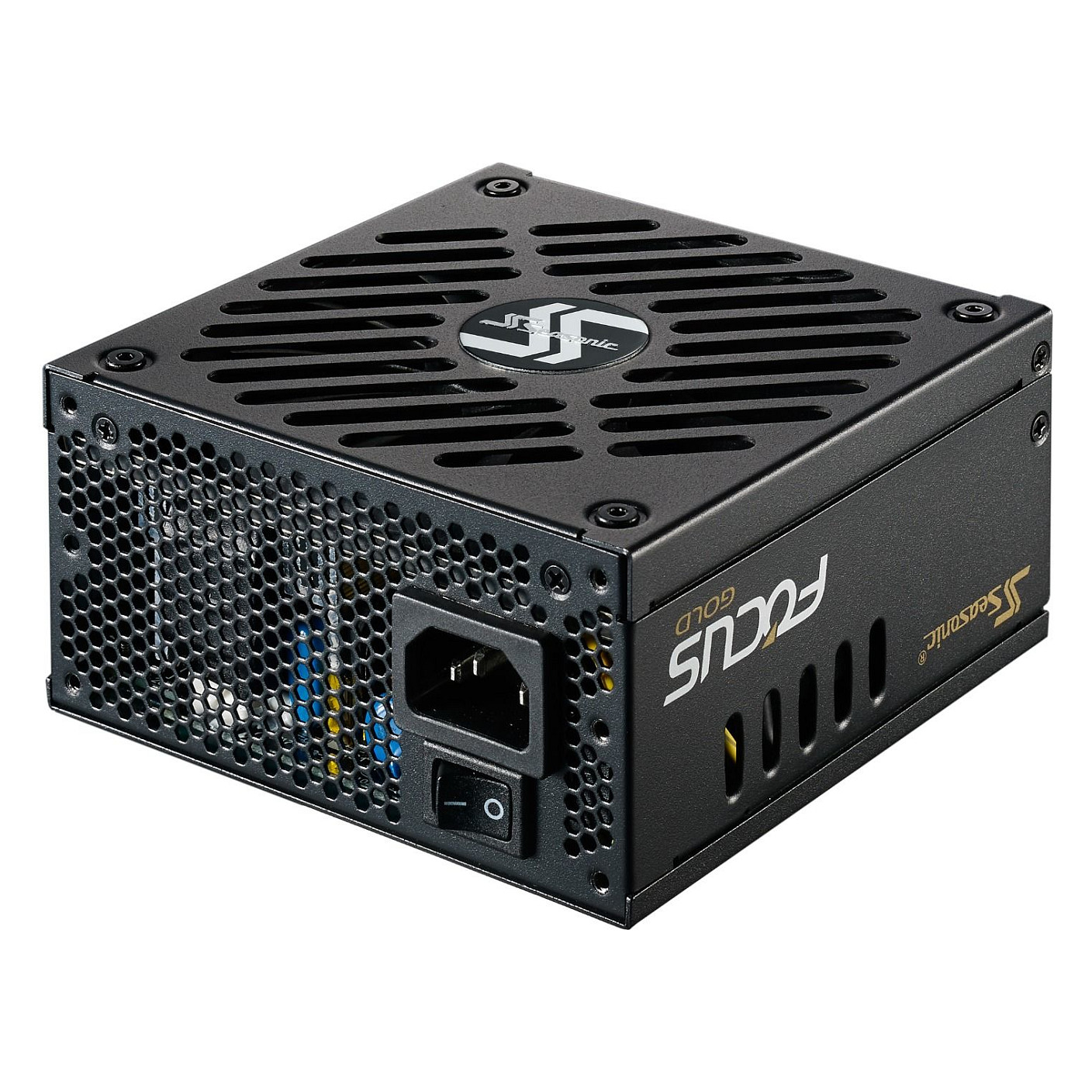

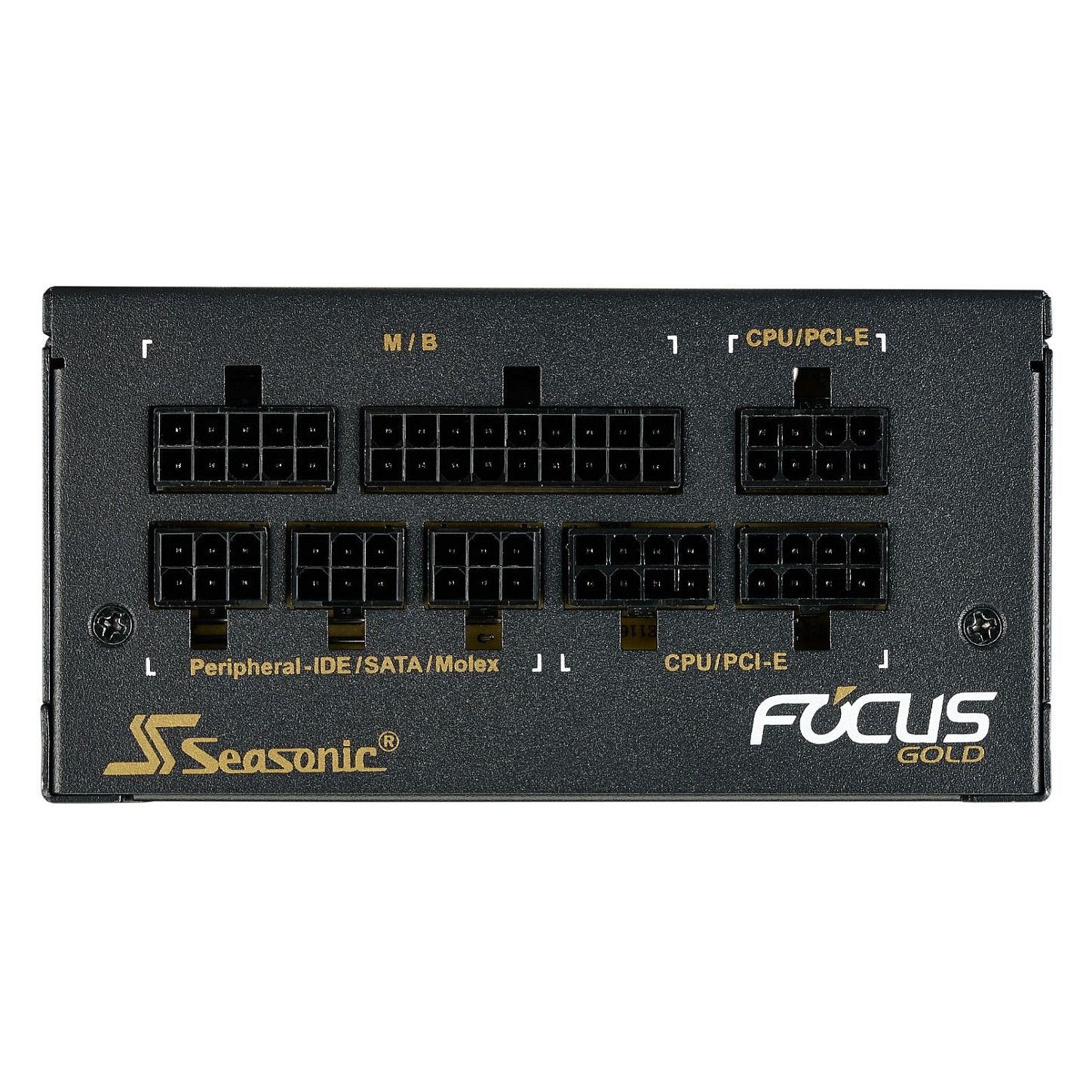

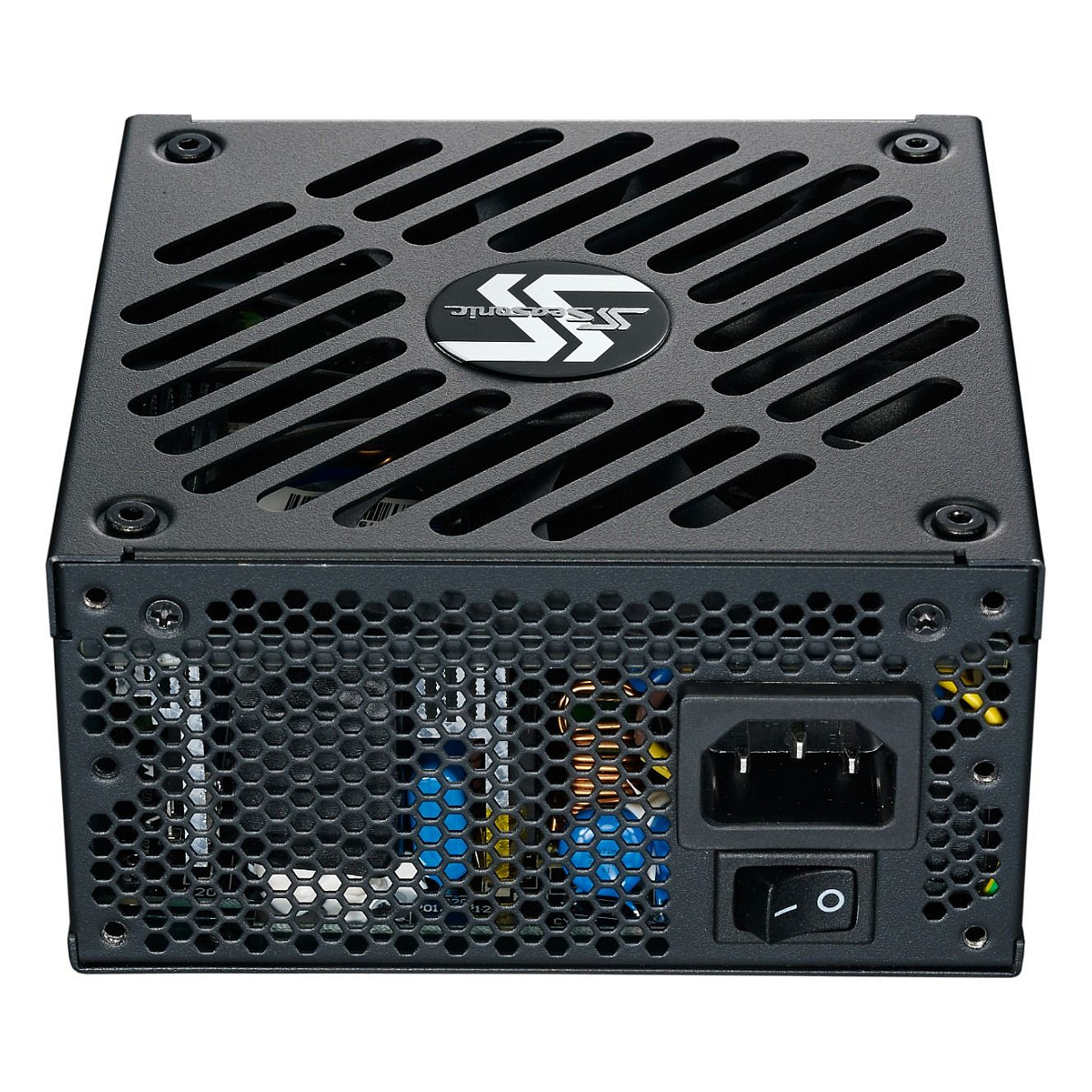

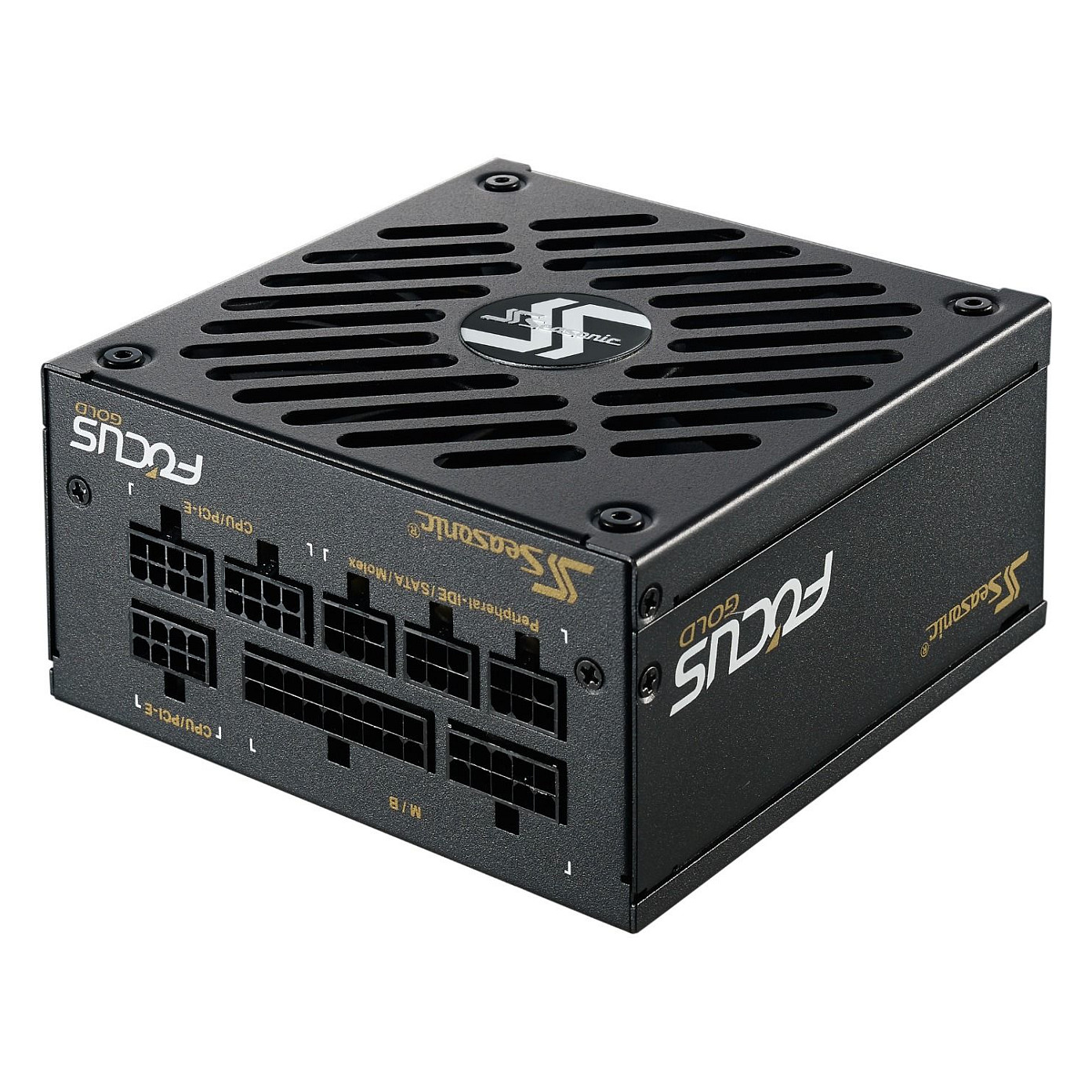

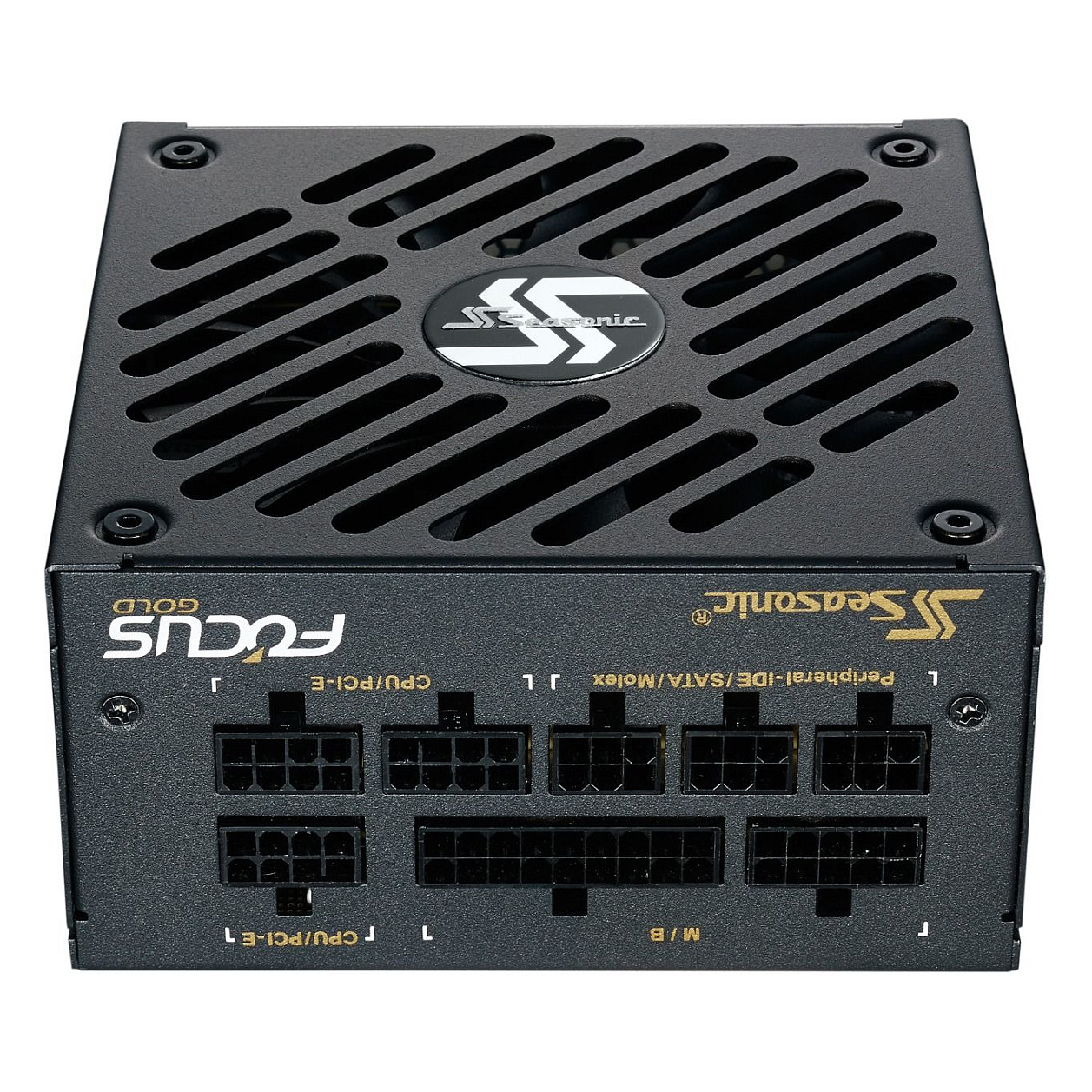

650W Seasonic FOCUS-SGX-650 80+ Gold
In Stock
€138.99
VAT (19%) included
Description
80 PLUS Gold certified Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm Tight Voltage Regulation Cable-free Connection Design S3FC - Fanless until 30 % load SFX to ATX Expandability Gold plated connectors 10 years warranty
Technical Specifications
SKU
KFOCUS-SGX-650
Total Power
650 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
9 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
648 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
54 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
600 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
700 mm
Pci Express Power Connectors (6+2 Pin)
4
Cpu Power Cable Length
40 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 50 °C
Compliance Certificates
RoHS
Certification
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Width
125 mm
Depth
125 mm
Height
63.5 mm
Sustainability Certificates
ENERGY STAR
