Chieftec

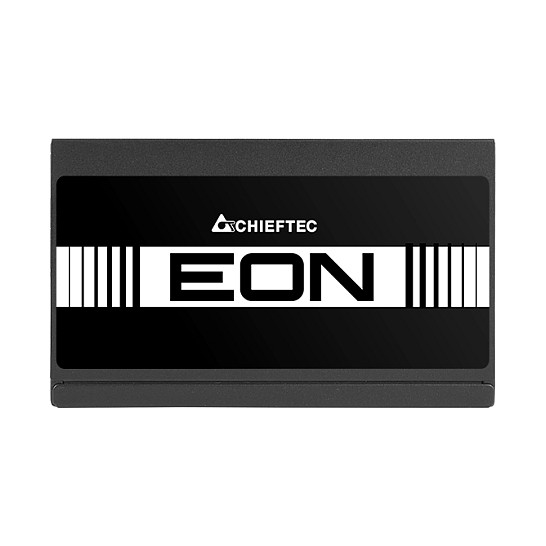

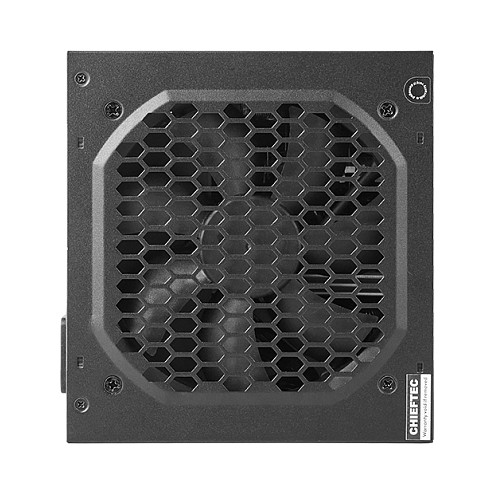

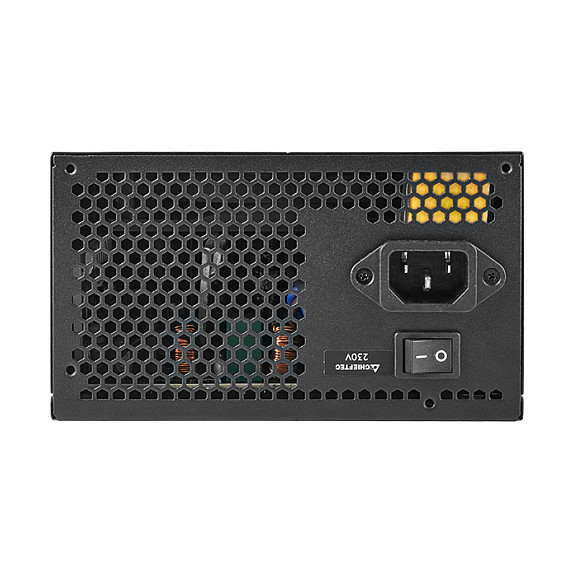

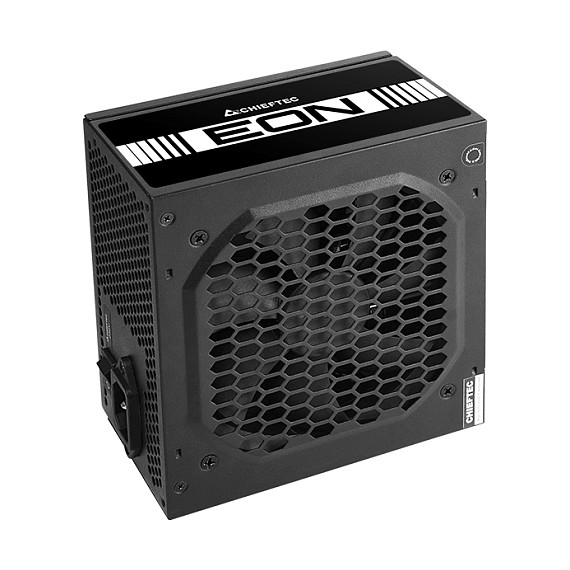

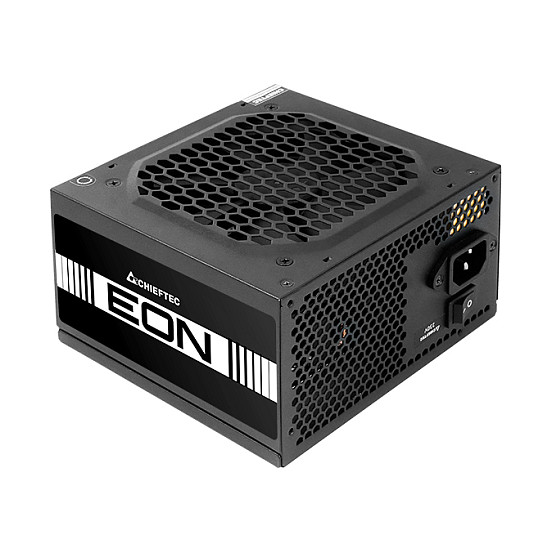

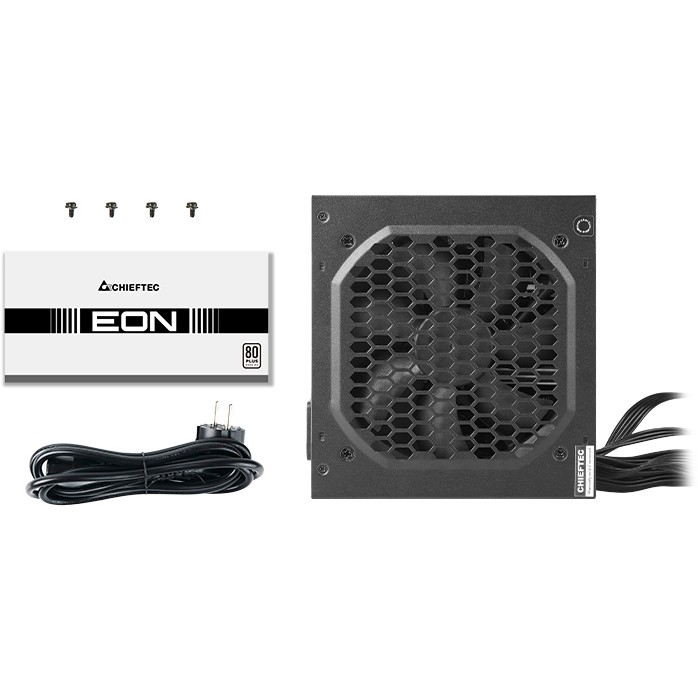

500W Chieftec EON Series ZPU-500S
In Stock
€45.99
VAT (19%) included
Description
500 W 200 - 240 V 50 Hz Motherboard power connector: 20+4 pin ATX PC/Server ATX 80 PLUS Active 12 cm Black
Technical Specifications
SKU
KZPU-500S
Total Power
500 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50 Hz
Input Current
3.5 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
444 W
Combined Power (+5V)
100 W
Combined Power (-12V)
4.8 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V1)
37 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.4 A
Max Output Current (+5Vsb)
2.5 A
Power Protection Features
Short circuit, Surge and inrush, Surge protection
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
65 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
450, 600, 750 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
150, 450 mm
Pci Express Power Connectors (6+2 Pin)
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Supported Motherboard Form Factors
ATX
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Compliance Certificates
CB, CE, EAC, RoHS
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
1.2 kg
Package Weight
1.45 kg
Package Type
Box
Sustainability Certificates
ErP
Warranty Period
2 year(s)
