Be Quiet!

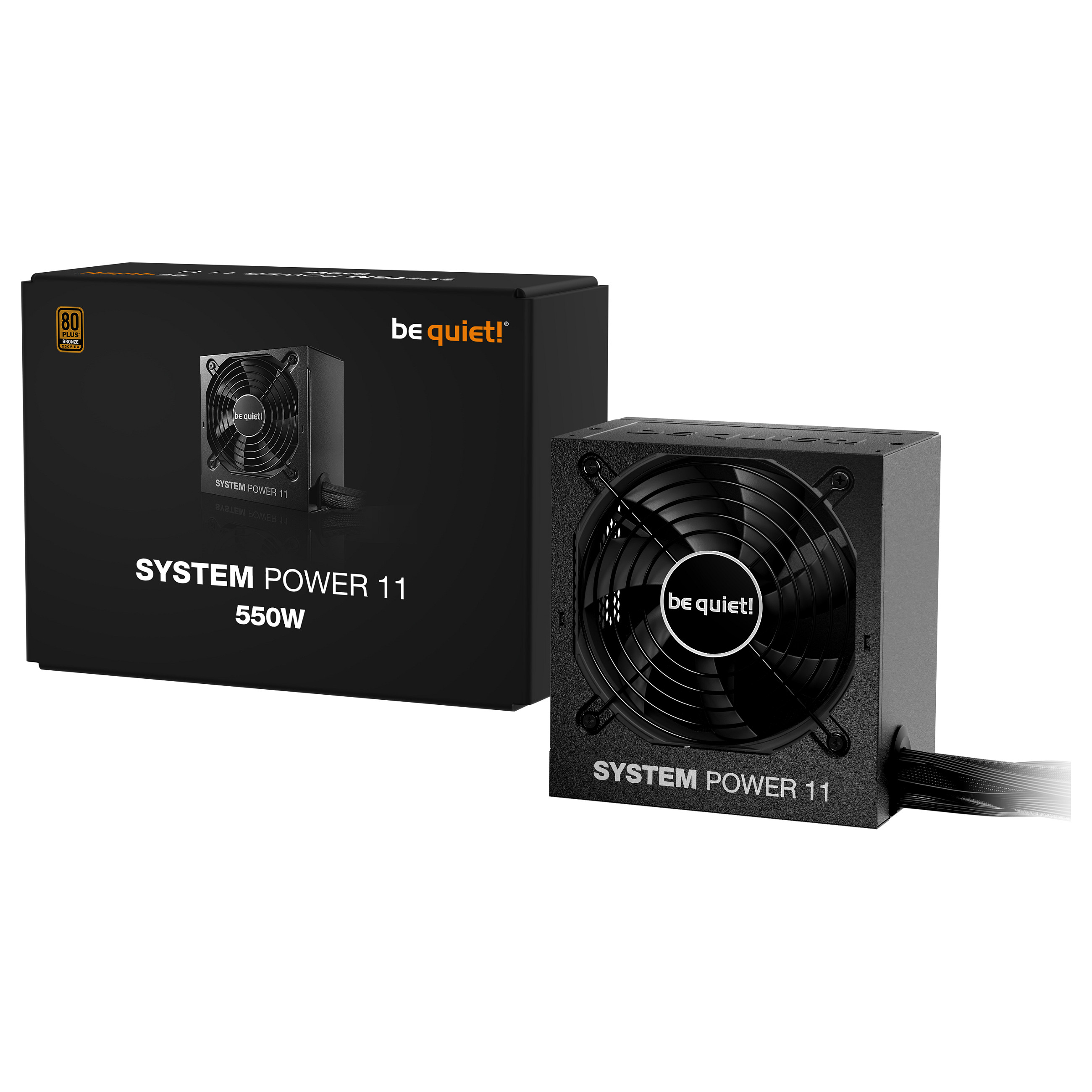

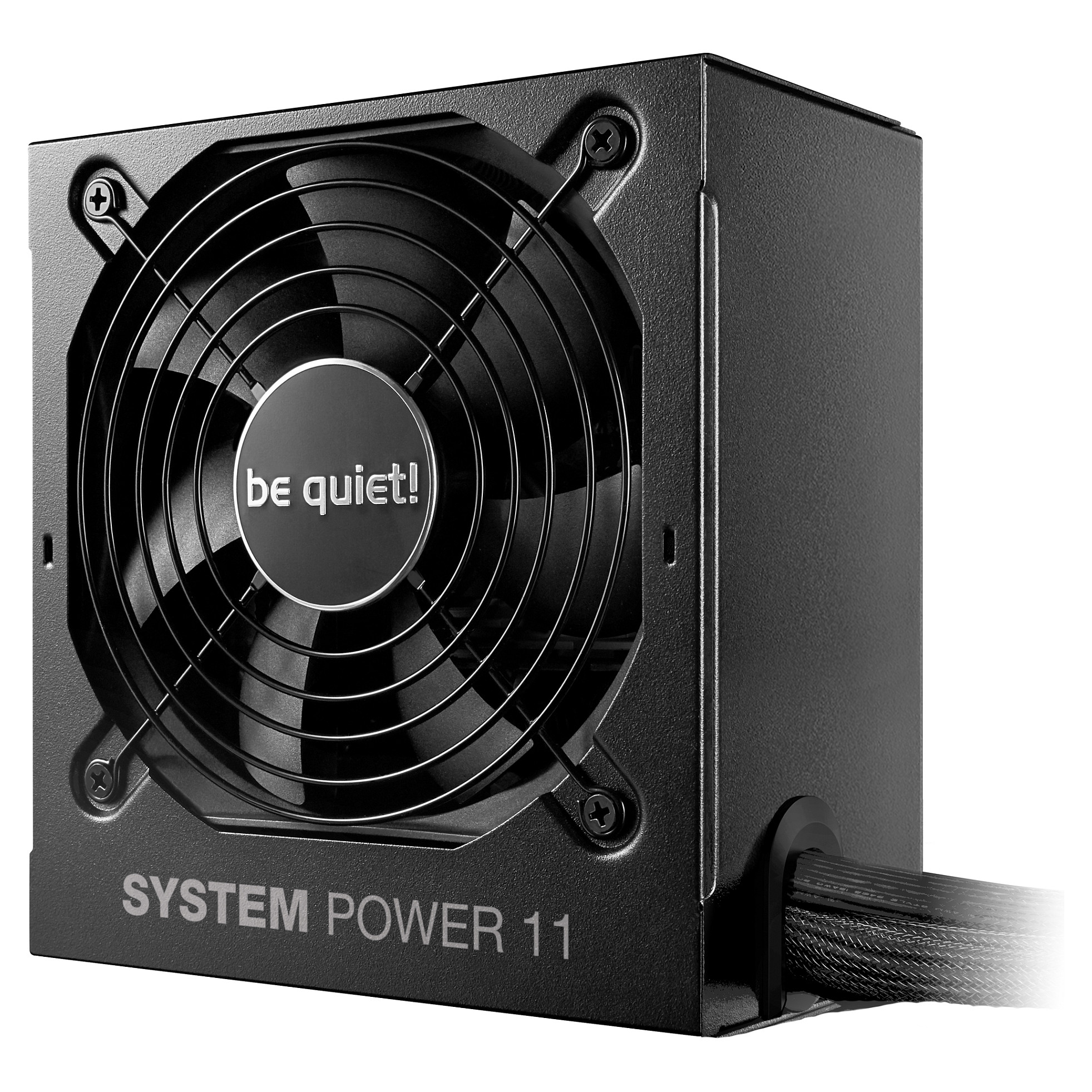

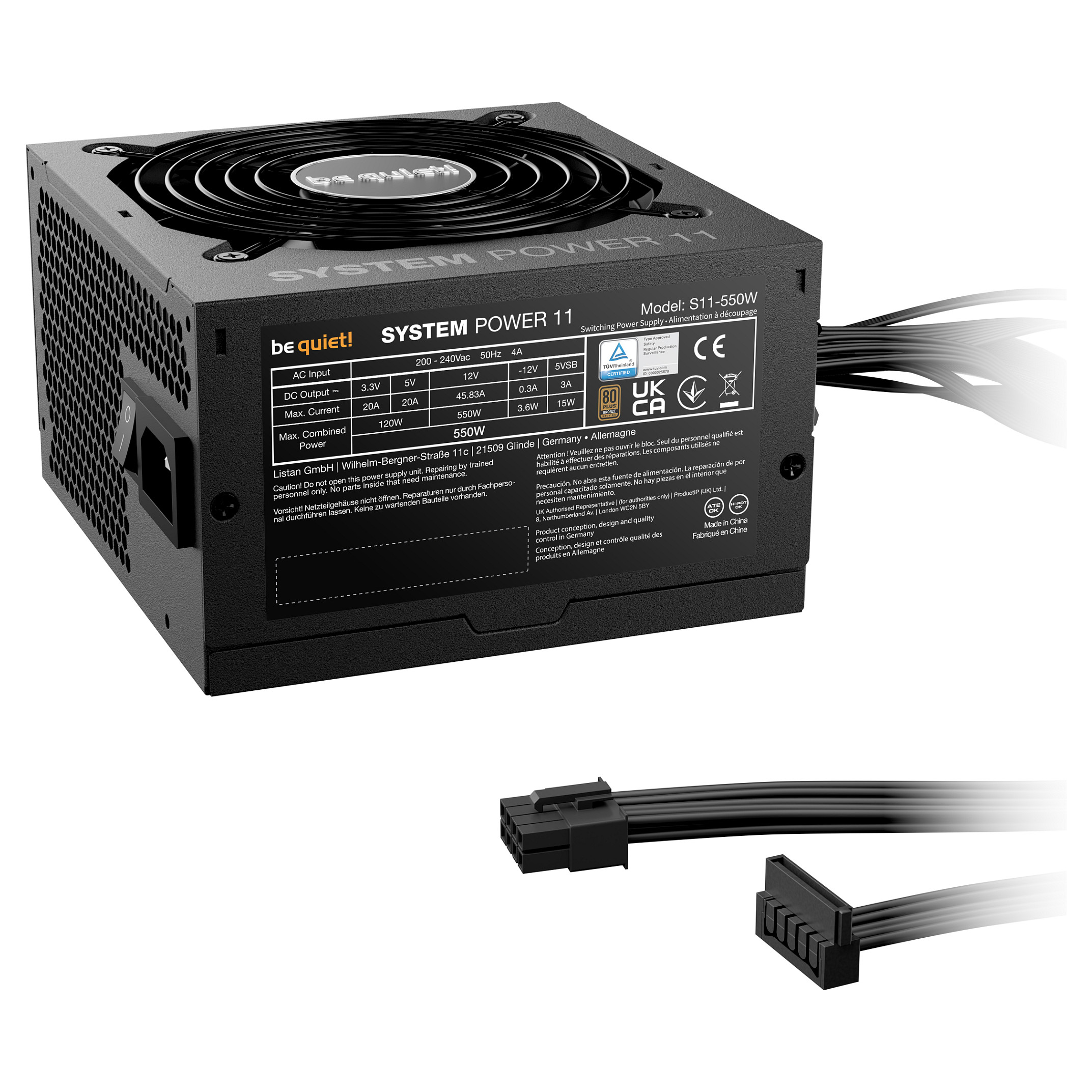

550W be quiet! SYSTEM POWER 11 |
In Stock
€62.99
VAT (19%) included
Description
ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors Temperature-controlled 120mm quality fan reduces system noise Rock-solid stability with a strong 12V-rail Tight voltage regulation using DC-to-DC technology One PCIe 5.1 12V-2x6 300W and 2 PCIe 6-2 connectors Dependable operation to support powerful GPUs Stand-by drain of less than 0.15 watts 80 PLUS® Bronze efficiency (up to 89.7%) Attractive black flat cables Complete suite of top safety features Product conception, design and quality control in Germany
Technical Specifications
SKU
KBP010EU
Total Power
550 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50 Hz
Input Current
4 A
Power Factor
0.98
Number Of +12V Rail(S)
1
Combined Power (+3.3V)
120 W
Combined Power (+12V)
550 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V1)
45.83 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16.86 ms
Efficiency
89.7%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Motherboard Power Connector
20+4 pin ATX
Number Of Sata Power Connectors
5
Peripheral (Molex) Power Connectors (4-Pin)
1
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (12-Pin)
1
Cpu P4 Connector (4-Pin)
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
24.2 dB
Bearing Technology
Rifle
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 1800 RPM
Compliance Certificates
CB, CE, RoHS, TÜV mark, UKCA, WEEE
Width
150 mm
Depth
86 mm
Height
140 mm
Weight
1.92 kg
Package Width
195 mm
Package Depth
268 mm
Package Height
97 mm
Package Weight
2.3 kg
Package Type
Box
Sustainability Certificates
ENERGY STAR, ErP
Shipping (Inner) Case Length
55.6 cm
Shipping (Inner) Case Width
31.1 cm
Shipping (Inner) Case Height
21.8 cm
Products Per Shipping (Inner) Case
6 pc(s)
Shipping (Inner) Case Gross Weight
14.9 kg
