Super Micro

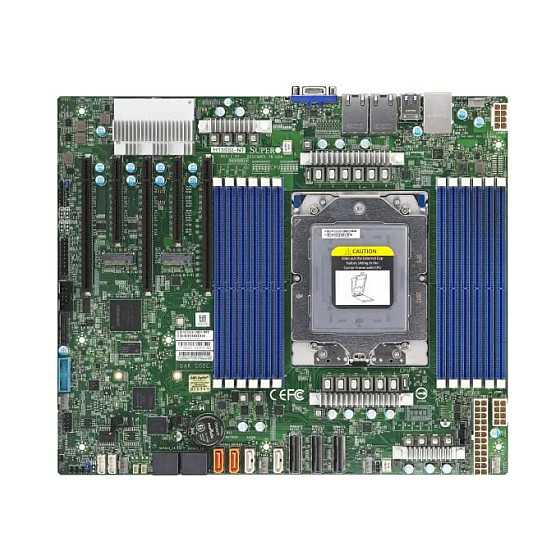

SP3 Supermicro MBD-H13SSL-NT-O
Out of Stock
€1068.99
VAT (19%) included
Description
AMD EPYC™ 9004 series Processors System on Chip Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots 3 PCIe 5.0 x16 2 PCIe 5.0 x8 2x 10GBase-T LAN Ports via Broadcom BCM57416 Up to 6 USB 3.0 ports(4 rear + 2 via header) 8 SATA3 ASPEED AST2600 BMC graphics 6 PWM 4-pin Fans with tachometer status monitoring M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110
Technical Specifications
SKU
KMBD-H13SSL-NT-O
Processor Manufacturer
AMD
Processor Socket
Socket SP5
Compatible Processor Series
AMD EPYC
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
12
Memory Slots Type
DIMM
Memory Voltage
1.1 V
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
4800 MHz
Supported Memory Clock Speed (Max)
4800 MHz
Maximum Internal Memory
3 TB
Supported Memory Module Capacities
16GB, 24GB, 32GB, 48GB, 64GB, 128GB, 256GB, 192GB, 96GB, 80GB, 40GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
8
Parallel Processing Technology Support
Not supported
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
8
Number Of Chassis Fan Connectors
6
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Com Ports Quantity
1
Ethernet Interface Type
10 Gigabit Ethernet
Lan Controller
Broadcom BCM57416
Motherboard Chipset
AMD SoC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Pci Express X16 (Gen 5.X) Slots
3
Bios Type
AMI
Bios Memory Size
32 Mbit
Acpi Version
6.4
System Management Bios (Smbios) Version
3.5
Storage Temperature (T-T)
10 - 35 °C
Operating Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
8 - 90%
Storage Relative Humidity (H-H)
5 - 95%
Width
304.8 mm
Depth
256.5 mm
