MSI

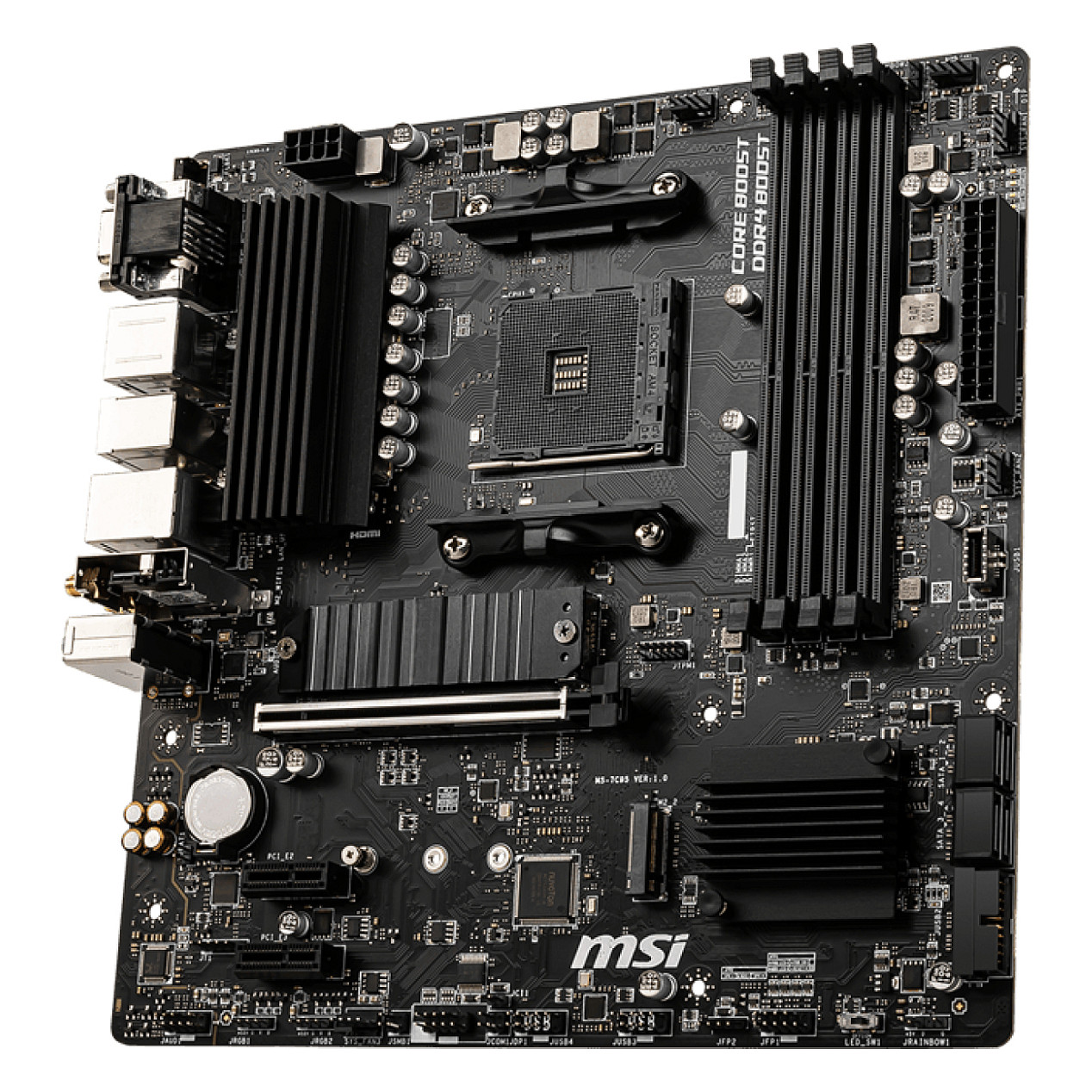

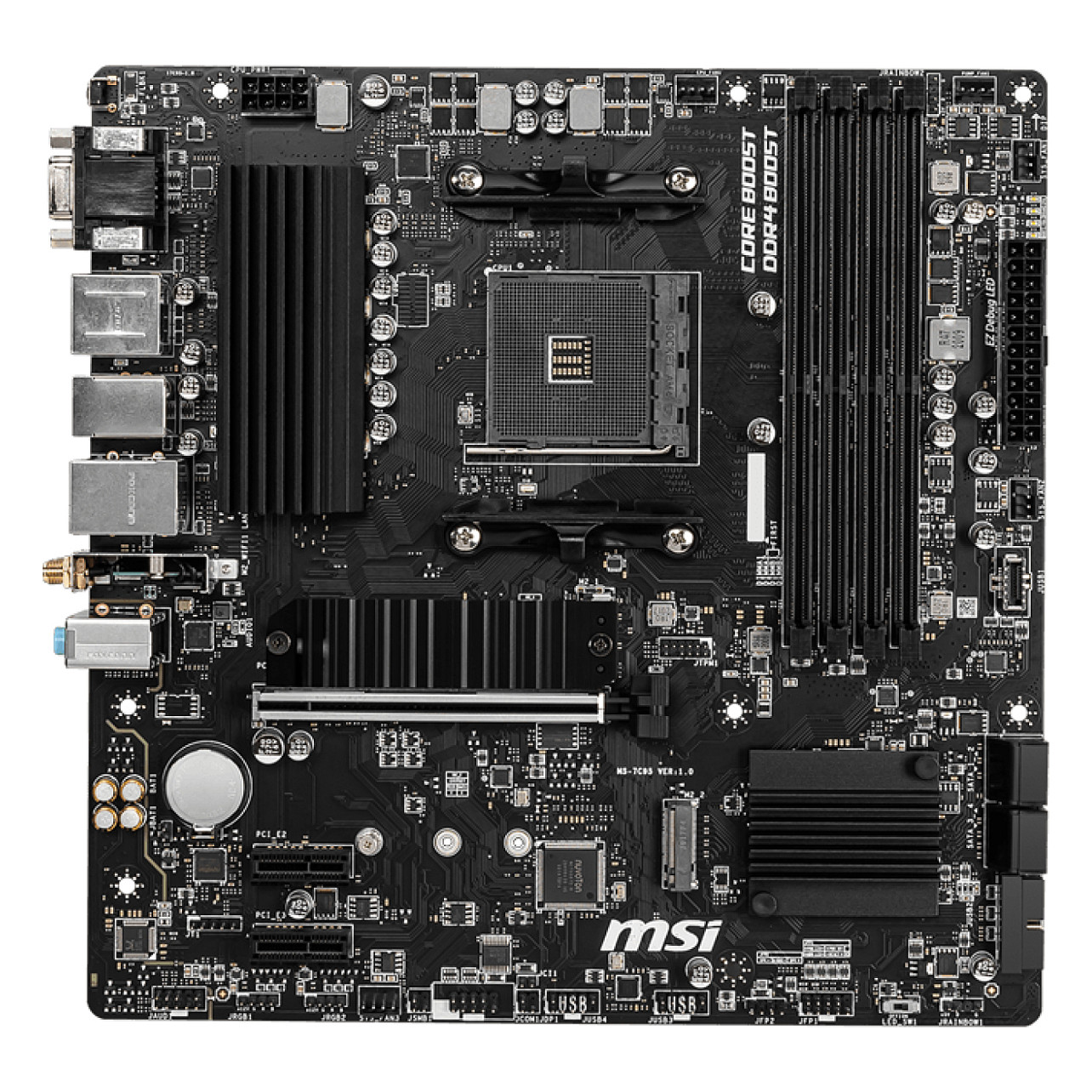

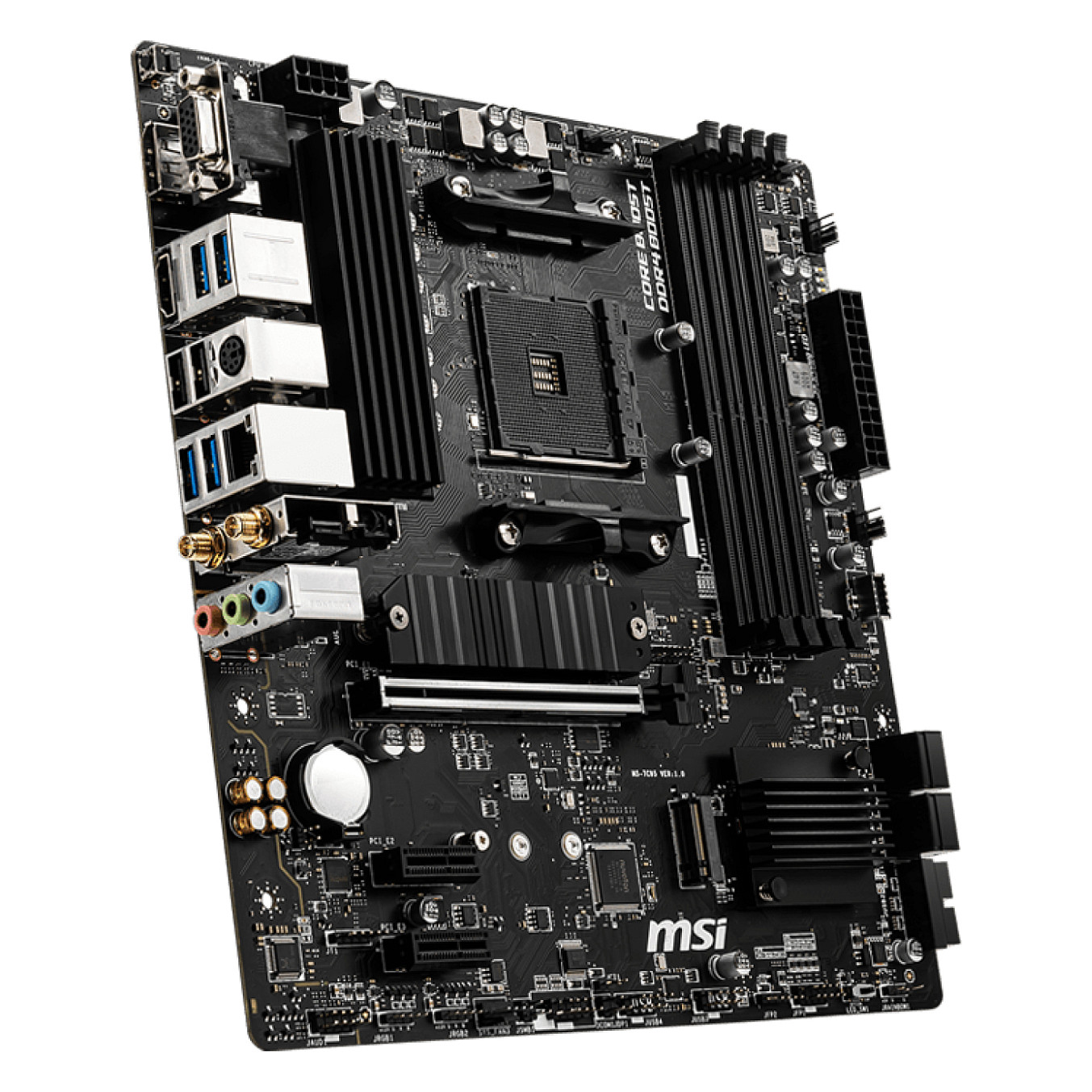

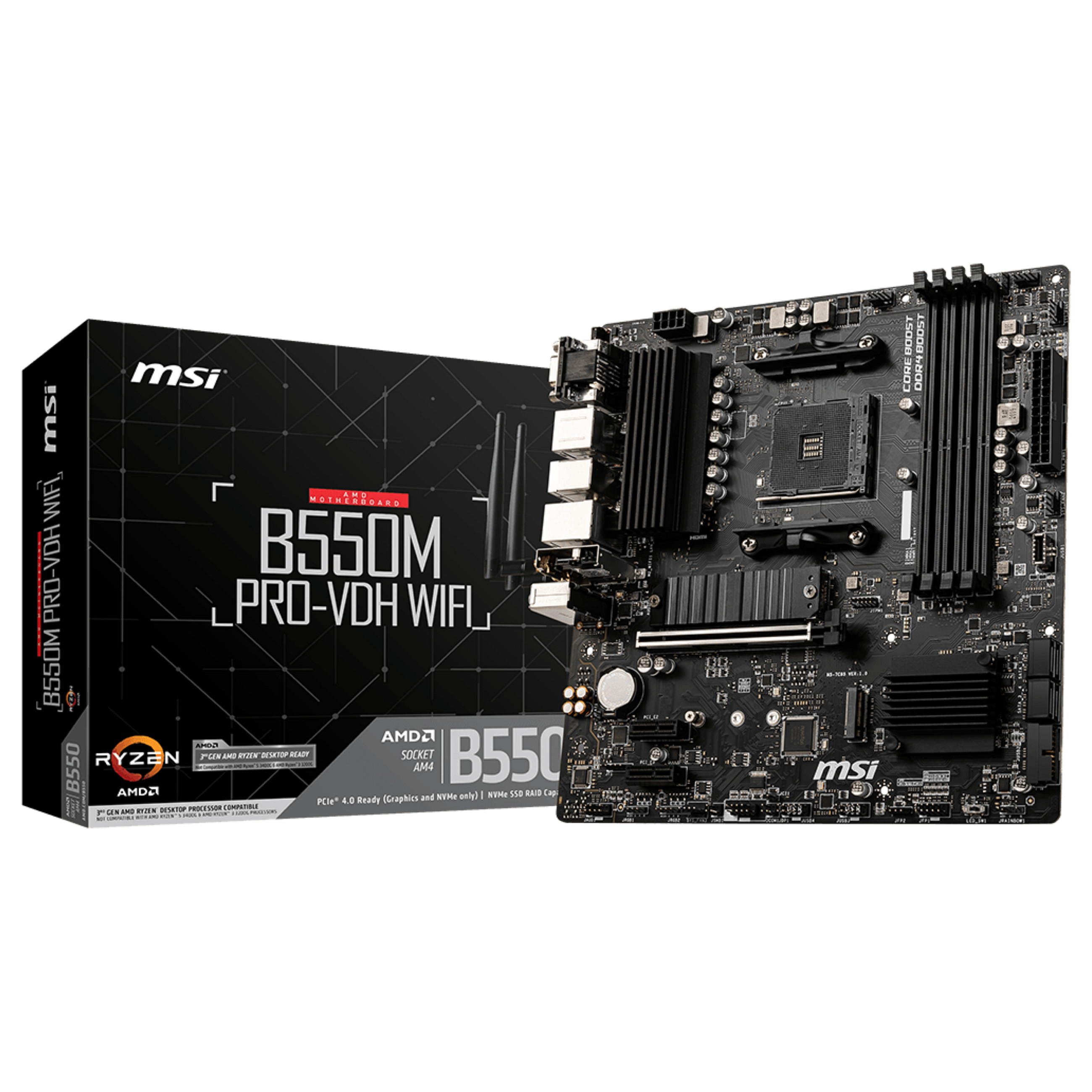

AM4 MSI B550M PRO-VDH WIFI mATX
Out of Stock
€116.99
VAT (19%) included
Description
Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update Supports DDR4 Memory, up to 4400(OC) MHz Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost Audio Boost: Reward your ears with studio grade sound quality Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Technical Specifications
SKU
K7C95-001R
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Maximum Graphics Card Memory
16000 MB
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
3
Serial Port Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek 8111HN
Top Wi-Fi Standard
Wi-Fi 5 (802.11ac)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Version
4.2
Motherboard Chipset
AMD B550
Audio Chip
Realtek ALC892
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Number Of Mounting Holes
8
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Harmonized System (Hs) Code
84733020
Width
244 mm
Depth
244 mm
Height
65 mm
Cables Included
SATA
Weight
1 kg
