Gigabyte

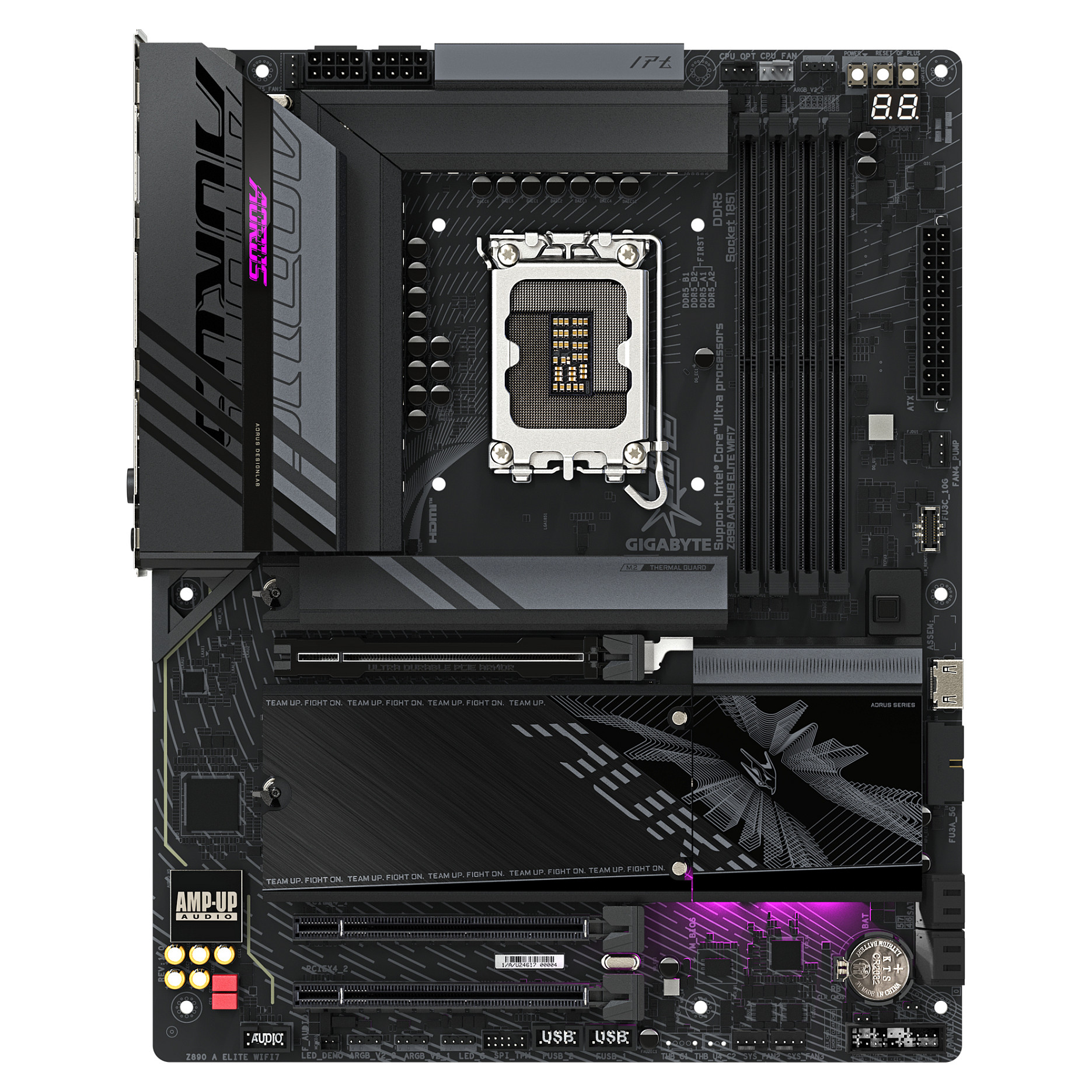

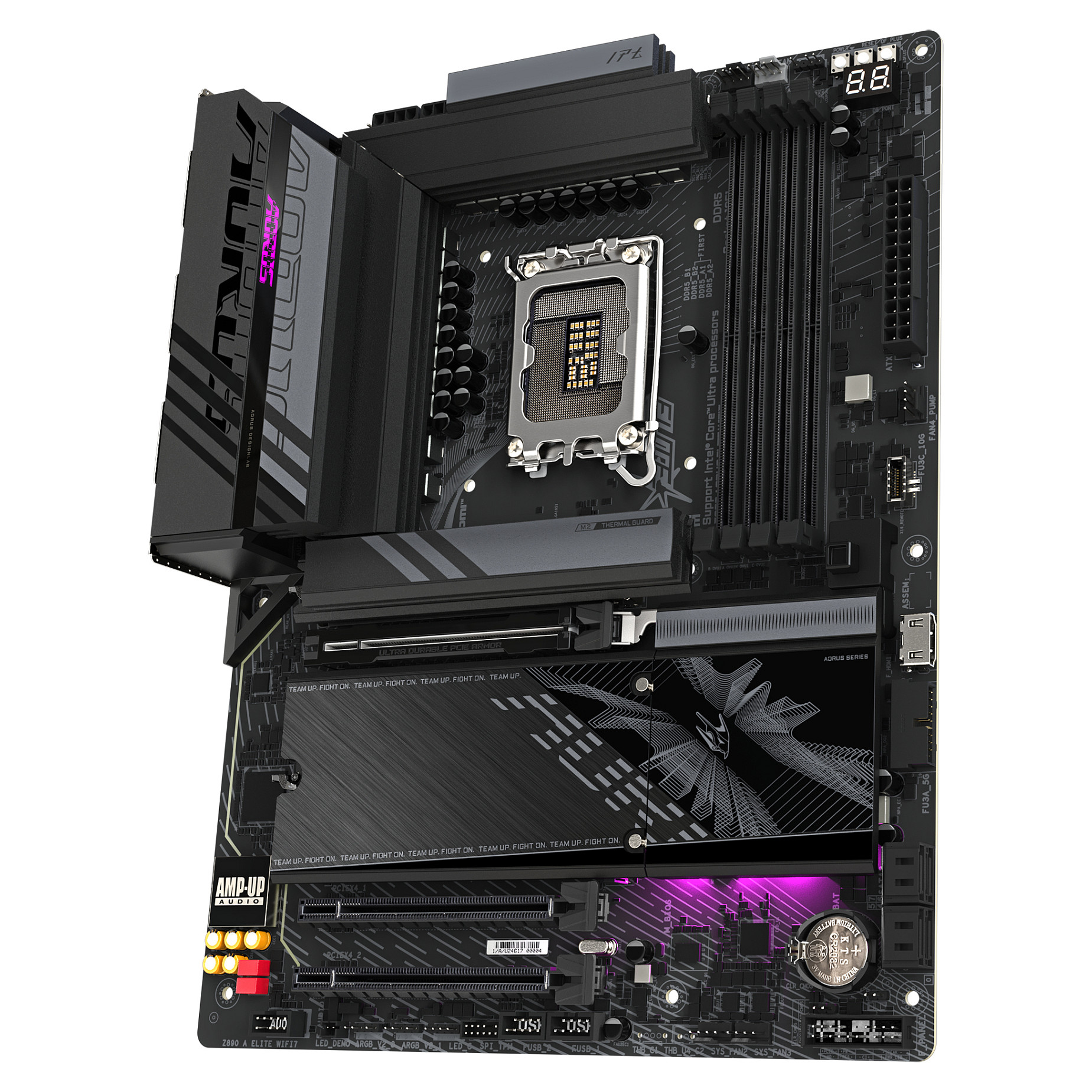

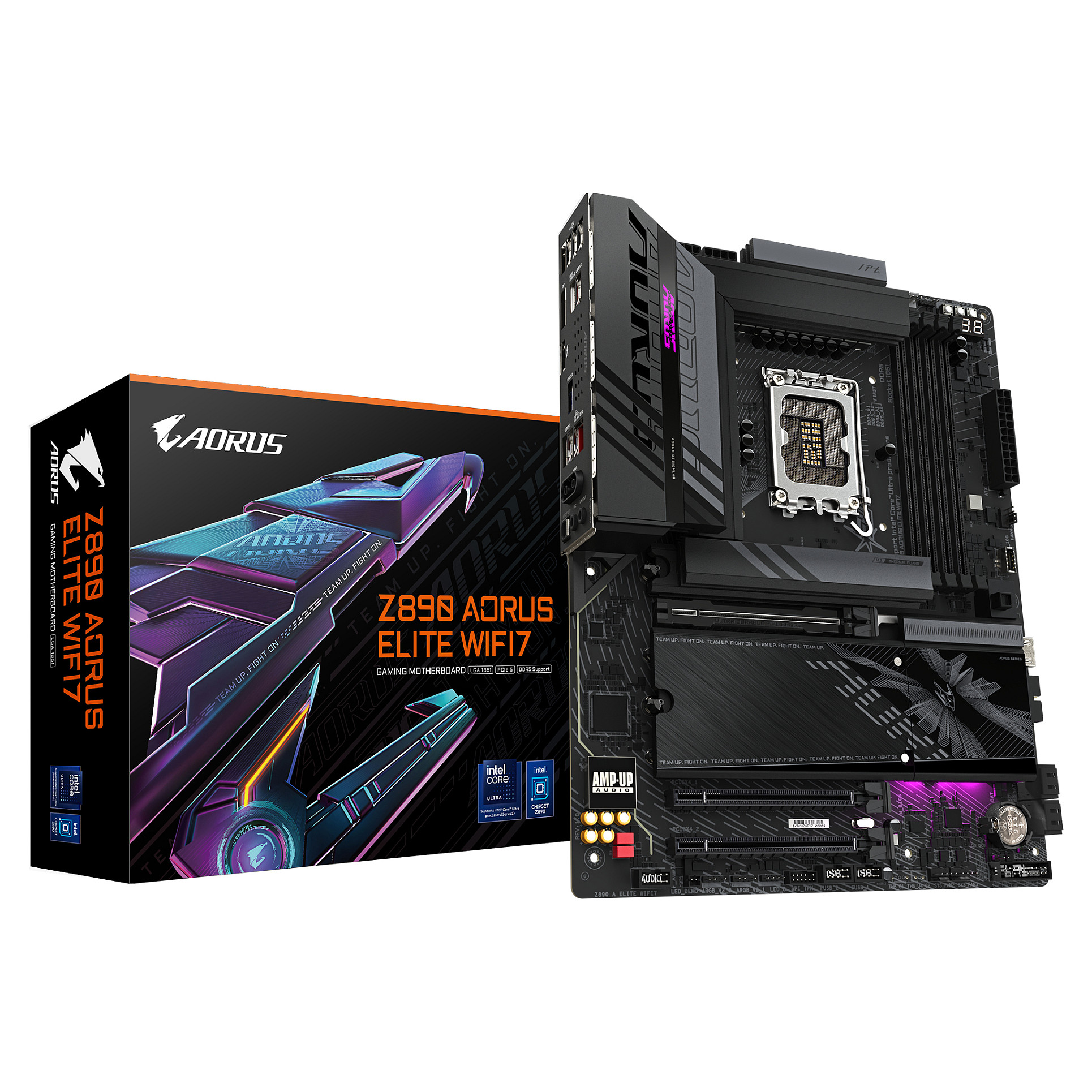

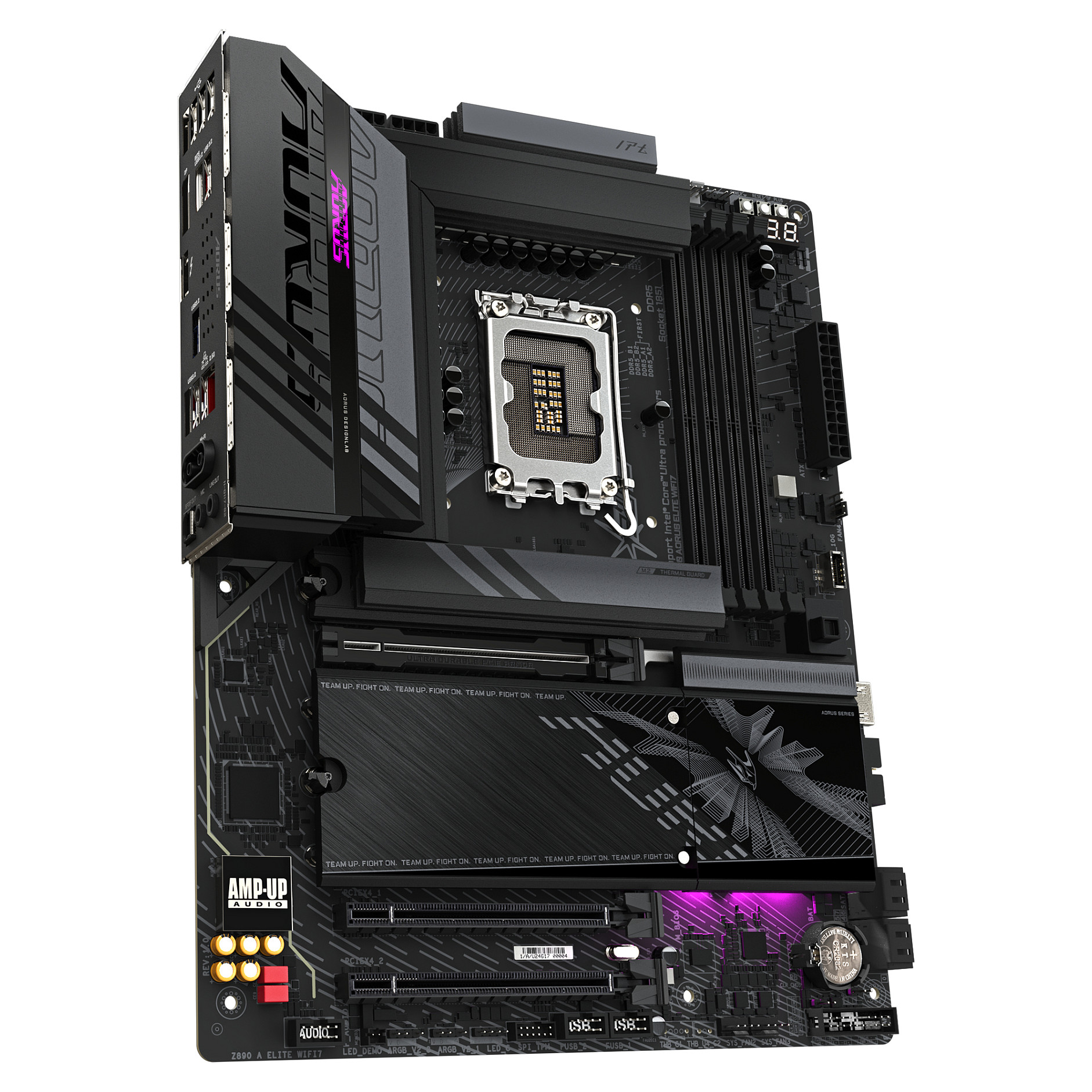

LGA1851 Gigabyte Z890 AORUS ELITE WIFI7
Out of Stock
€271.99
VAT (19%) included
Description
Digital 16+1+2+1 Phases 80A SPS VRM with Tantalum Polymer Capacitor Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design 2x2 Wi-Fi 7 with WIFI EZ-Plug Design 2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2 Type-C
Technical Specifications
SKU
KZ890 AORUS ELITE WIFI7
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Maximum Internal Memory Supported By Processor
256 GB
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MHz
Supported Memory Clock Speed (Max)
8800 MHz
Maximum Internal Memory
256 GB
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
8
Number Of Storage Drives Supported
4
Raid Levels
0, 1, 5, 10
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Number Of Eps Power Connectors (8-Pin)
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
2
Thunderbolt Ports Quantity
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
Wi-Fi 7 (802.11be)
Wlan Controller Model
MediaTek MT7925
Bluetooth Version
5.4
Motherboard Chipset
Intel Z890
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Product Colour
Black
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
4
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
335 mm
Package Depth
270 mm
Package Height
80 mm
Package Weight
2.5 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
2.23 kg
Warranty Period
3 year(s)
