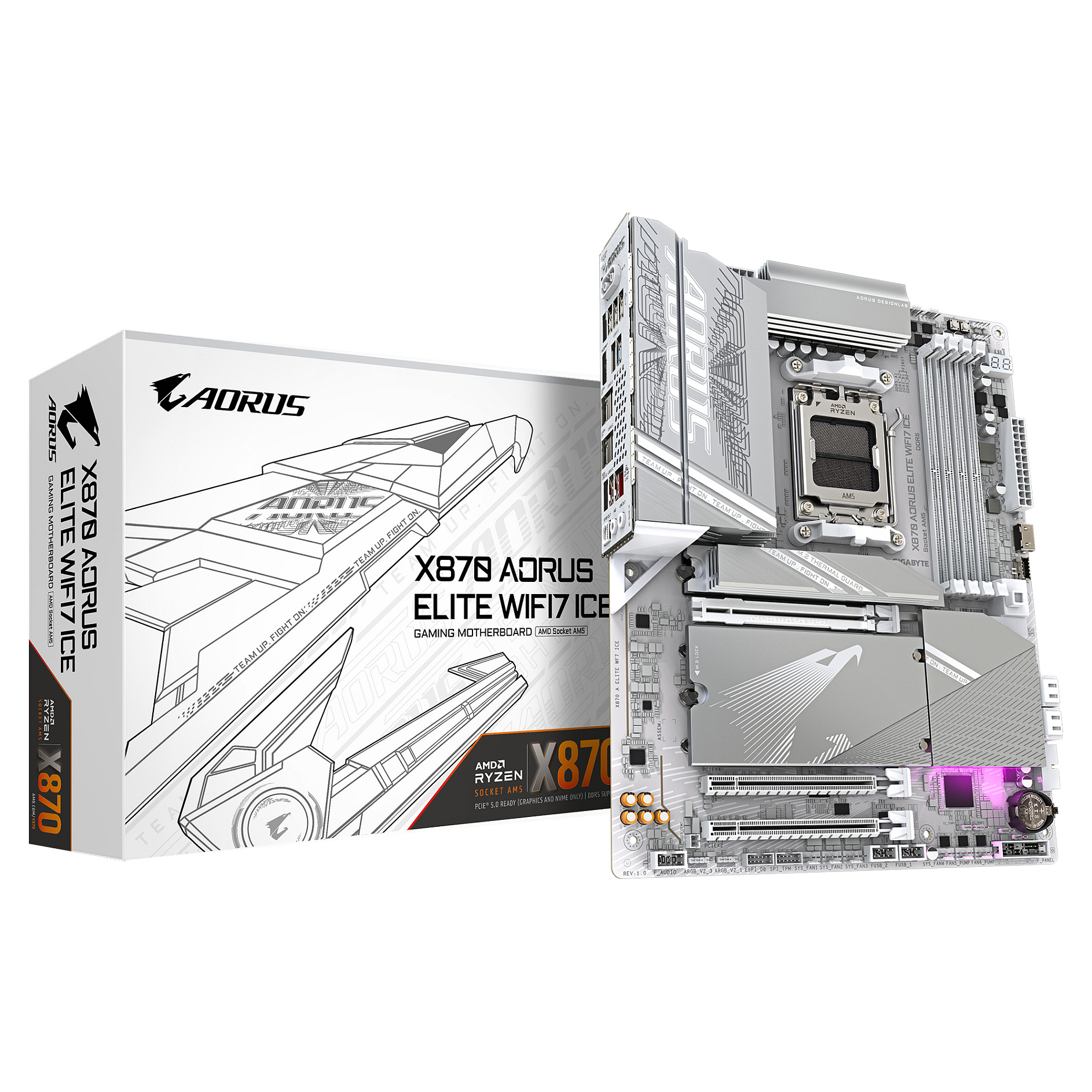

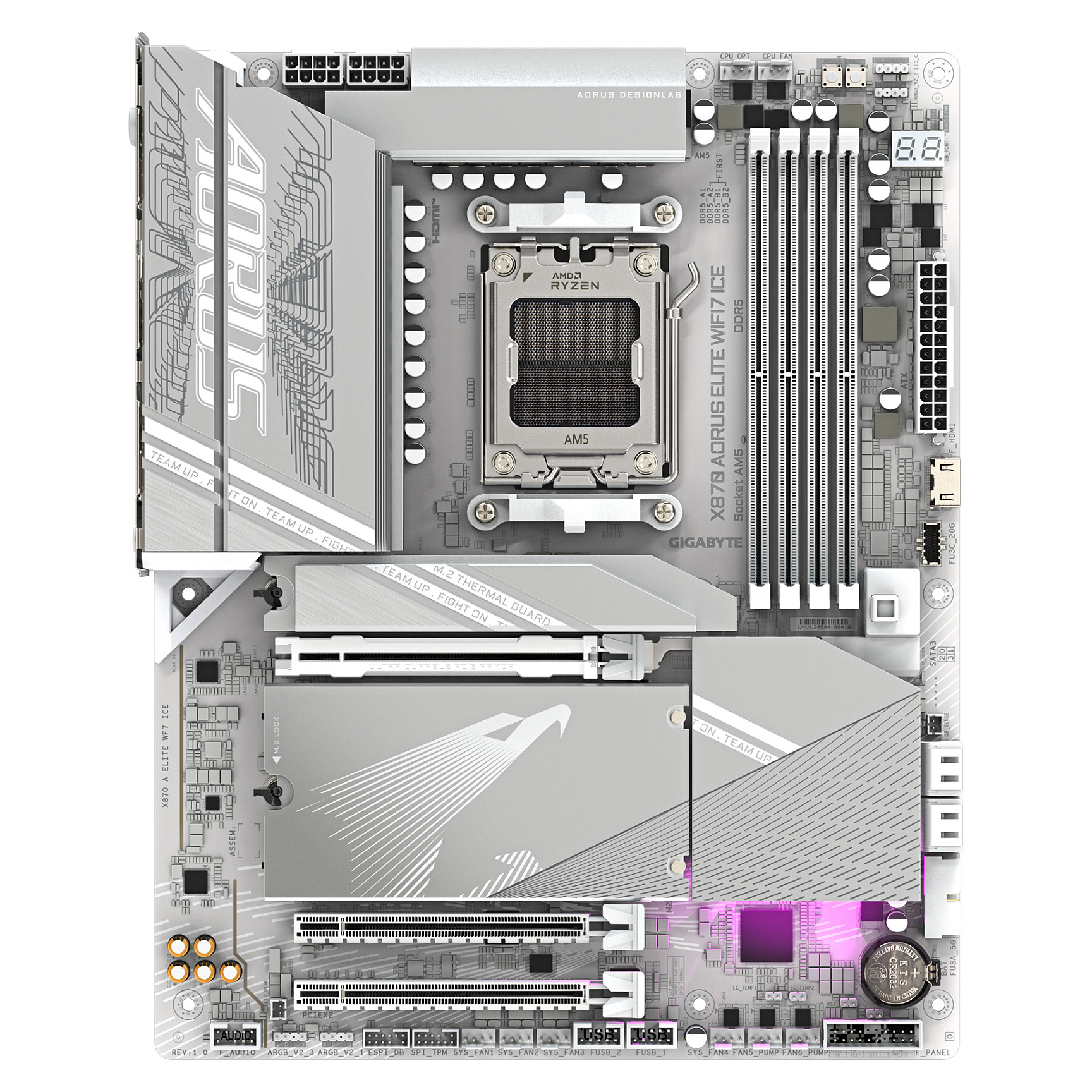

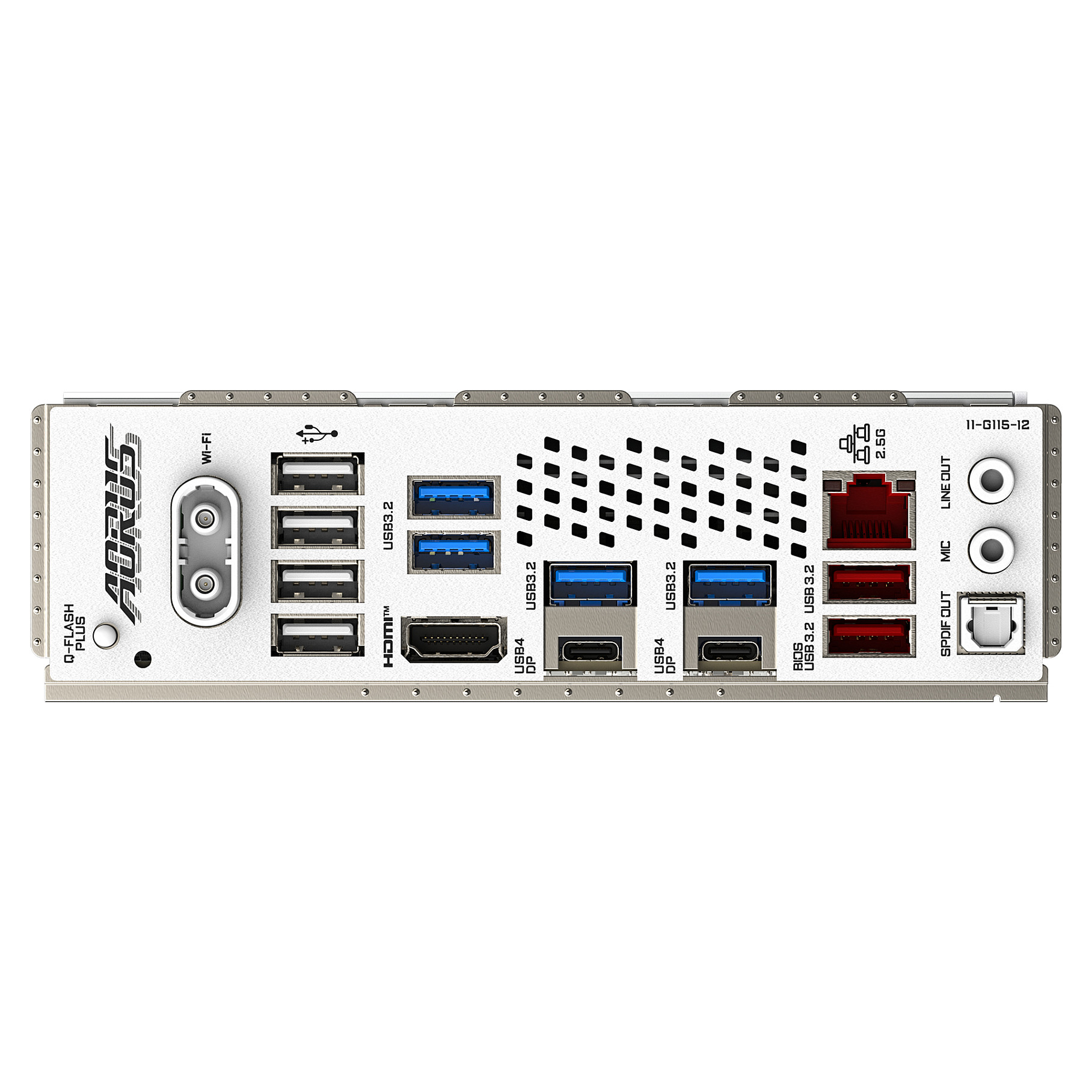

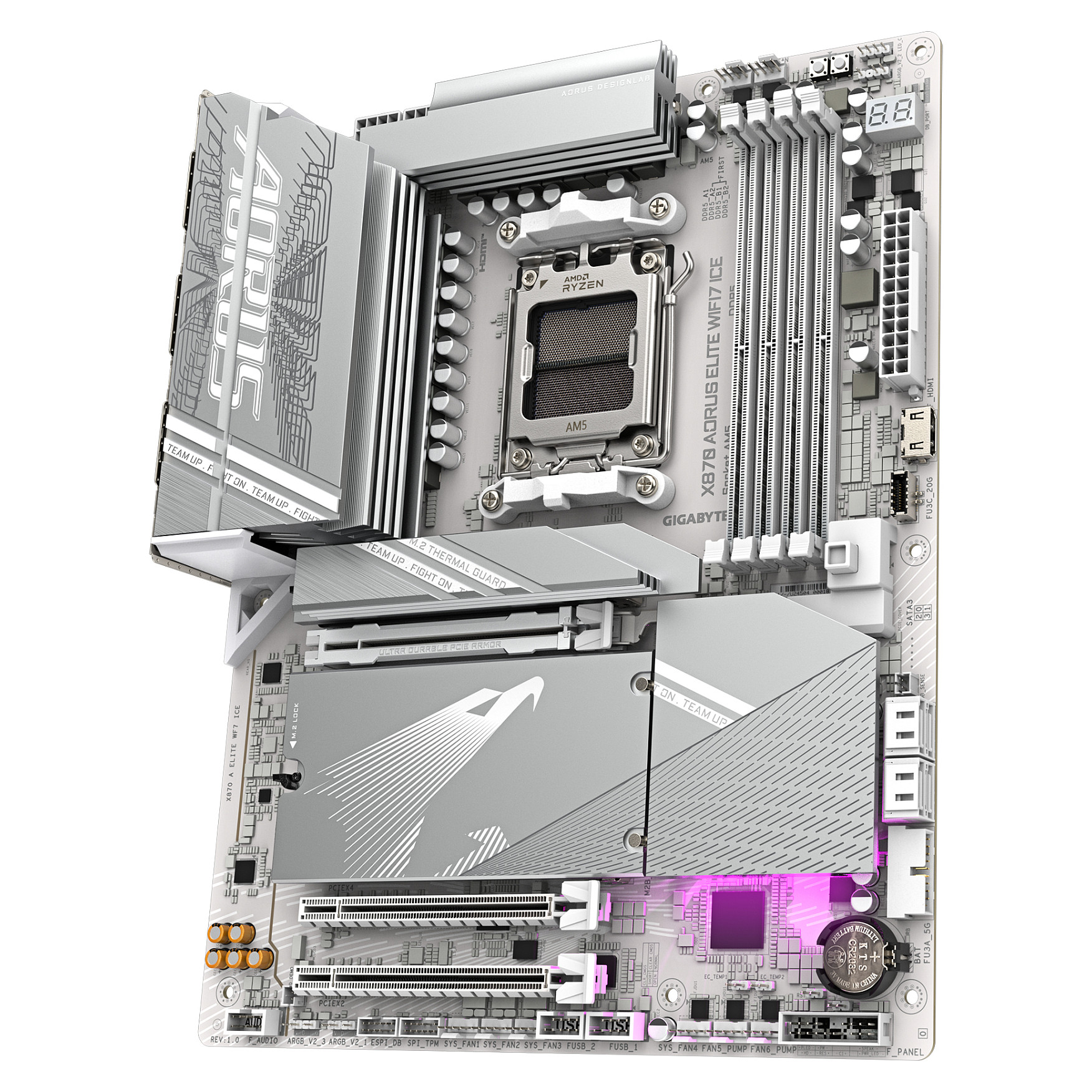

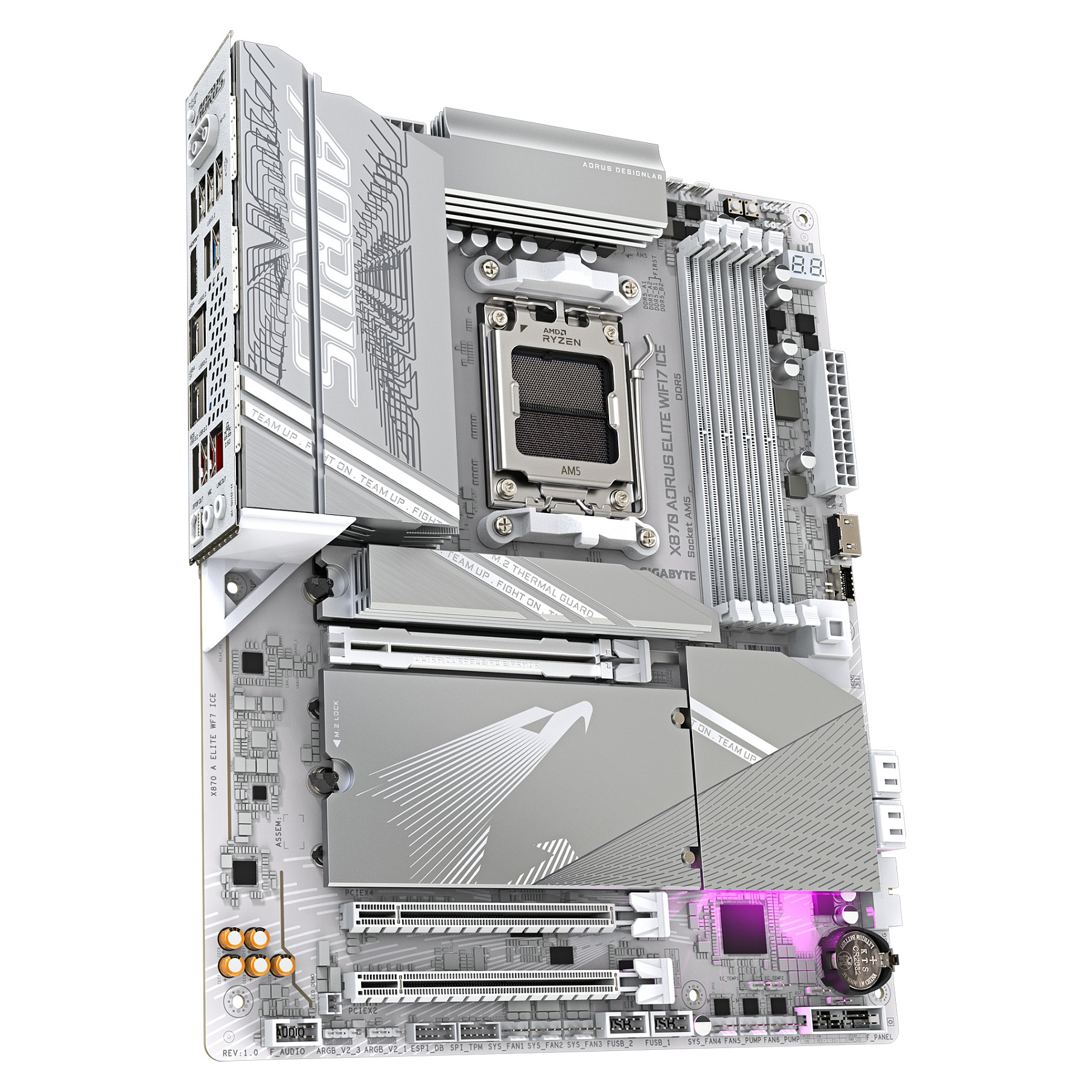

AM5 Gigabyte X870 AORUS ELITE WF7 ICE
Out of Stock
€287.99
VAT (19%) included
Description
Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors Twin 16+2+2 Phases Digital VRM with DrMOS Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Technical Specifications
SKU
KX870 A ELITE WF7 ICE
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Maximum Internal Memory Supported By Processor
256 GB
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000, 8200 MHz
Supported Memory Clock Speed (Max)
8200 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2
Number Of Hdds Supported
4
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Number Of Displays Supported
4
On-Board Graphics Card Model
AMD Radeon Graphics
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
6
Number Of Eps Power Connectors (8-Pin)
2
Number Of Water Pump Connectors
3
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb4 Gen 3X2 Ports Quantity
2
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wlan Controller Model
MediaTek MT7925
Bluetooth Version
5.4
Motherboard Chipset
AMD X870
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Product Colour
White
Pc Health Monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
25110
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
5.0
3Rd M.2 Largest Key Size
22110
3Rd M.2 Highest Pci Express Generation
5.0
4Th M.2 Largest Key Size
22110
4Th M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
335 mm
Package Depth
270 mm
Package Height
80 mm
Package Weight
2.74 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
2.4 kg
Warranty Period
3 year(s)
