ASUS

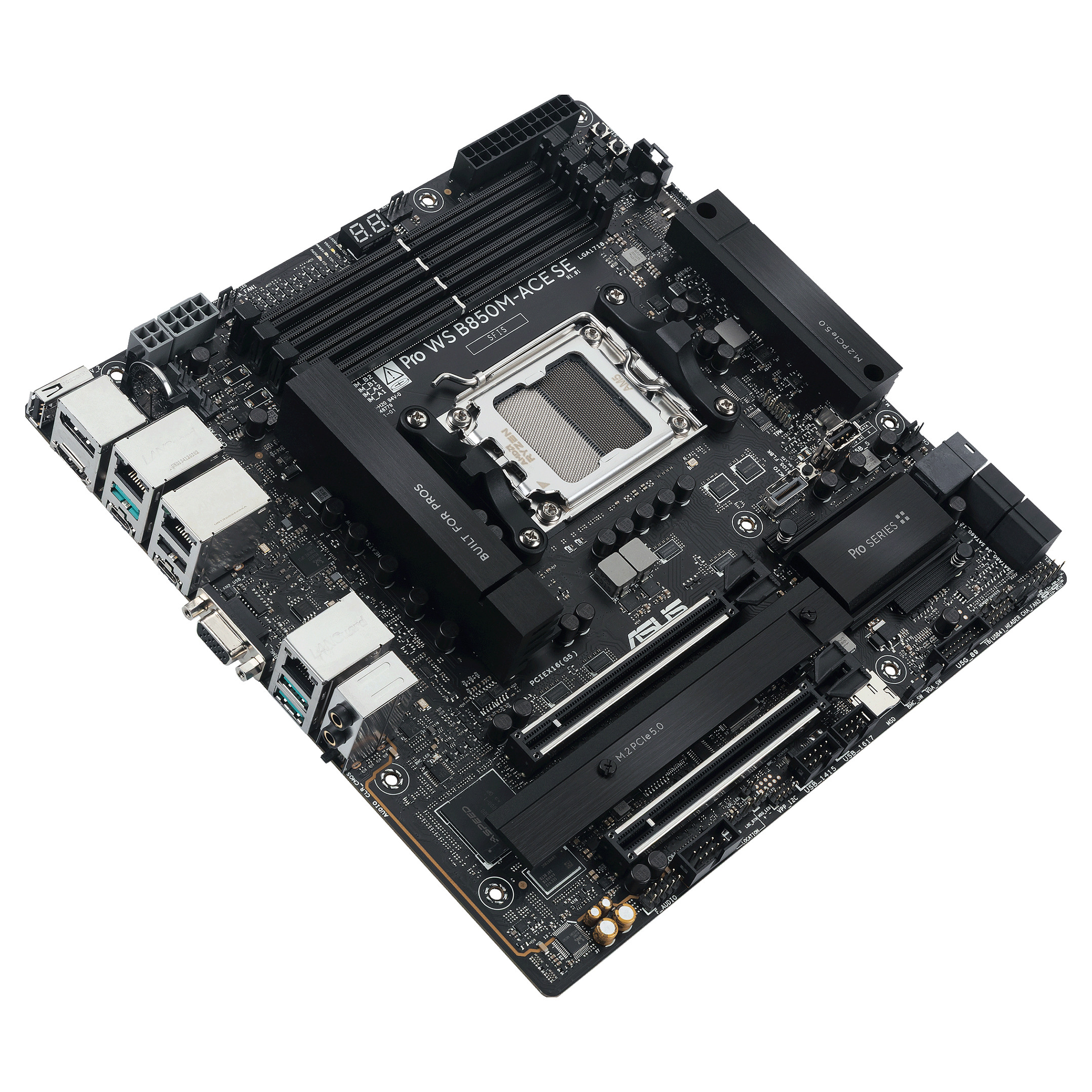

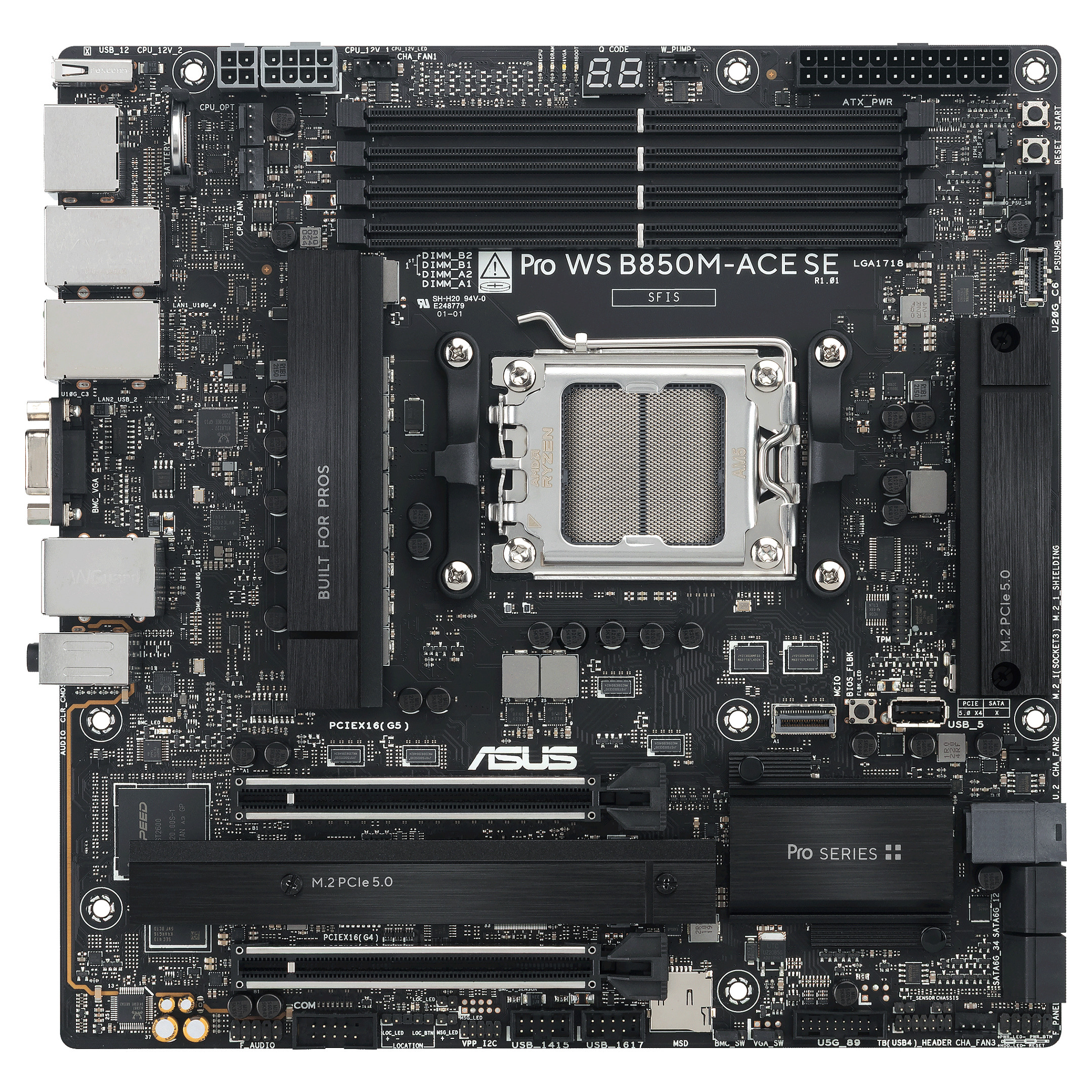

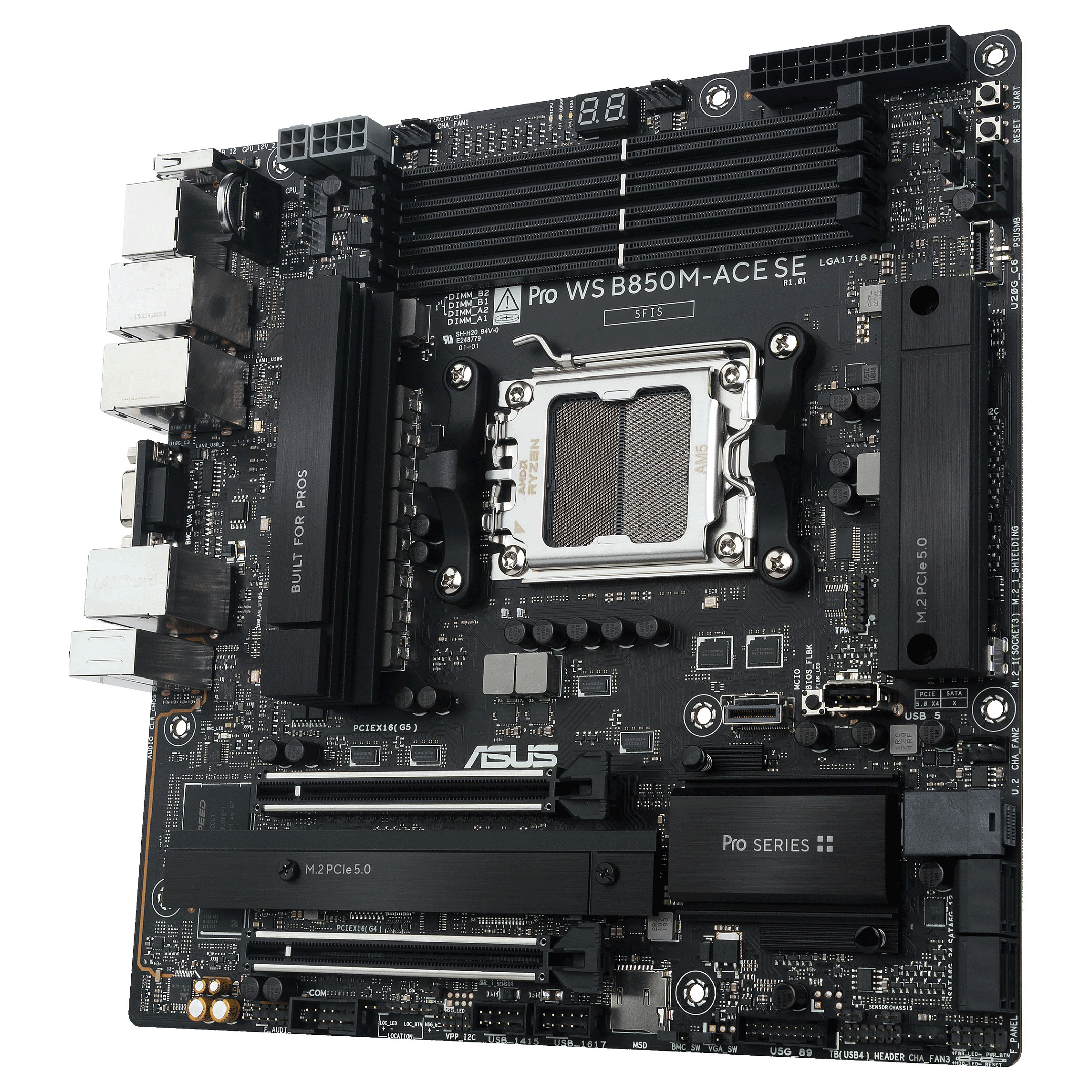

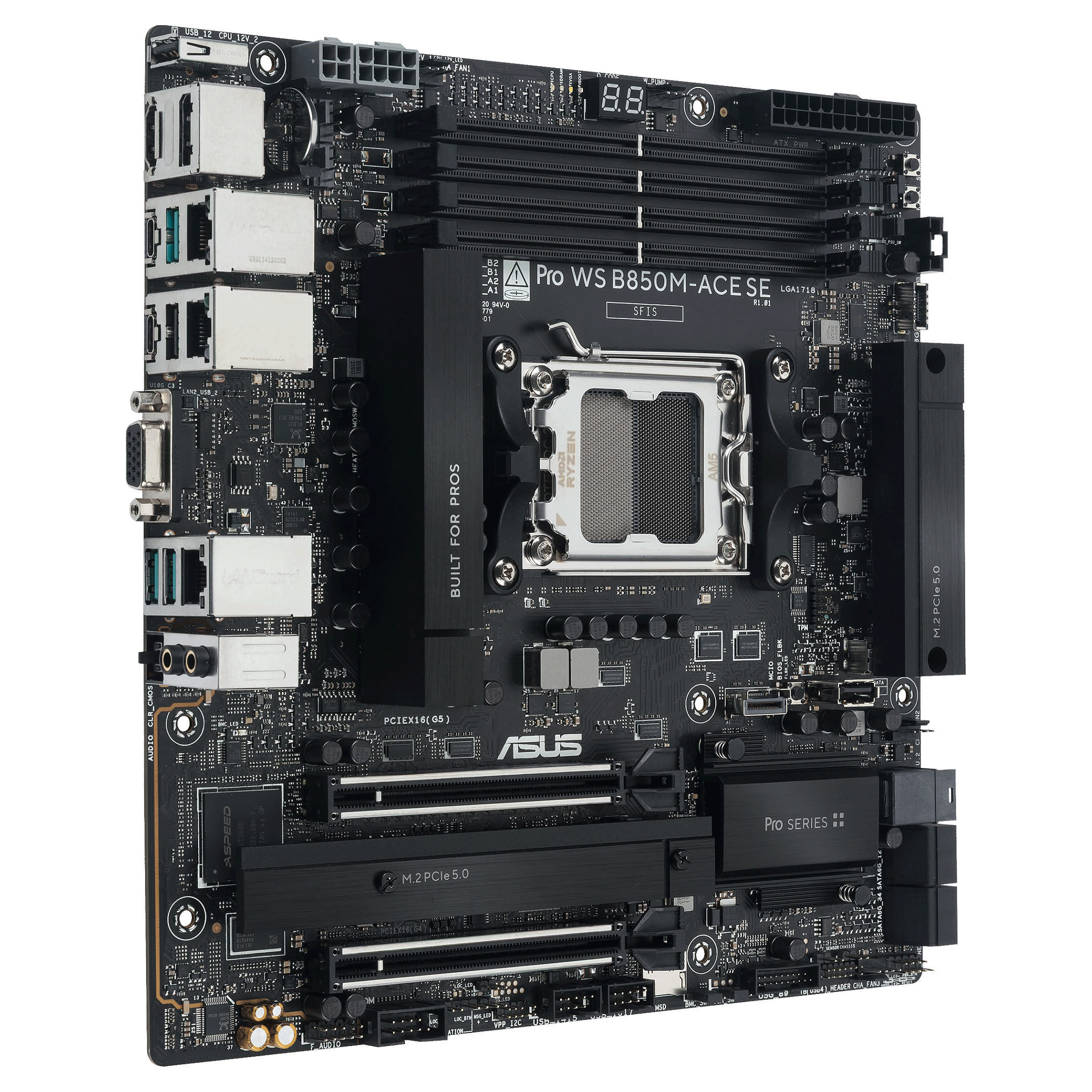

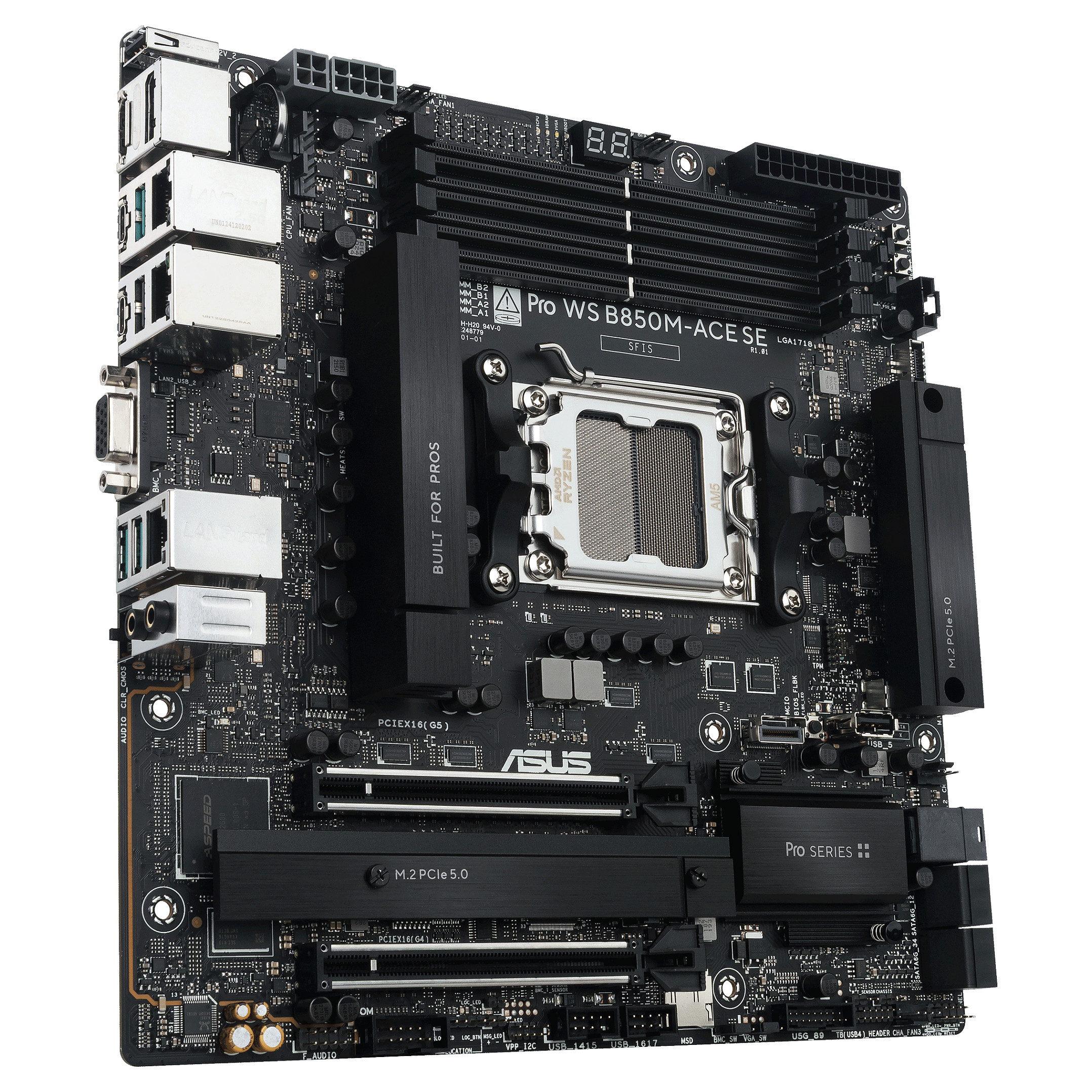

MB ASUS PRO WS B850M-ACE SE
Pre-Order
€423.99
VAT (19%) included
Description
Ready for Advanced AI PCs: Built to power next-gen AI workloads with robust performance, ultrafast connectivity, and future-proof architecture AMD AM5 Socket Support: Compatible with AMD Ryzen 9000/8000/7000 Series and AMD EPYC 4005 Series processors Ultrafast Connectivity: Two PCIe 5.0/4.0 x16 slot (one at x4), 10 Gb & 2.5 Gb LAN ports, two PCIe 5.0 x4 M.2 slots, front USB 20Gbps Type-C and MCIO NVMe support Server-grade IPMI Remote Management: Supports onboard BMC AST2600, along with ASUS Control Center Express IT management software for real-time monitoring and management Proven Reliability & Stability: Extensively validated with broad compatibility, a comprehensive QVL, and tested for 24/7 operation
Technical Specifications
SKU
K90MB1MN0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speed (Max)
8000 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
7680 x 4320 pixels
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
3
Peripheral (Molex) Power Connectors (4-Pin)
1
Number Of Eps Power Connectors (8-Pin)
1
Number Of Com Connectors
1
Number Of Water Pump Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
2
Ethernet Lan (Rj-45) Ports
3
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Ethernet Interface Type
2.5 Gigabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD B850
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
5.0
Bios Type
UEFI AMI
Bios Memory Size
512 Mbit
Package Width
280 mm
Package Depth
265 mm
Package Height
71 mm
Width
244 mm
Depth
244 mm
Height
50 mm
Cables Included
SATA
Weight
1.03 kg
