Gigabyte

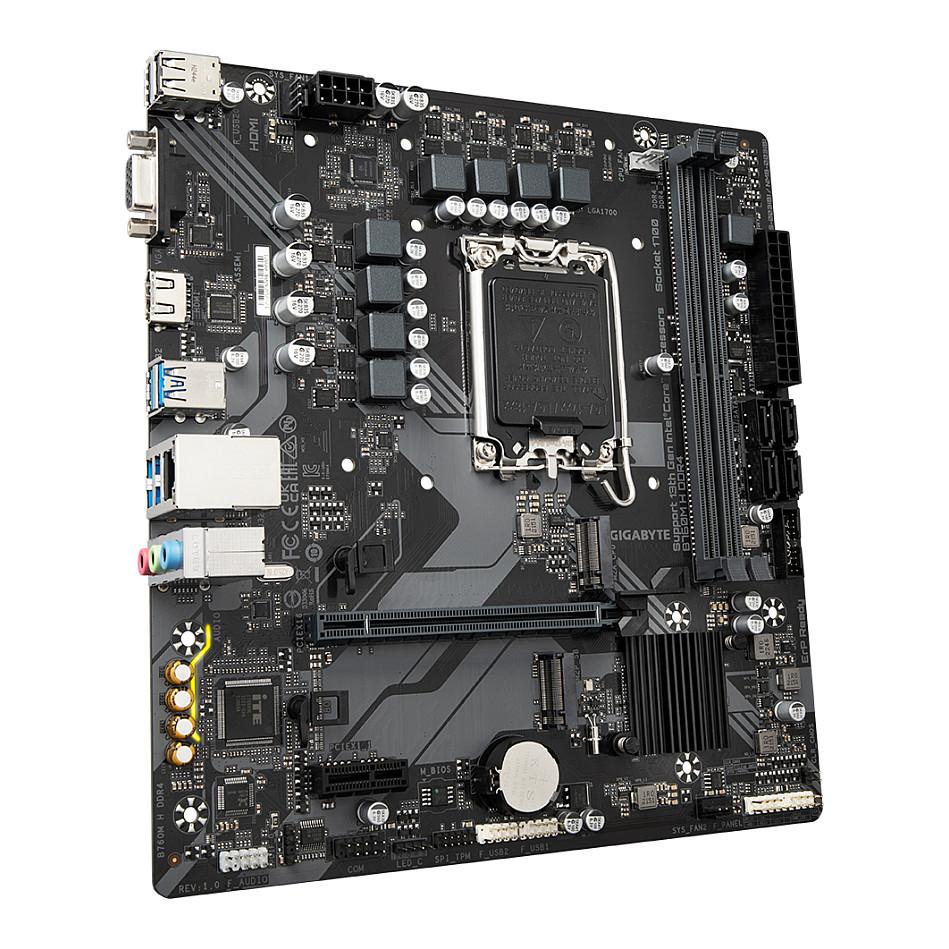

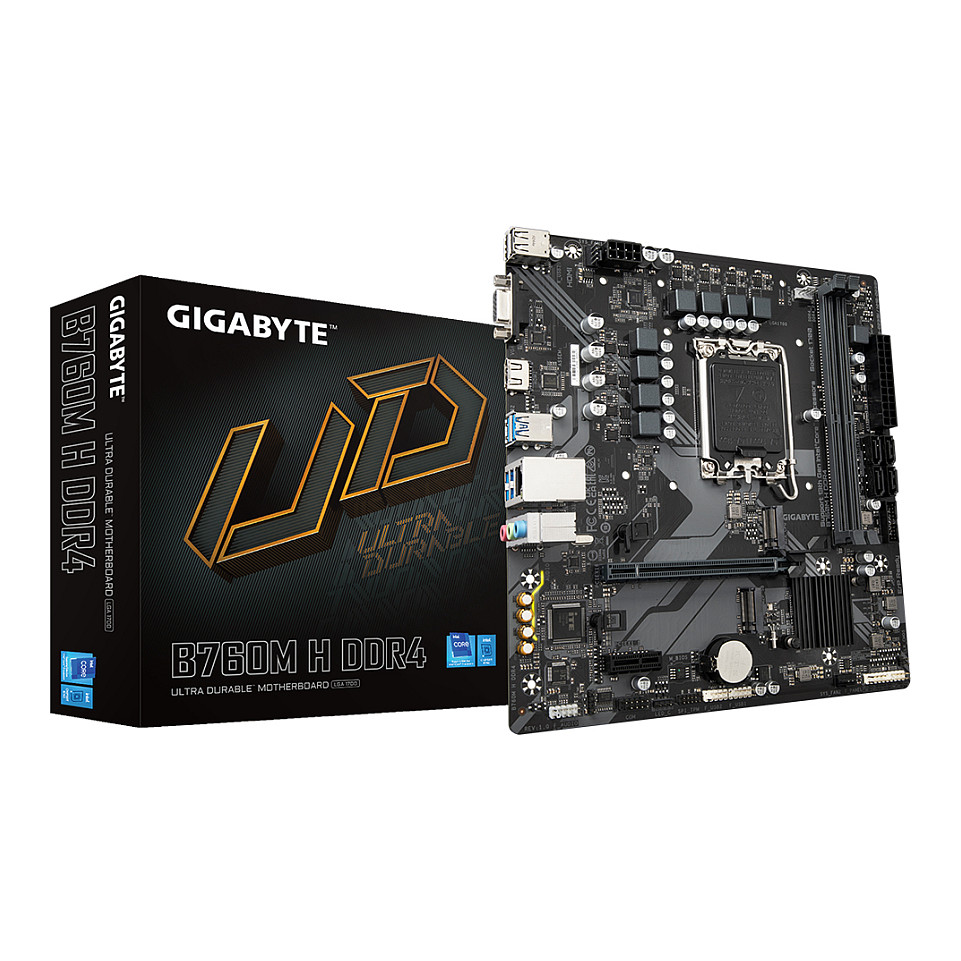

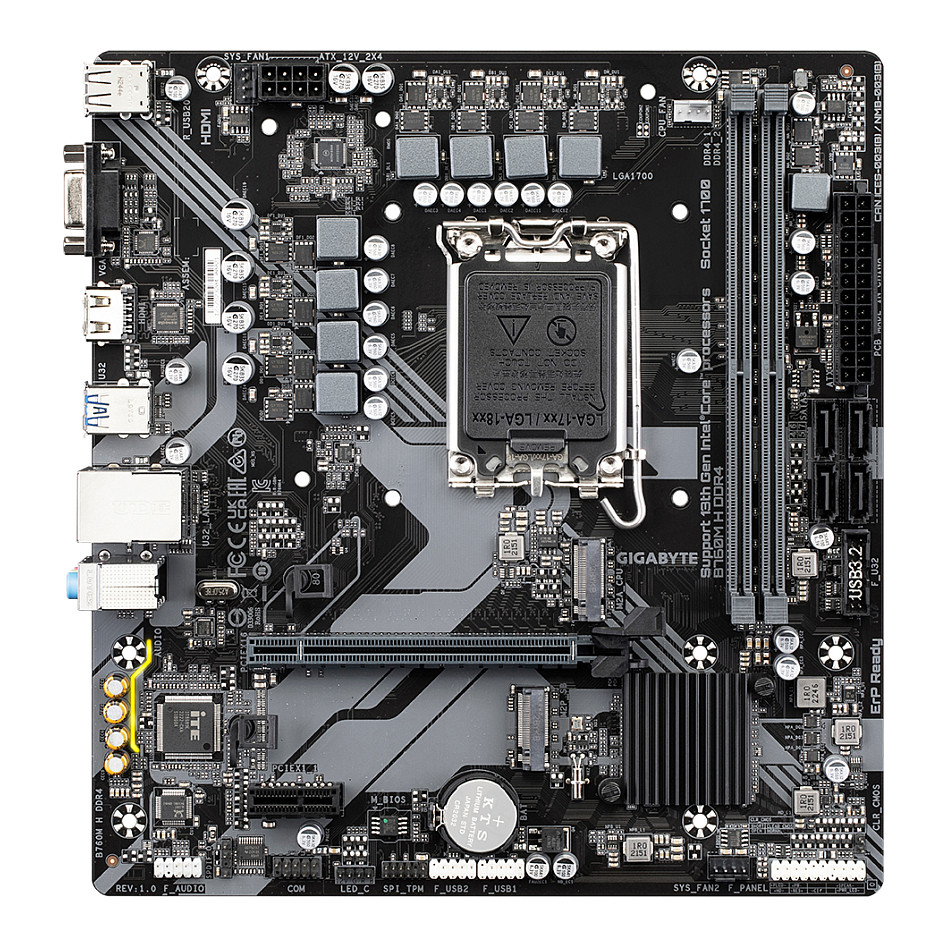

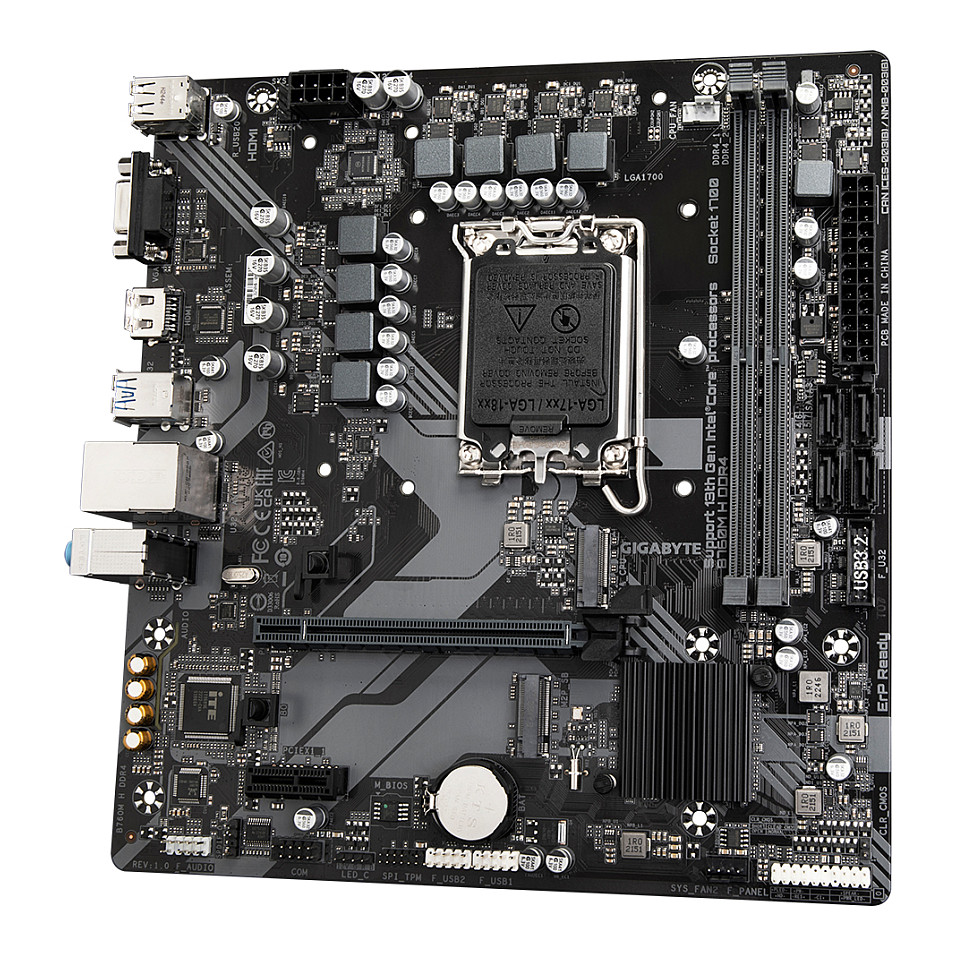

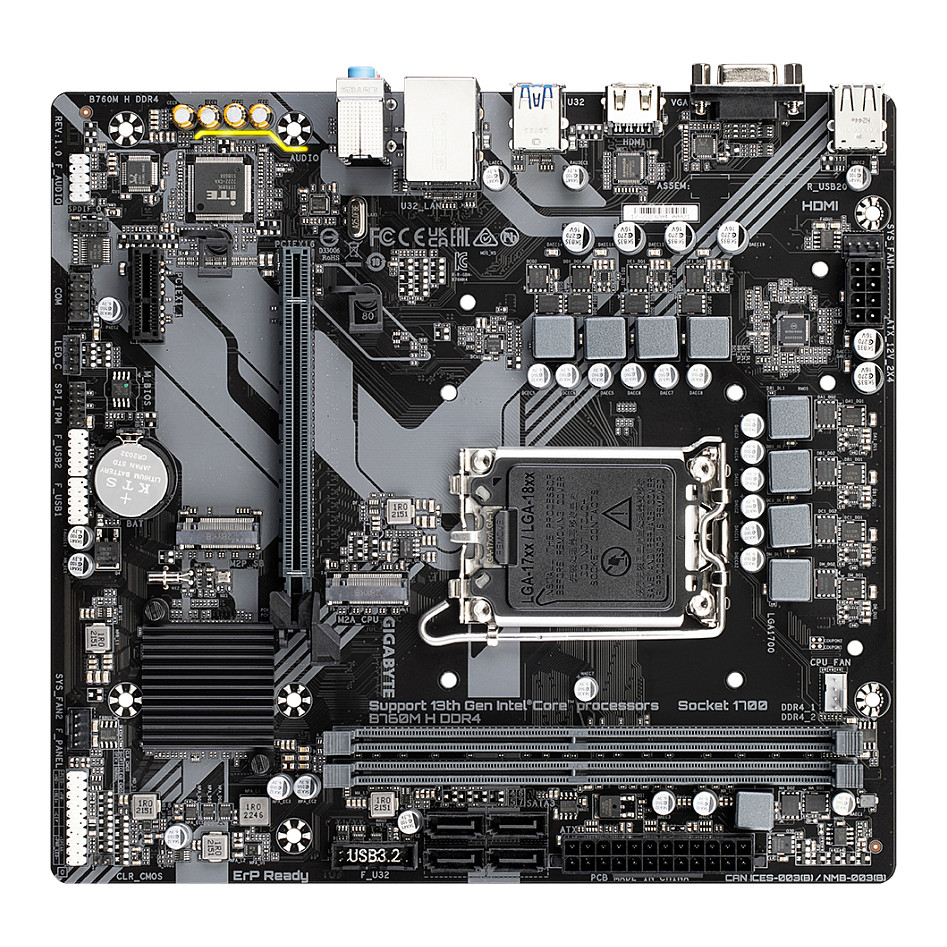

GA-B760M H DDR4 (1700) (D)
Pre-Order
€93.99
VAT (19%) included
Description
Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution Dual Channel DDR4：2DIMMs XMP Memory Module Support Next Generation Storage：2PCIe 4.0 x4 M.2 Connectors EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design Fast Networks：GbE LAN Extended Connectivity：HDMI, D-Sub Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Technical Specifications
SKU
KB760M H DDR4
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Pentium® Gold
Maximum Number Of Smp Processors
1
Supported Processor Sockets
LGA 1700
Maximum Internal Memory Supported By Processor
64 GB
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2666, 2933, 3000, 3200 MHz
Supported Memory Clock Speed (Max)
3200 MHz
Maximum Internal Memory
64 GB
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Directx Version
12.1
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Serial Port Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
1.4
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
Gigabit Ethernet
Motherboard Chipset
Intel B760 Express
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Brown
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
265 mm
Package Height
54 mm
Package Weight
825 g
Width
230 mm
Depth
215 mm
Height
35 mm
Warranty Period
3 year(s)
