ASRock

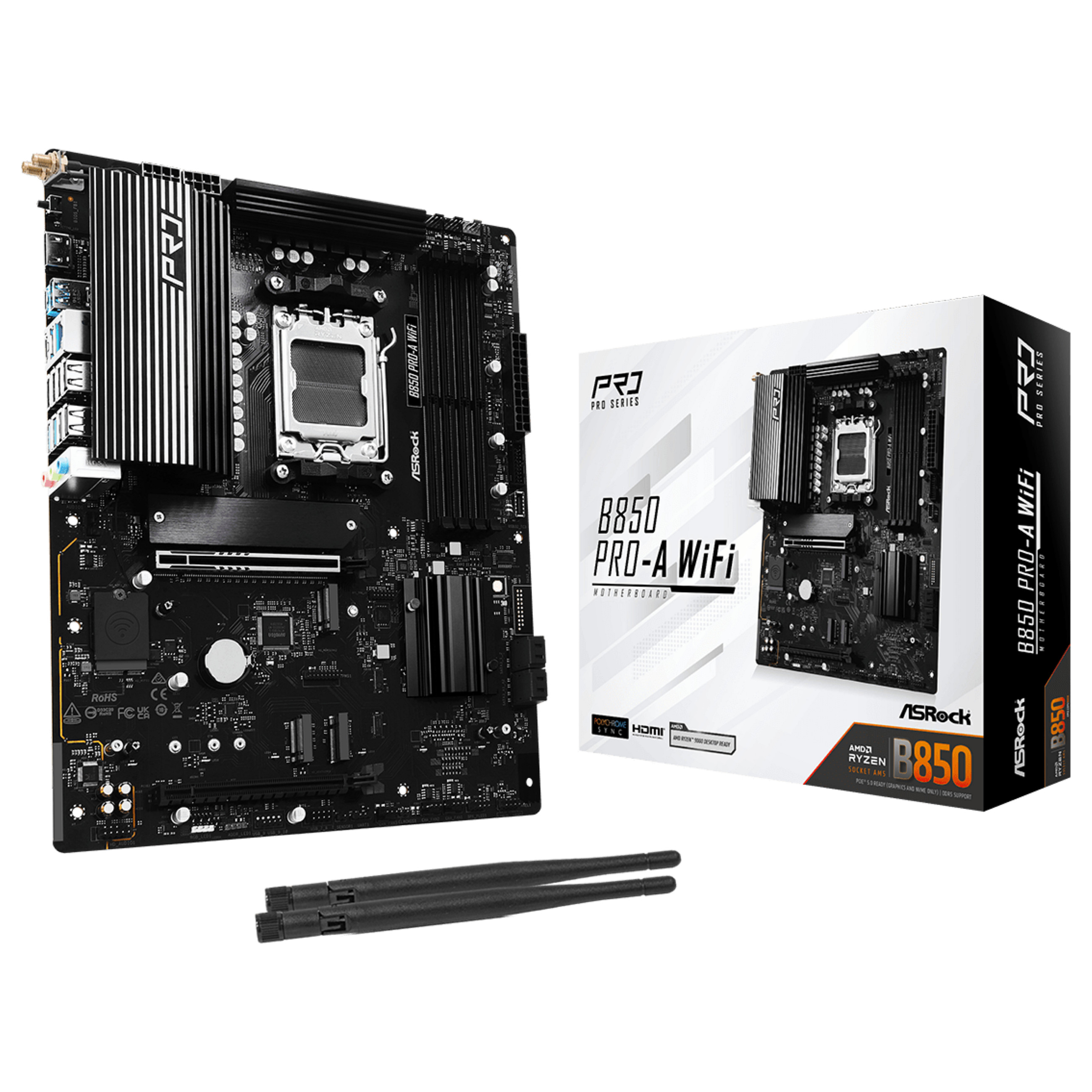

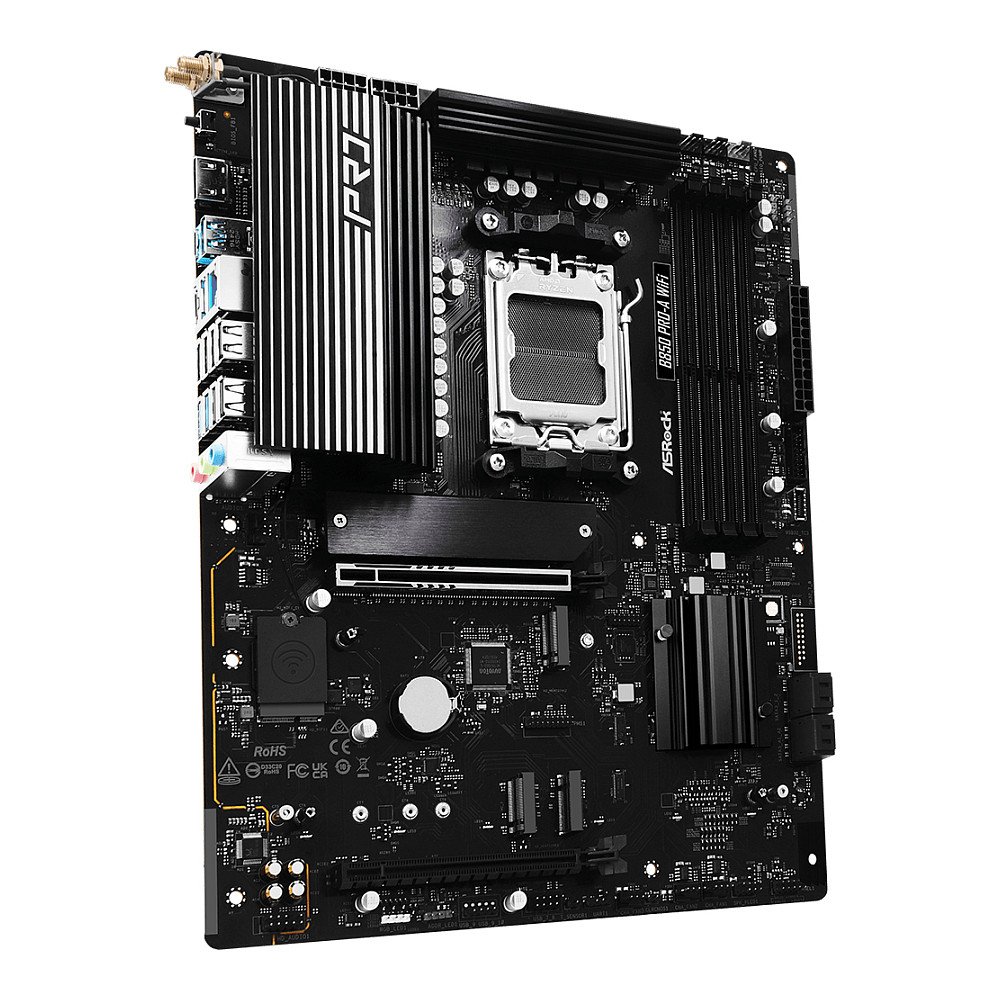

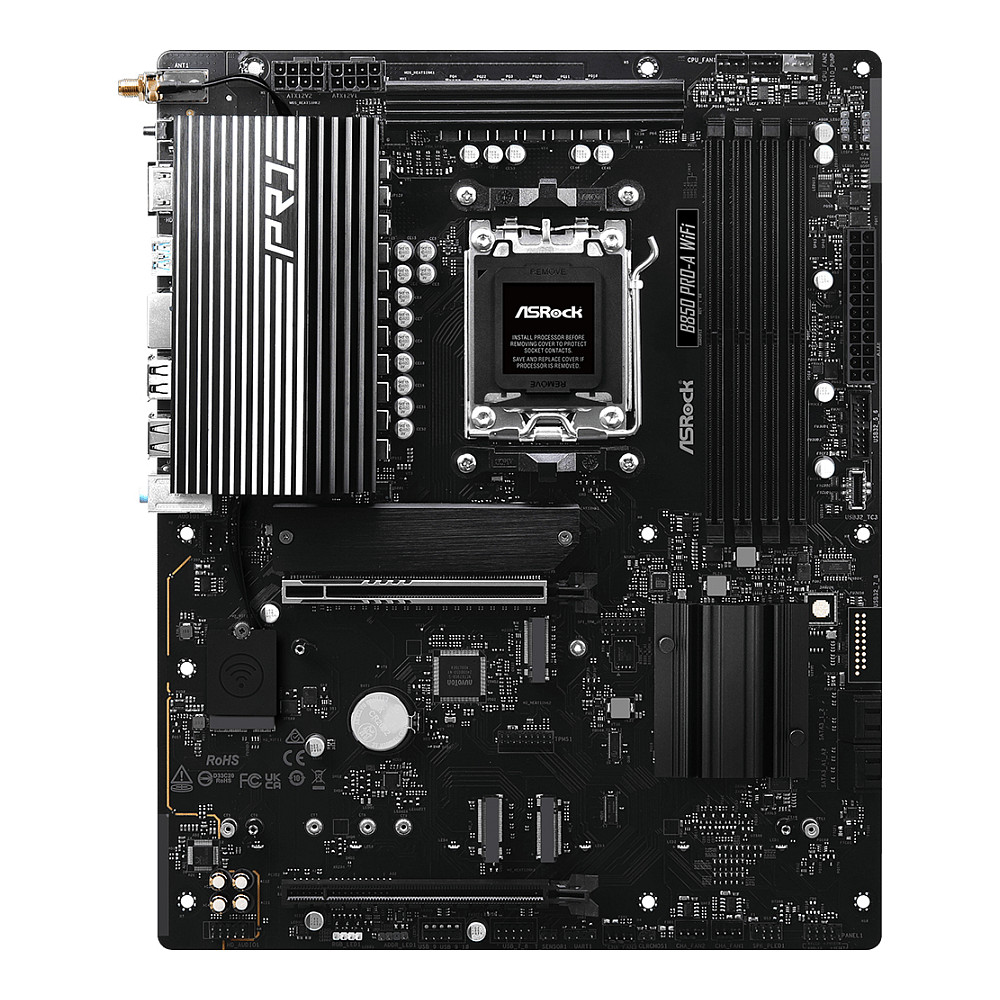

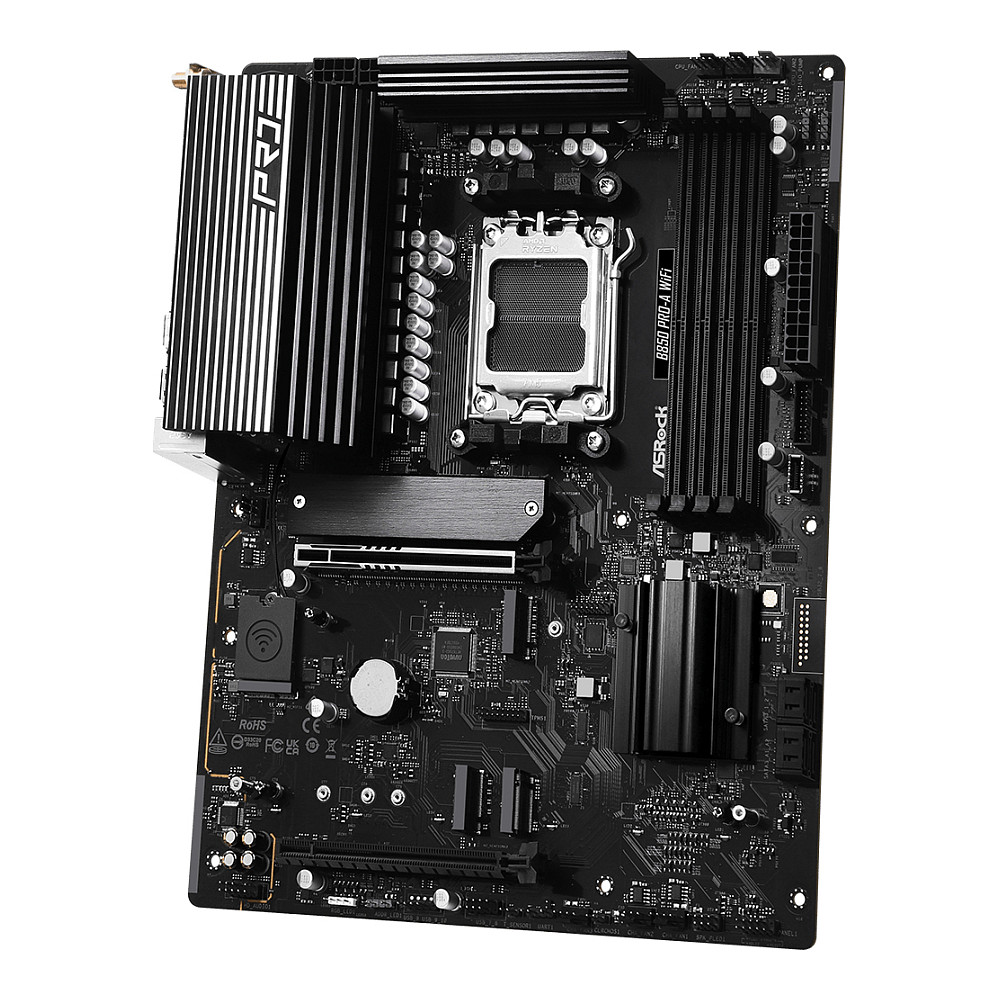

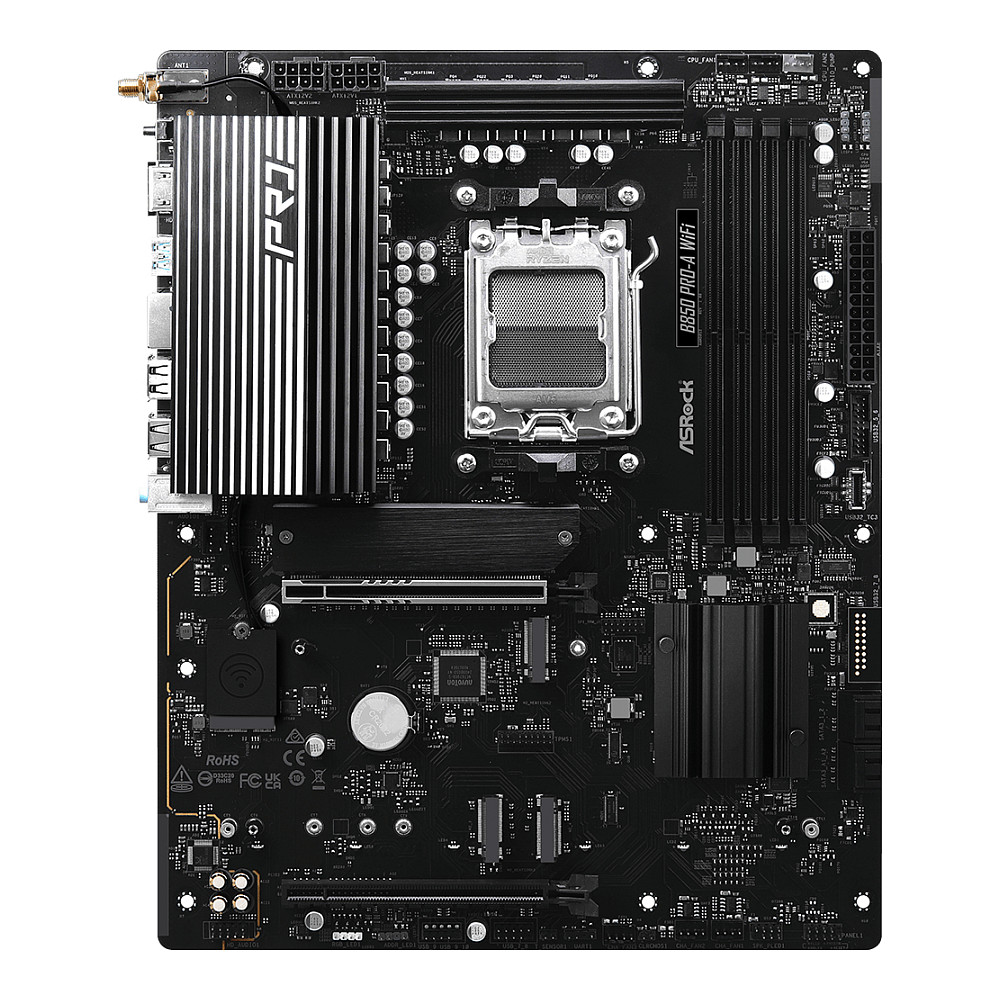

AM5 ASROCK B850 Pro-A WiFi
Pre-Order
€173.99
VAT (19%) included
Description
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt) Realtek ALC897 7.1 CH HD Audio Codec 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front) Realtek 2.5G LAN
Technical Specifications
SKU
K90-MXBQN0-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
PCI Express 4.0, PCI Express 5.0, SATA III
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
3840 x 2160 pixels
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Eps Power Connectors (8-Pin)
2
Number Of Water Pump Connectors
1
Number Of Rgb Led Pin Headers
1
Usb 2.0 Ports Quantity
6
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Headphone Outputs
3
Wifi-Ap Antenna Jack
2
Usb Connector Type
USB Type-A, USB Type-C
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
AMD B850
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Certification
FCC, CE, ErP/EuP
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
4.0
4Th M.2 Largest Key Size
2280
4Th M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
305 mm
Depth
244 mm
Cables Included
SATA
