ASUS

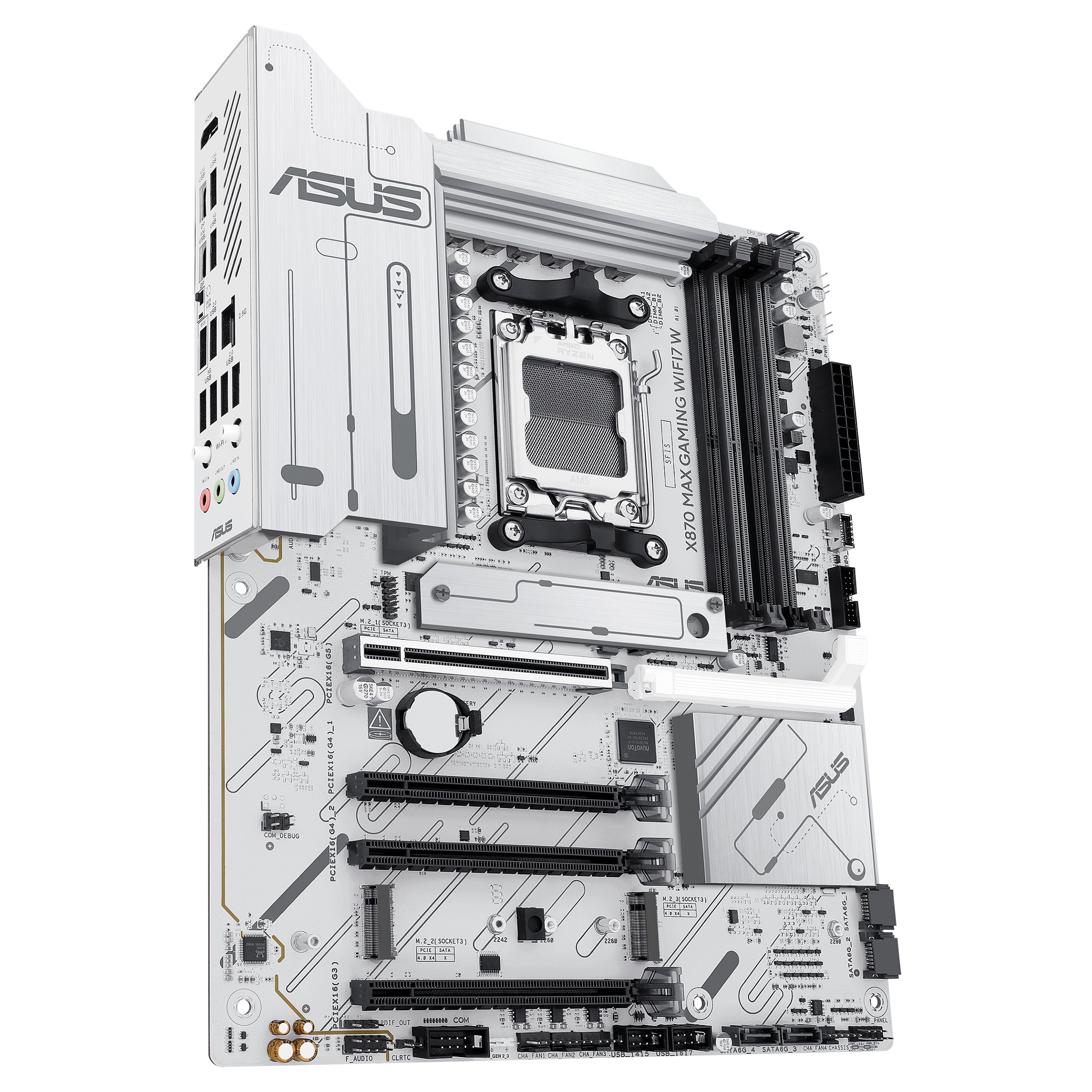

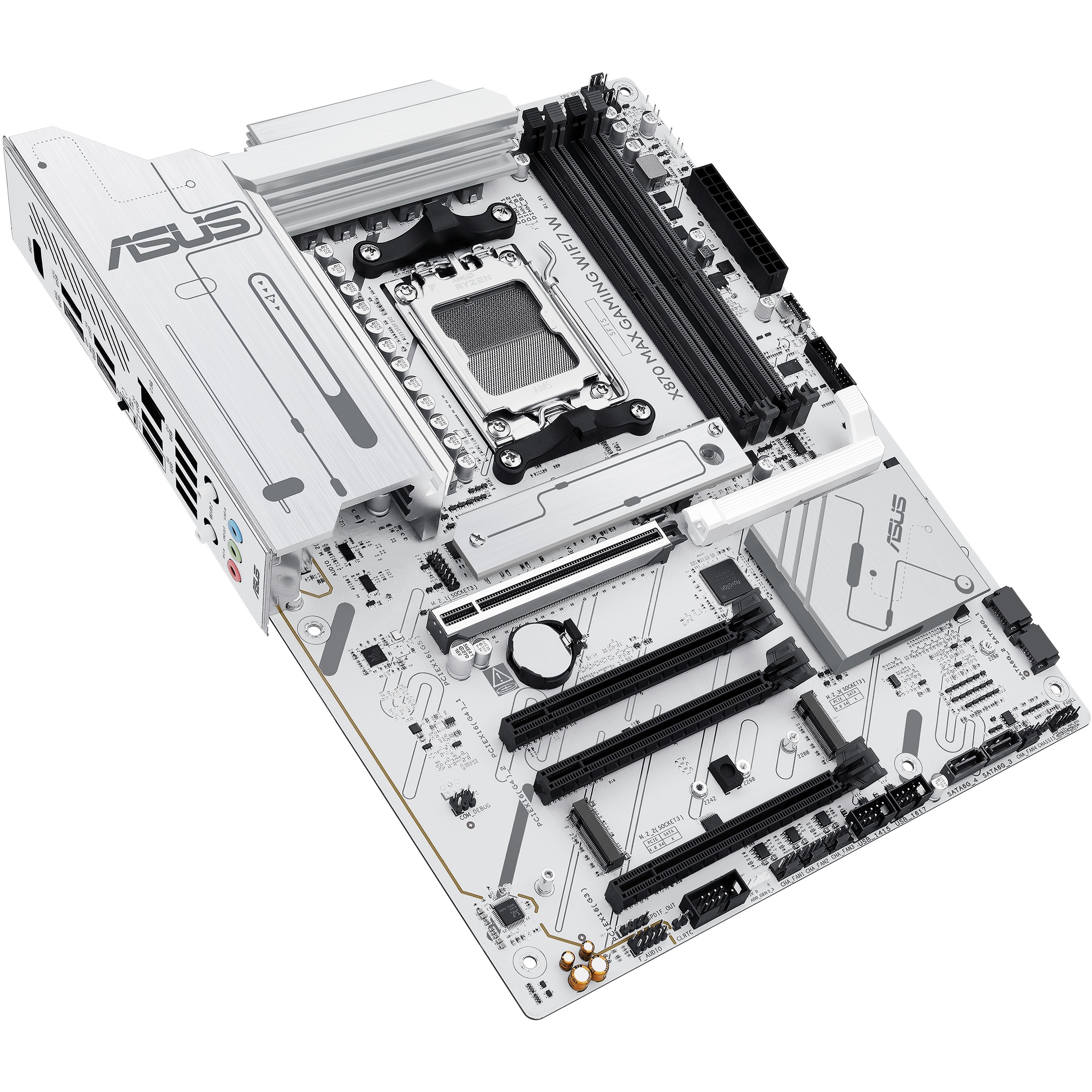

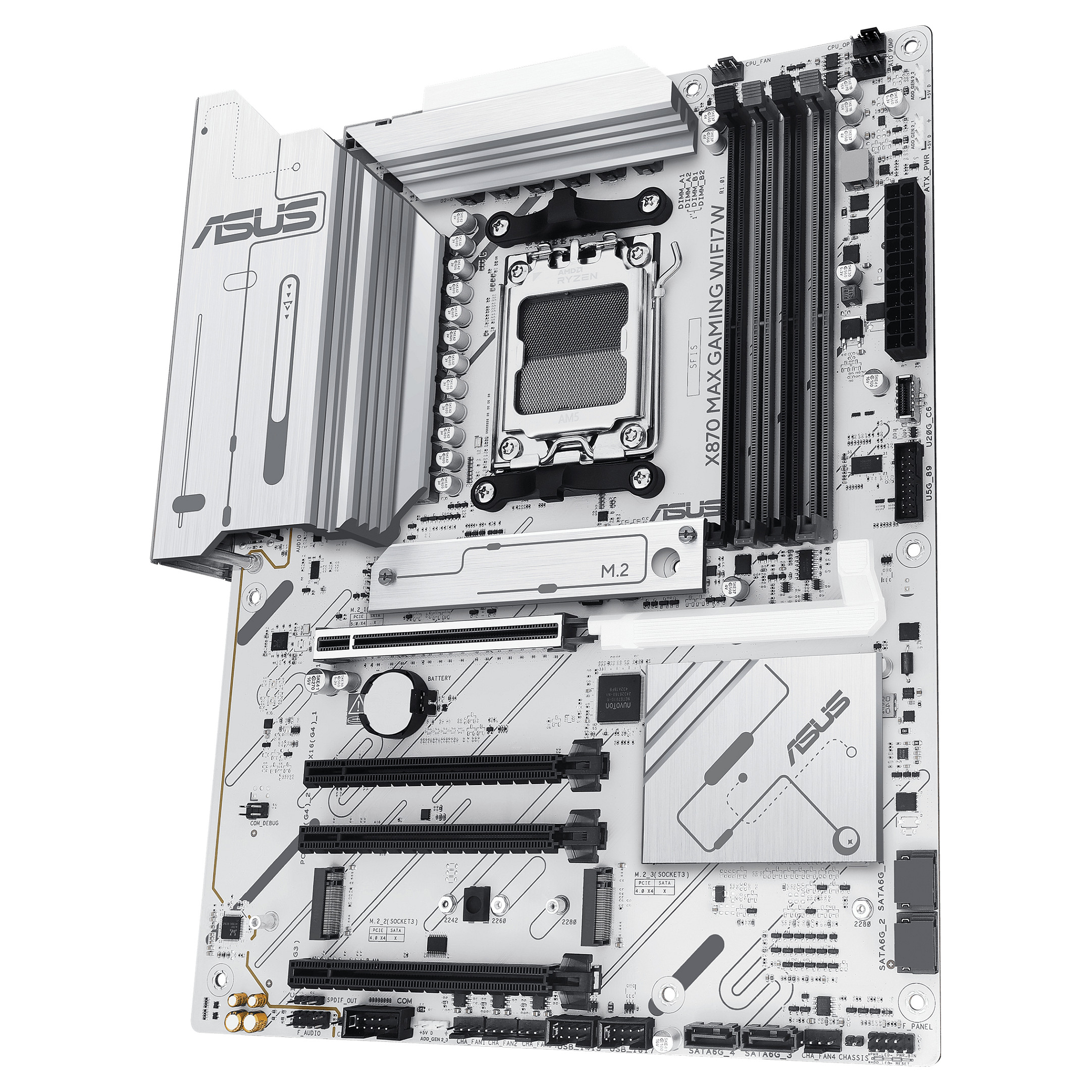

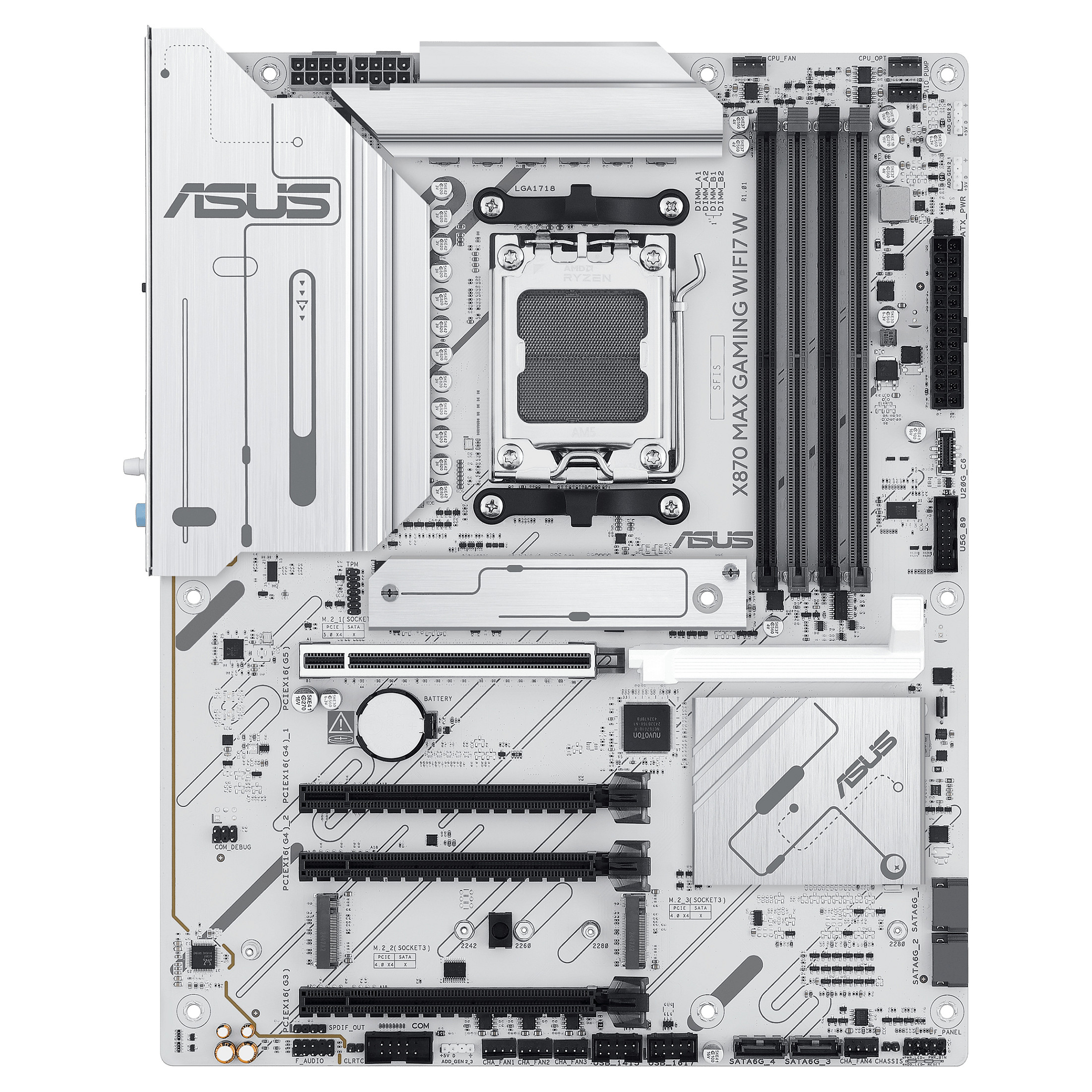

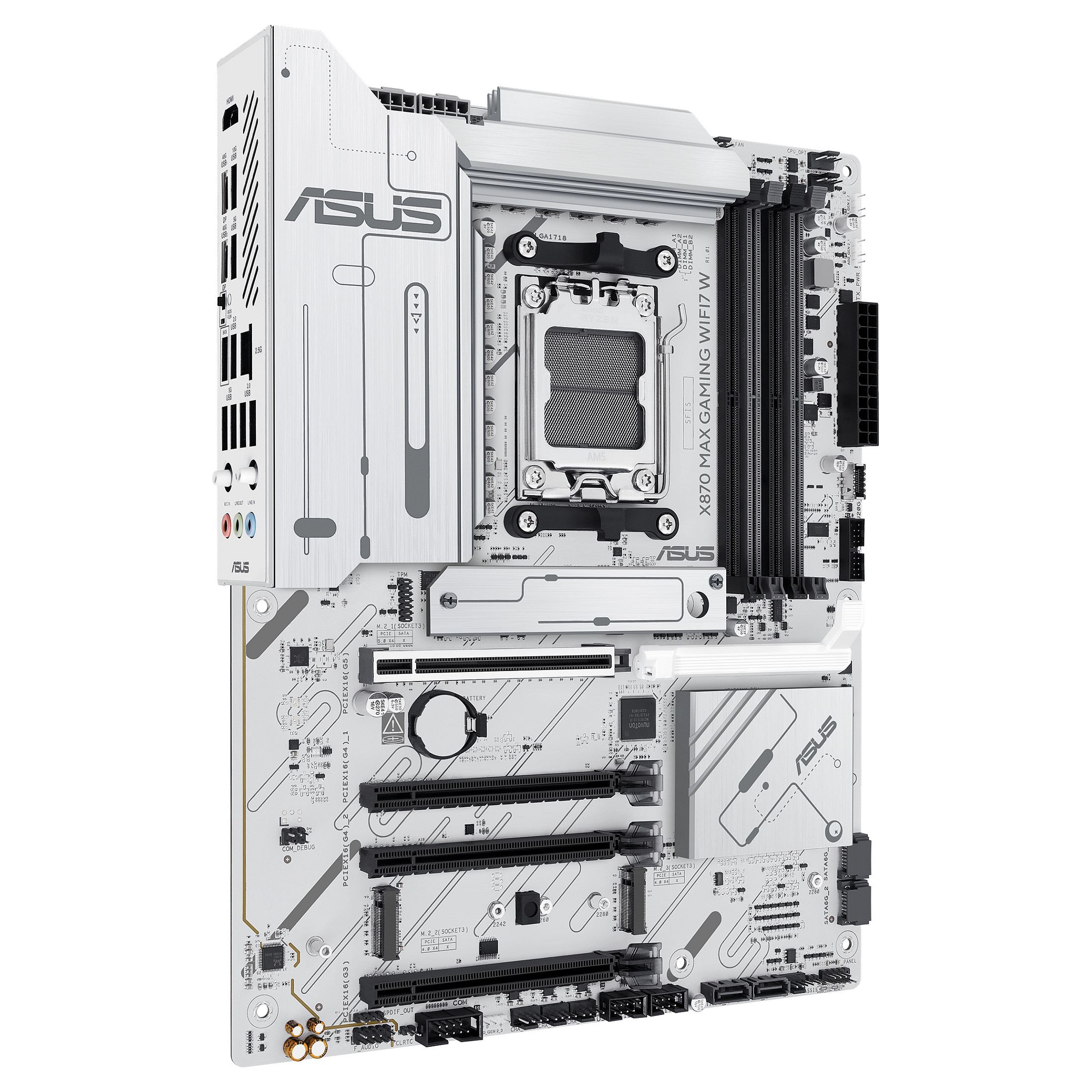

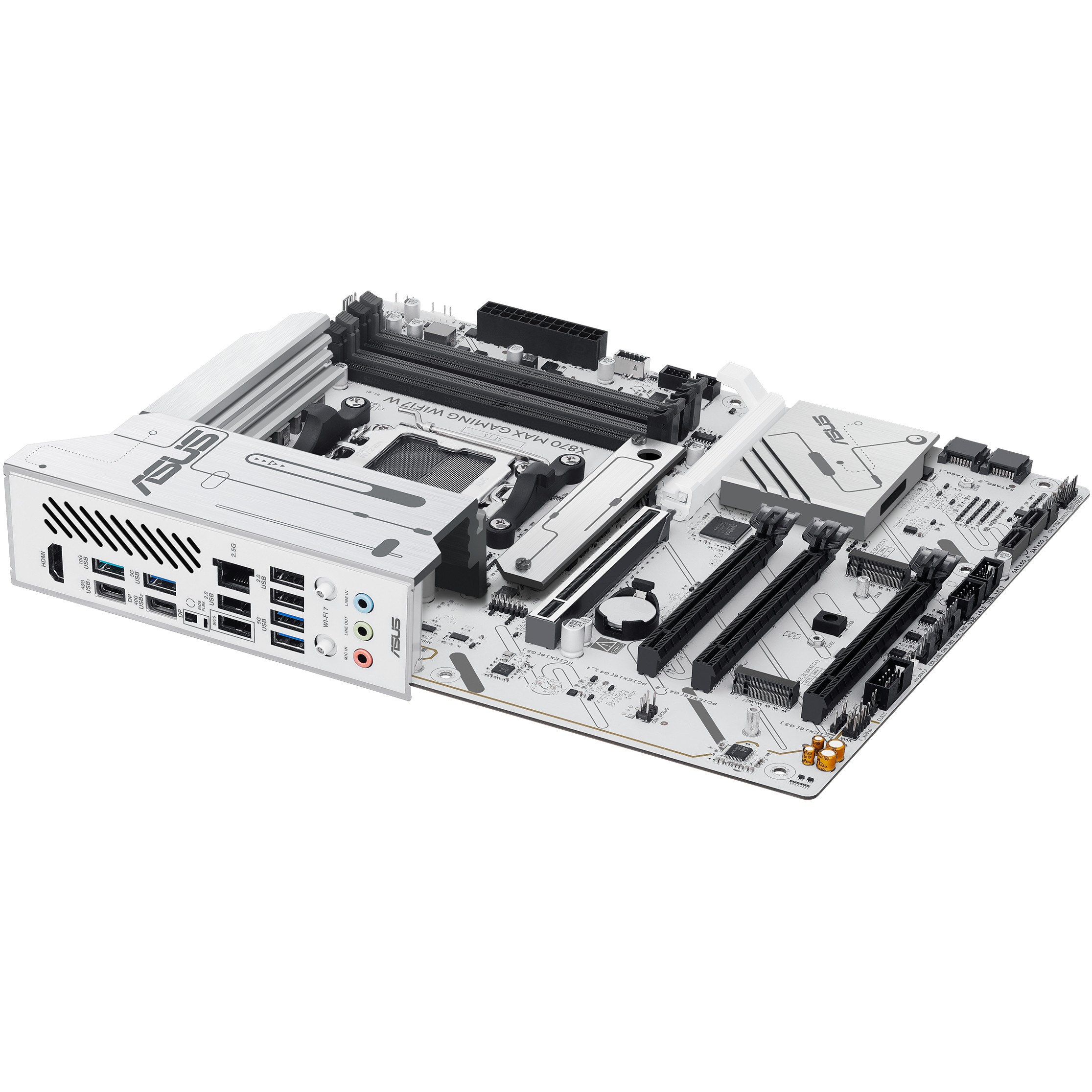

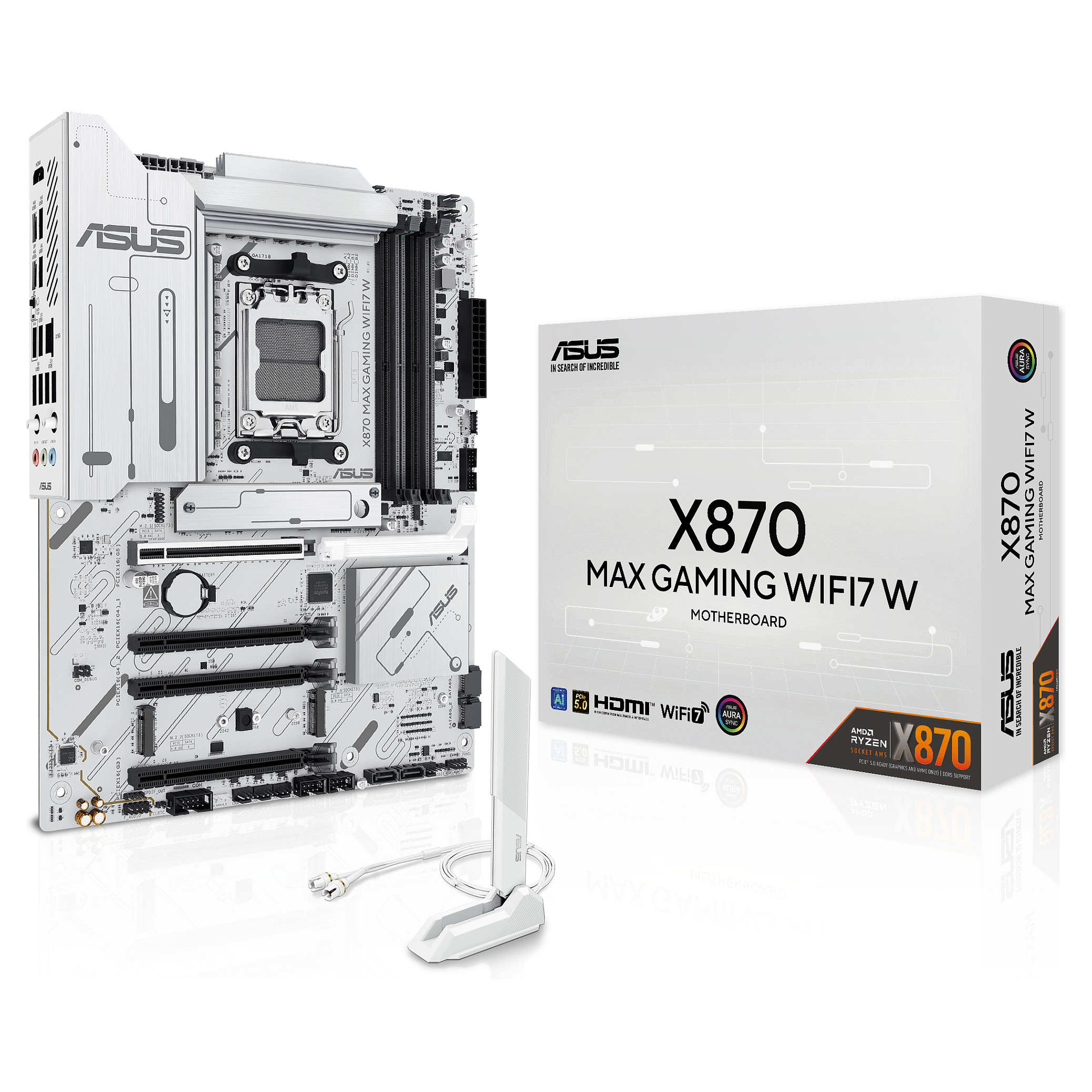

MB ASUS X870 MAX GAMING WIFI7 W (AMD.AM5.DDR5.ATX)
Pre-Order
€344.99
VAT (19%) included
Description
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series PC ATX AMD X870 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 256 Mbit Clear CMOS jumper 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Technical Specifications
SKU
K90MB1LZ0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speed (Max)
8000 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
PCI Express 4.0, PCI Express 5.0, SATA III
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
3840 x 2160 pixels
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Eps Power Connectors (8-Pin)
2
Number Of Com Connectors
1
Number Of Water Pump Connectors
1
Number Of Rgb Led Pin Headers
3
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb4 Gen 3X2 Ports Quantity
2

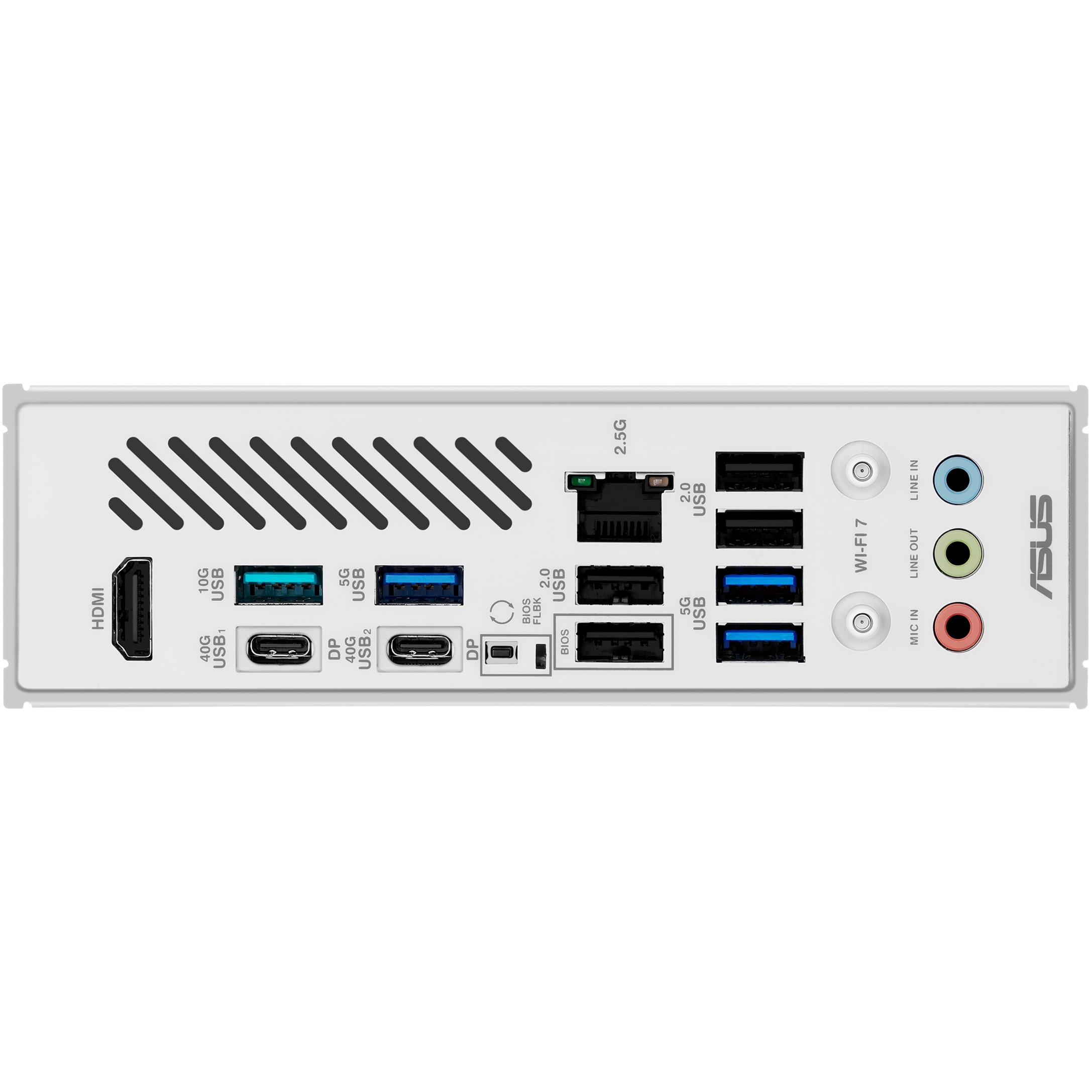

Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Headphone Outputs
3
Wifi-Ap Antenna Jack
2
Usb Connector Type
USB Type-A, USB Type-C
Ethernet Interface Type
2.5 Gigabit Ethernet

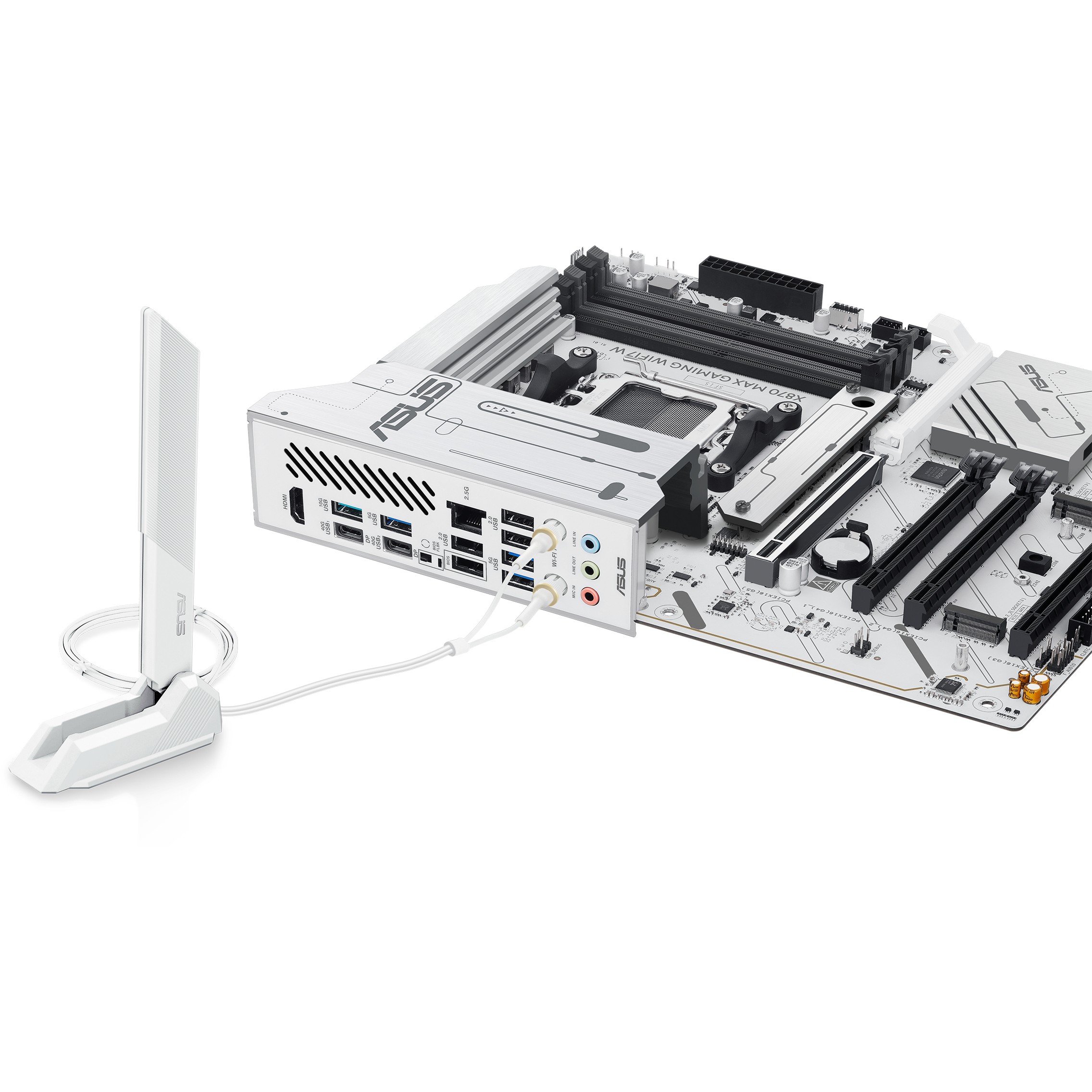

Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
AMD X870
Audio Output Channels
7.1 channels
Product Colour
White
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
305 mm
Depth
244 mm
Cables Included
SATA
