ASUS

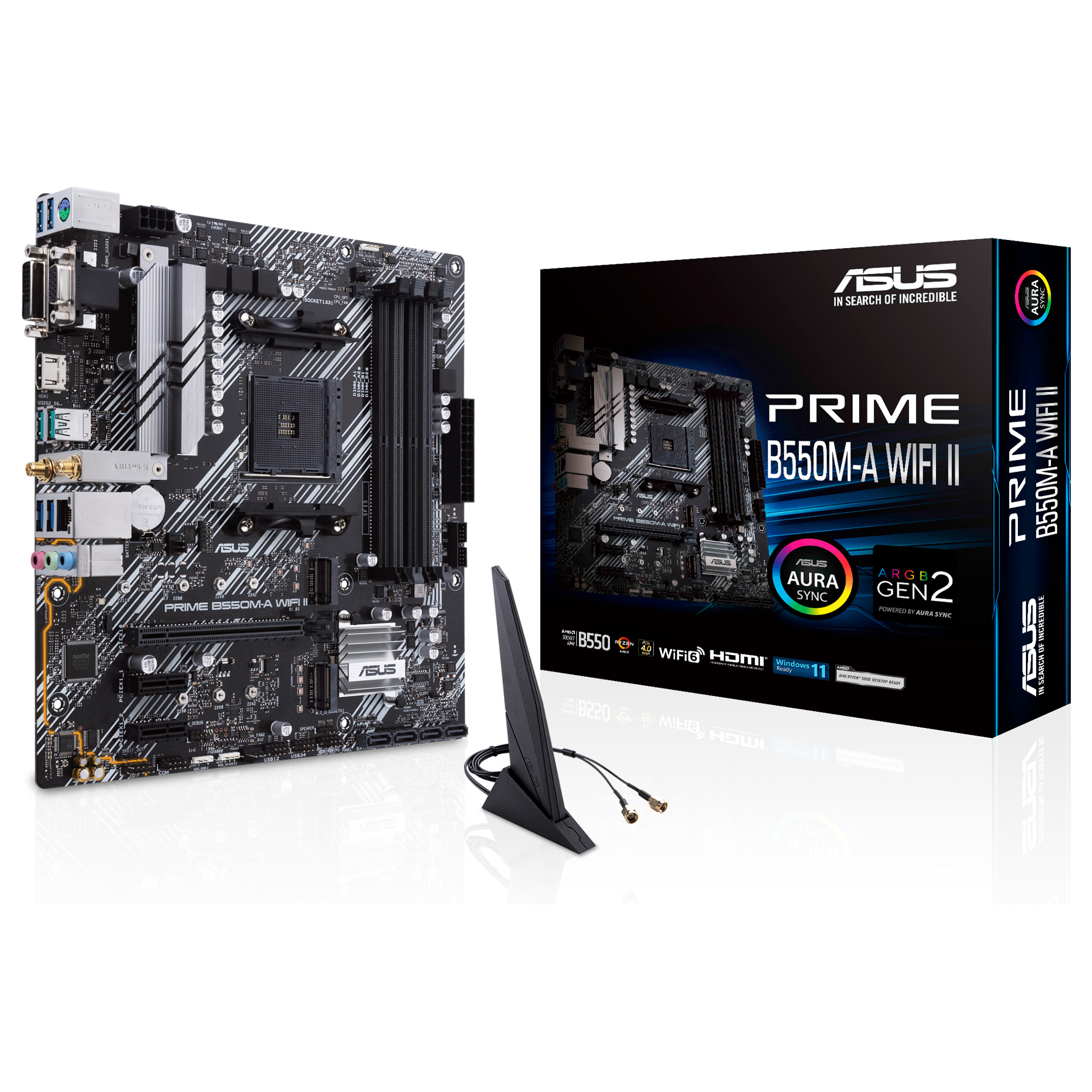

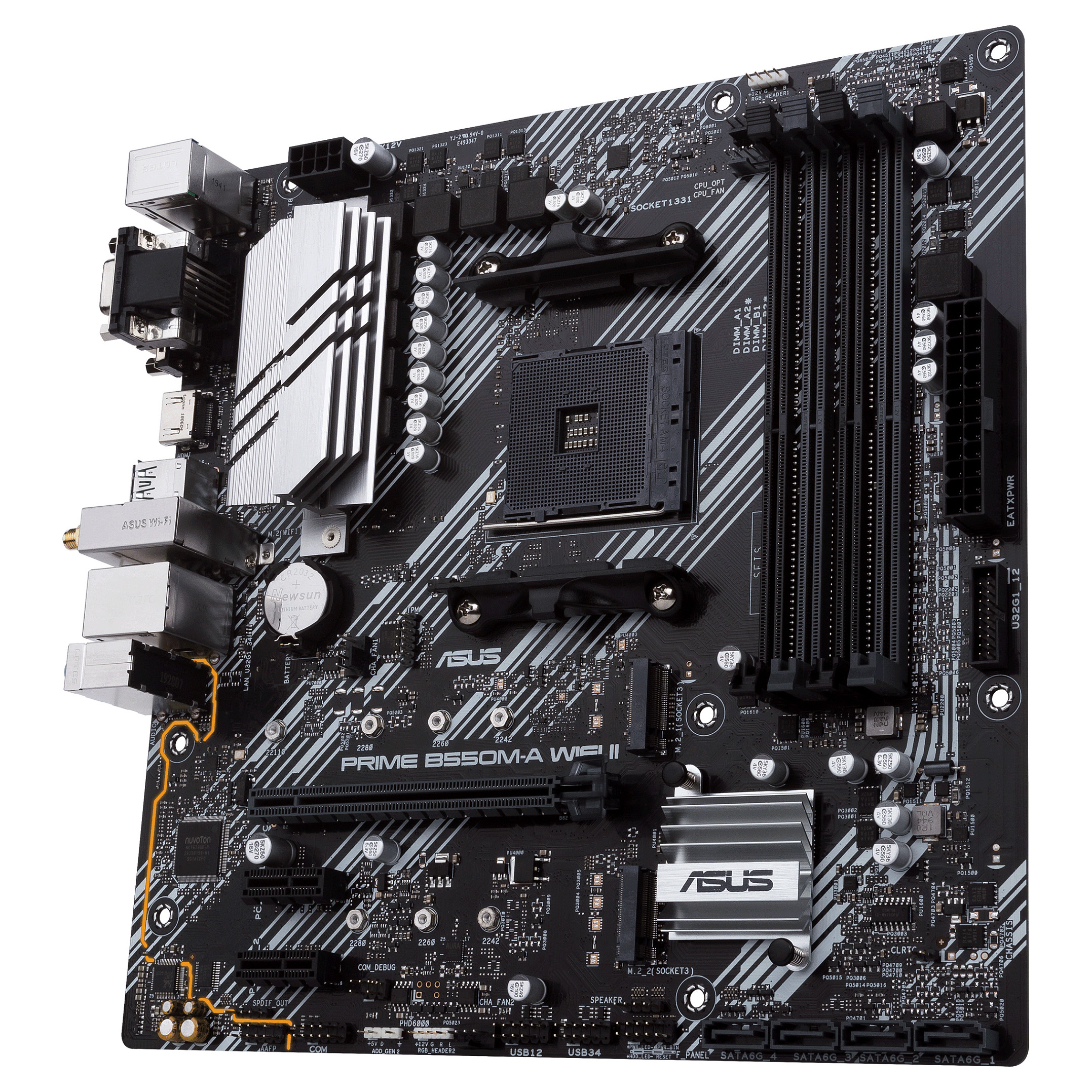

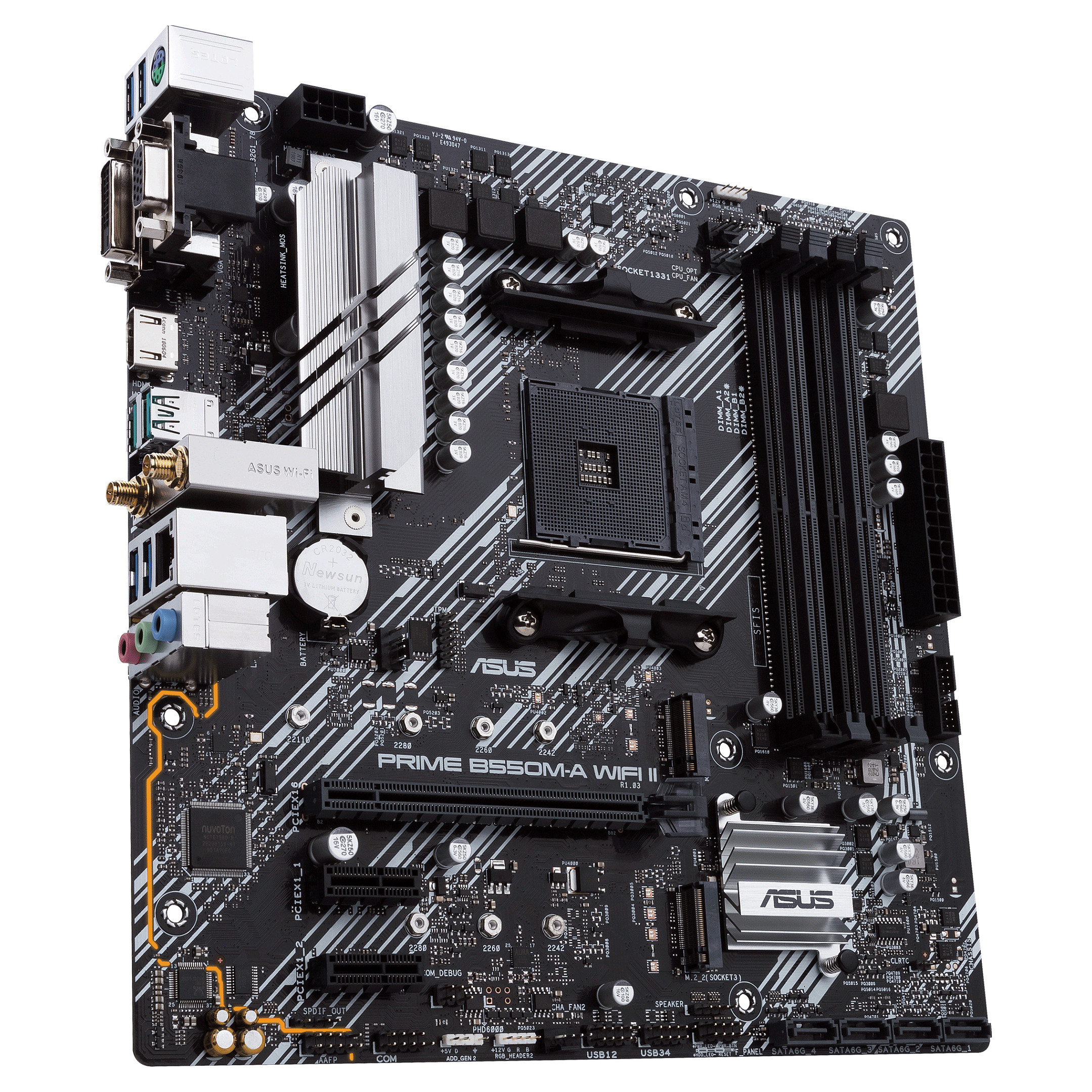

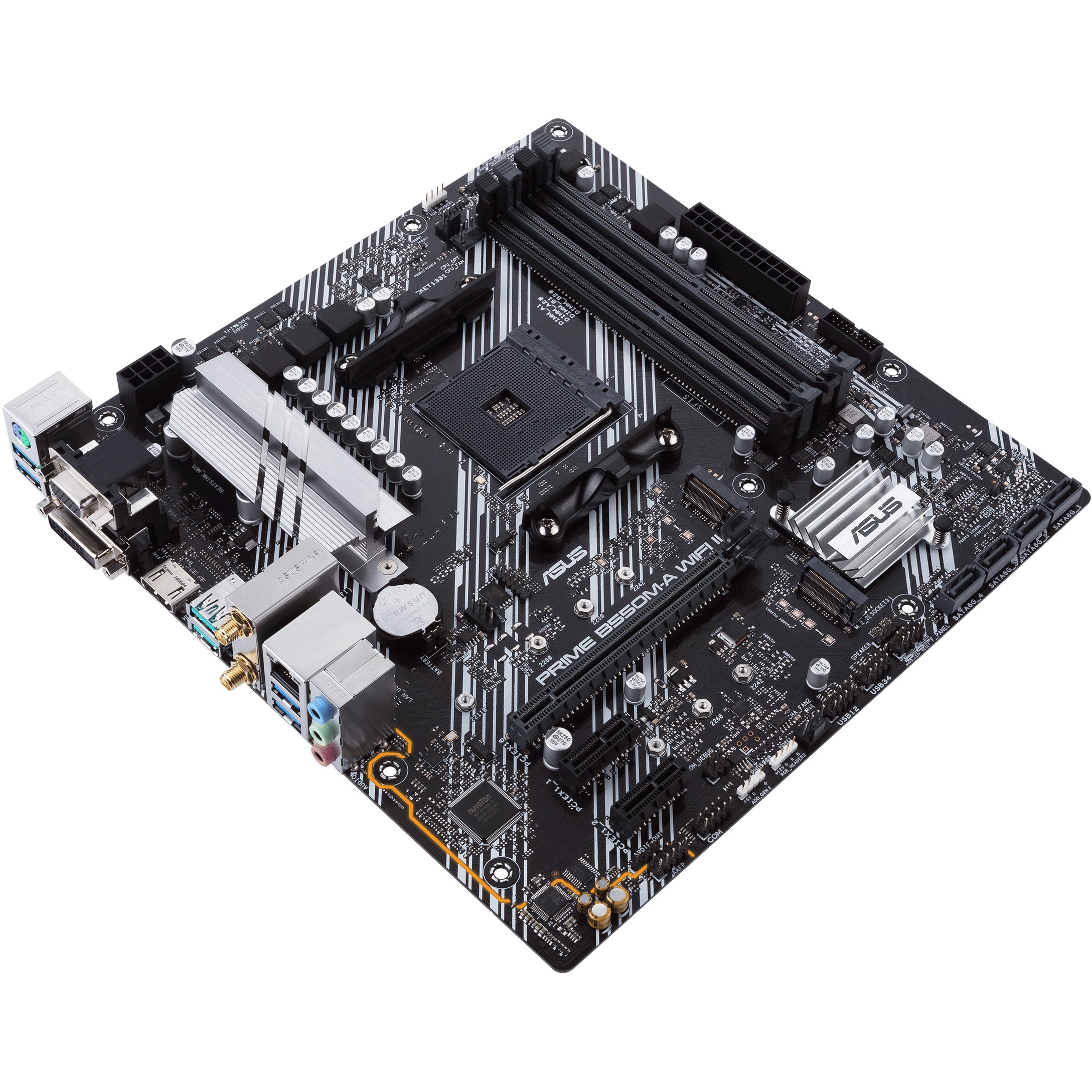

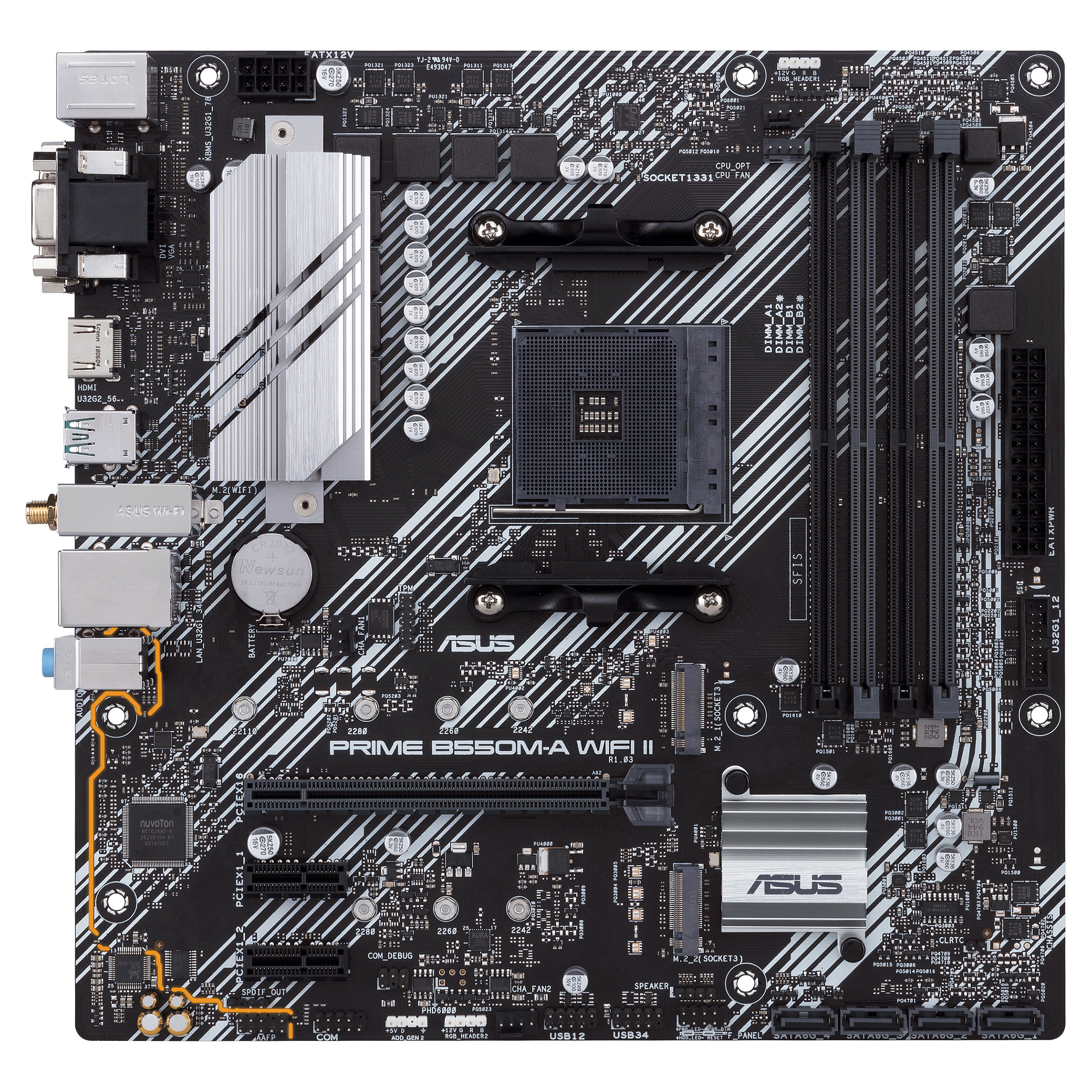

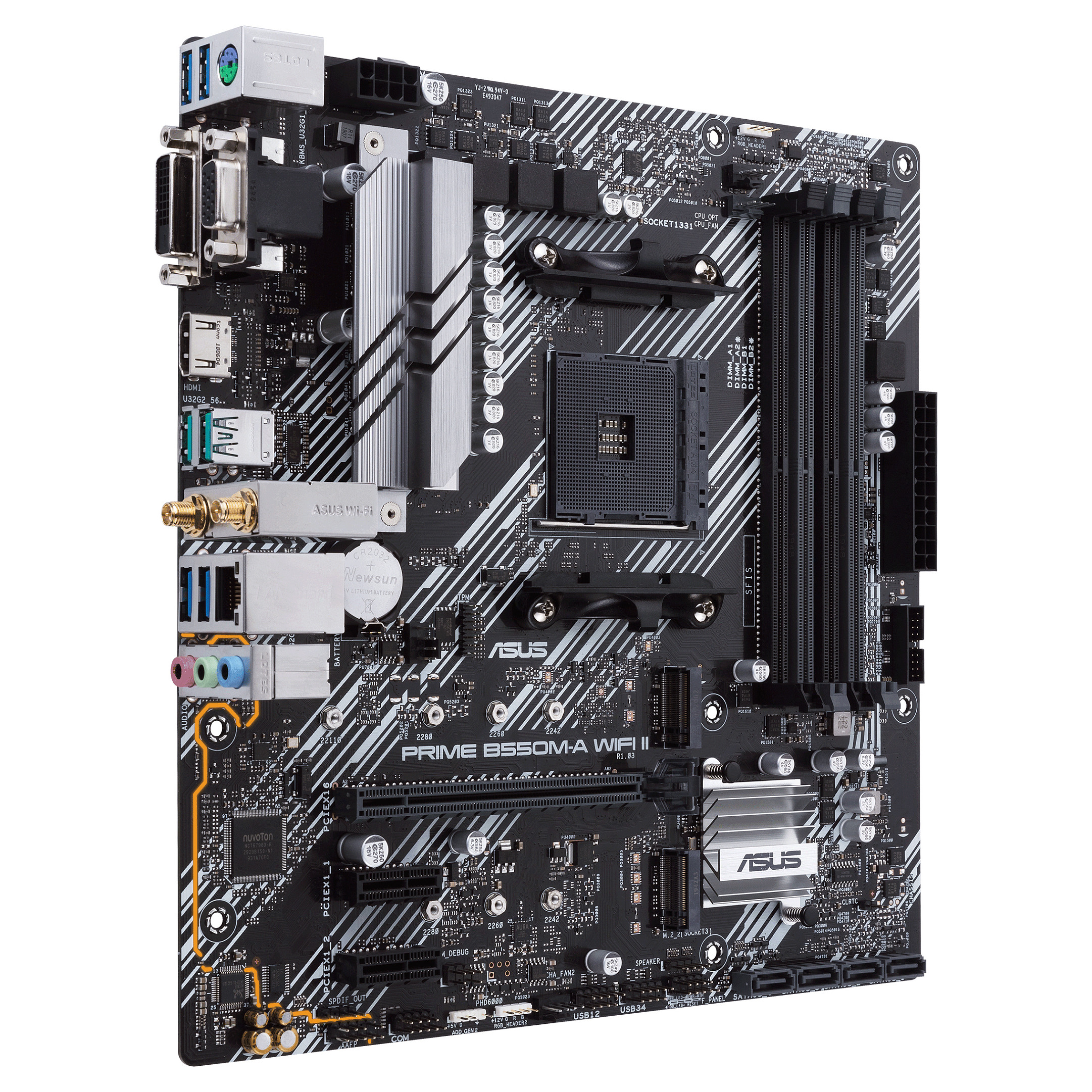

AM4 ASUS PRIME B550M-A WIFI II
Pre-Order
€141.99
VAT (19%) included
Description
AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Technical Specifications
SKU
K90MB19X0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4600, 4800, 4866 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Eatx Power Connectors
1
Number Of Chassis Fan Connectors
2

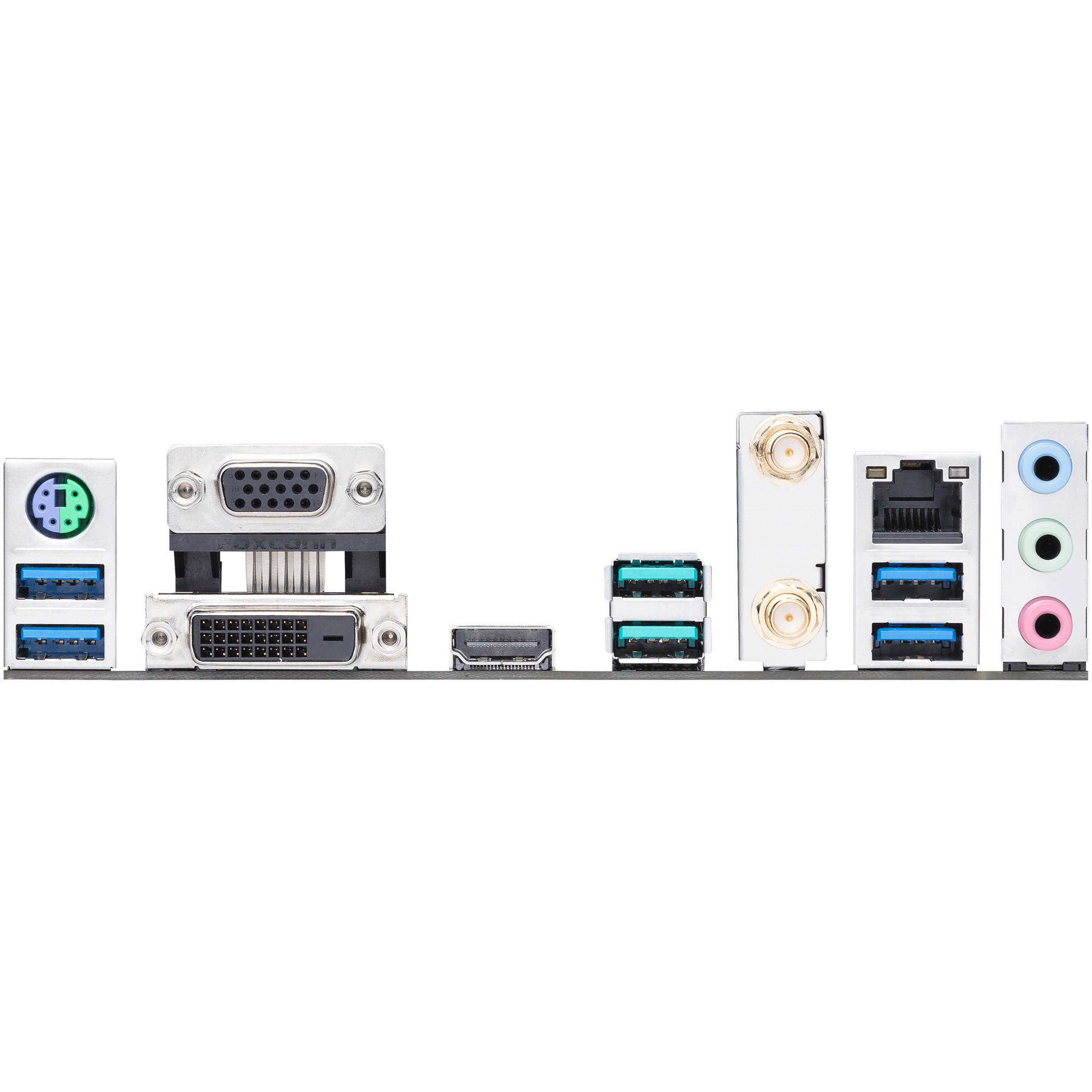

Number Of Com Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Dvi-D Ports Quantity
1
Headphone Outputs
1
Wifi-Ap Antenna Jack
1
Usb Connector Type
USB Type-A
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Top Wi-Fi Standard
Wi-Fi 6 (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
AMD B550
Audio Output Channels
7.1 channels
Product Colour
Multicolour
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
22110
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Harmonized System (Hs) Code
84733020
Width
244 mm
Depth
244 mm
Height
67 mm
Cables Included
SATA
Weight
845 g

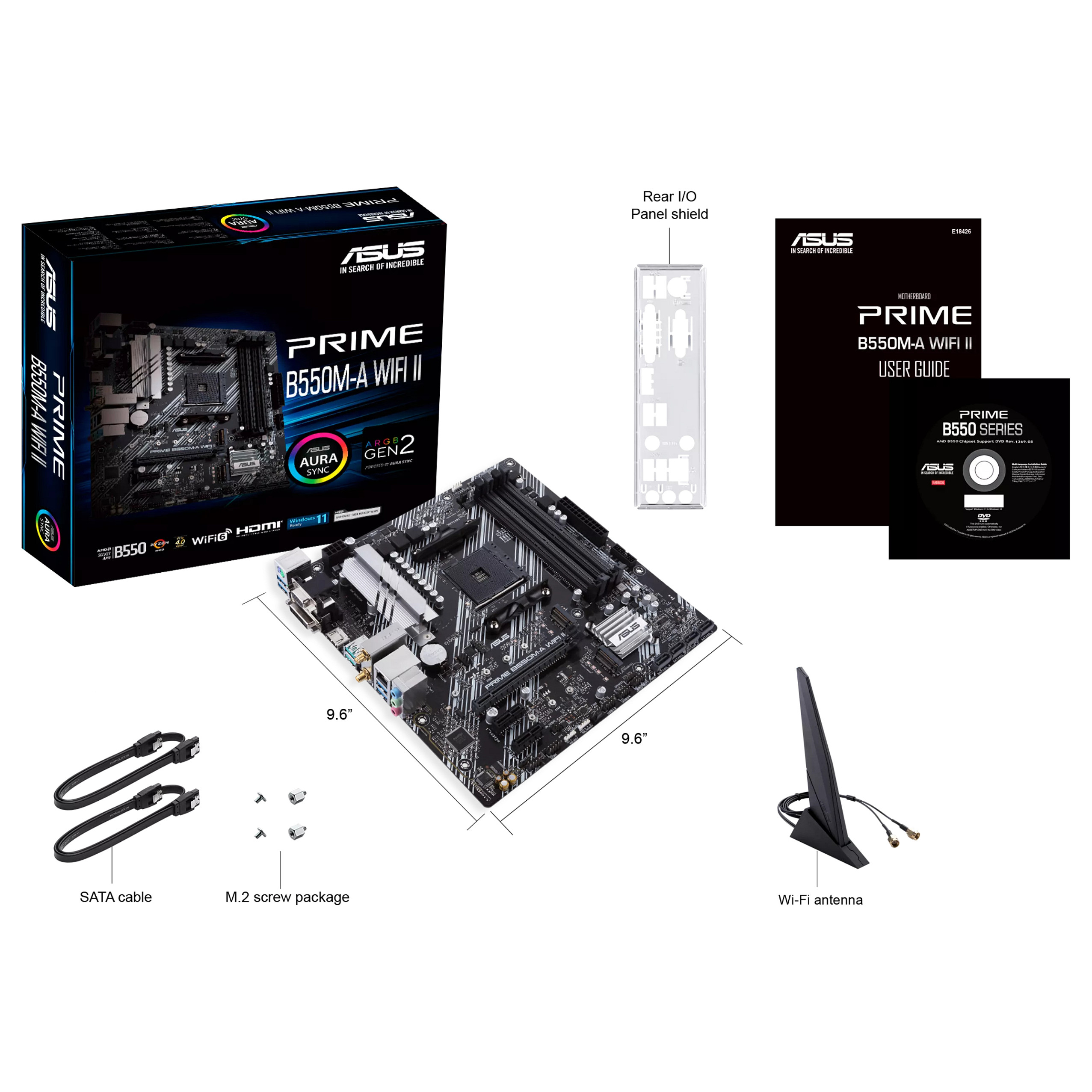

Packaging Content
2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual
