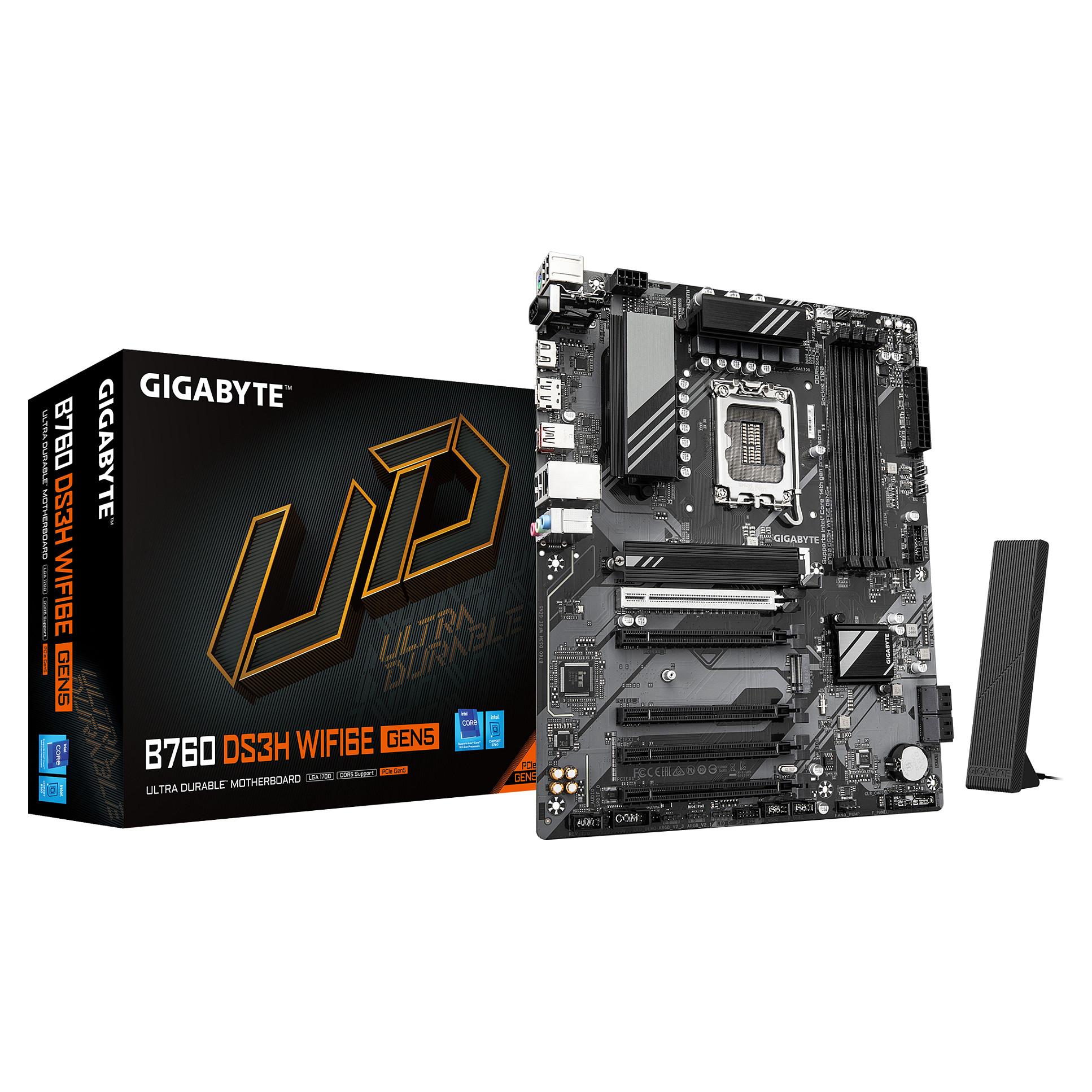

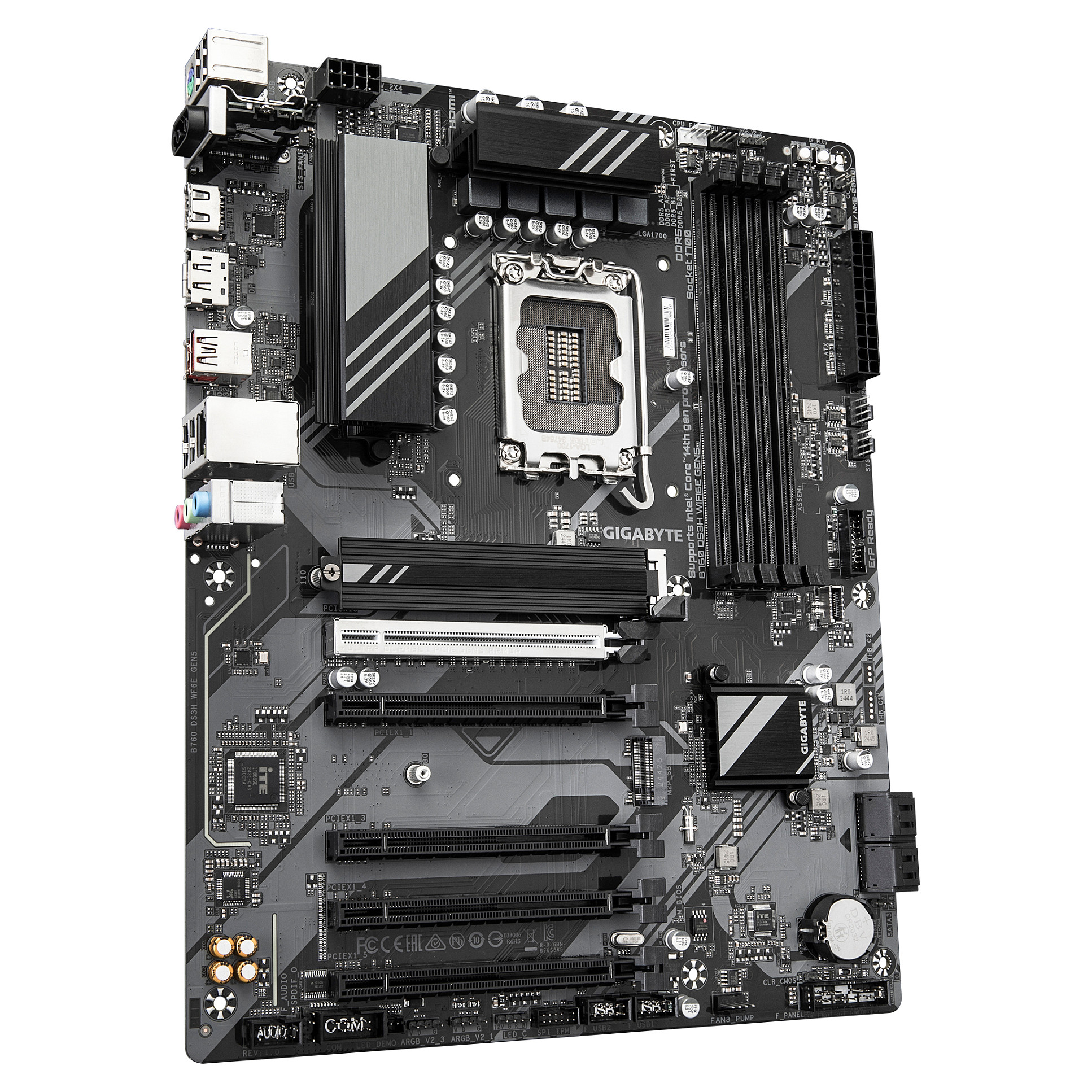

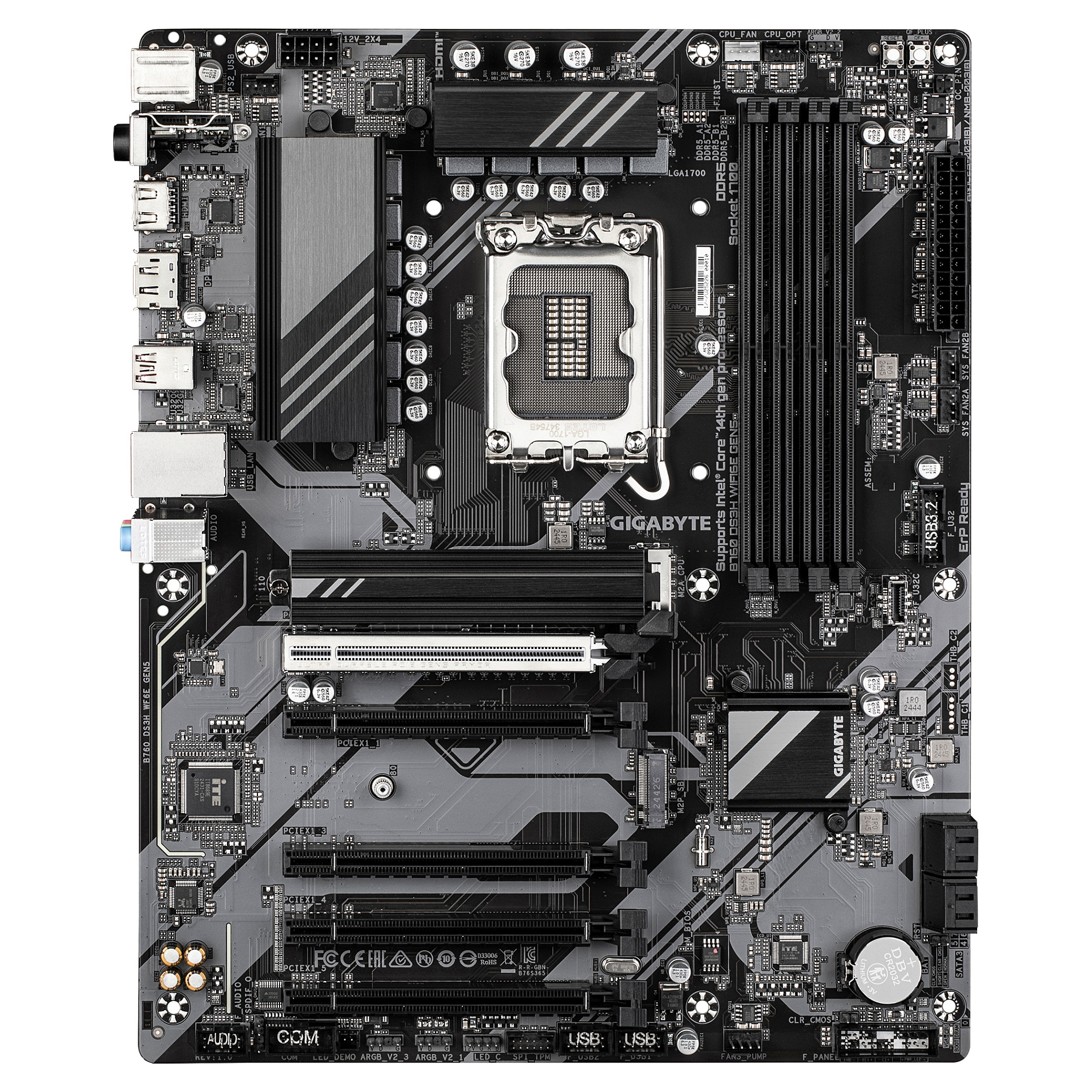

Gigabyte B760 DS3H WiFi6E GEN5 (B760,S1700,ATX,
Pre-Order
€139.99
VAT (19%) included
Description
PCIe Gen5 Performance: Perfect Sync to Win Supports Intel Core 14th/ 13th /12th processors WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design Unparalleled Performance: Hybrid 8+2+1 Phases VRM Solution Dual Channel DDR5: 4*DIMMs XMP Memory Module Support Fast Networks: GbE LAN & Wi-Fi 802.11ax Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI
Technical Specifications
SKU
KB760 DS3H WF6E GEN5
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
5600, 5200, 4800, 4400 MHz
Supported Memory Clock Speed (Max)
5600 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2304 pixels
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Eps Power Connectors (8-Pin)
1
Serial Port Headers
1
Number Of Water Pump Connectors
2
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
2
Displayport Version
1.2
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wlan Controller Model
Intel Wi-Fi 6E AX210
Bluetooth Version
5.3
Motherboard Chipset
Intel B760 Express
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 (Gen 3.X) Slots
4
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
22110
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
335 mm
Package Depth
270 mm
Package Height
80 mm
Package Weight
1.55 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
1.31 kg
Warranty Period
3 year(s)
