ASUS

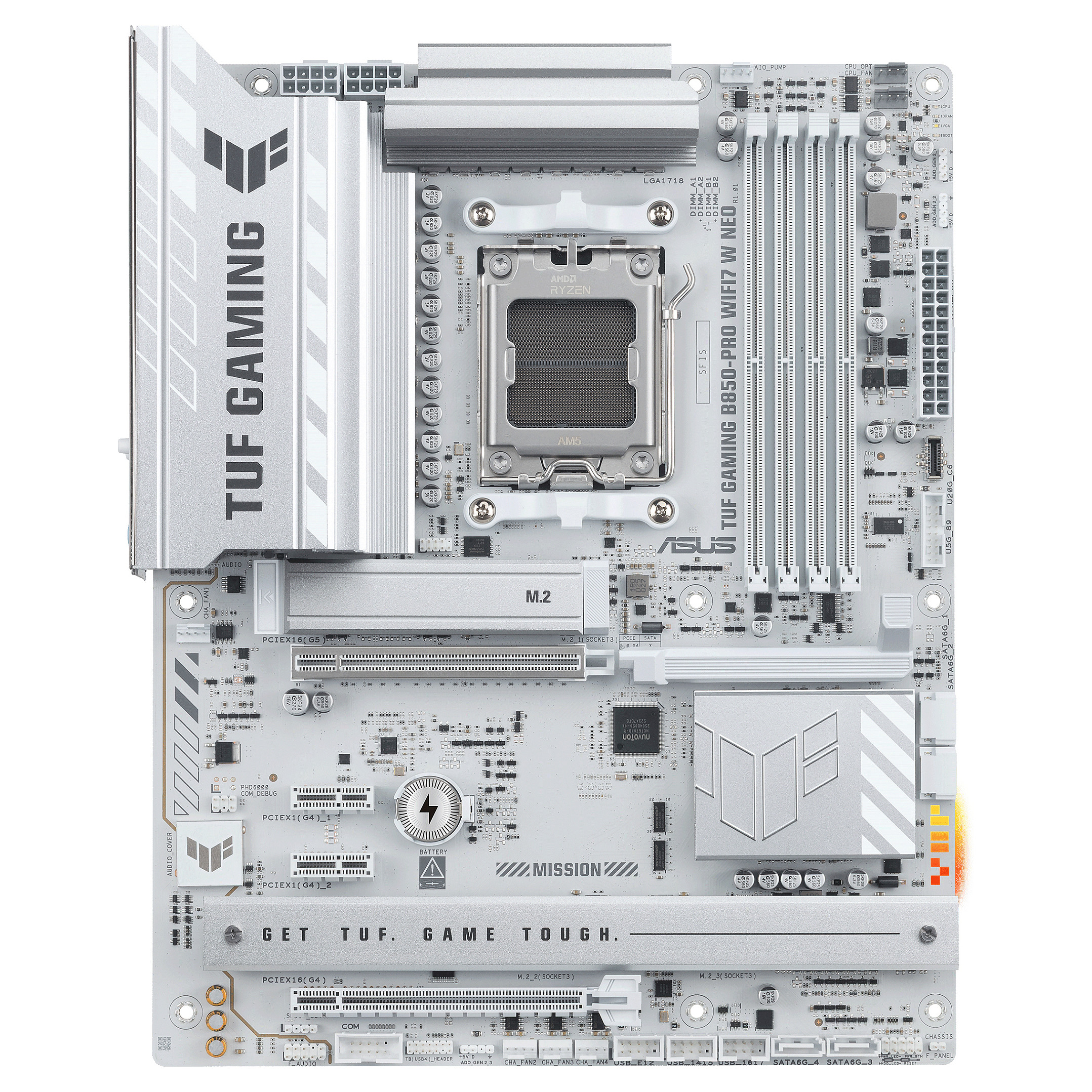

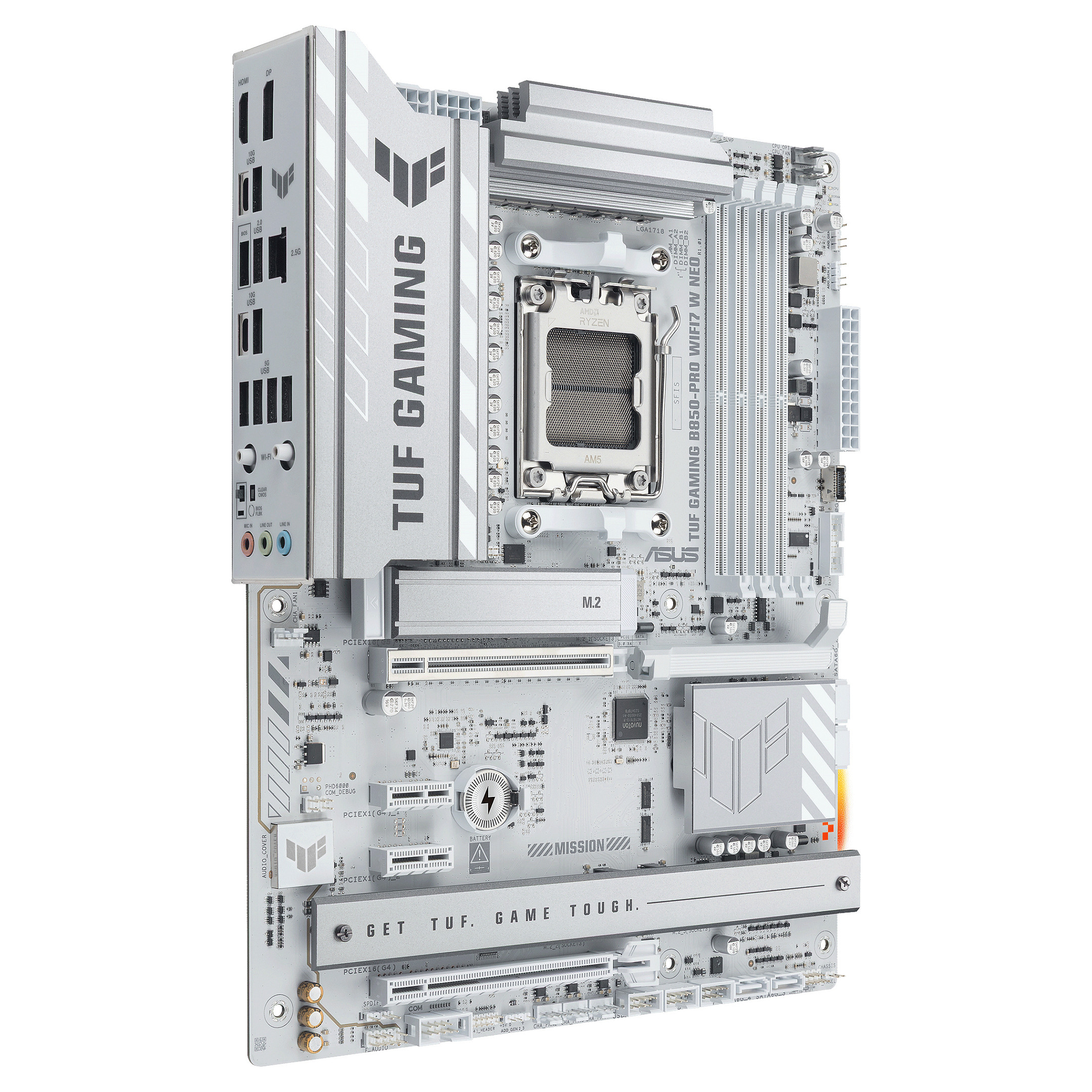

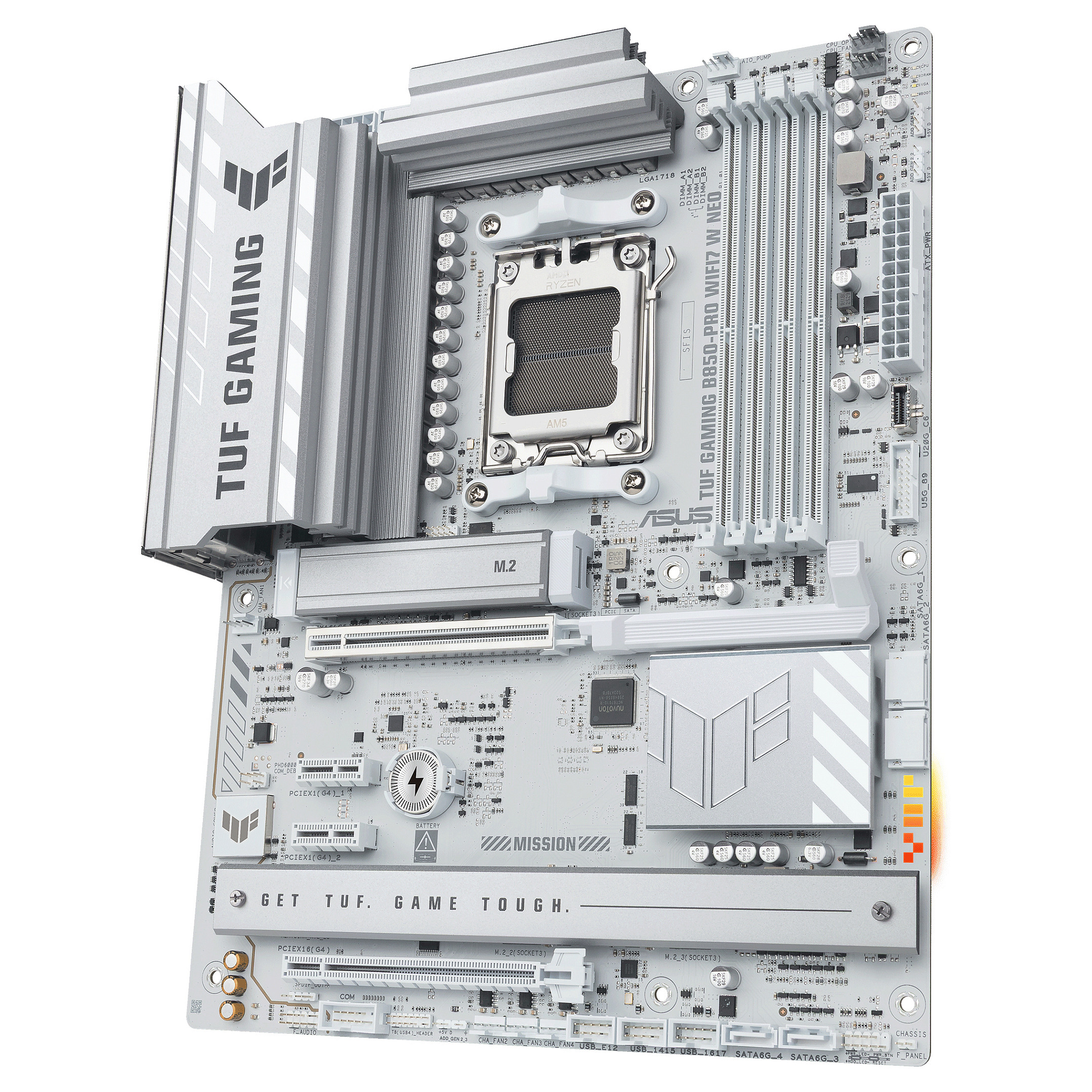

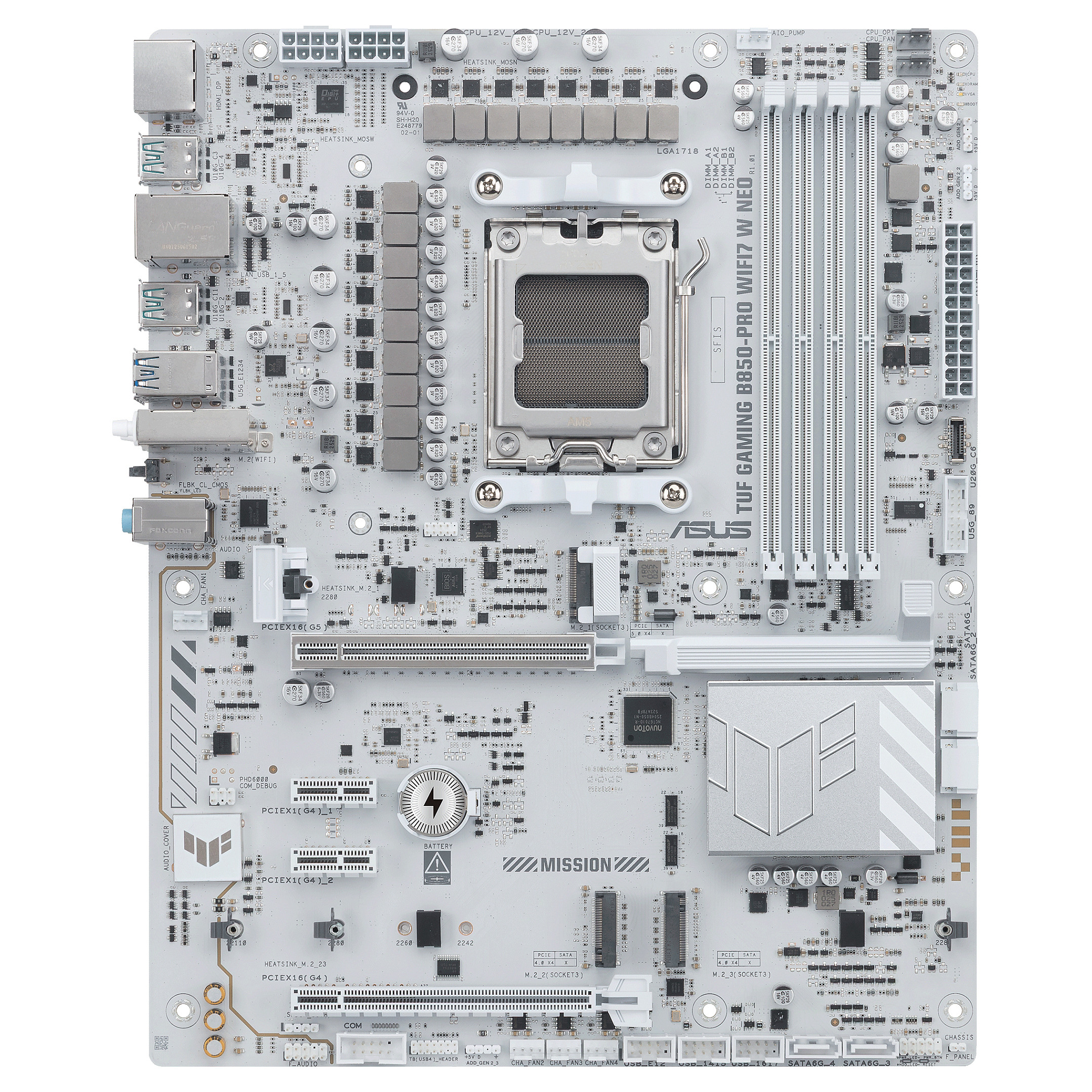

ASUS TUF GAMING B850-PRO WIFI7 W NEO (AMD,AM5,DDR5,ATX)
Pre-Order
€276.99
VAT (19%) included
Description
AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series PC ATX AMD B850 Realtek ALC1220P 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 512 Mbit Clear CMOS button 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Technical Specifications
SKU
K90MB1NW0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speed (Max)
9000 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
4
Number Of Com Connectors
1
Thunderbolt Headers
1
Number Of Water Pump Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
Wi-Fi 7 (802.11be)
Wlan Controller Model
Realtek RTL8922AE
Bluetooth Version
5.4
Motherboard Chipset
AMD B850
Audio Chip
Realtek ALC1220P
Audio Output Channels
7.1 channels
Product Colour
White
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11
Pci Express X1 (Gen 4.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
2280
Bios Type
UEFI AMI
Bios Memory Size
512 Mbit
Package Width
353 mm
Package Depth
273 mm
Package Height
68 mm
Package Weight
1.94 kg
Width
305 mm
Depth
244 mm
Height
50 mm
Weight
1.35 kg
