ASUS

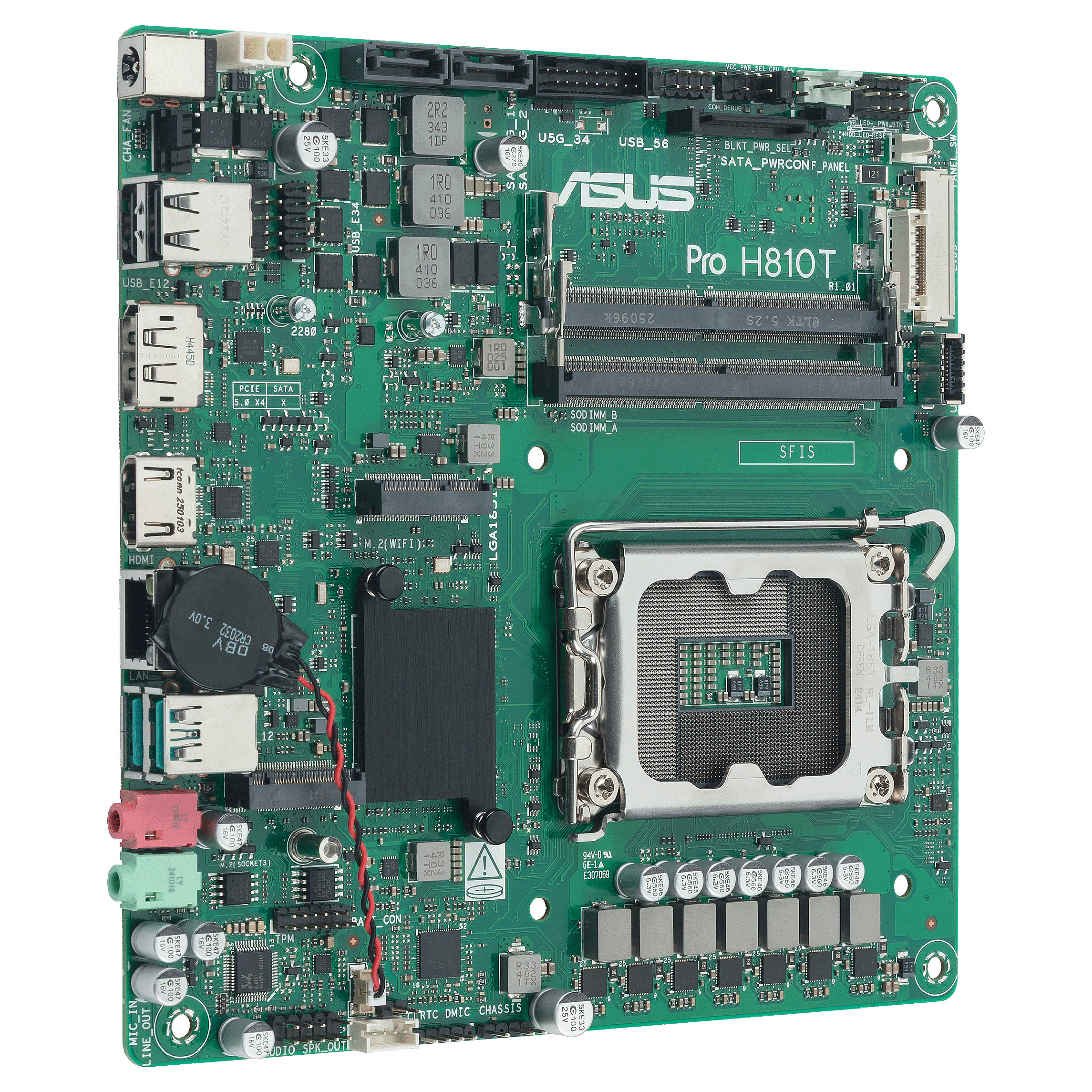

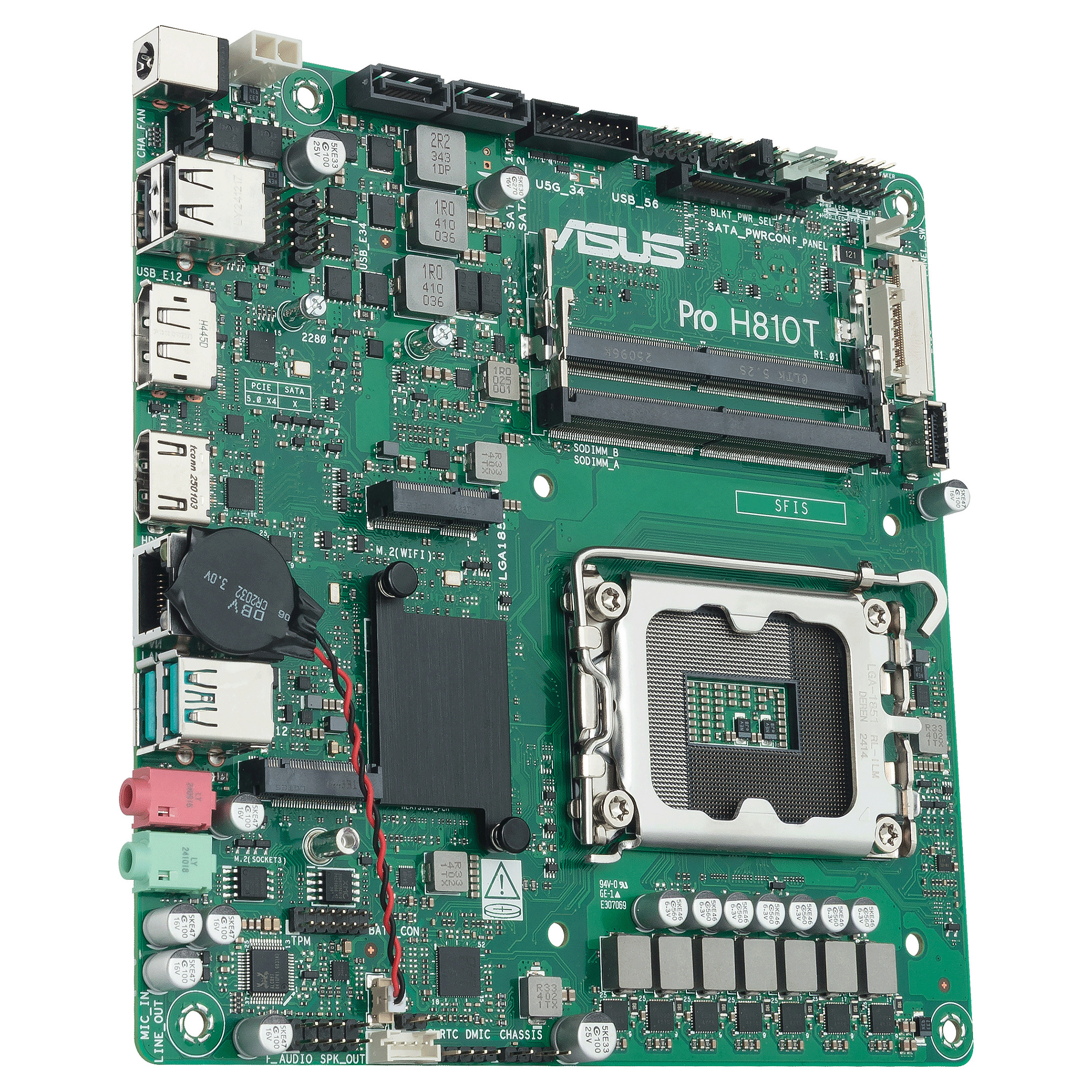

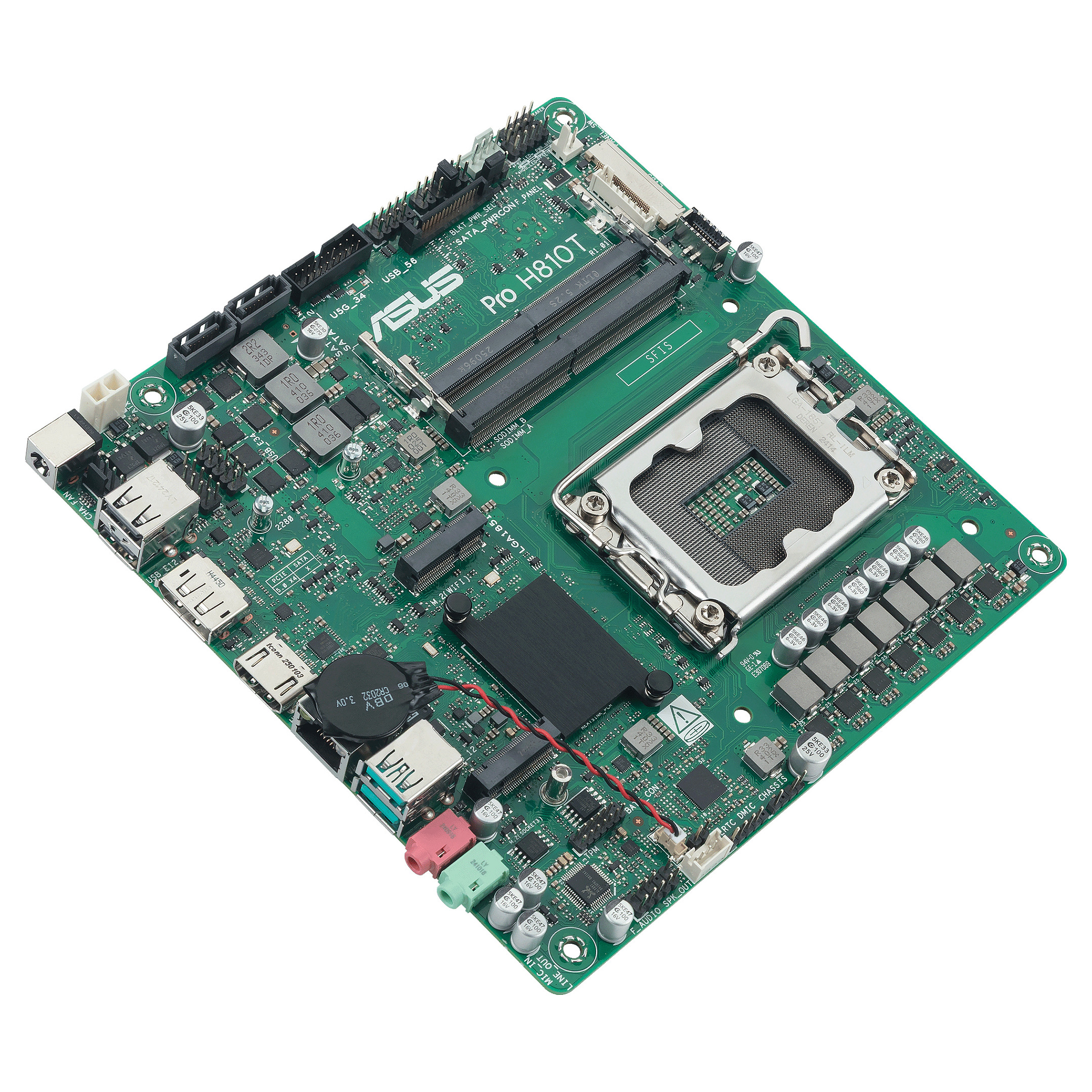

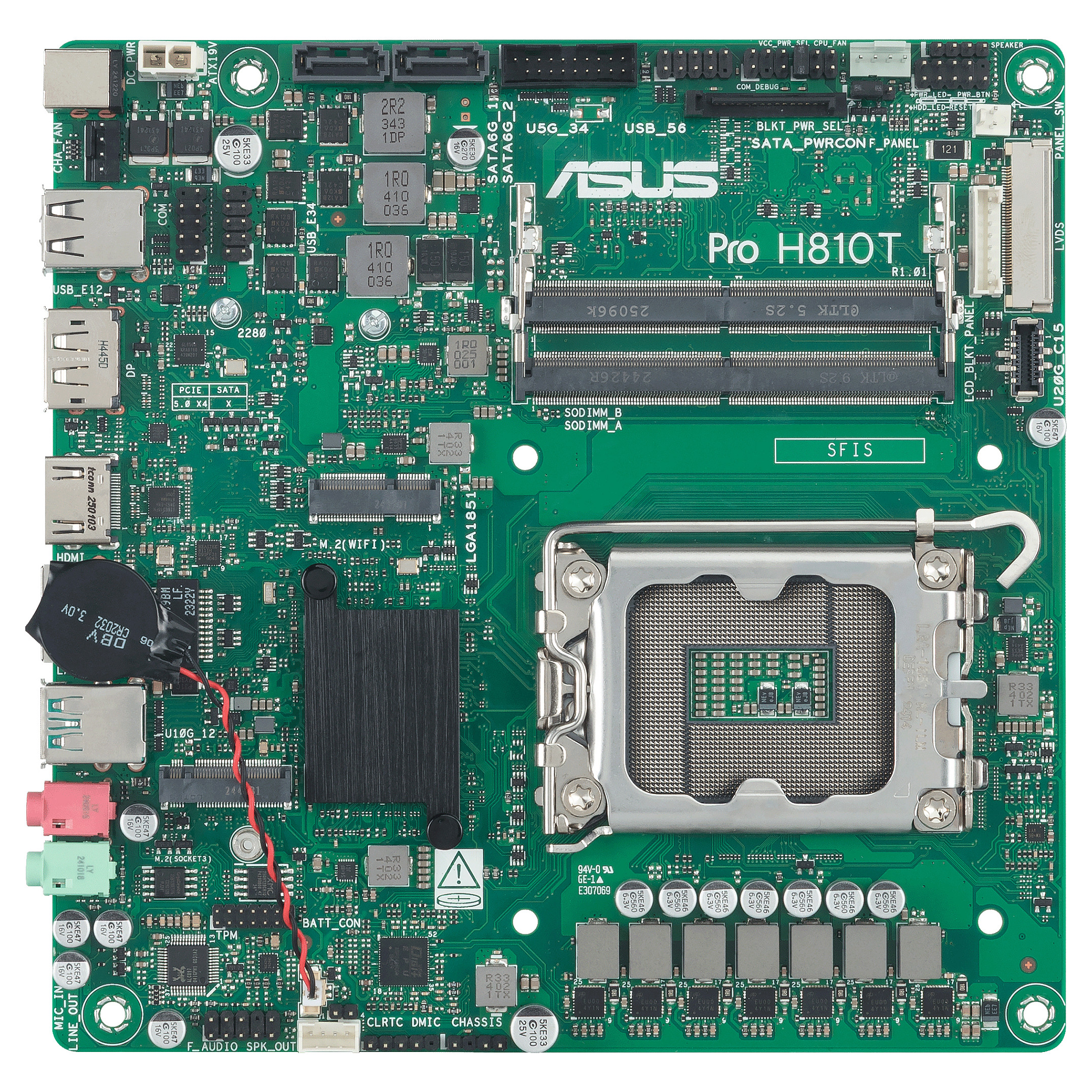

MB ASUS PRO H810T-CSM
Pre-Order
€178.99
VAT (19%) included
Description
Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2) ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes Ultrafast Connectivity: PCIe 5.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 20Gbps Type-C® and rear USB 10Gbps Type-A
Technical Specifications
SKU
K90MB1LGM-M0EAYC
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
SO-DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speed (Max)
6400 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
2
Number Of Storage Drives Supported
3
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
2
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Com Connectors
2
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel H810
Audio Output Channels
7.1 channels
Product Colour
Multicolour
Component For
PC
Motherboard Form Factor
Thin Mini ITX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Compatible Operating Systems
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
226 mm
Package Depth
182 mm
Package Height
60 mm
Package Weight
6.9 kg
Width
170 mm
Depth
170 mm
Height
49 mm
Weight
319 g
