ASRock

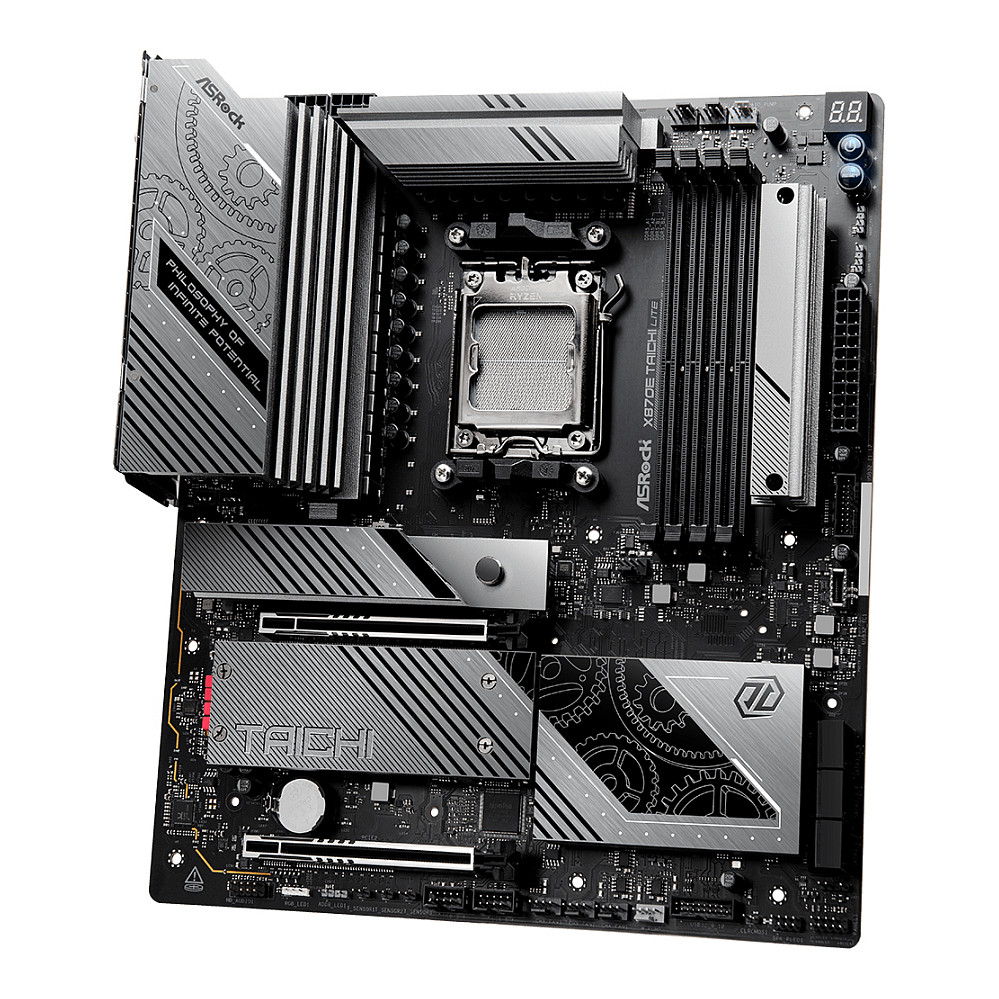

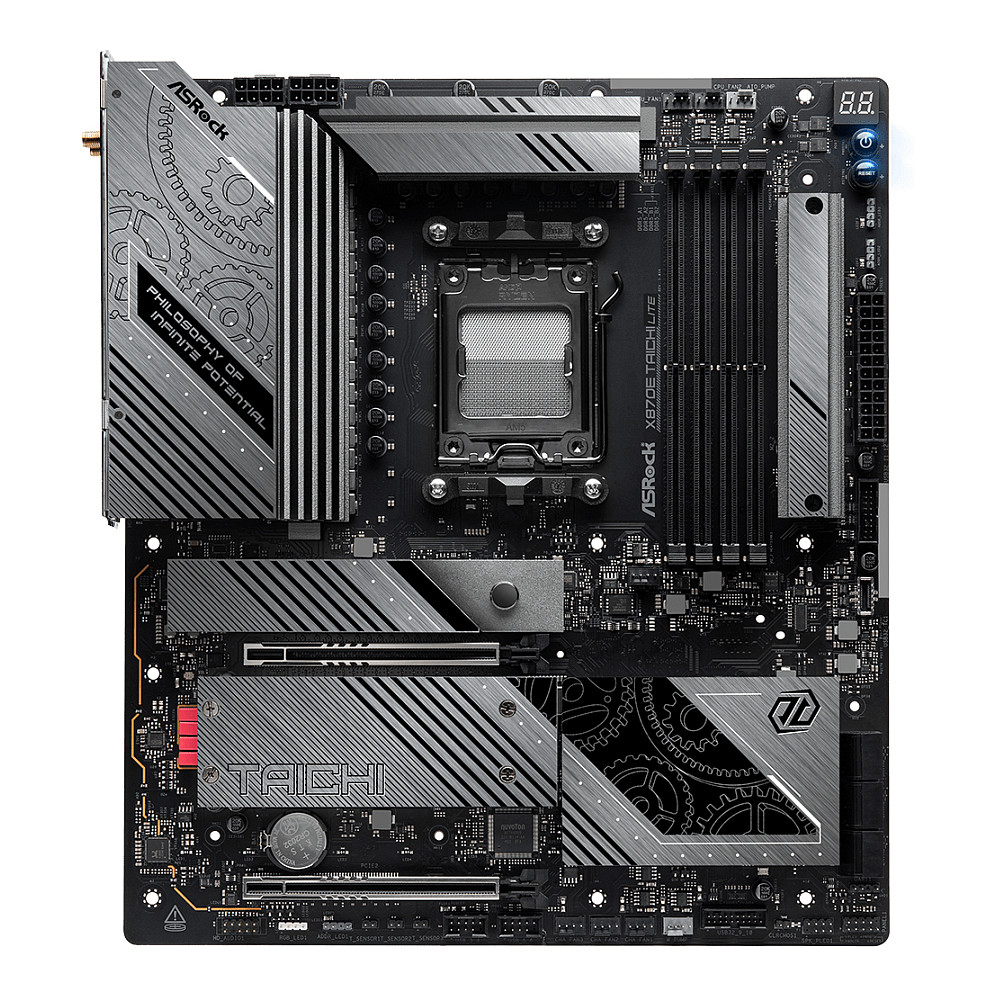

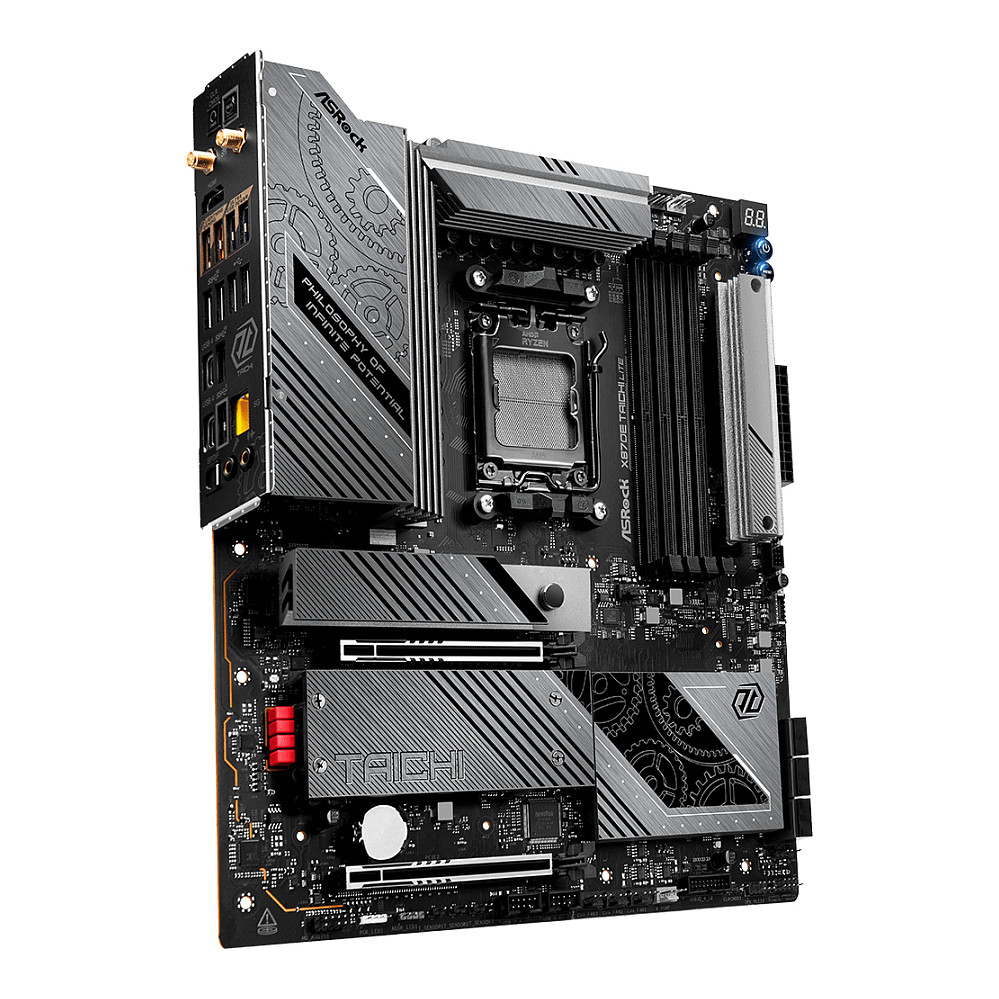

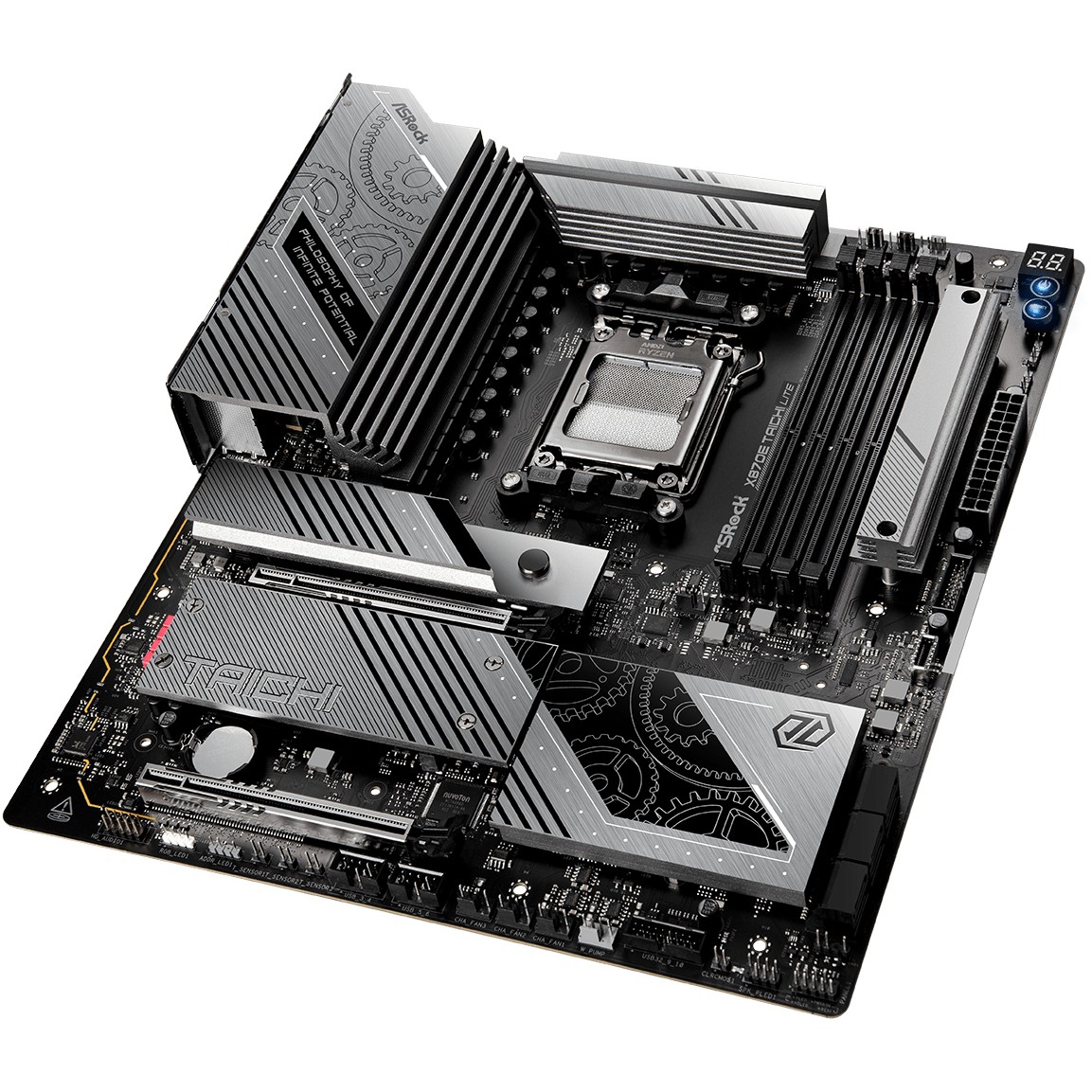

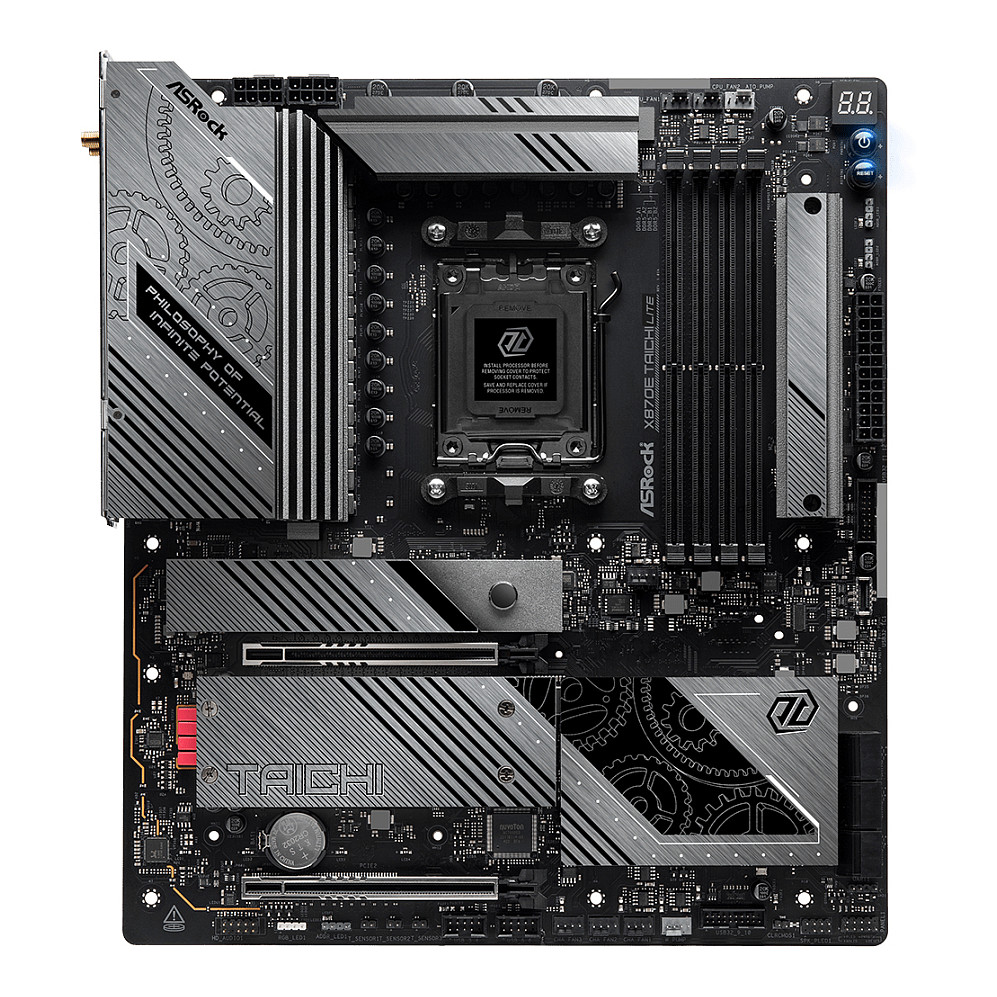

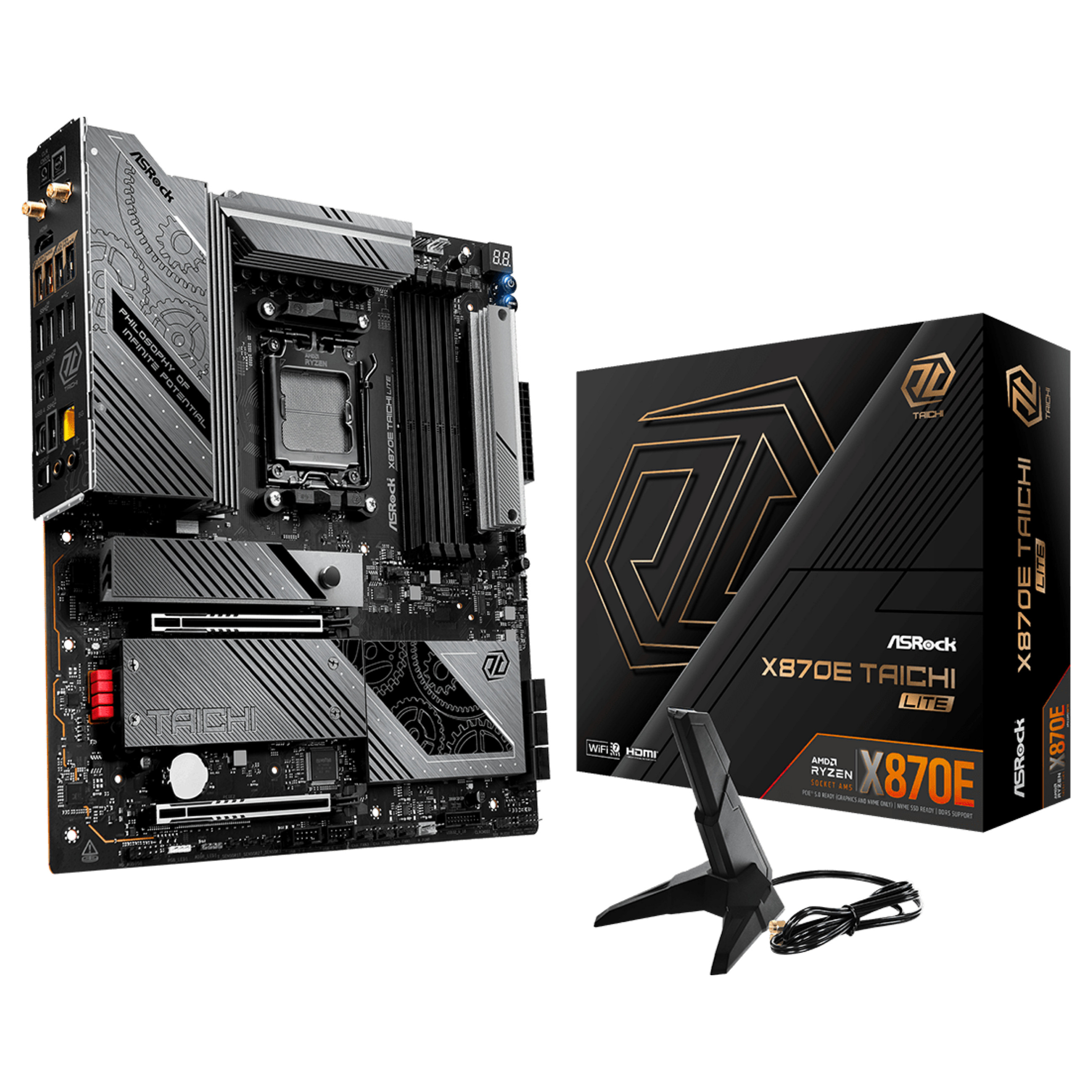

ASROCK X870E Taichi Lite (AM5) (D)
Pre-Order
€408.99
VAT (19%) included
Description
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series PC Extended ATX AMD X870 Realtek ALC1220 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 CrossFire BIOS type: UEFI AMI 256 Mbit Clear CMOS button 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Technical Specifications
SKU
K90-MXBPA0-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speed (Max)
8000 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1
Parallel Processing Technology Support
CrossFire
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
6
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Water Pump Connectors
1
Number Of Rgb Led Pin Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
5
Usb4 Gen 2X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
AMD X870
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
Extended ATX
Motherboard Chipset Family
AMD
Power Source Type
ATX
Certification
FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
305 mm
Depth
244 mm
Cables Included
SATA
Number Of M.2 (E) Slots
1
