ASRock

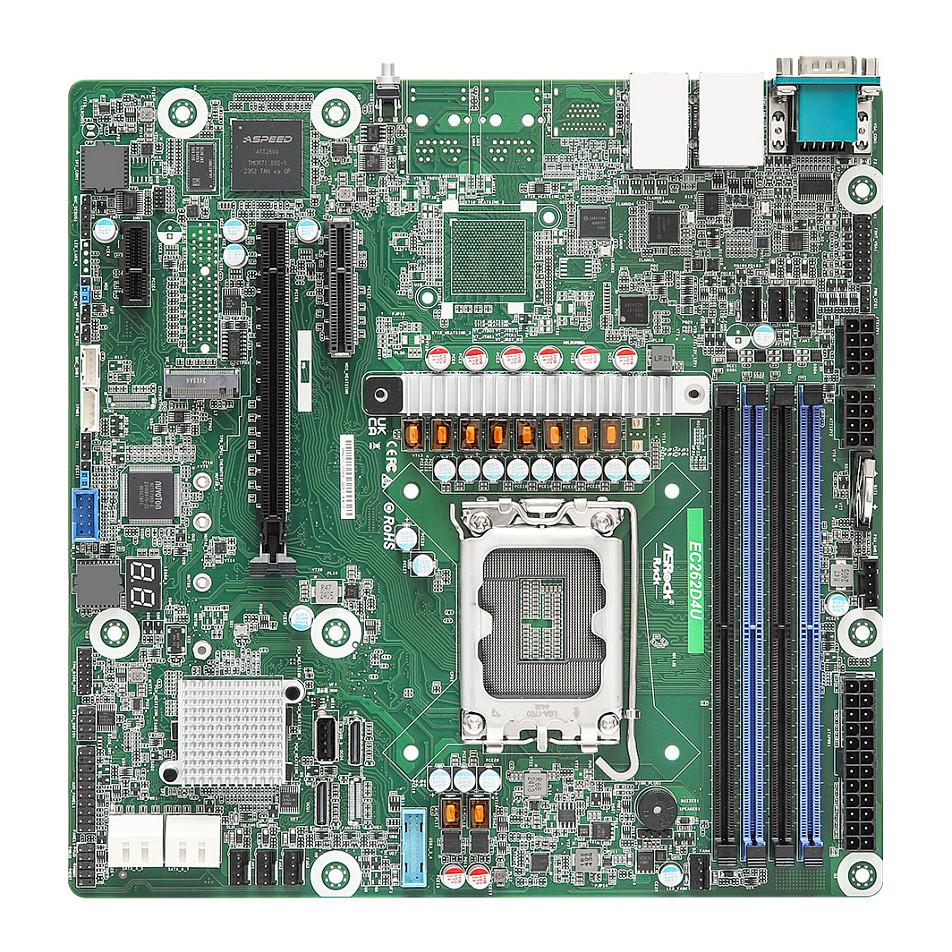

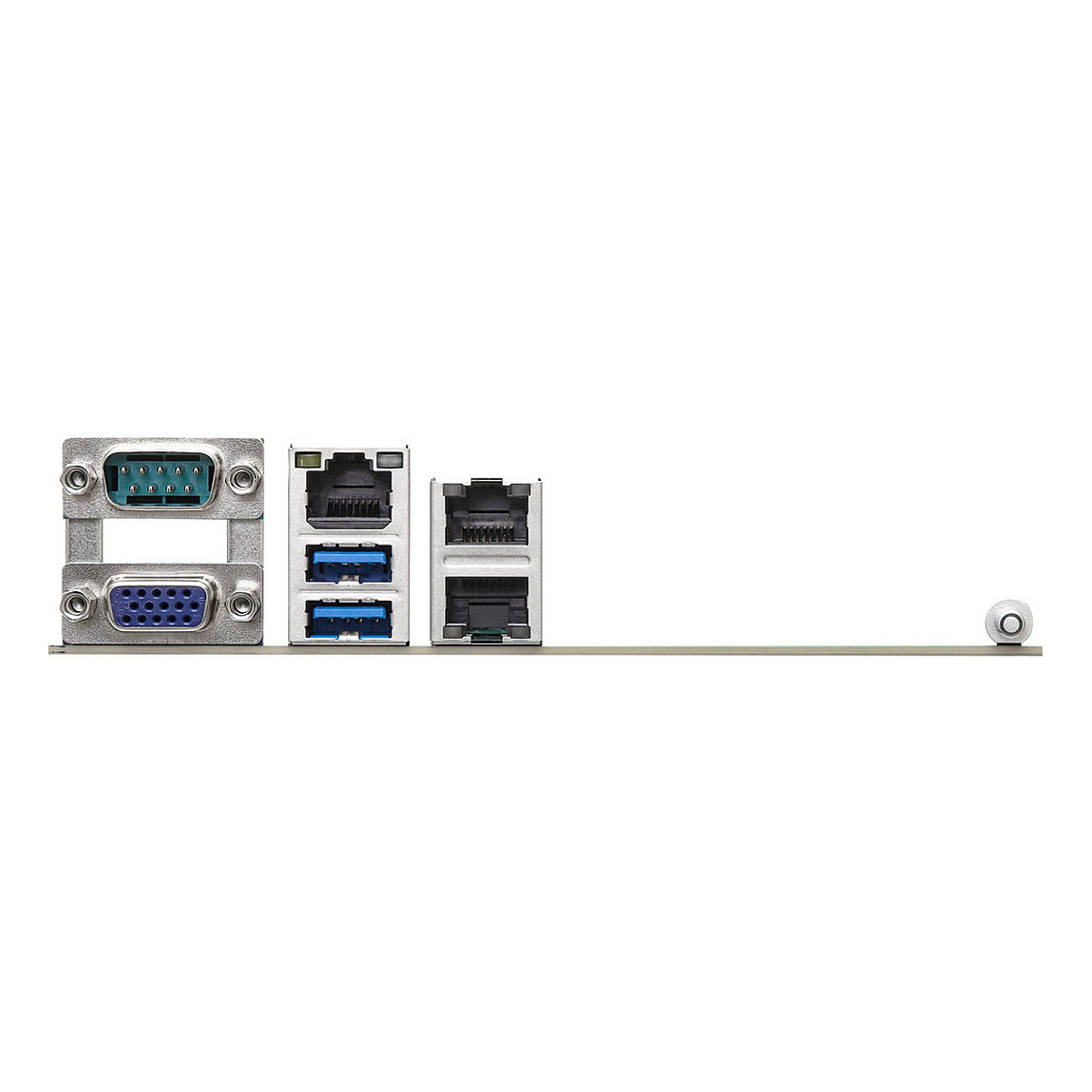

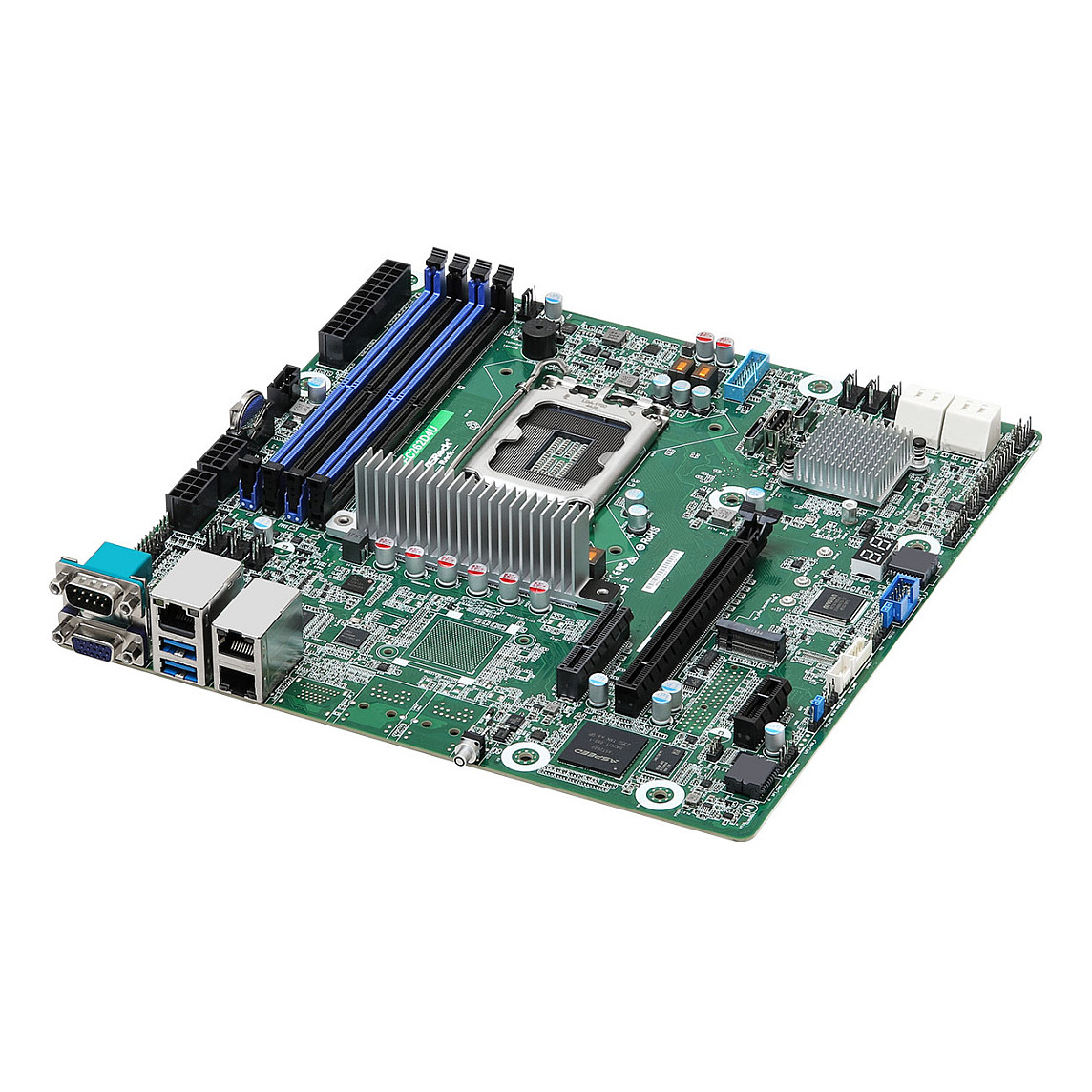

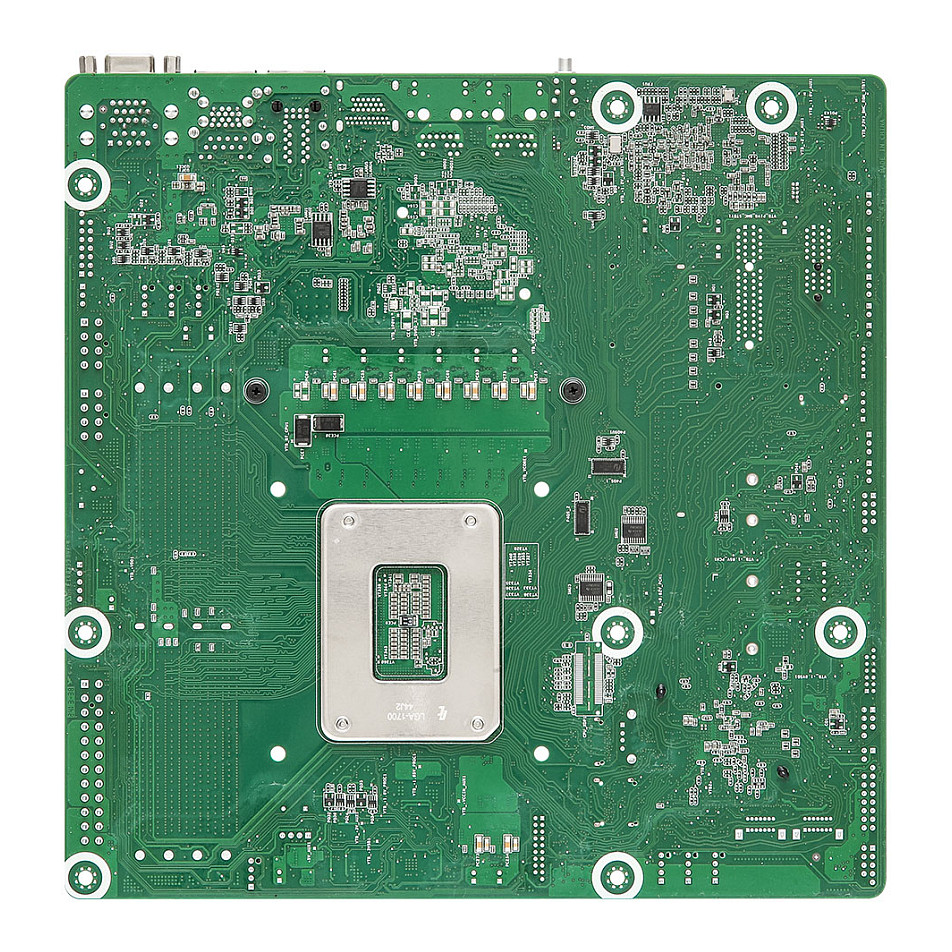

ASRock Mainboard EC262D4U micro-ATX Sockel 1700 DDR5 Single
Pre-Order
€398.99
VAT (19%) included
Description
Micro-ATX (9.6" x 9.6") Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe4.0 x1 2 OCuLink Supports 1 M.2 (PCIe4.0 x4) Up to 8 SATA 6Gb/s 2 RJ45 (1GbE) by Intel® i210 Remote Management (IPMI)
Technical Specifications
SKU
KEC262D4U
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Xeon®
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Voltage
1.1 V
Ecc Сompatibility
ECC
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
M.2
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
8
Peripheral (Molex) Power Connectors (4-Pin)
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Com Ports Quantity
1
Motherboard Chipset
Intel C262
Pc Health Monitoring
CPU, Fan
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Compatible Operating Systems
Microsoft® Windows: - Windows® Server 2022 - Azure Stack HCI Linux: - RHEL 8.5 - SLES 15 SP3 - Ubuntu 21.04 LTS Hypervisor: - VMware ESXi 8.0 u1 - Linux KVM (Linux OSes) - Hyper-V (Windows® Server)
Pci Express X1 (Gen 4.X) Slots
1
Pci Express X4 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
AMI
Bios Memory Size
256 Mbit
Acpi Version
6.4
System Management Bios (Smbios) Version
2.8
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Storage Relative Humidity (H-H)
20 - 90%
Width
244 mm
Depth
244 mm
