ASUS

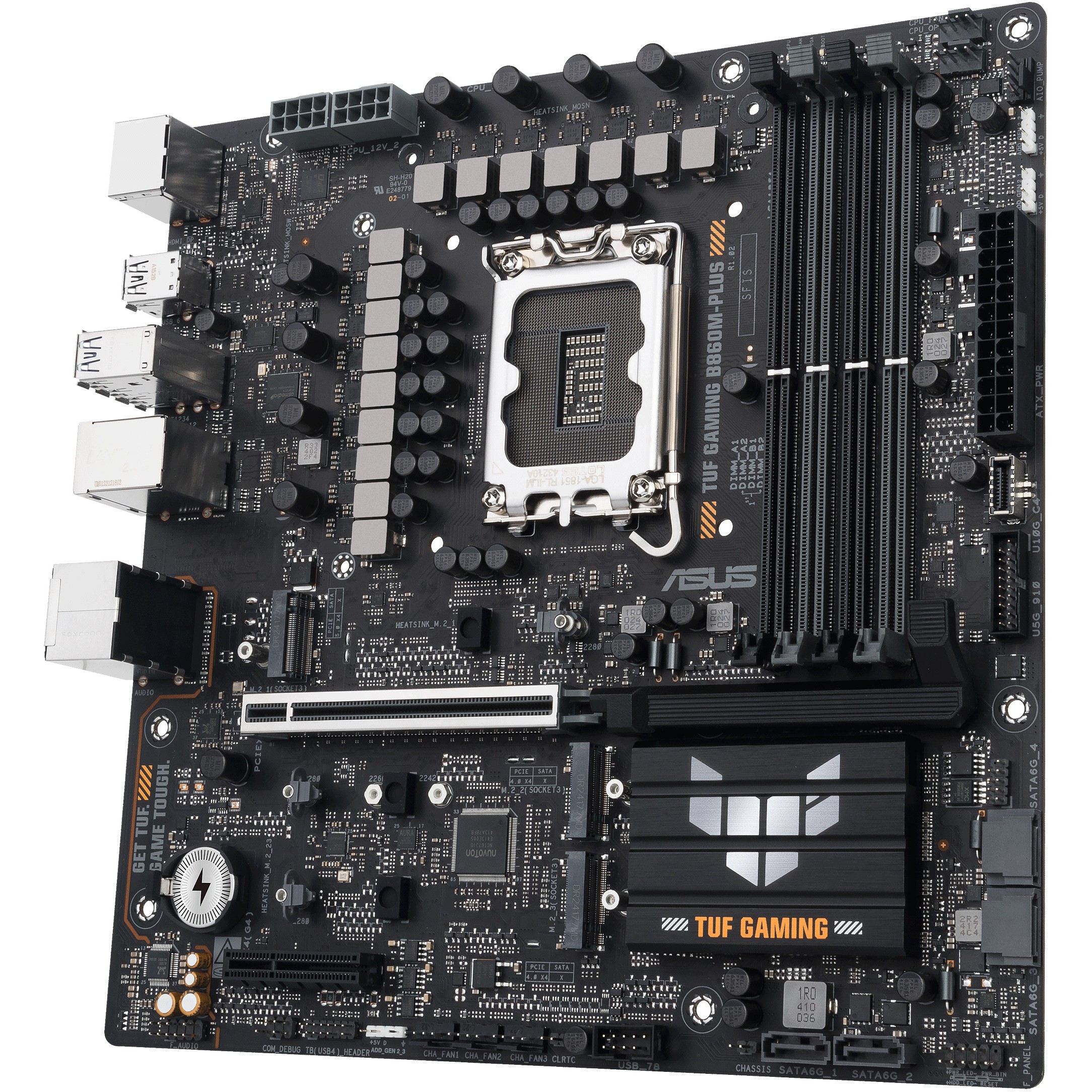

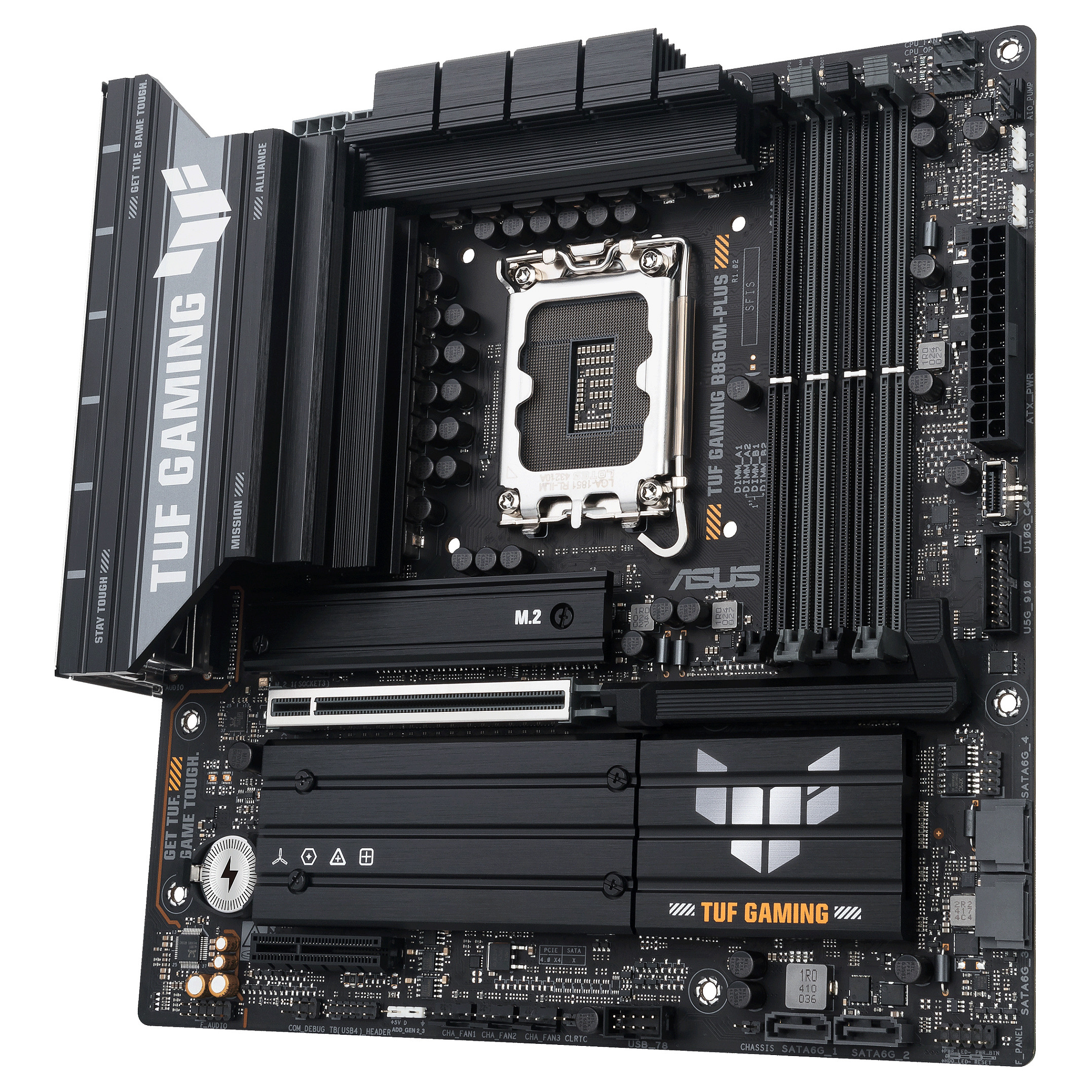

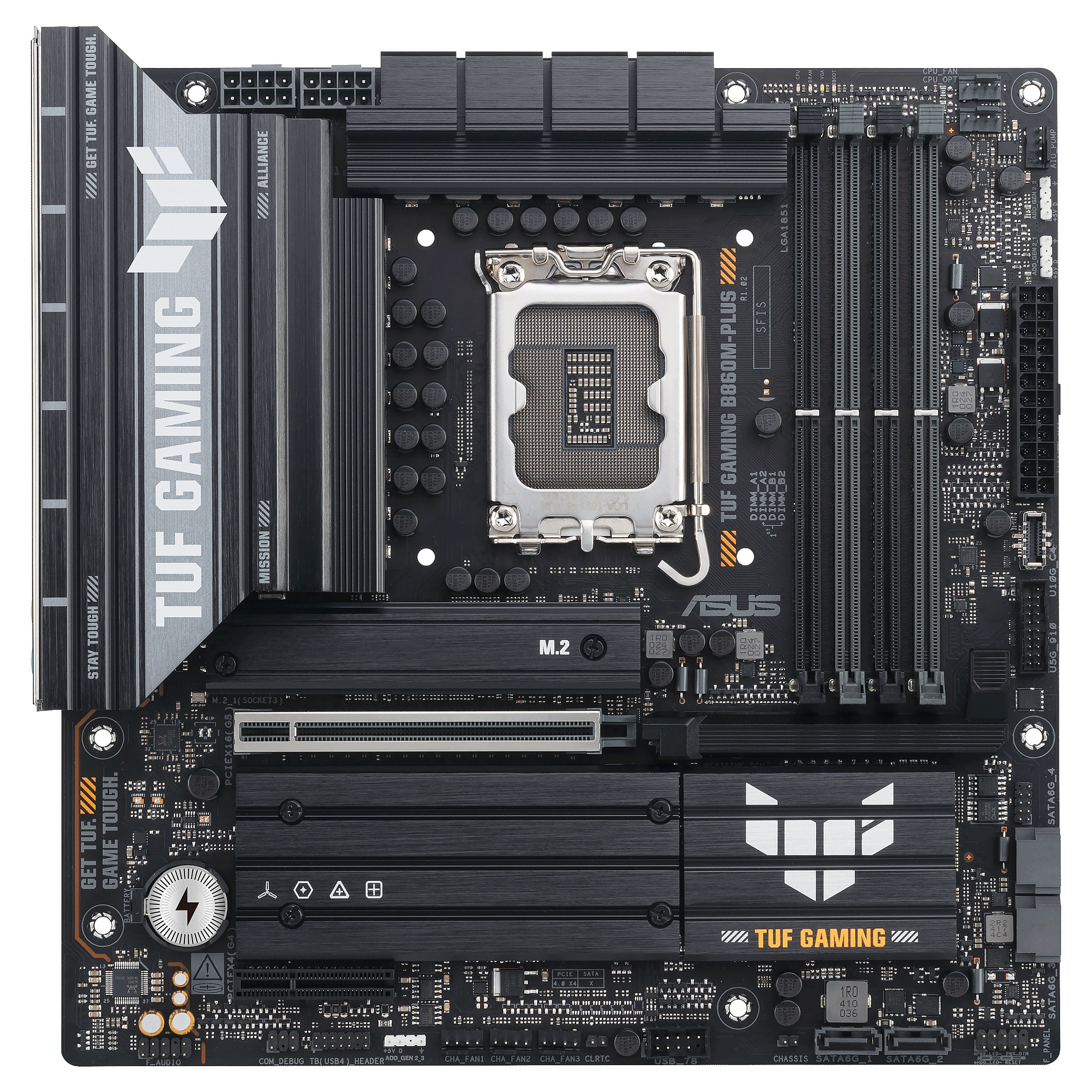

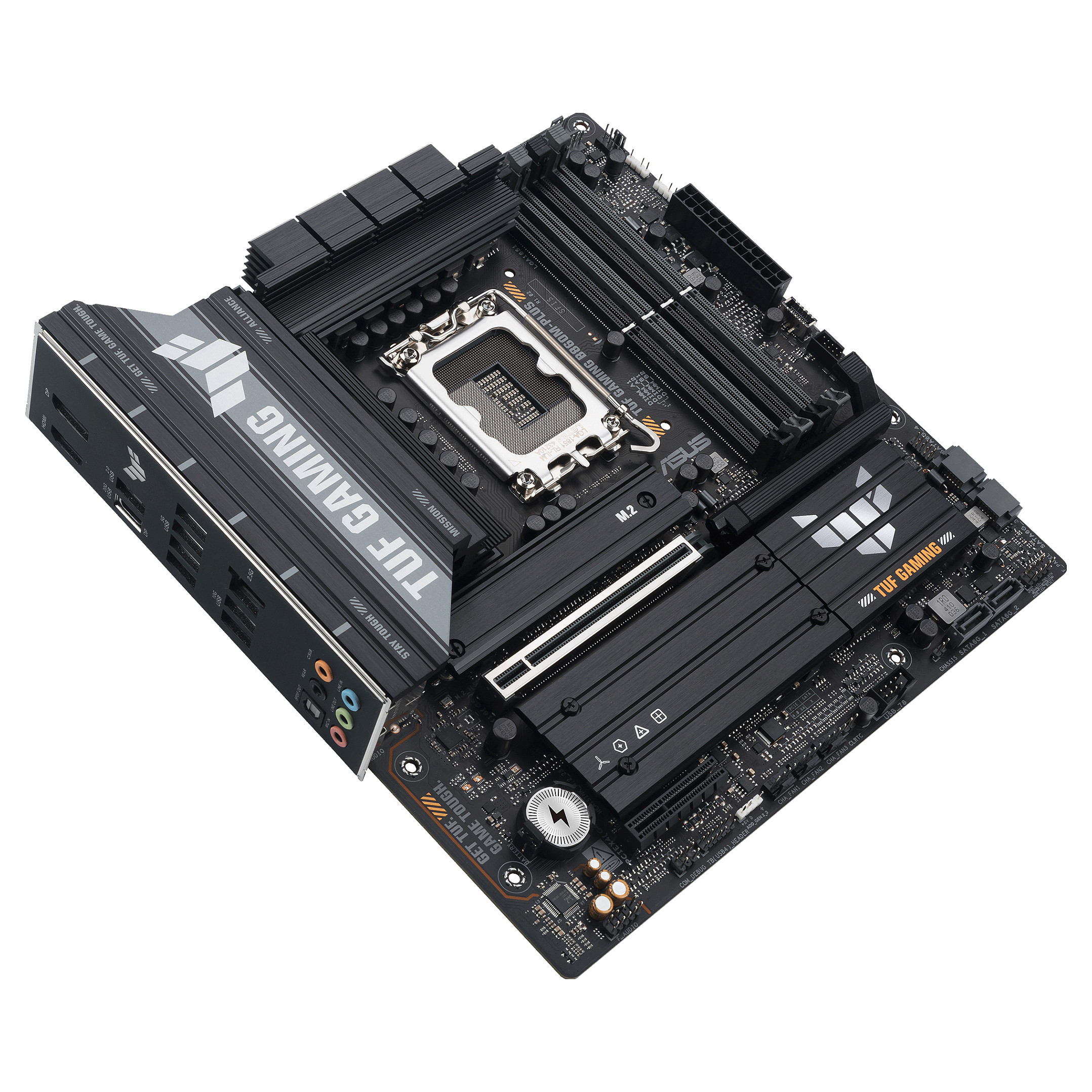

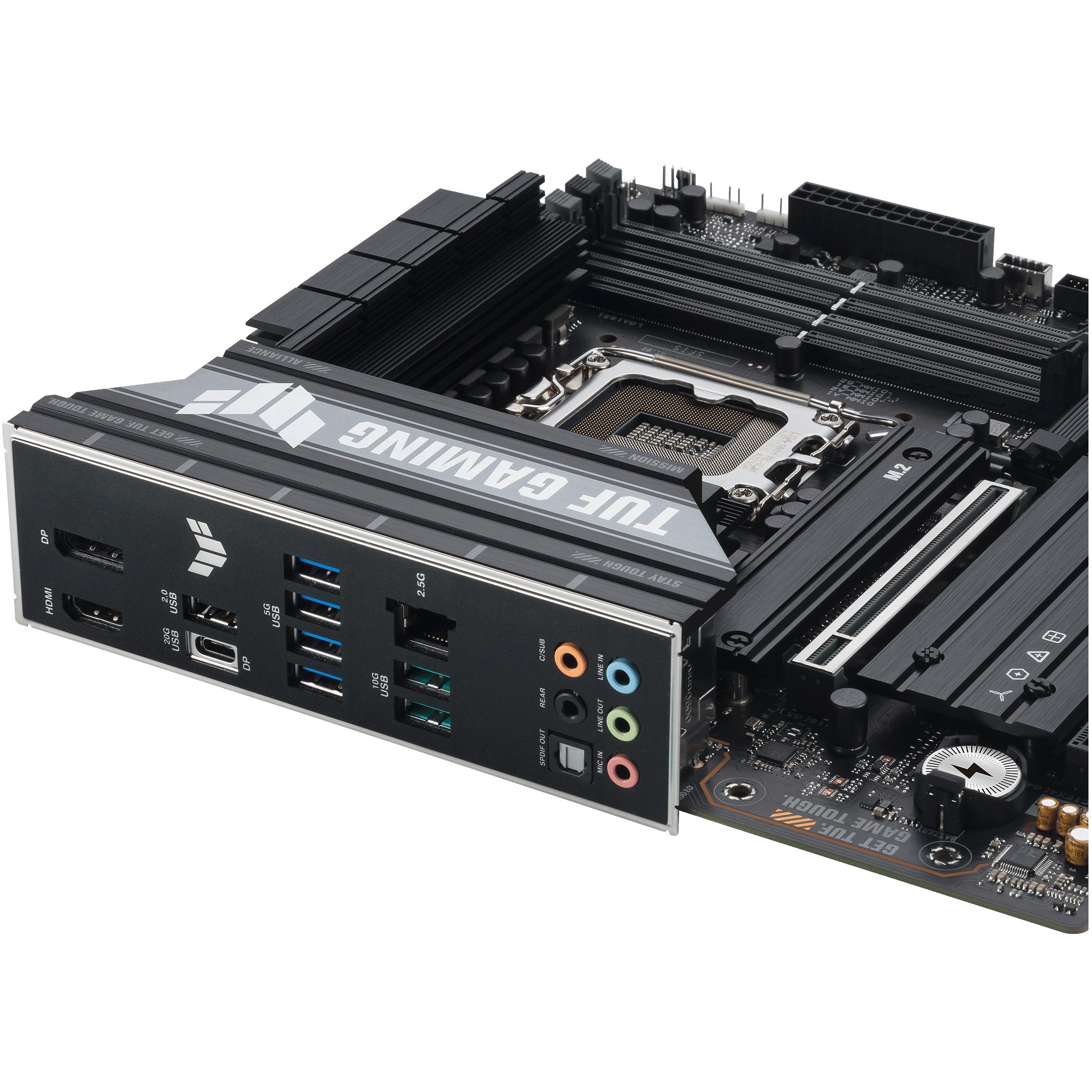

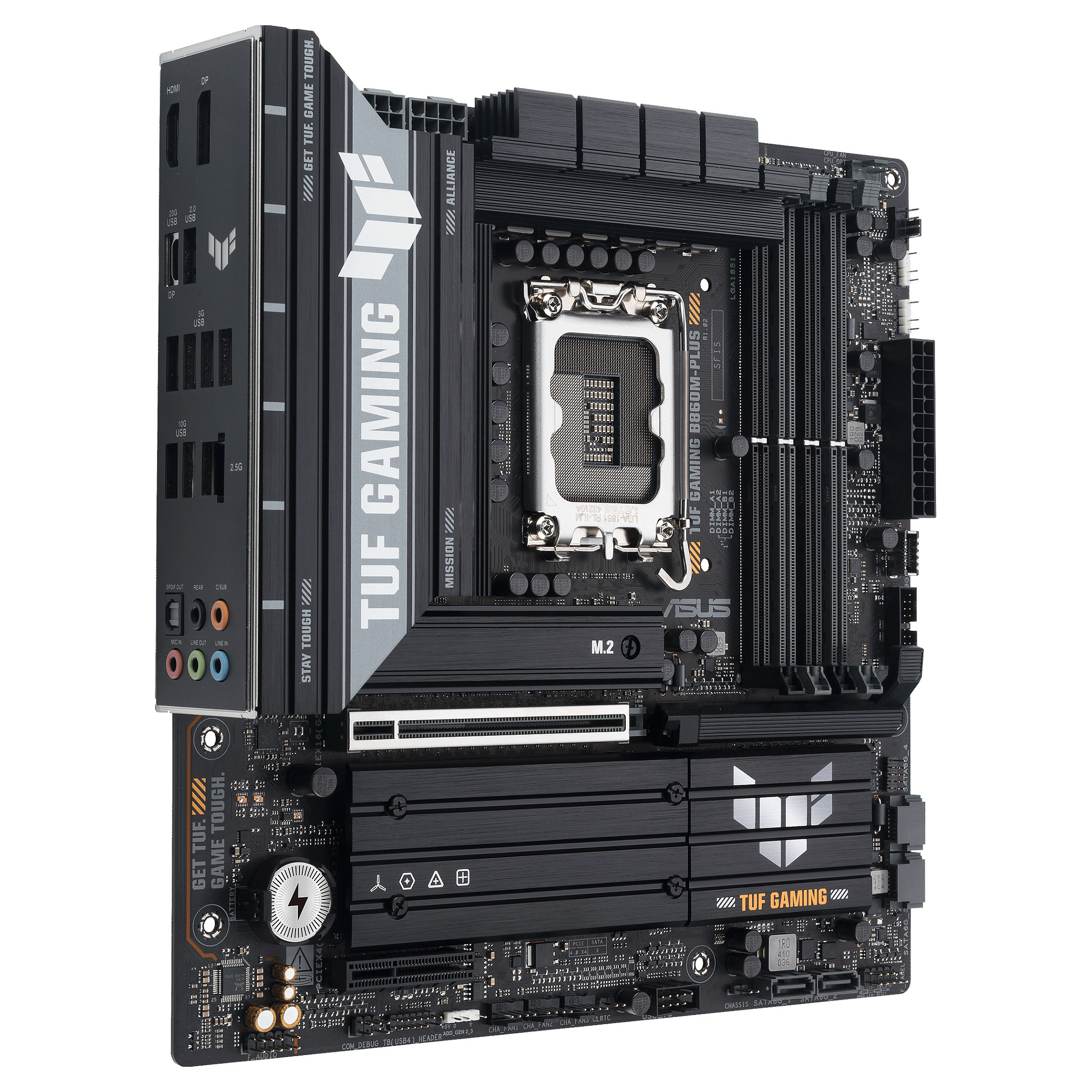

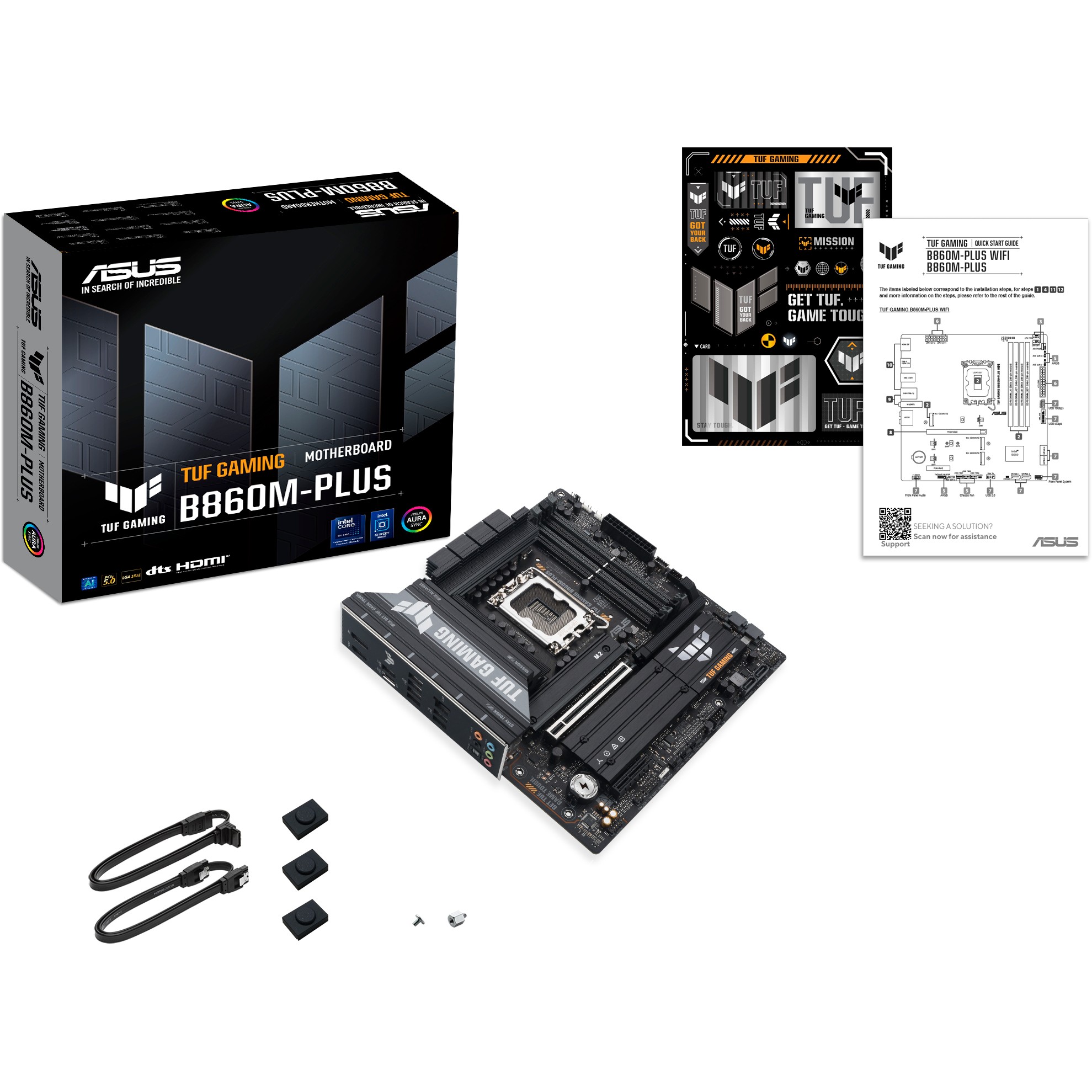

LGA1851 ASUS TUF GAMING B860M-PLUS
Pre-Order
€236.99
VAT (19%) included
Description
Supports Intel Core Ultra processors for top-tier performance Up to 192GB DDR5 memory with 8800 MT/s overclocking potential Onboard Wi-Fi 7 and 2.5Gb Ethernet for superior connectivity PCIe 5.0 x16 slot for future-proof graphics expansion Three M.2 slots for high-speed storage options Robust power delivery and cooling design for gaming and AI workloads Advanced onboard audio with 8-channel HD sound
Technical Specifications
SKU
K90MB1JW0-M0EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Thunderbolt Headers
1

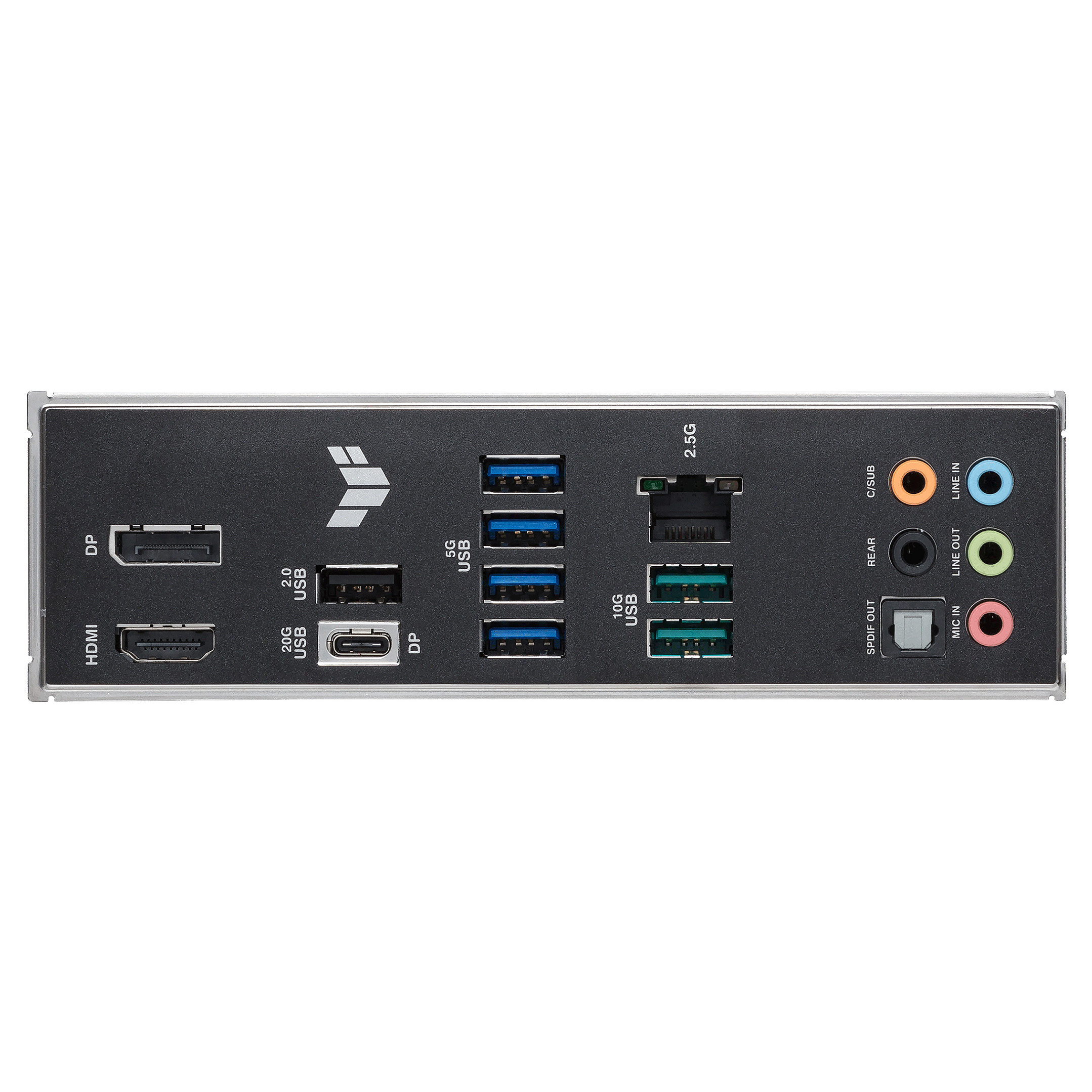

Usb 2.0 Ports Quantity
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Motherboard Chipset
Intel B860
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64
Pci Express X4 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
275 mm
Package Depth
275 mm
Package Height
67.5 mm
Package Weight
1.3 kg
Width
275 mm
Depth
275 mm
Height
67.5 mm
Cables Included
SATA
Weight
1 kg
