ASRock

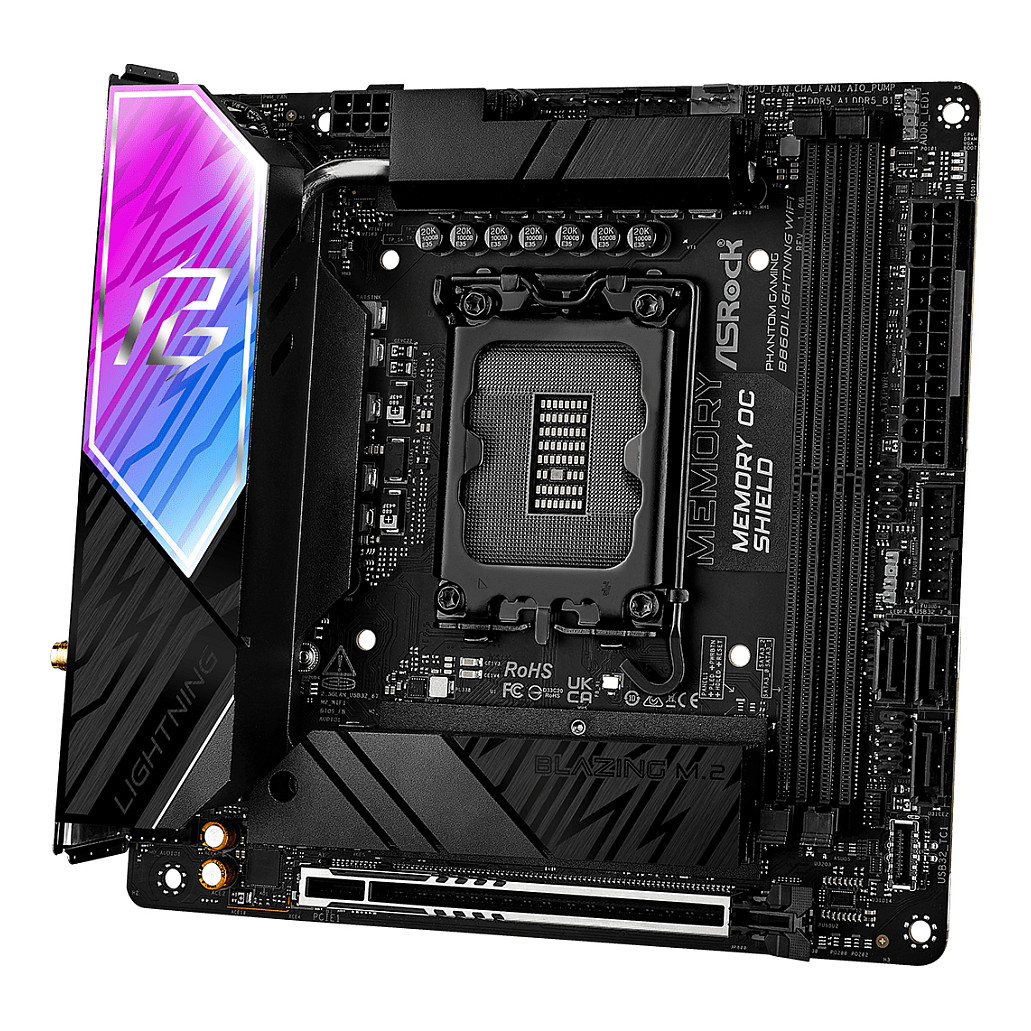

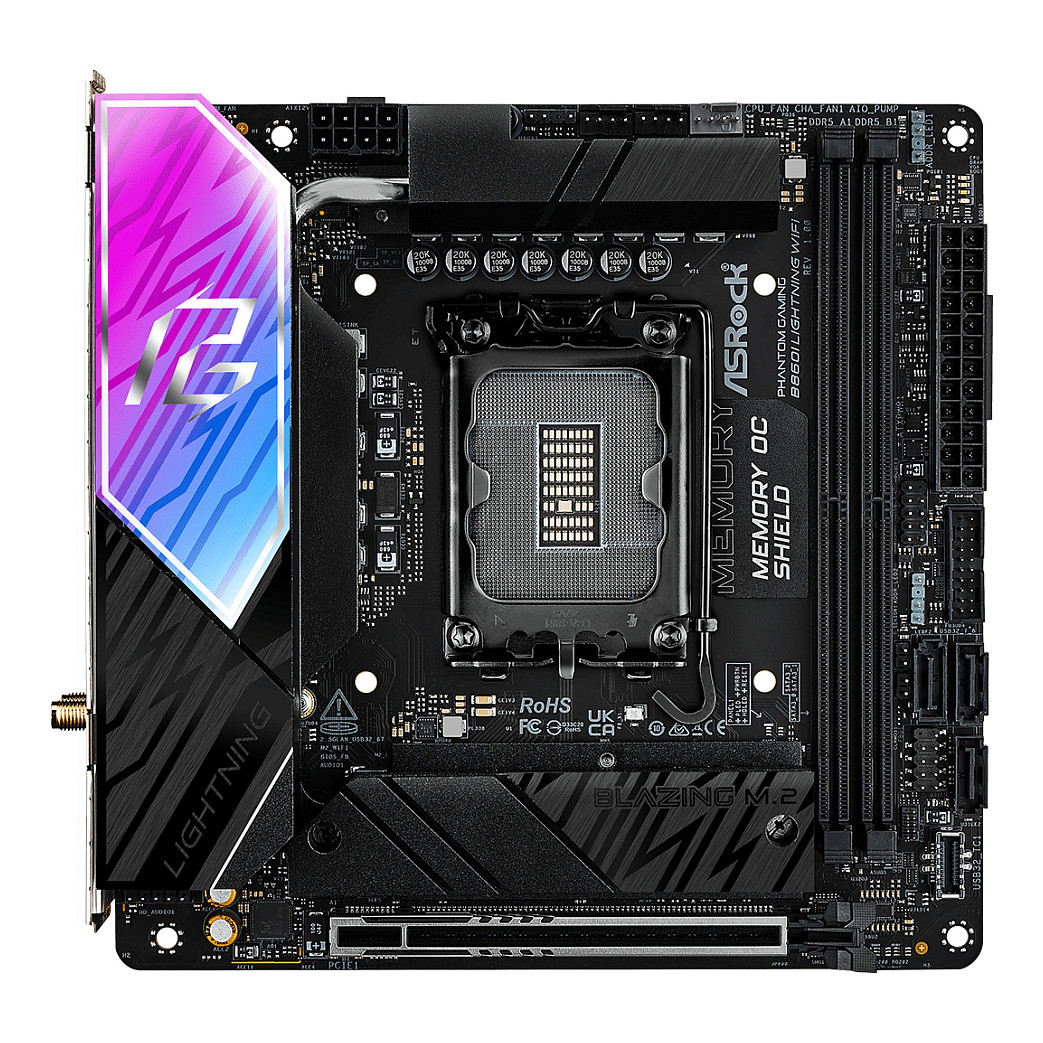

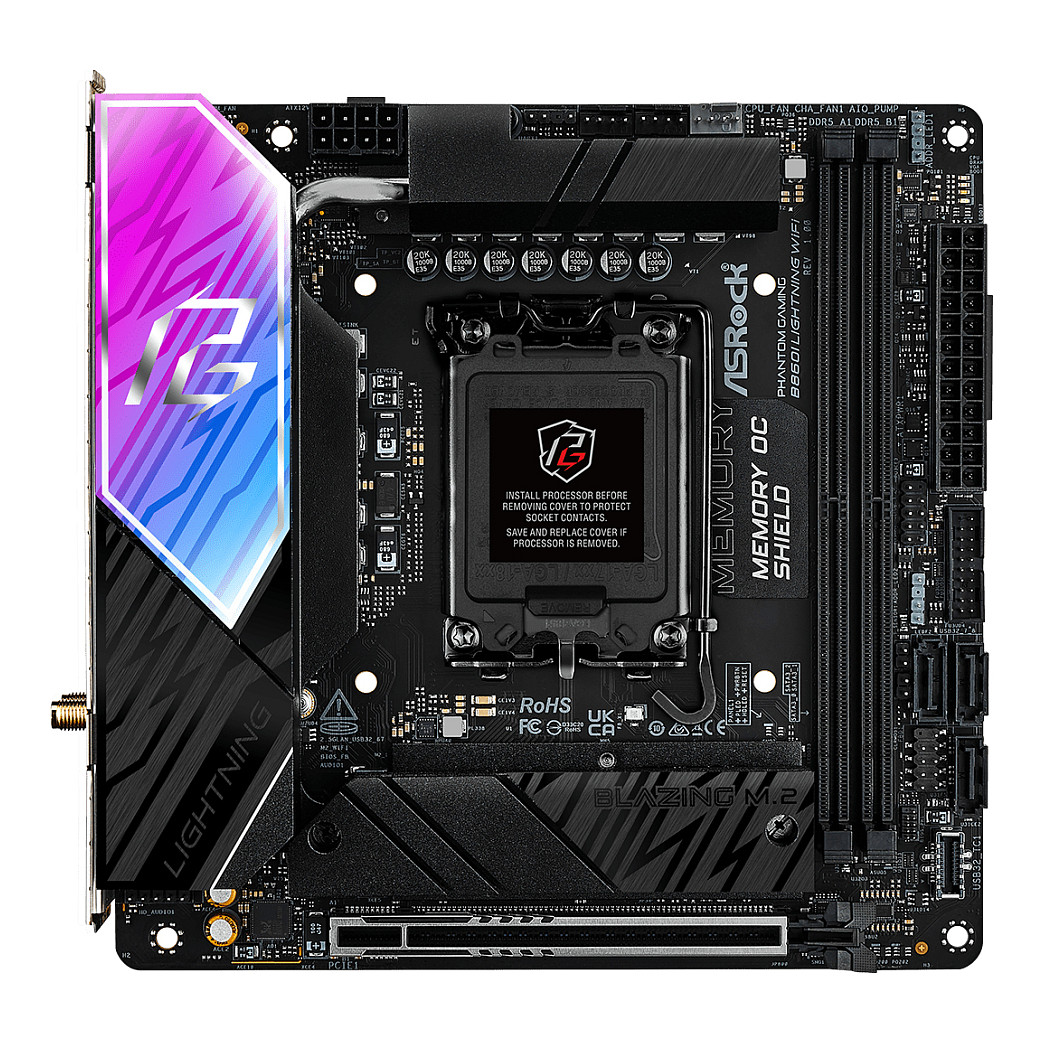

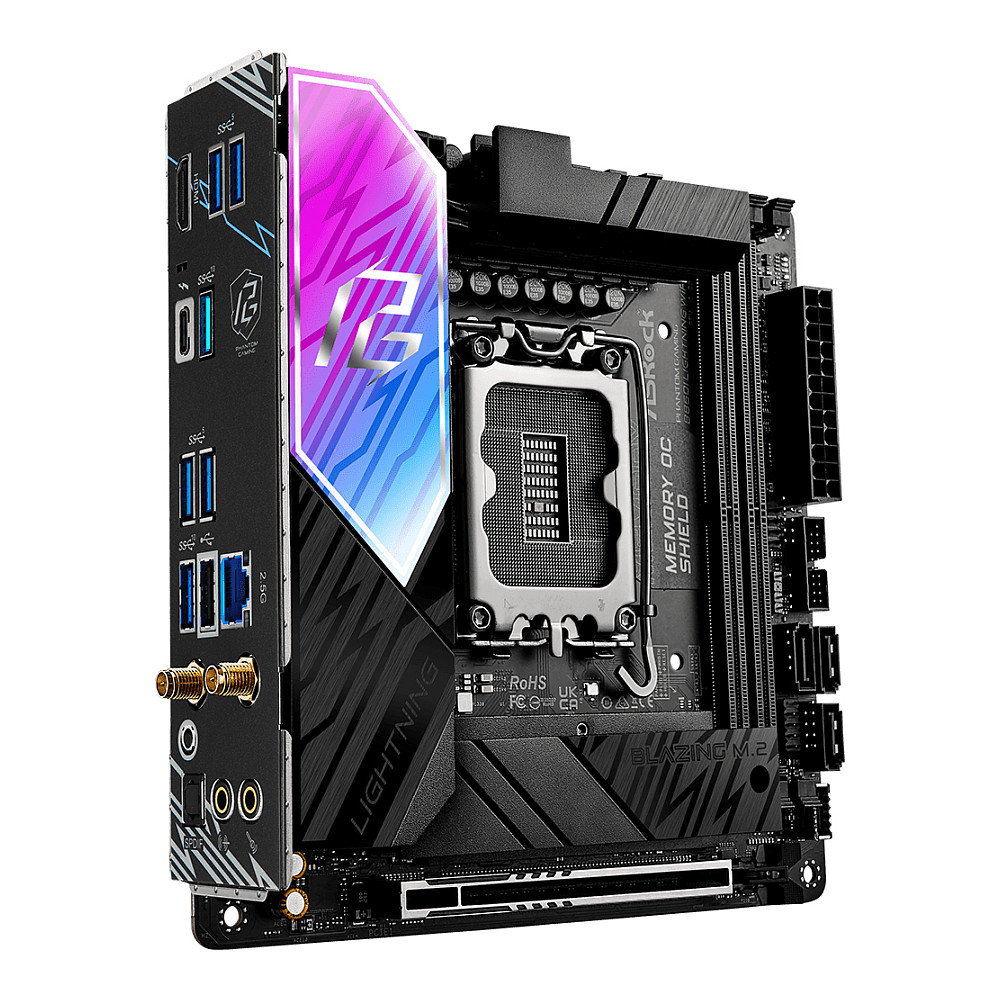

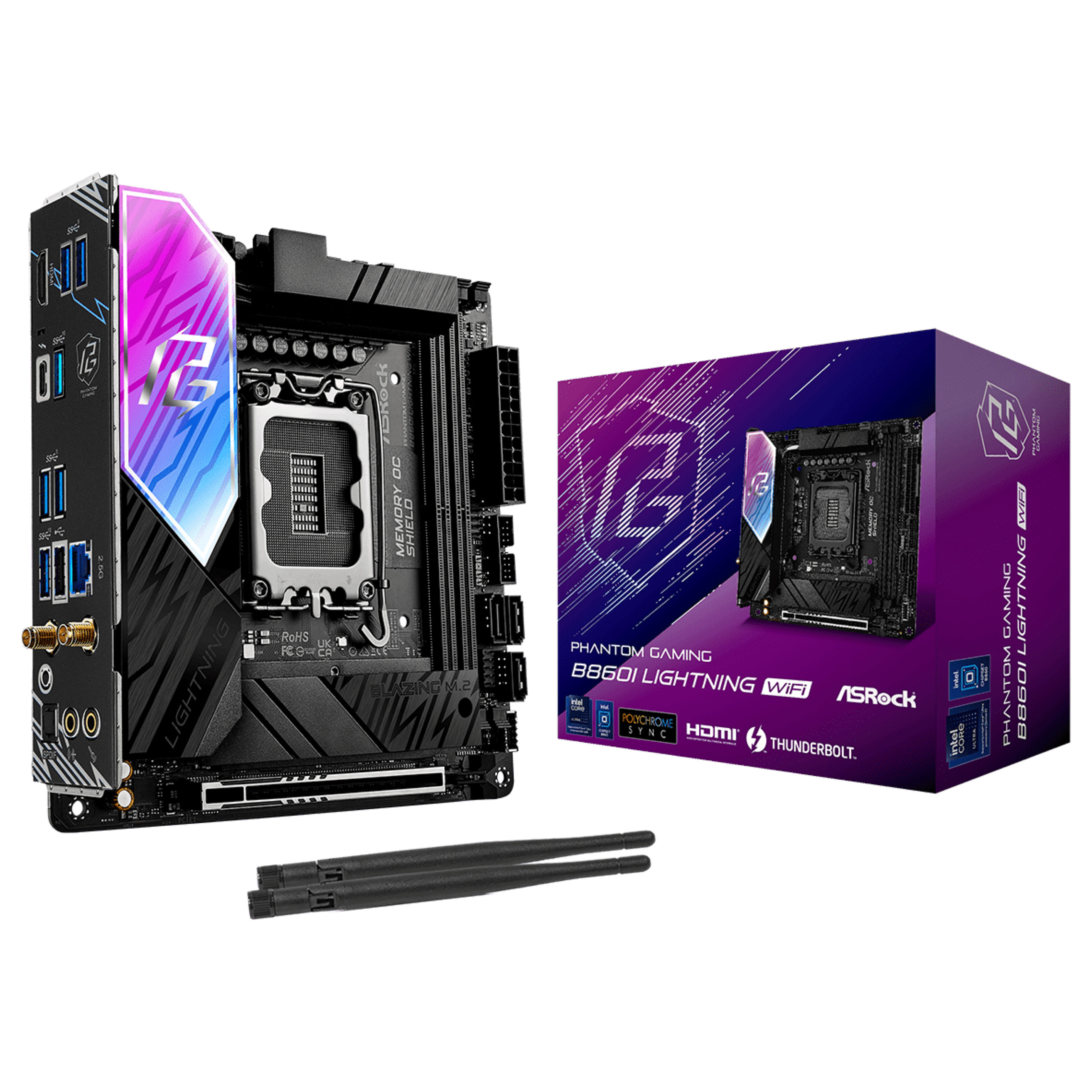

ASRock B860I Lightning WiFi 1851 mITX HDMI/USB-C DDR5
Pre-Order
€245.99
VAT (19%) included
Intel Iris Xe Graphics
Description
Intel LGA 1851 (Socket V1) PC mini ITX Intel B860 Realtek ALC1220 7.1 channels DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB M.2, SATA III RAID support Number of storage drives supported: 4 Intel Intel Iris Xe Graphics BIOS type: UEFI AMI 256 Mbit 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Technical Specifications
Graphics Card
Intel Iris Xe Graphics
SKU
K90-MXBRZ0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
4
Raid Levels
0, 1, 5
Graphics Card Family
Intel
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
3
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Usb 2.0 Ports Quantity
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Thunderbolt Ports Quantity
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Version
5.3
Motherboard Chipset
Intel B860
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
170 mm
Depth
170 mm
Cables Included
SATA
