ASUS

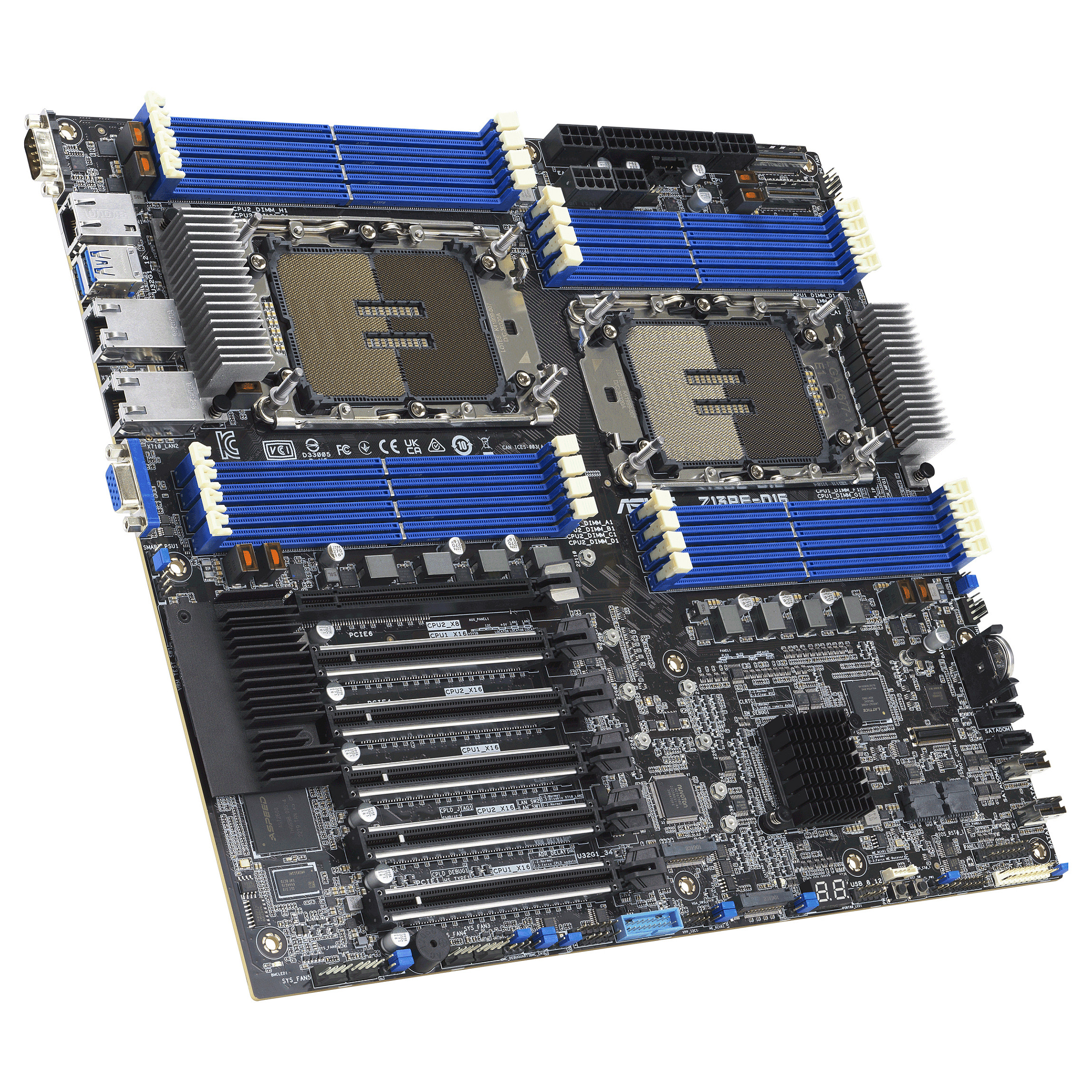

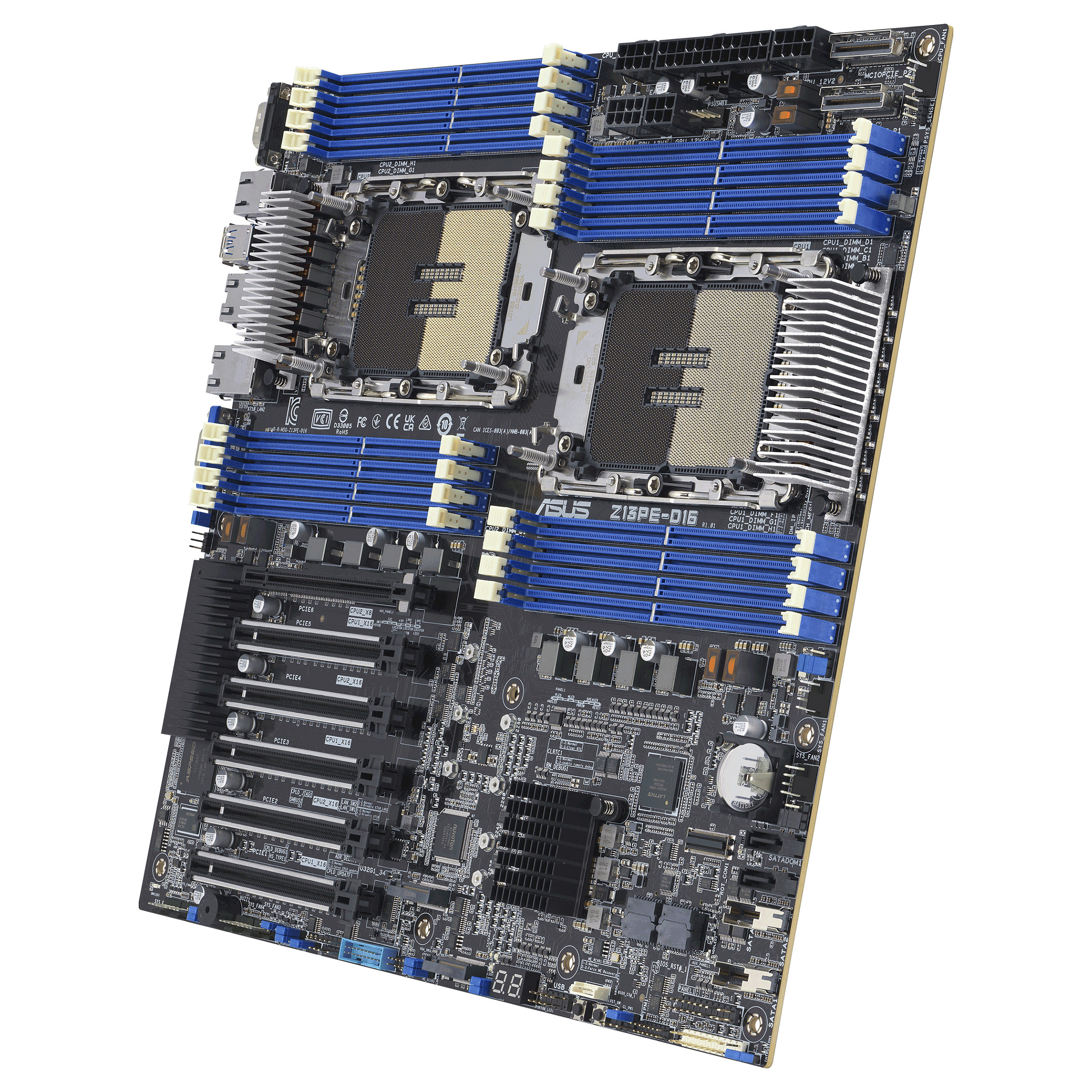

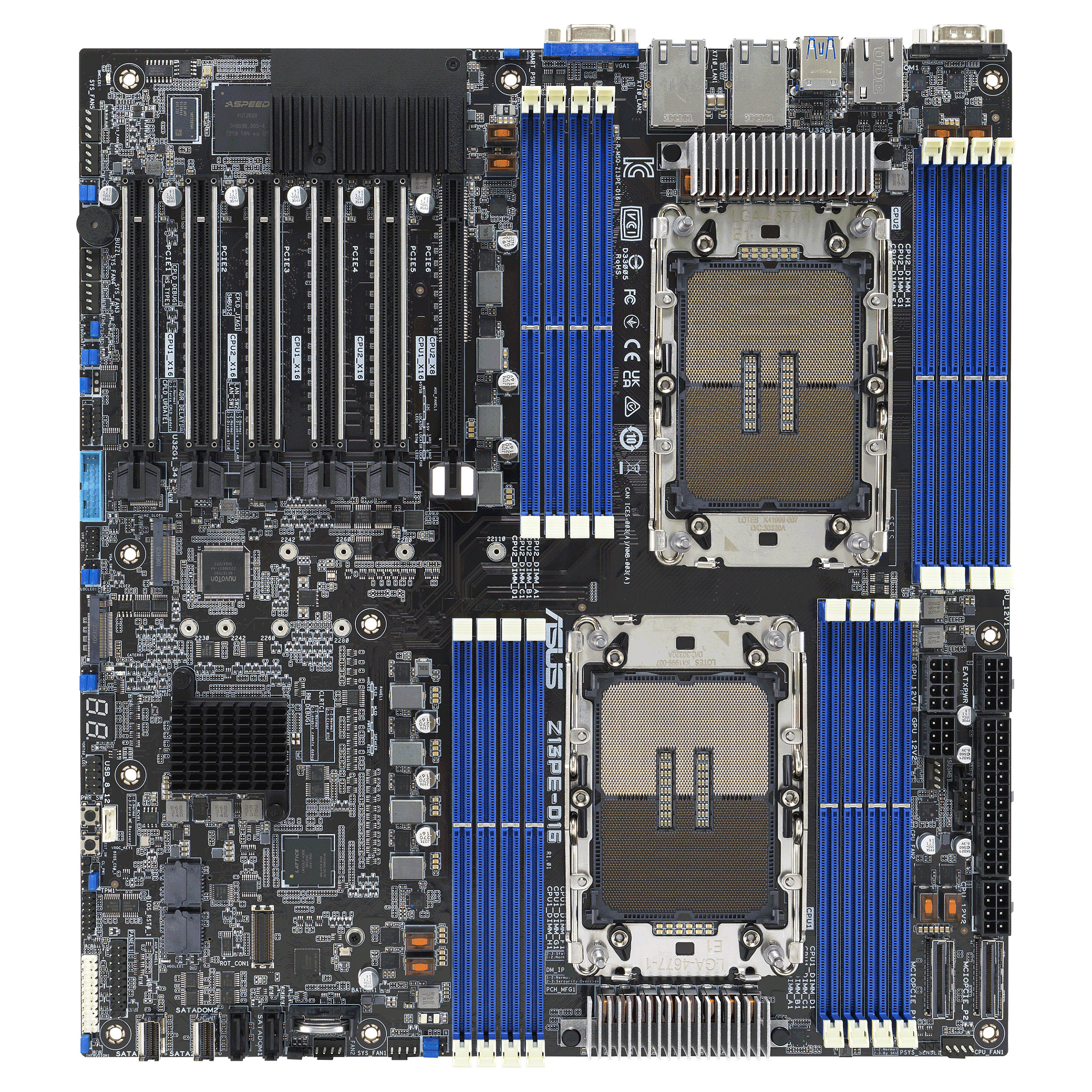

ASUS Z13PE-D16/ASMB11 E-ATX 2x LGA 4677 DDR5 2x10G
Pre-Order
€1230.99
VAT (19%) included
Ast2600
Description
E-ATX board ready for dual 5th Gen Intel Xeon Scalable processors, with LGA 4677 socket, and supporting up to 350 W TDP A single CPU supports a maximum of three PCIe cards 16 x DDR5 4800 RDIMM for up to 4 TB RAM Integrated dual M.2 provides PCIe 5.0 x4 bandwidth for faster OS booting Dual Intel 10 Gbps Ethernet with teaming support Comprehensive IT-infrastructure-management solution with ASUS Control Center (ACC) and ASMB11-iKVM
Technical Specifications
Graphics Card
Ast2600
SKU
K90SB0CA0-M0UAY2
Processor Manufacturer
Intel
Processor Socket
LGA 4677 (Socket E)
Compatible Processor Series
Intel® Xeon®
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
16
Memory Slots Type
DIMM
Memory Channels
Octa-channel
Supported Memory Clock Speeds
4800, 5600 MHz
Maximum Internal Memory
2 TB
Supported Memory Module Capacities
16GB, 32GB, 64GB, 128GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
10
Number Of Storage Drives Supported
12
Graphics Card Family
ASPEED
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
10
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Serial Ports Quantity
1
Ethernet Interface Type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Lan Controller
Intel X710-AT2
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel C741
Component For
Server
Motherboard Form Factor
Extended ATX
Motherboard Chipset Family
Intel
Pci Express X16 (Gen 5.X) Slots
5
Number Of M.2 (M) Slots
2
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Storage Relative Humidity (H-H)
20 - 90%
Package Weight
2.75 kg
Width
304.8 mm
Depth
330.2 mm
Weight
1.75 kg
