MSI

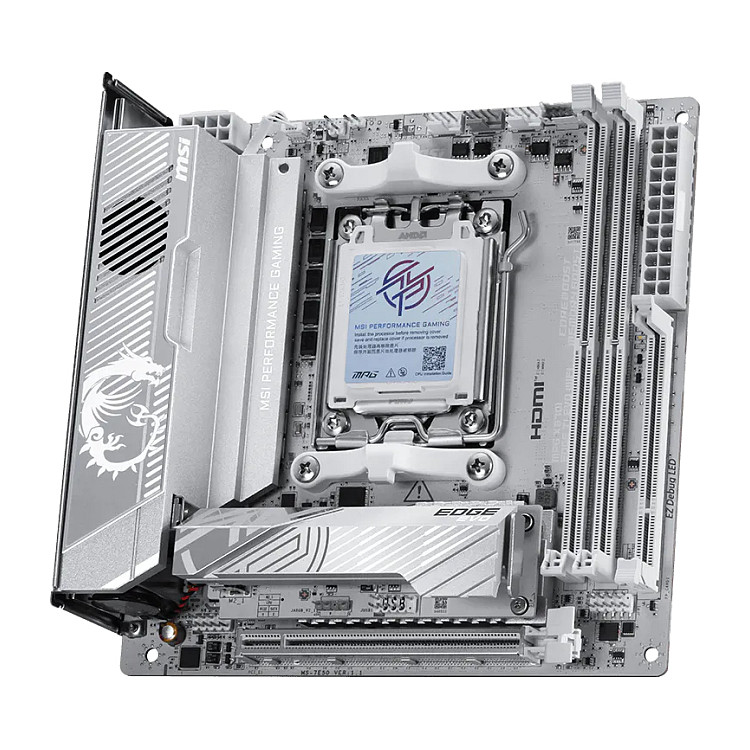

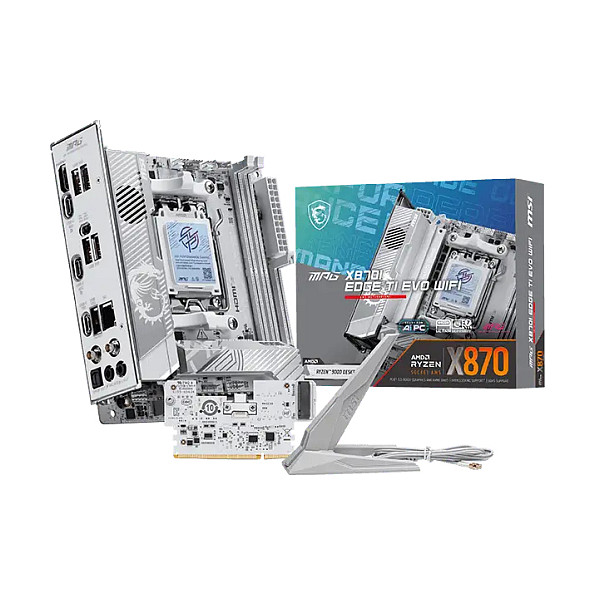

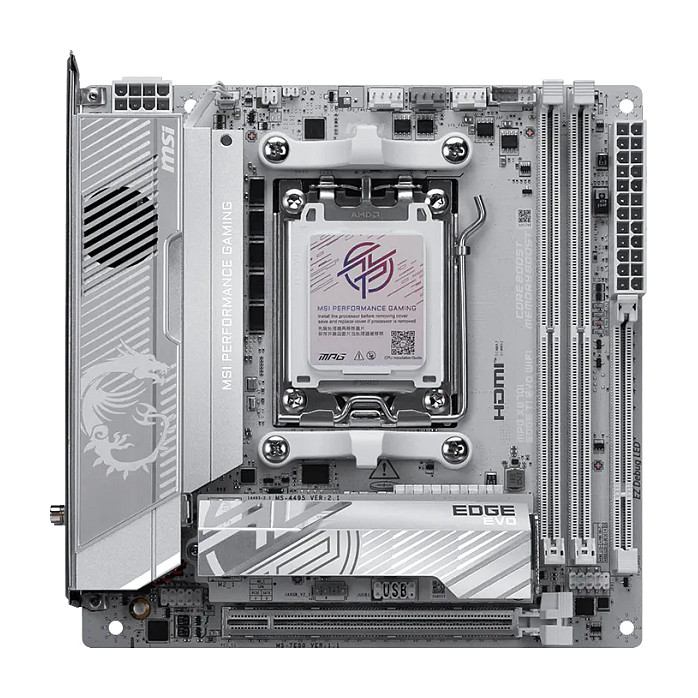

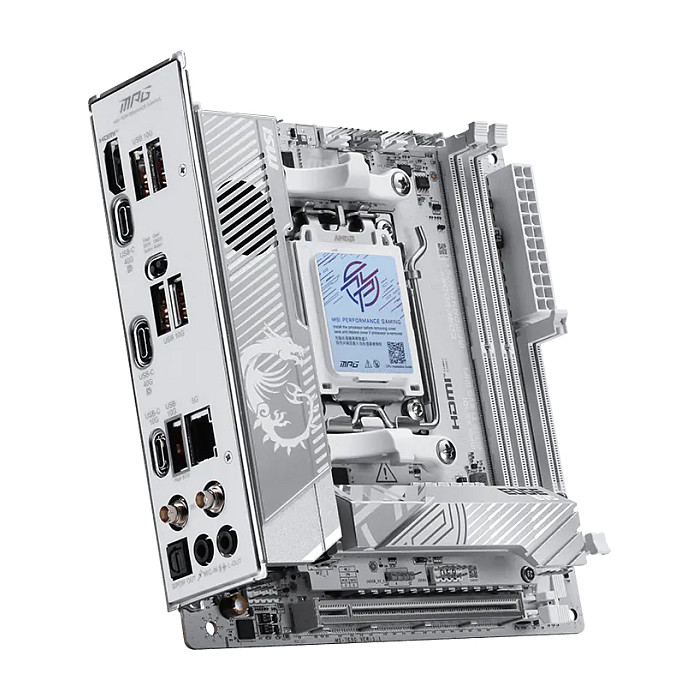

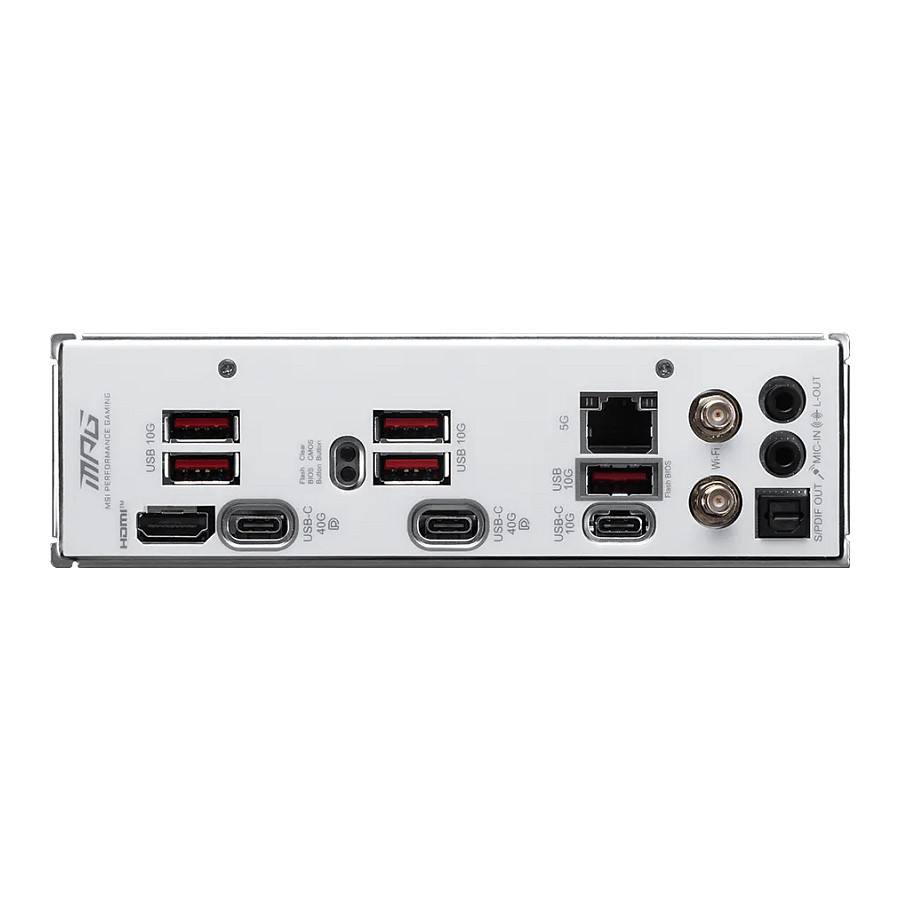

MSI MPG X870I EDGE TI EVO WIFI (AM5)
Pre-Order
€488.99
VAT (19%) included
Description
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 10000+ MT/s (OC) Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2 Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Technical Specifications
SKU
K7E50-001R
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
9000, 8000, 7000 MHz
Supported Memory Clock Speed (Max)
9000 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
2
Number Of Storage Drives Supported
3
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
2
Total Number Of Sata Connectors
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Usb4 Gen 2X2 Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
2
Ethernet Interface Type
5 Gigabit Ethernet
Lan Controller
Realtek RTL8126
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
AMD X870
Audio Chip
Realtek ALC4080
Audio Output Channels
7.1 channels
Product Colour
White
Pc Health Monitoring
CPU, Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
AMD
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
Bios Type
UEFI AMI
Bios Memory Size
512 Mbit
Acpi Version
6.5
System Management Bios (Smbios) Version
3.7
Width
170 mm
Depth
170 mm
