MSI

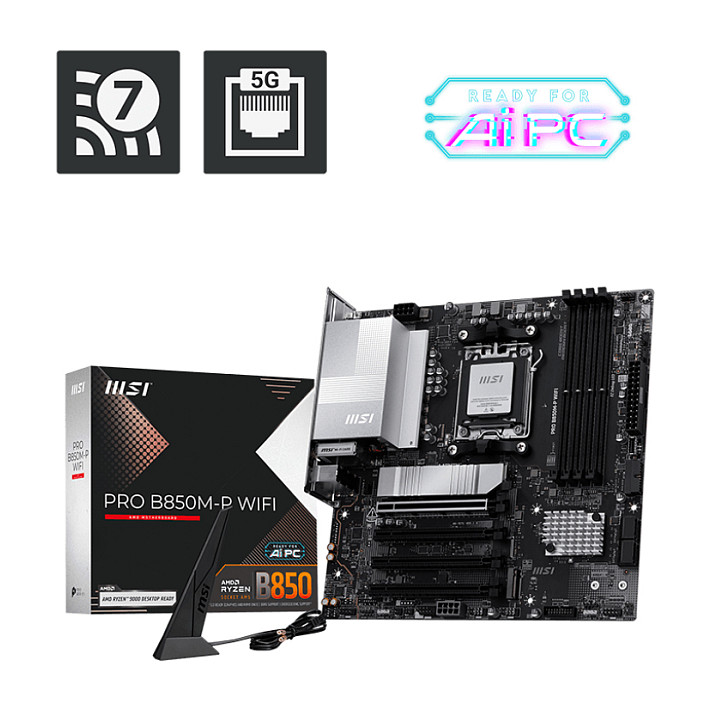

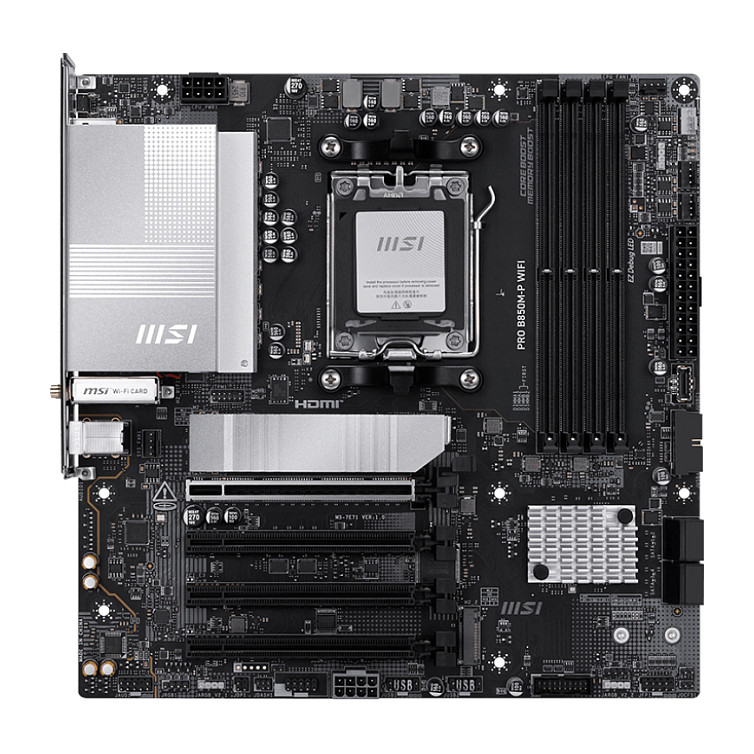

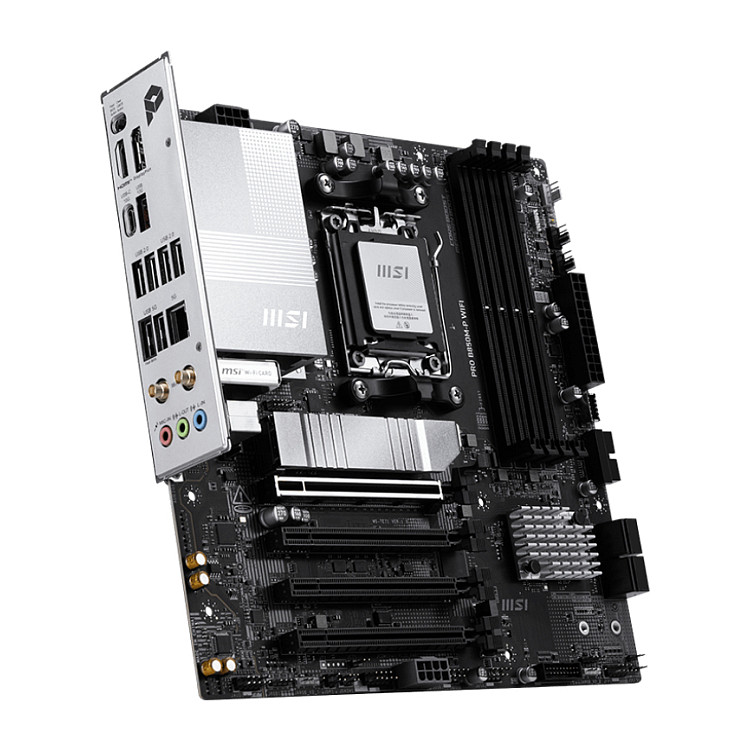

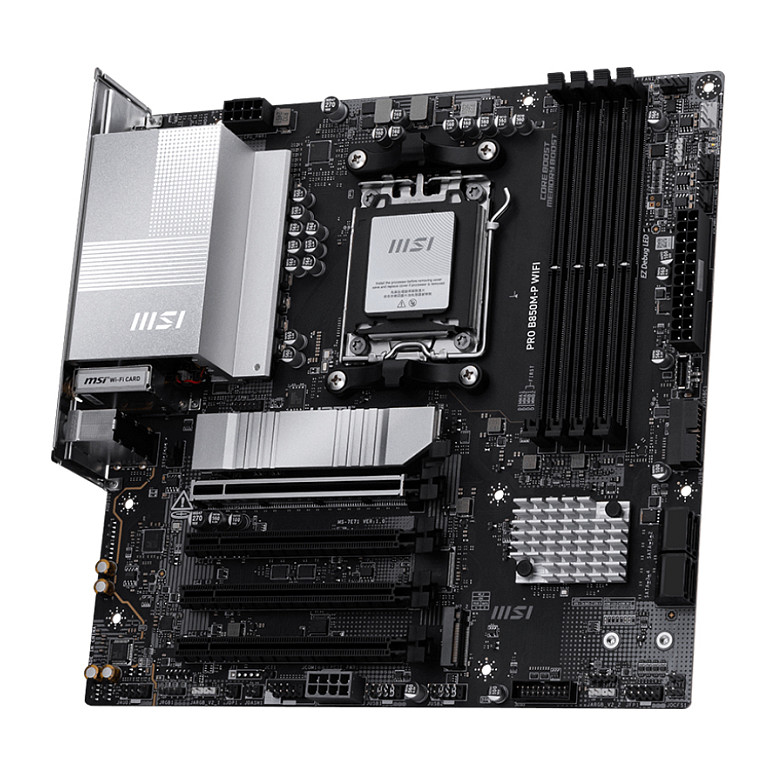

MSI Pro B850M-P Wifi (B850.AM5.mATX.DDR5)
Pre-Order
€176.99
VAT (19%) included
Description
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Technical Specifications
SKU
K7E71-001R
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
6000, 6400, 8200 MHz
Supported Memory Clock Speed (Max)
8200 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 10
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Water Pump Connectors
1
Number Of Rgb Led Pin Headers
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
2

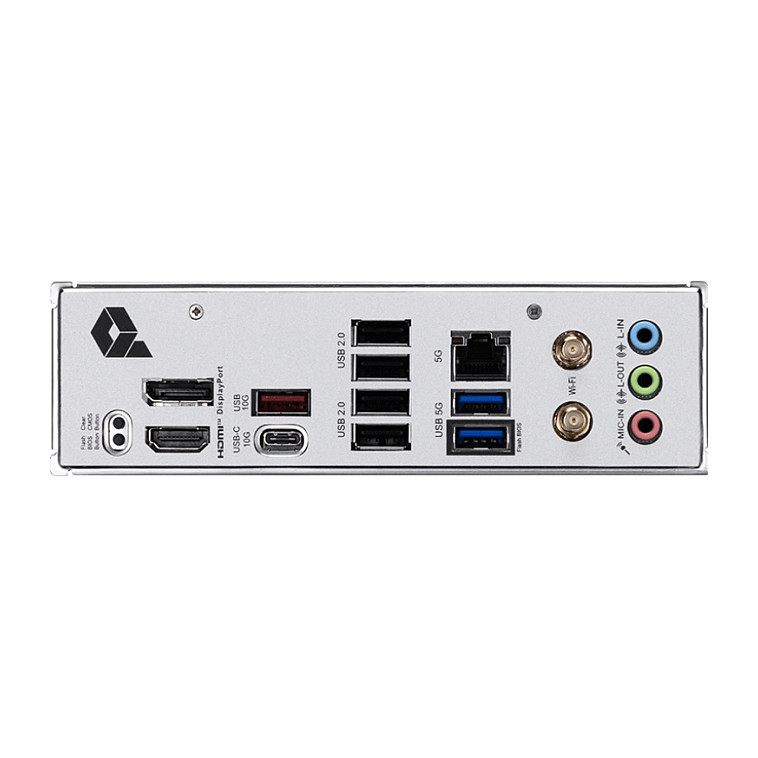

Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Ethernet Interface Type
5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
AMD B850
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11 x64
Pci Express X4 Slots
1
Pci Express X16 Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
5.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
6.5
System Management Bios (Smbios) Version
3.7
Width
243.8 mm
Depth
243.8 mm
