ASUS

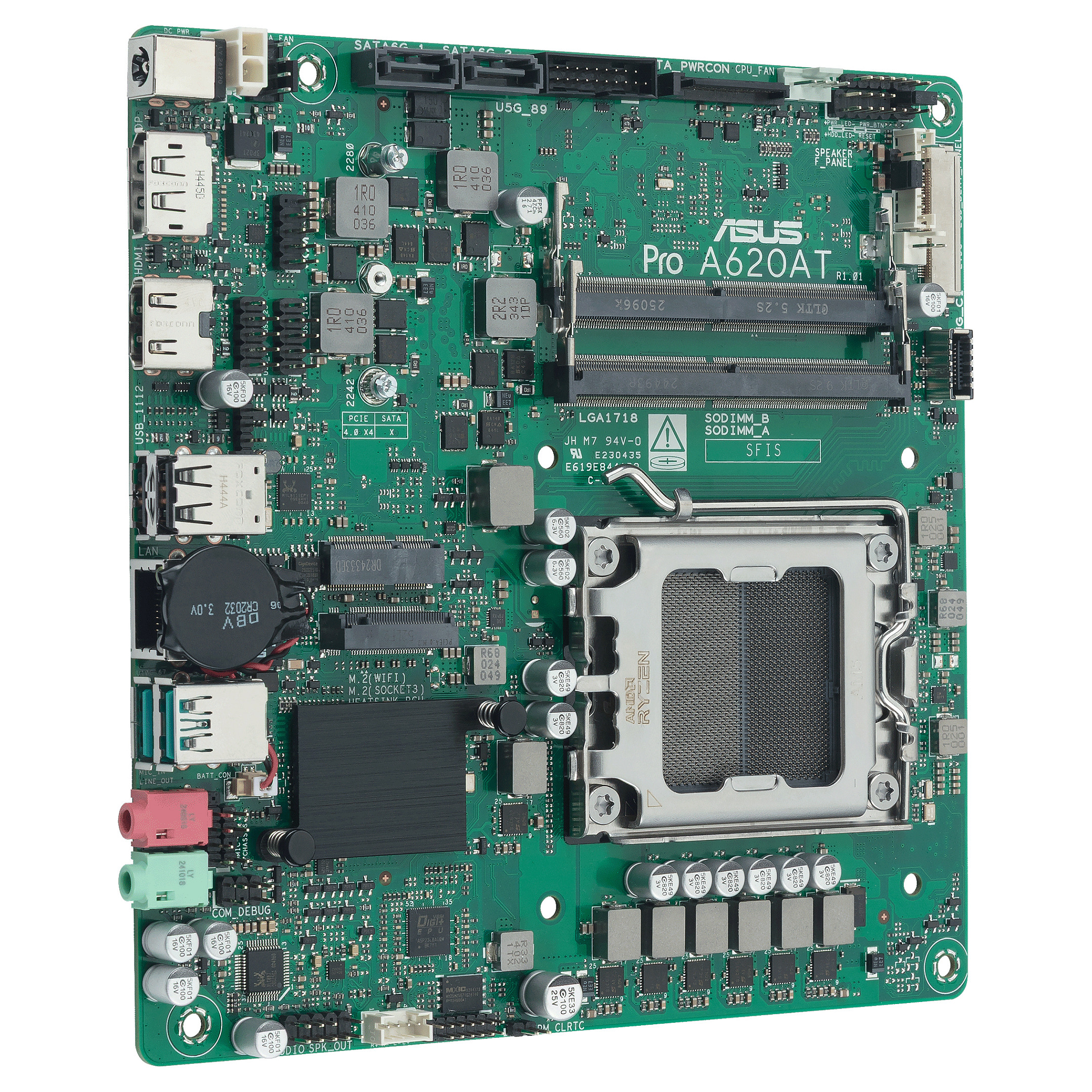

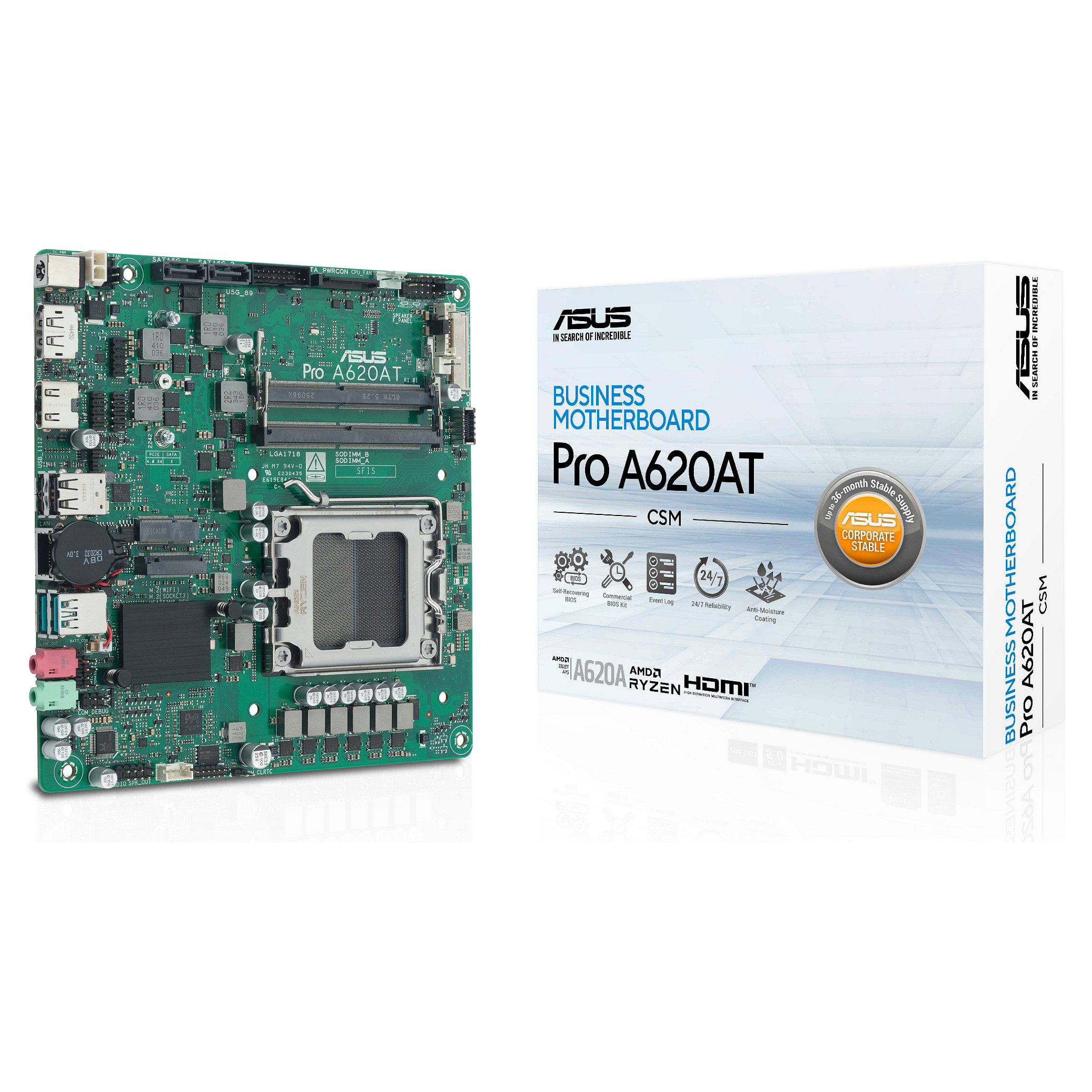

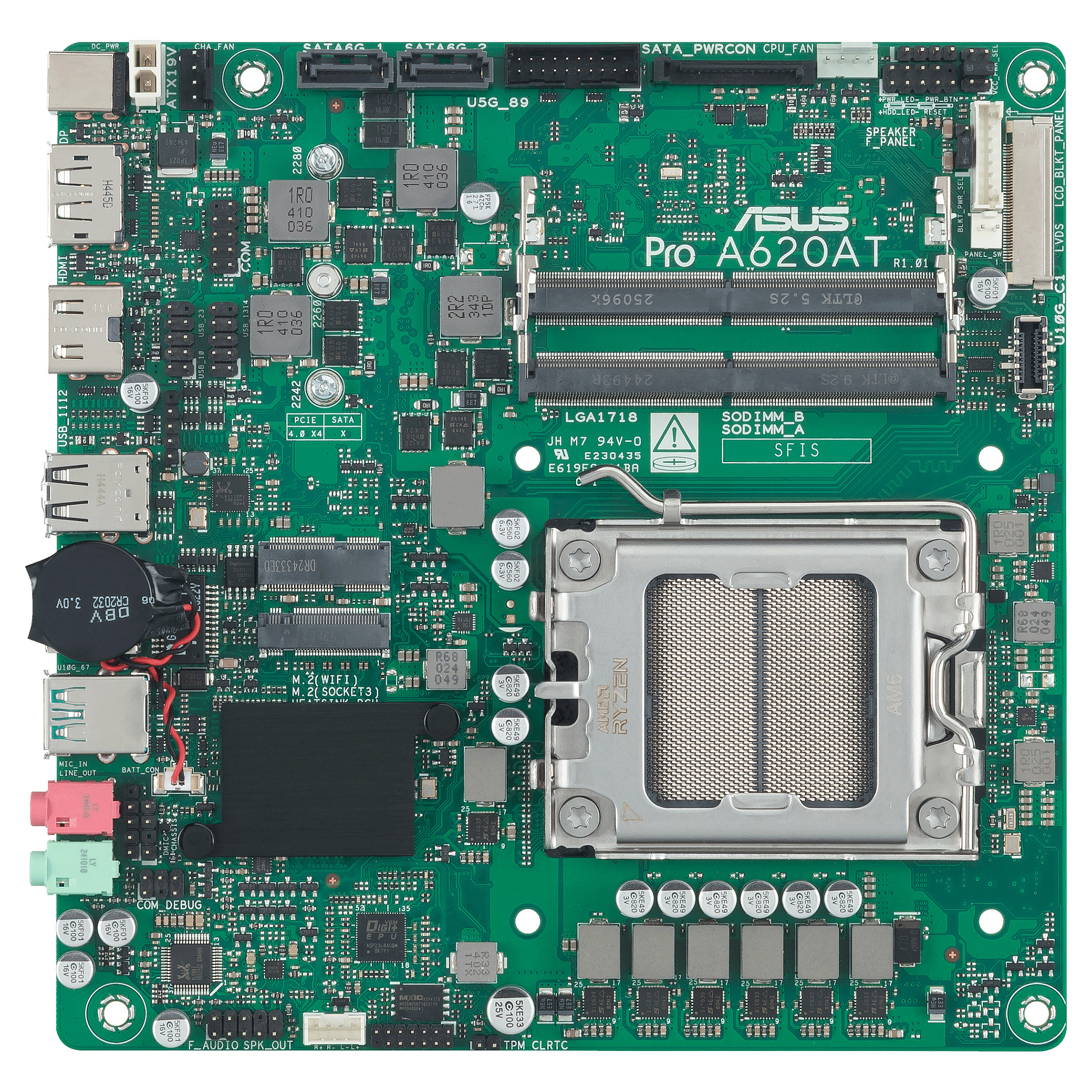

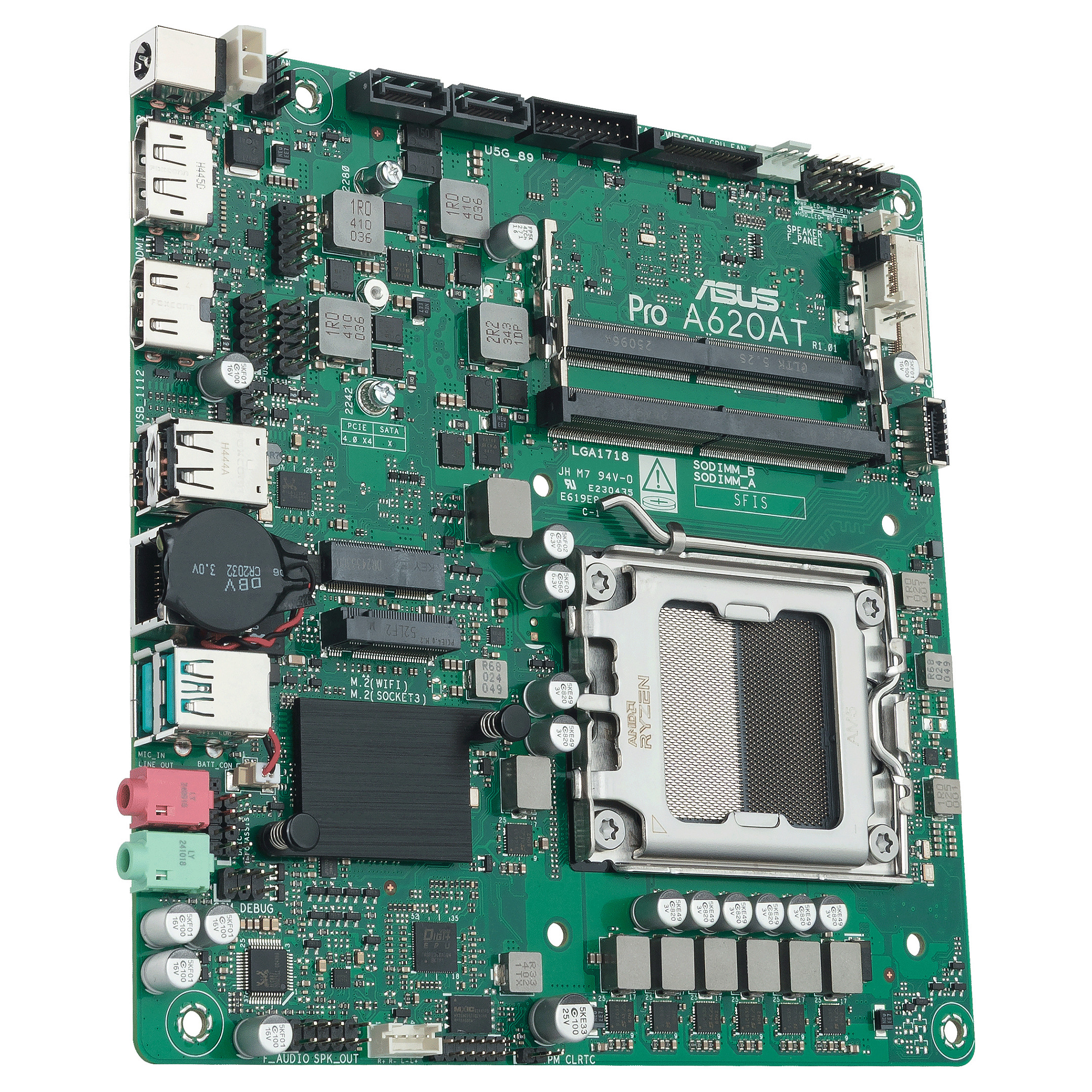

MB ASUS PRO A620AT-CSM
Pre-Order
€155.99
VAT (19%) included
Description
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors Remote IT management: DASH hardware ready for capable of DASH software ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes Ultrafast Connectivity: PCIe 4.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 10Gbps Type-C and rear USB 10Gbps Type-A
Technical Specifications
SKU
K90MB1L5M-M0EAYC
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
SO-DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
2
Number Of Storage Drives Supported
3
Parallel Processing Technology Support
Not supported
Maximum Resolution
3840 x 2160 pixels
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
2
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD A620A
Audio Output Channels
7.1 channels
Product Colour
Green
Component For
PC
Motherboard Form Factor
Thin Mini ITX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
DC
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
170 mm
Depth
170 mm
Cables Included
SATA
Number Of Ultra M.2 (M) Slots
1
