Gigabyte

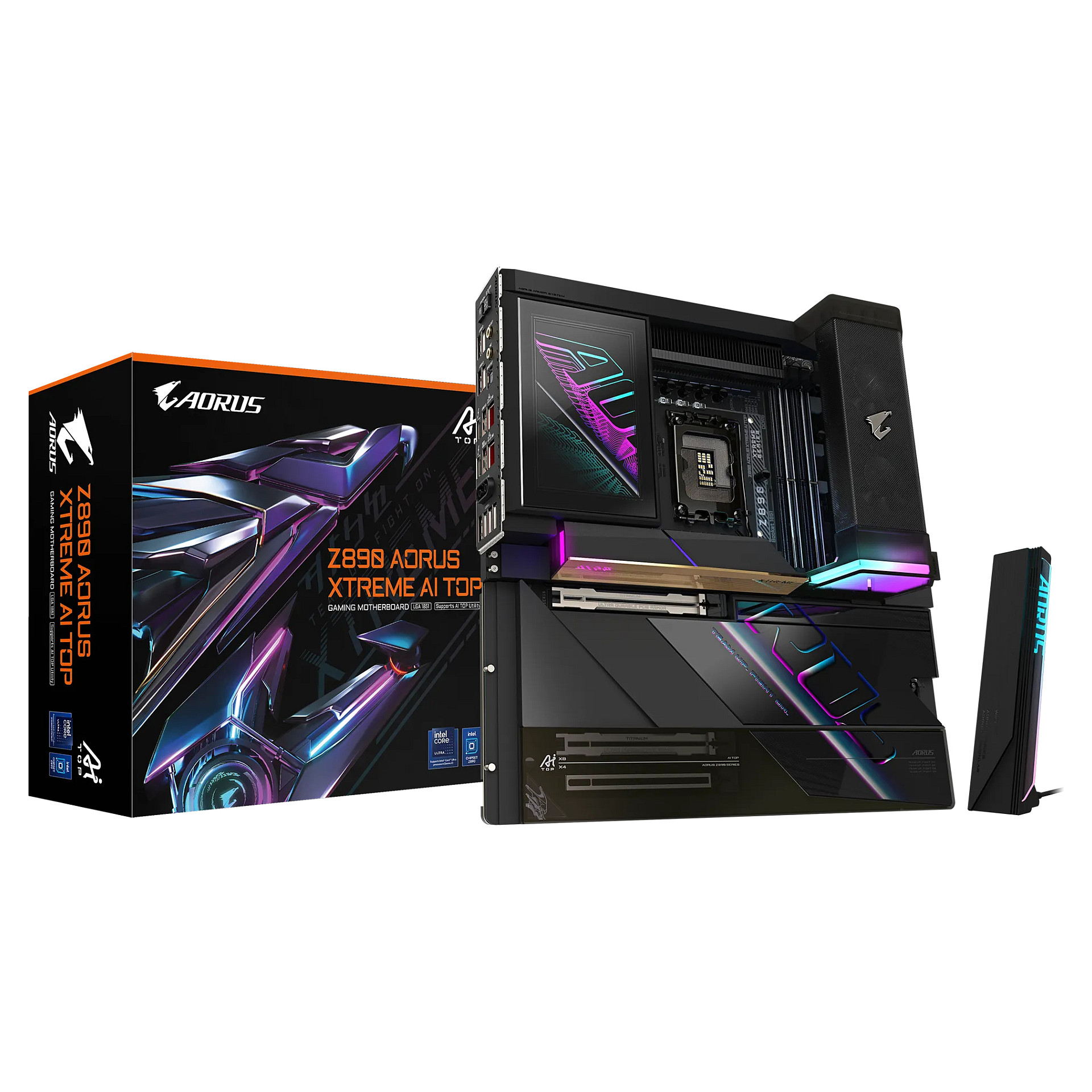

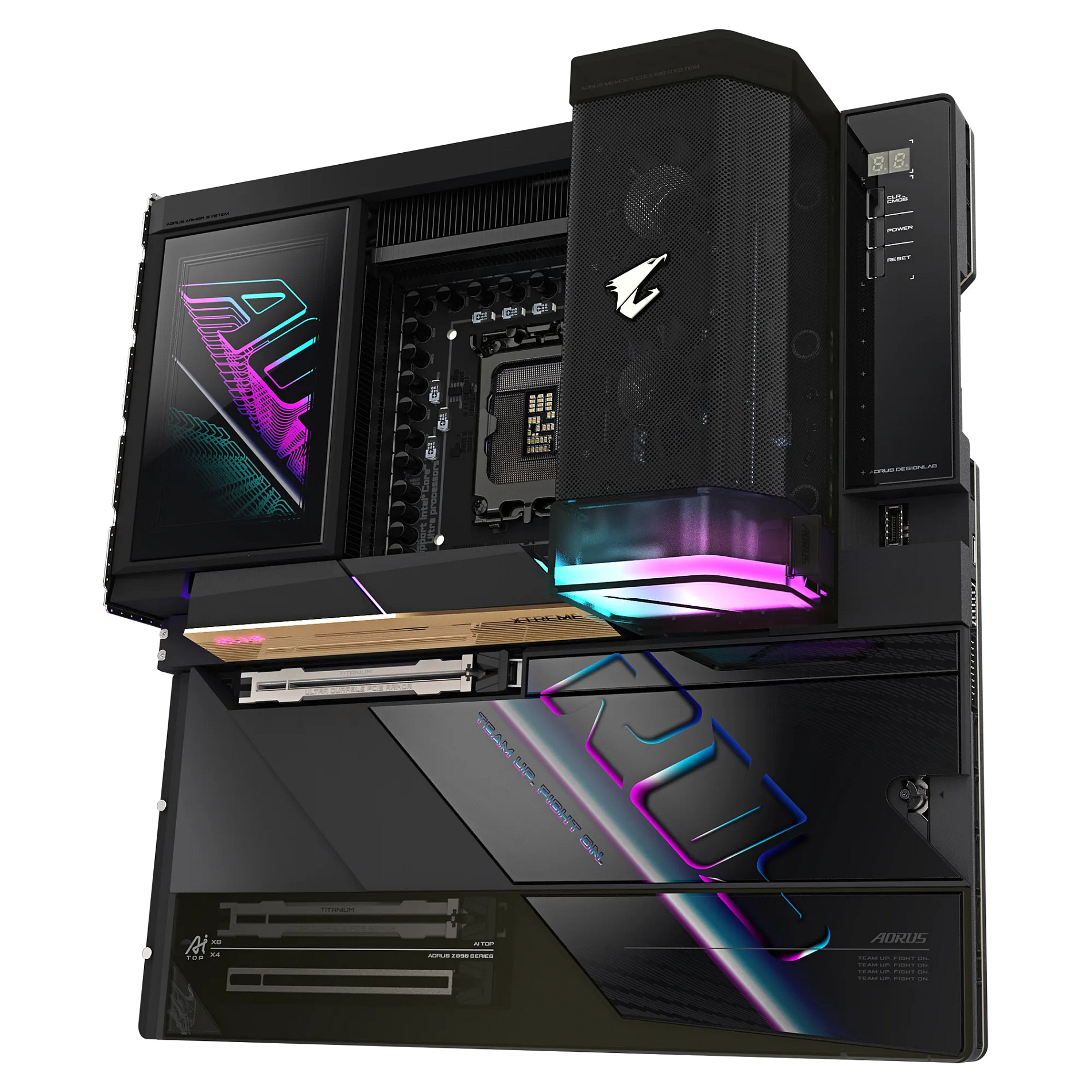

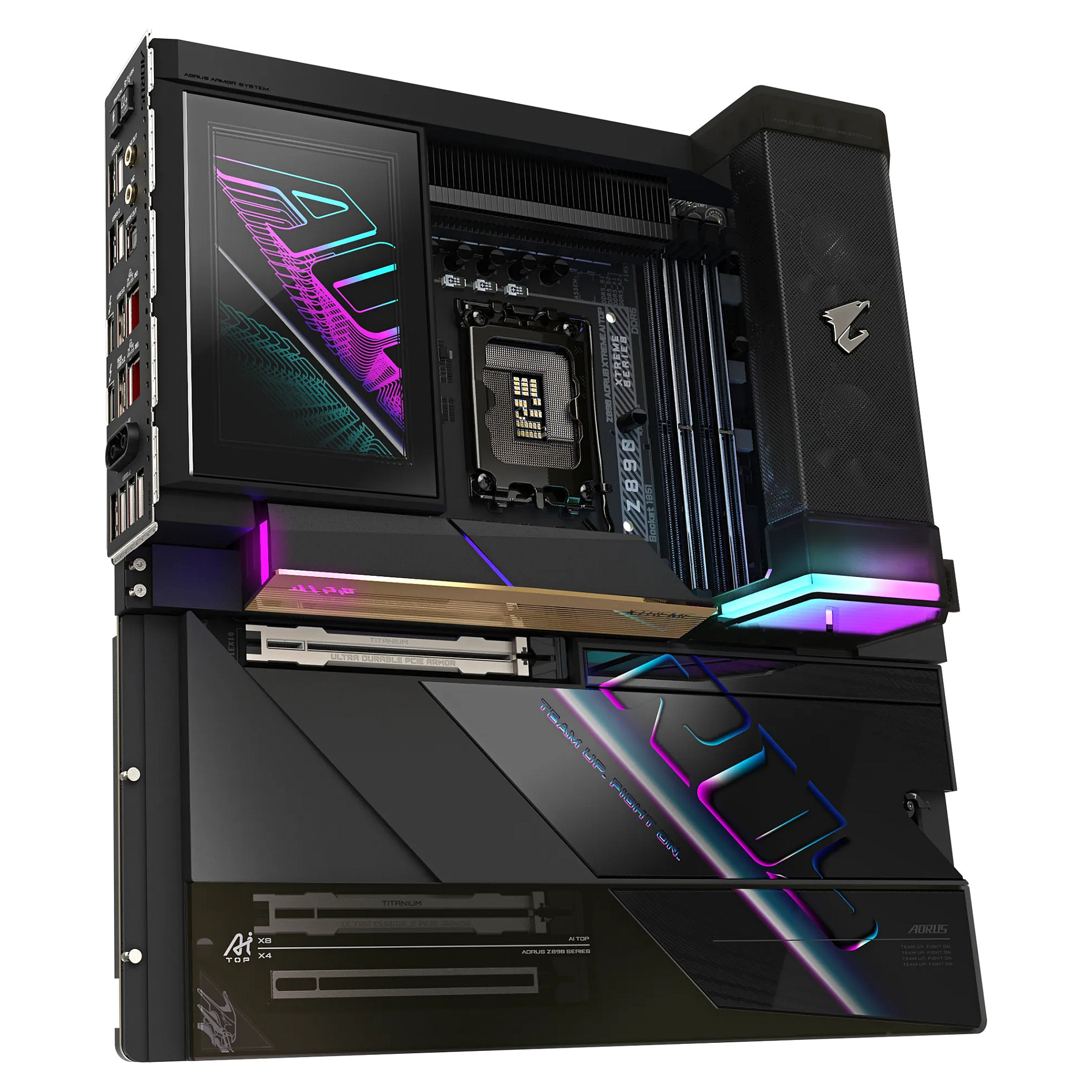

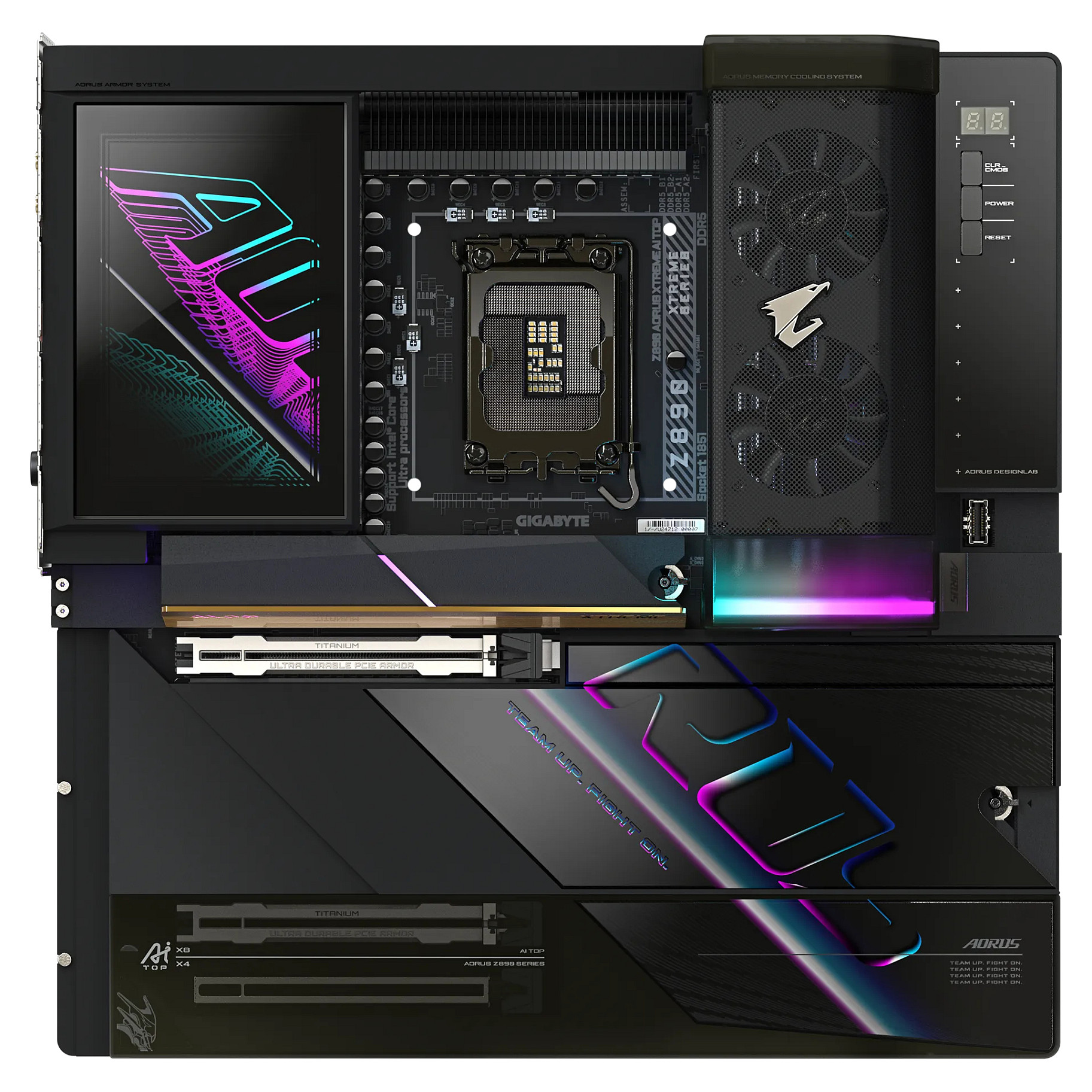

GA-Z890 A XTREME AI TOP (1851) (D)
Pre-Order
€1433.99
VAT (19%) included
Description

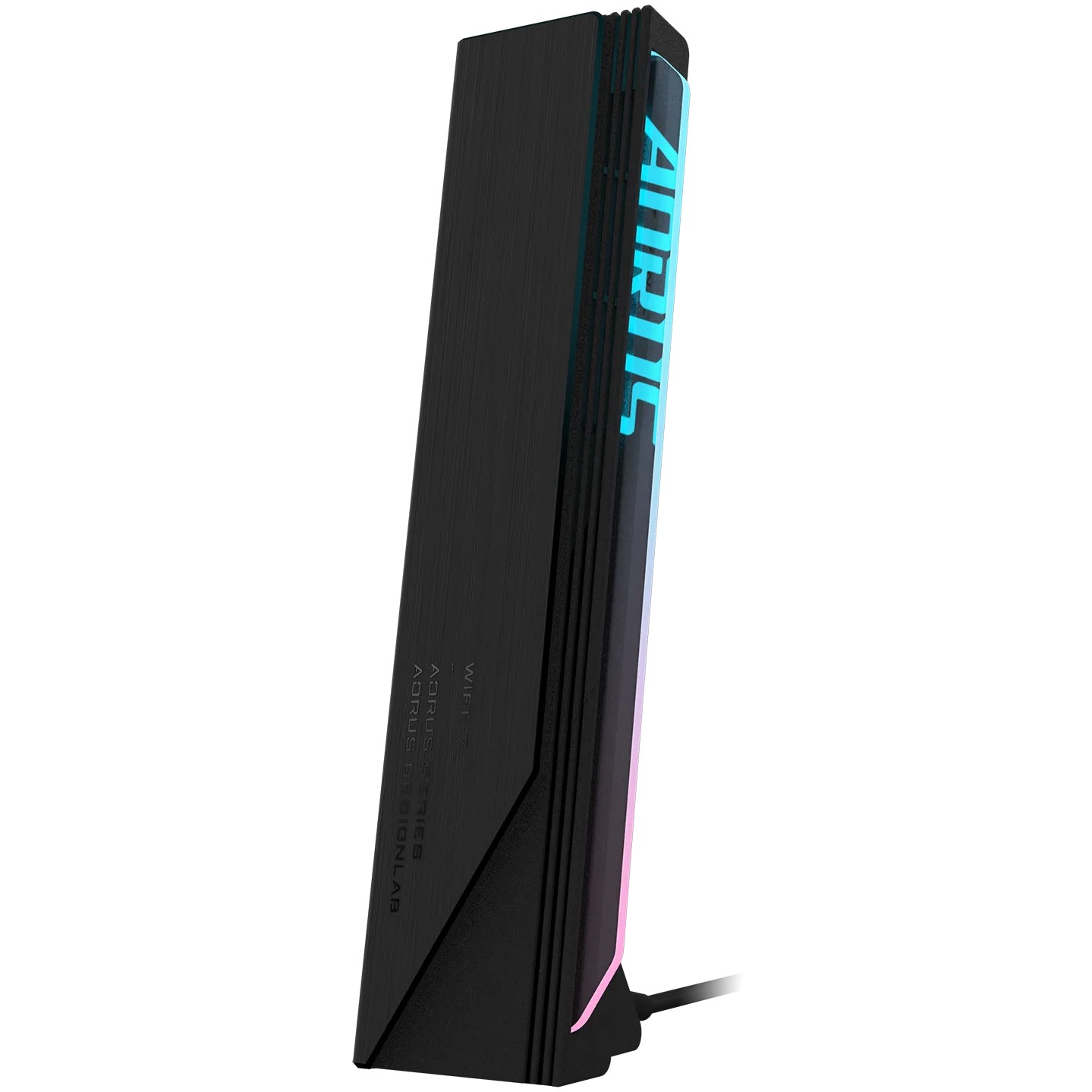

Training your own AI on your desk Supports Intel Core Ultra processors (Series 2) Digital twin 22+1+2 phases VRM solution Ultimate Scalibility: 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots Next-gen Connectivity: Dual THUNDERBOLT 5 and THUNDERBOLT 4 Type-C with DP-Alt Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with RGB D5 Bionic Corsa for Infinite Memory Performance AORUS AI Boost: Auto-Overclocking Software by AI models AI Perfdrive: Provides optimal and customized BIOS preset profile for users Premium Compatibility: 4*DDR5 with XMP Memory Module Support Reinforced Overall Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Technical Specifications
SKU
KZ890 A XTREME AI TOP
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Maximum Internal Memory Supported By Processor
256 GB
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 9500 MHz
Supported Memory Clock Speed (Max)
9500 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
7680 x 4320 pixels
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
3
Number Of Eps Power Connectors (8-Pin)
2
Thunderbolt Headers
1
Number Of Water Pump Connectors
2
Number Of Temperature Sensor Headers
2
Number Of Noise Detection Headers
1
Number Of Rgb Led Pin Headers
4

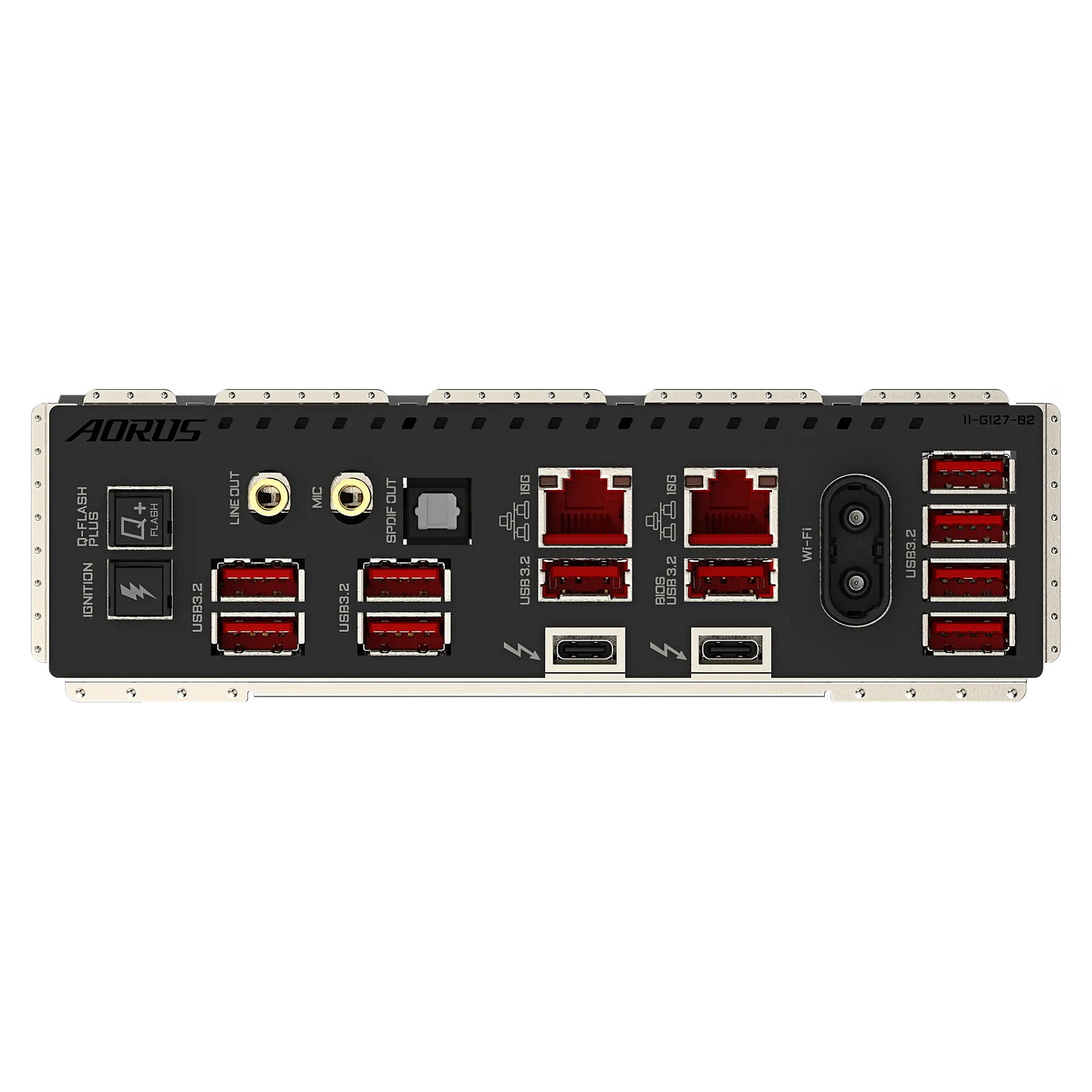

Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
10
Ethernet Lan (Rj-45) Ports
2
Headphone Outputs
1
Thunderbolt Ports Quantity
2
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
10 Gigabit Ethernet
Lan Controller
Marvell AQtion AQC113C
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wlan Controller Model
Intel Wi-Fi 7 BE200
Bluetooth Version
5.4
Motherboard Chipset
Intel Z890
Audio Chip
ESS ES9280AC + ESS ES9080
Audio Output Channels
2.0 channels
Product Colour
Black
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
Extended ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
2
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
25110
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
25110
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
22110
3Rd M.2 Highest Pci Express Generation
4.0
4Th M.2 Largest Key Size
22110
4Th M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
Taiwan
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
386 mm
Package Depth
370 mm
Package Height
140 mm
Package Weight
6.7 kg
Width
304.8 mm
Depth
305 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
5.03 kg
Warranty Period
3 year(s)
