ASRock

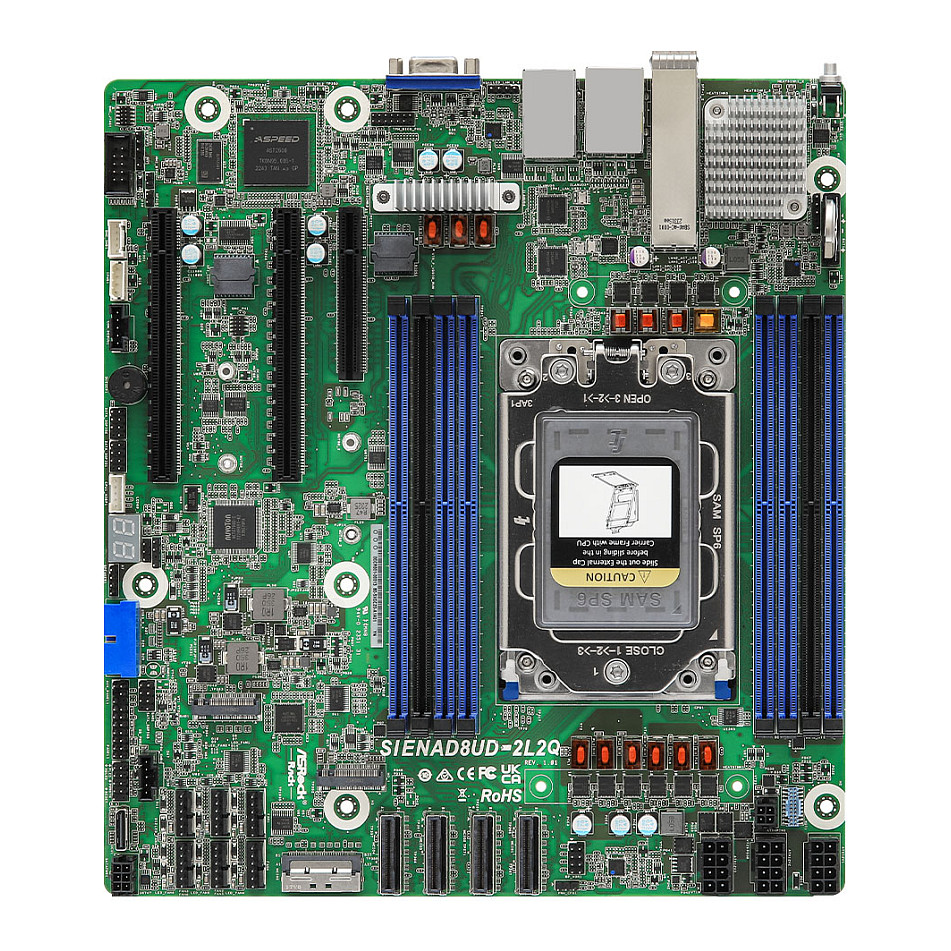

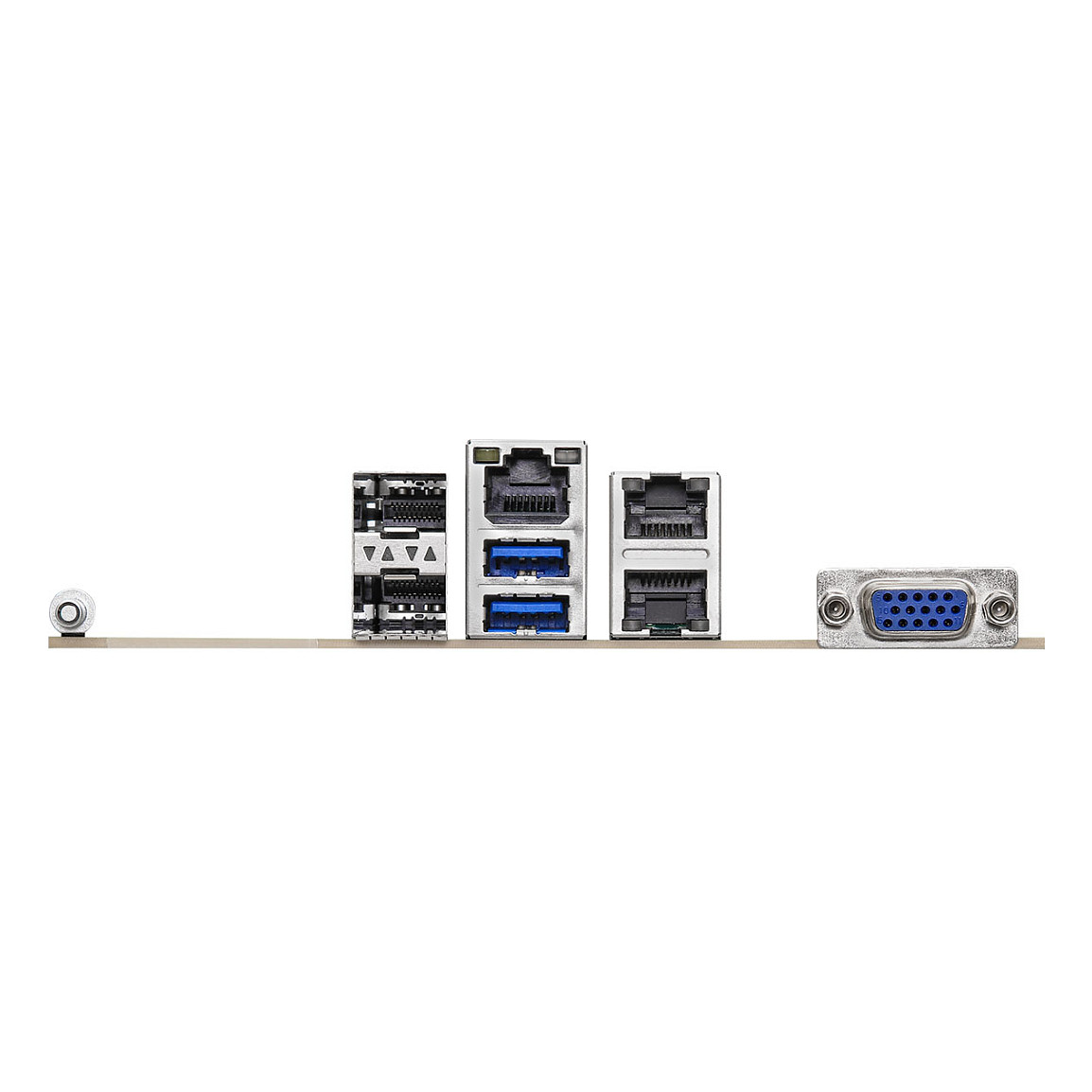

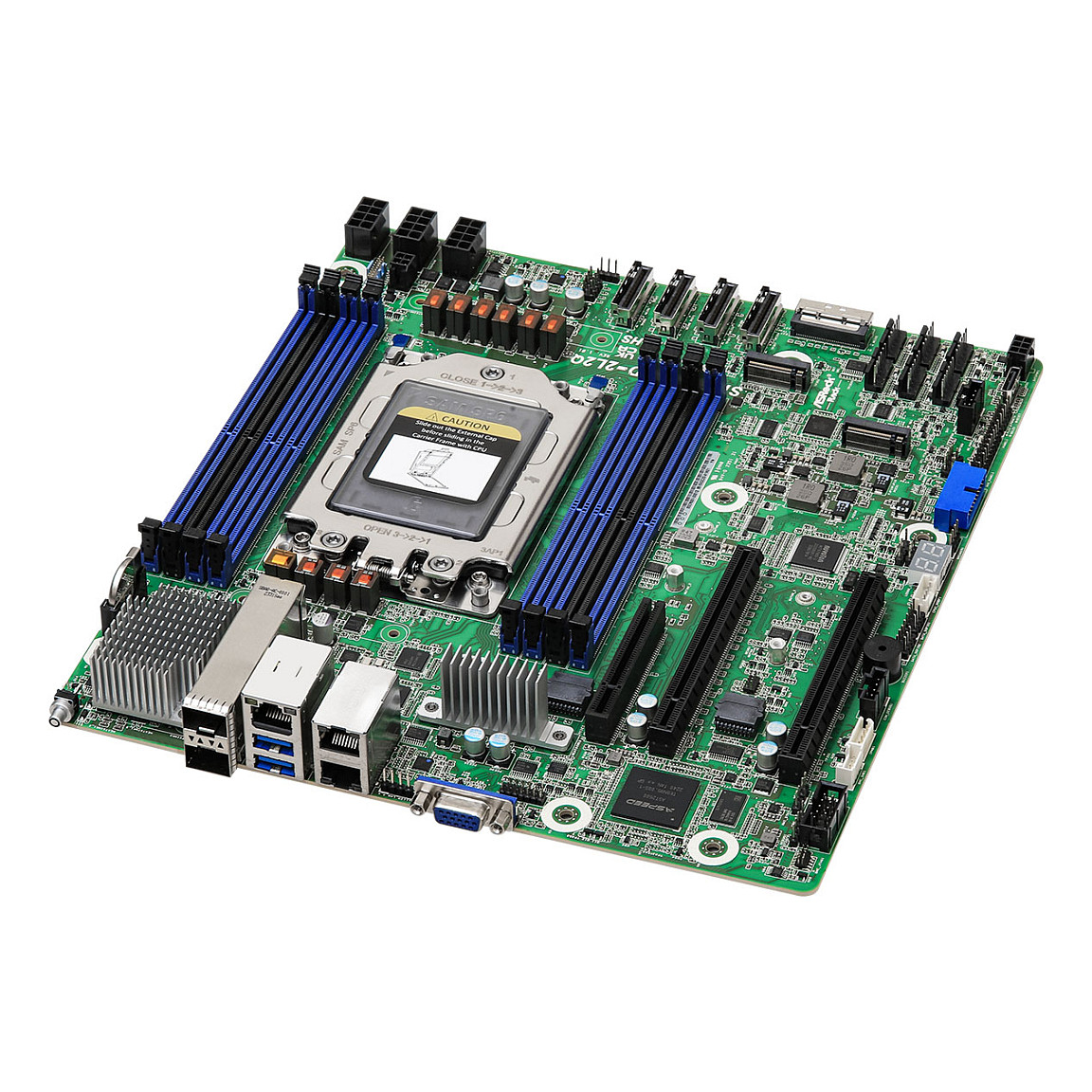

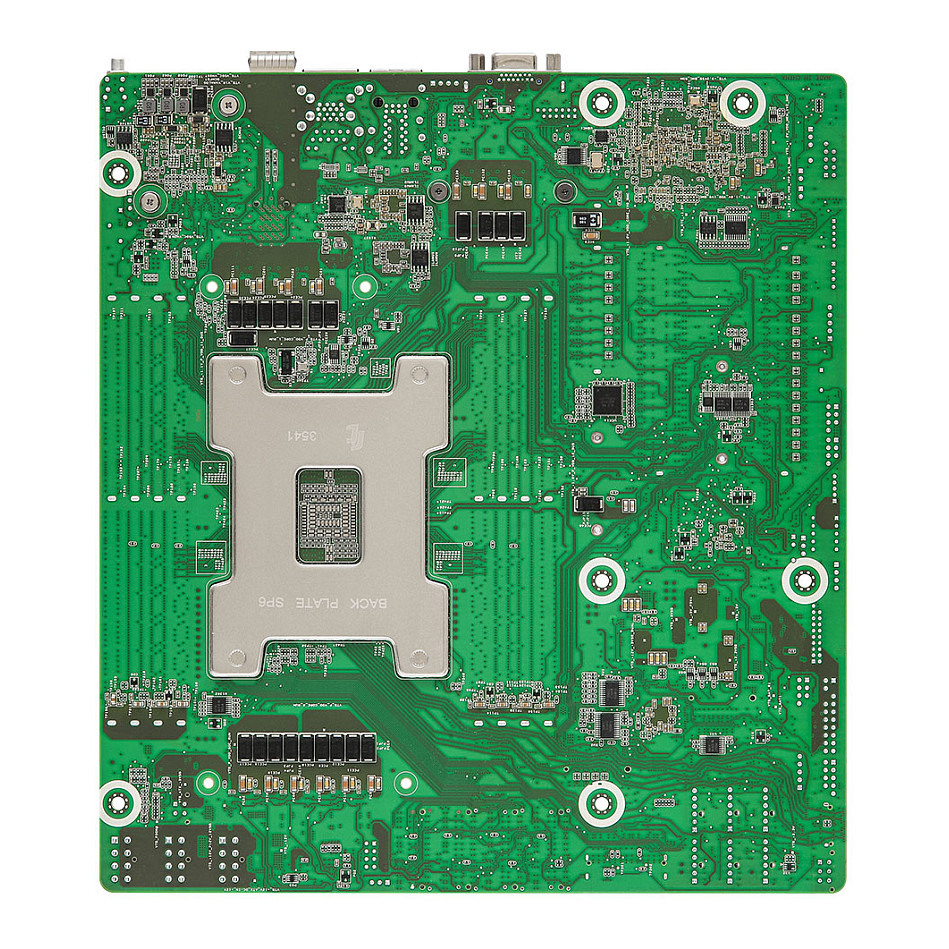

ASRock Mainboard SIENAD8UD-2L2Q micro-ATX Sockel SP6 Single
Pre-Order
€809.99
VAT (19%) included
Ast2600
Description
Supports ATX PSU or 12V DC-in Deep Micro-ATX (9.6" x 10.5") Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM 2 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 / CXL1.1 x8 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8) 1 OCuLink (PCIe3.0 x4) 2 M.2 (PCIe5.0 x4) Up to 16 SATA 6Gb/s 2 SFP28 (25GbE) by Broadcom BCM57414 2 RJ45 (1GbE) by Intel® i210 Remote Management (IPMI)
Technical Specifications
Graphics Card
Ast2600
SKU
KSIENAD8UD-2L2Q
Processor Manufacturer
AMD
Processor Socket
Socket SP6
Compatible Processor Series
AMD EPYC
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
8
Memory Slots Type
DIMM
Memory Voltage
1.1 V
Supported Memory Clock Speeds
4800 MHz
Supported Memory Clock Speed (Max)
4800 MHz
Supported Memory Module Capacities
96GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 5.0, SATA III
Graphics Card Family
ASPEED
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
16
Number Of Com Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Ethernet Interface Type
25 Gigabit Ethernet, Gigabit Ethernet
Lan Controller
Broadcom BCM57414, Intel I210
Component For
Server
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Pci Express X8 (Gen 5.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
2
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
6.4
System Management Bios (Smbios) Version
3.5
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Storage Relative Humidity (H-H)
20 - 90%
Width
243.8 mm
Depth
266.7 mm
