Gigabyte

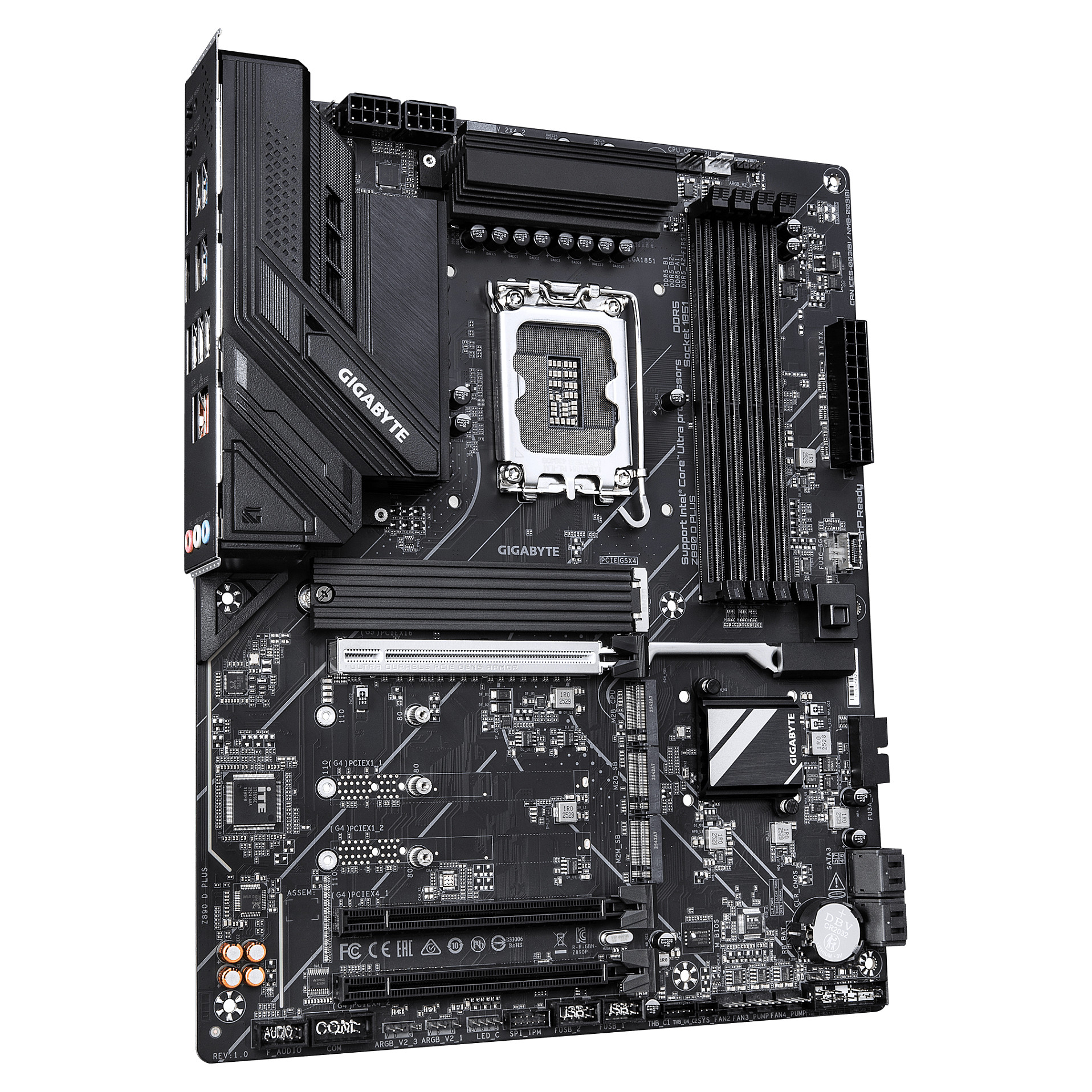

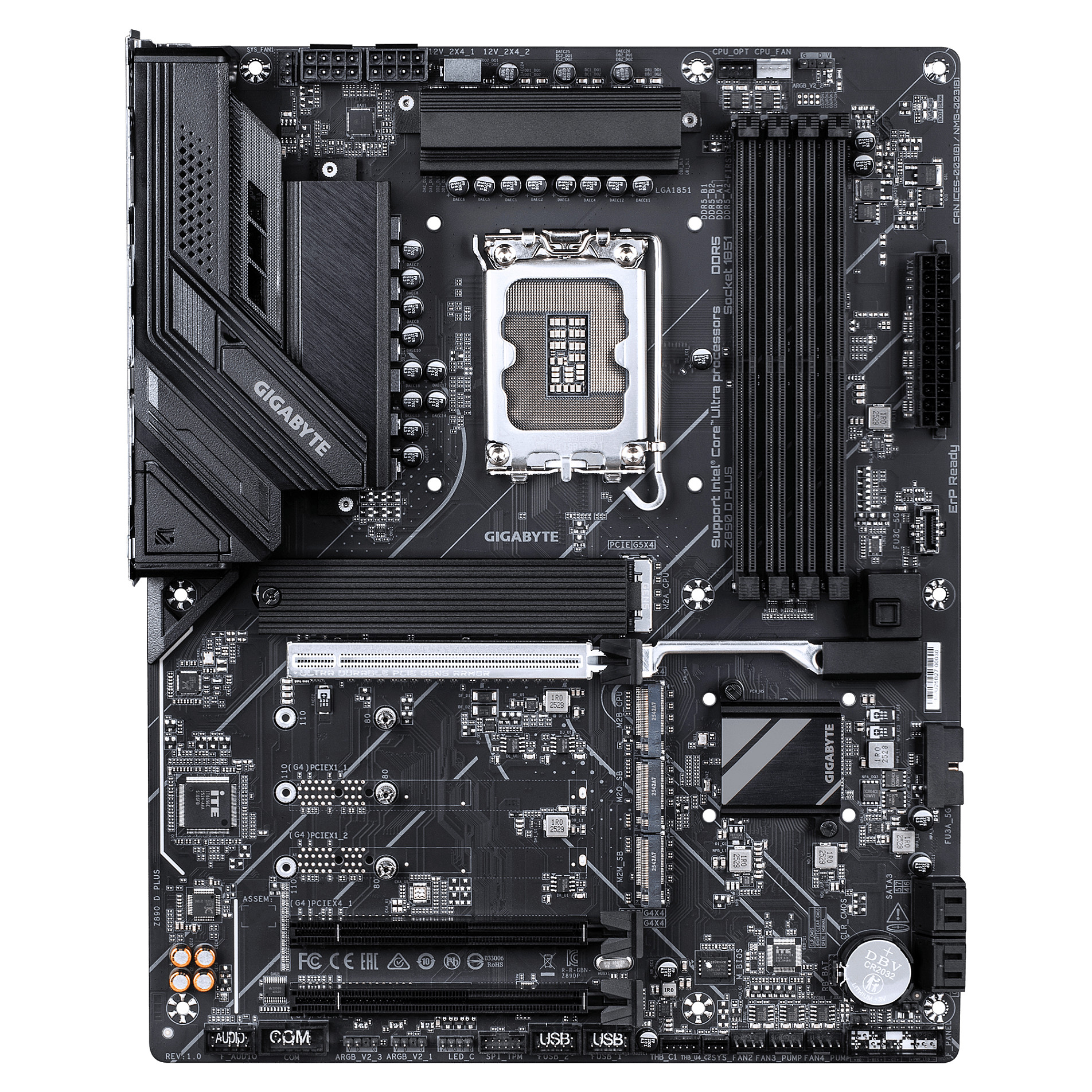

GIGABYTE Z890 D PLUS LGA1851 1xDP
Pre-Order
€214.99
VAT (19%) included
Description
Ultra Turbo Mode: Unlock the Hidden performance Supports Intel Core Ultra processors (Series 2) Digital twin 12+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance Premium Compatibility: 4*DDR5 with XMP Memory Module Support PCIe EZ-Latch Plus: PCIe slots with Quick Release & Screwless Design Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking: 2.5GbE LAN Extended Connectivity: DisplayPort
Technical Specifications
SKU
KZ890 D PLUS
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speed (Max)
9466 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2304 pixels
Hdcp Version
2.3
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Eps Power Connectors (8-Pin)
2
Serial Port Headers
1
Thunderbolt Headers
2
Number Of Water Pump Connectors
2
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Displayports Quantity
1
Displayport Version
2.1
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125
Motherboard Chipset
Intel Z890
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 11 x64, Windows 10 x64
Pci Express X16 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
25110
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
22110
3Rd M.2 Highest Pci Express Generation
4.0
4Th M.2 Largest Key Size
22110
4Th M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Capacity
220 mAh
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
335 mm
Package Depth
270 mm
Package Height
80 mm
Package Weight
1.7 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version)
Weight
1.47 kg
Warranty Period
3 year(s)
