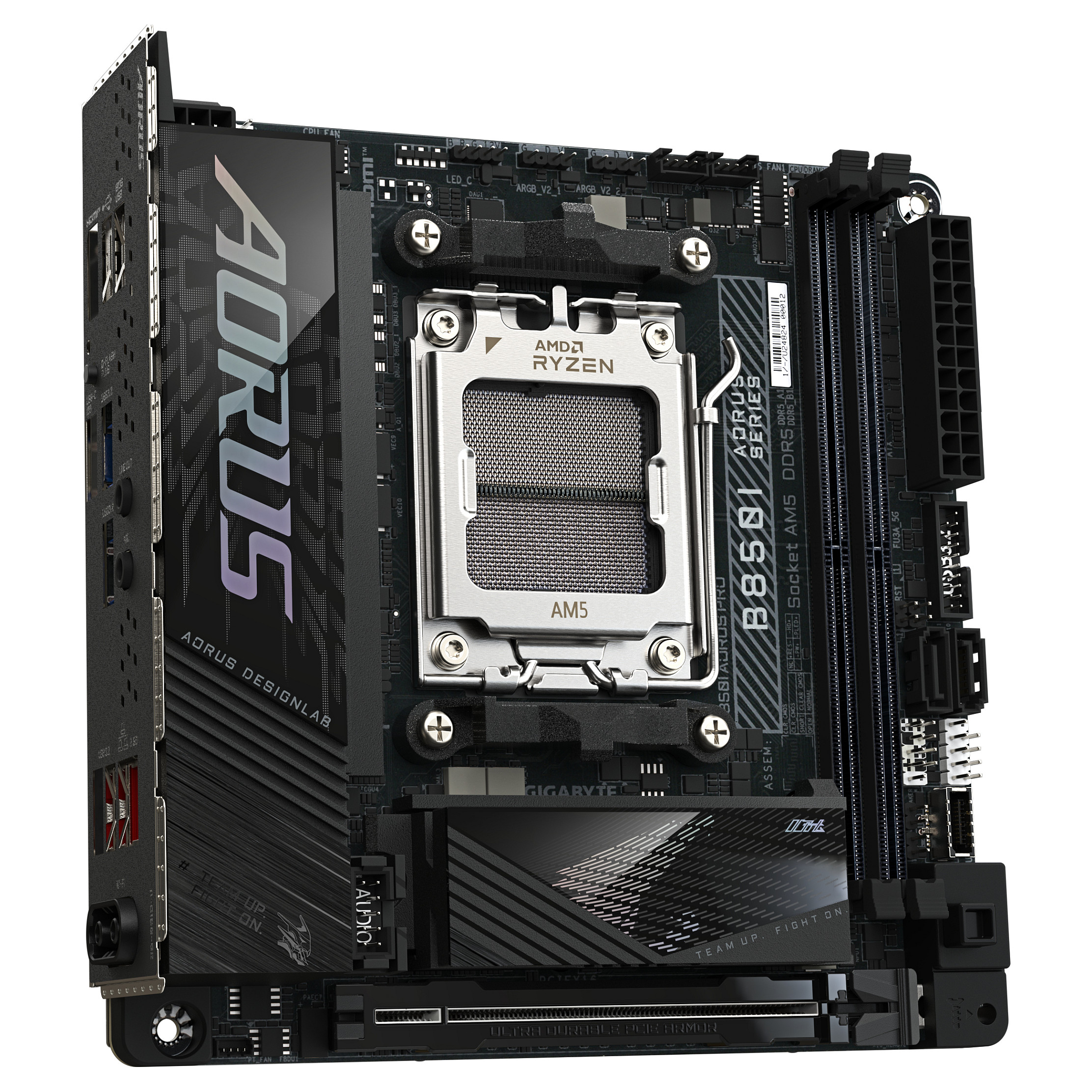

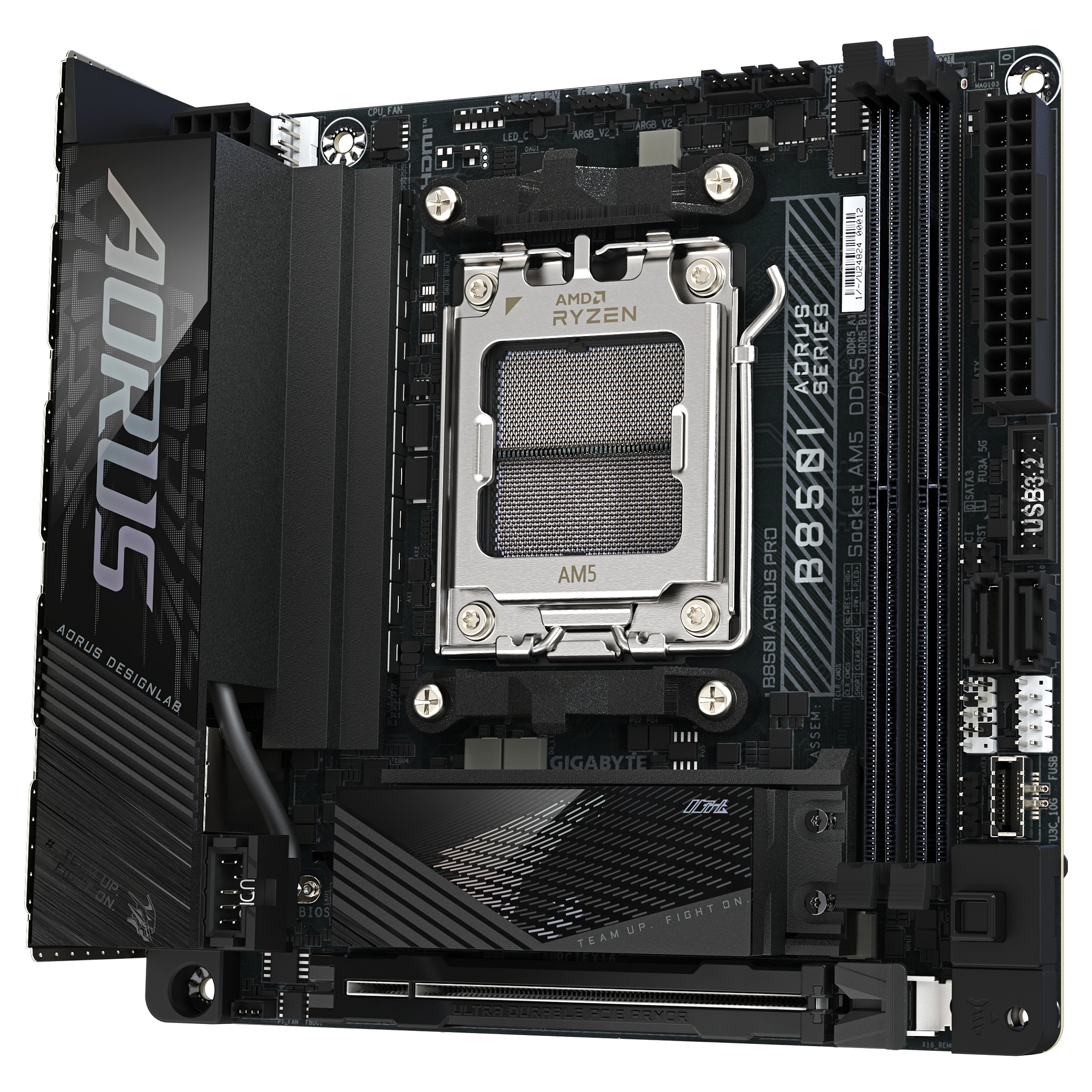

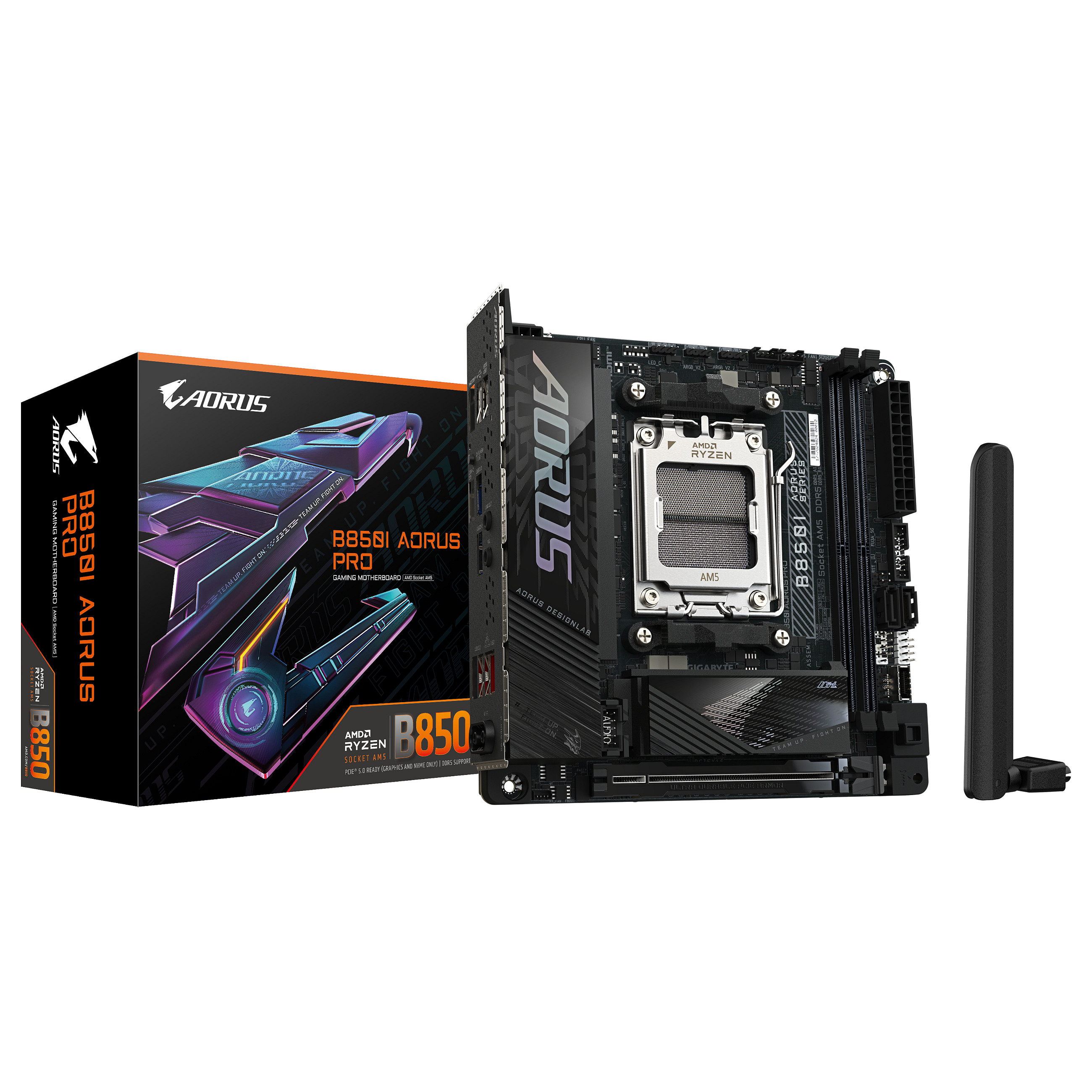

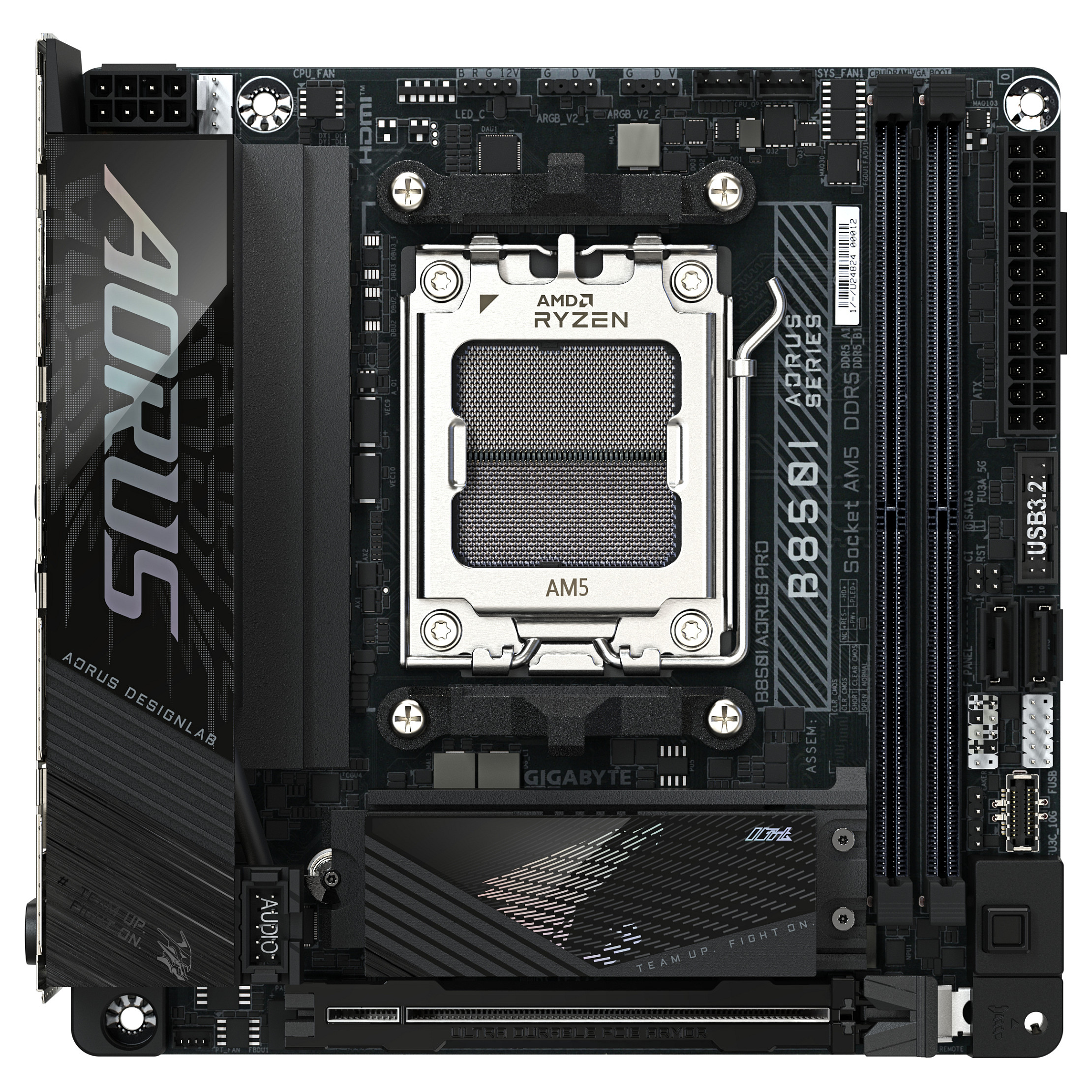

Gigabyte
B850I AORUS Pro (B850.AM5.mITX.DDR5)
Pre-Order
€297.99
VAT (19%) included
Description
8+2+1 Phases Digital VRM with 80A Smart Power Stage Dual Channel DDR5：2*DIMMs PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus M.2 Gen5 with EZ-Latch Plus Fully Covered MOSFET Heatsinks Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna 2.5GbE LAN, Q-Flash Plus
Technical Specifications
SKU
KB850I AORUS PRO
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000, 8200, 8400 MHz
Supported Memory Clock Speed (Max)
8400 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
2
Number Of Storage Drives Supported
4
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
2
Total Number Of Sata Connectors
2
Number Of Cpu Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Number Of Water Pump Connectors
1
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
2.1
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wlan Controller Model
Realtek RTL8922AE
Bluetooth Version
5.4
Motherboard Chipset
AMD B850
Audio Output Channels
7.1 channels
Product Colour
Black, Brown
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Width
170 mm
Depth
170 mm
Height
35 mm
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Weight
1.3 kg
Warranty Period
3 year(s)
