ASRock

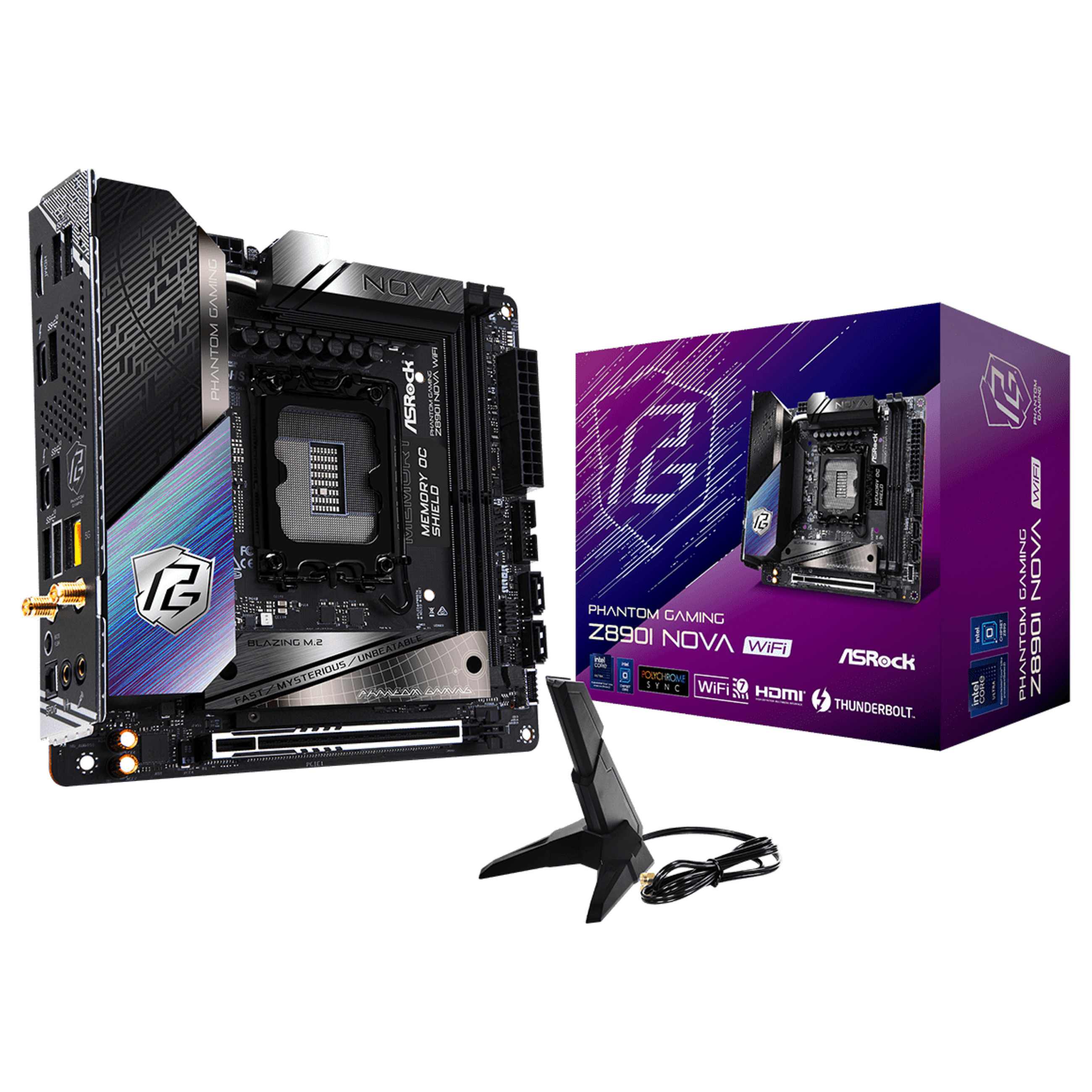

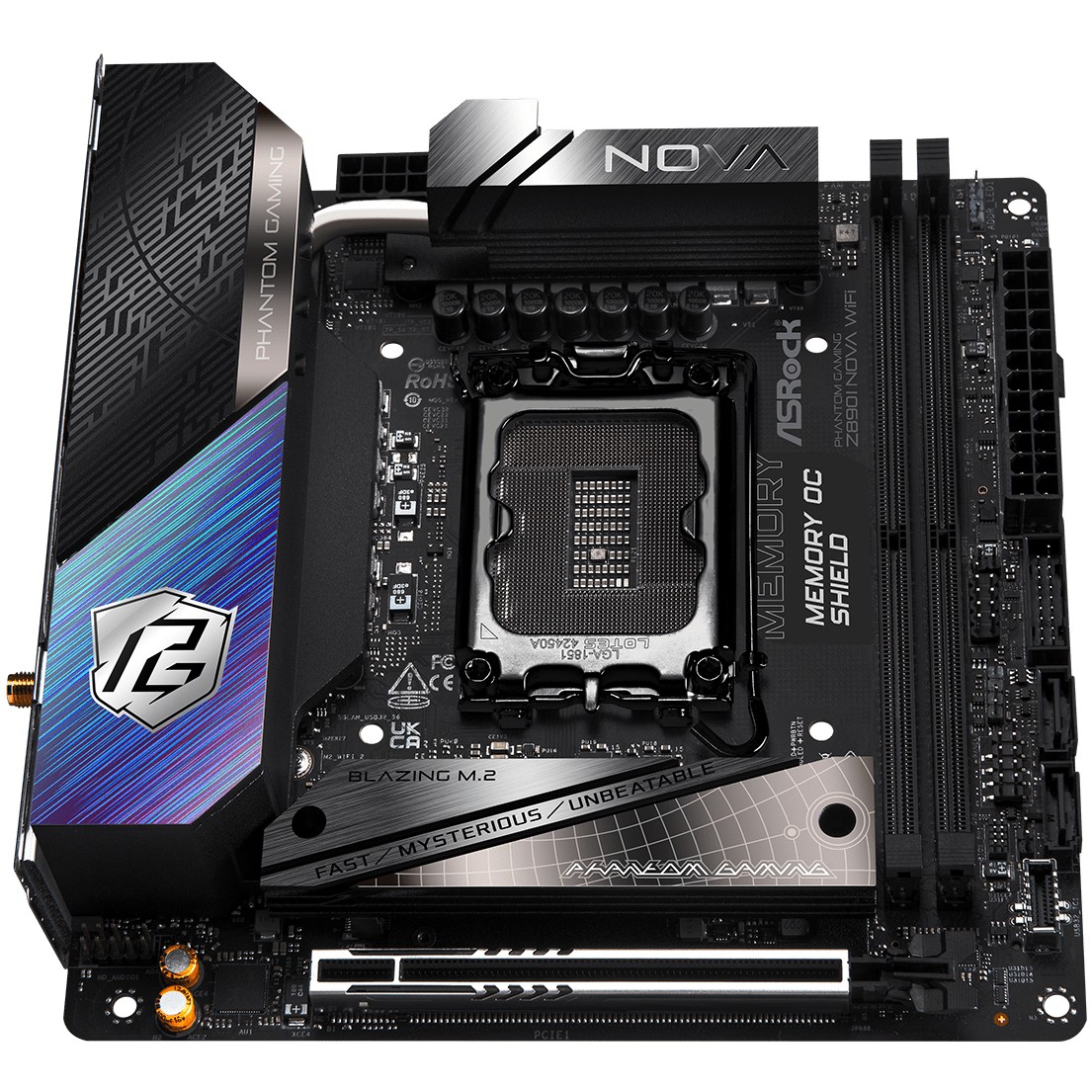

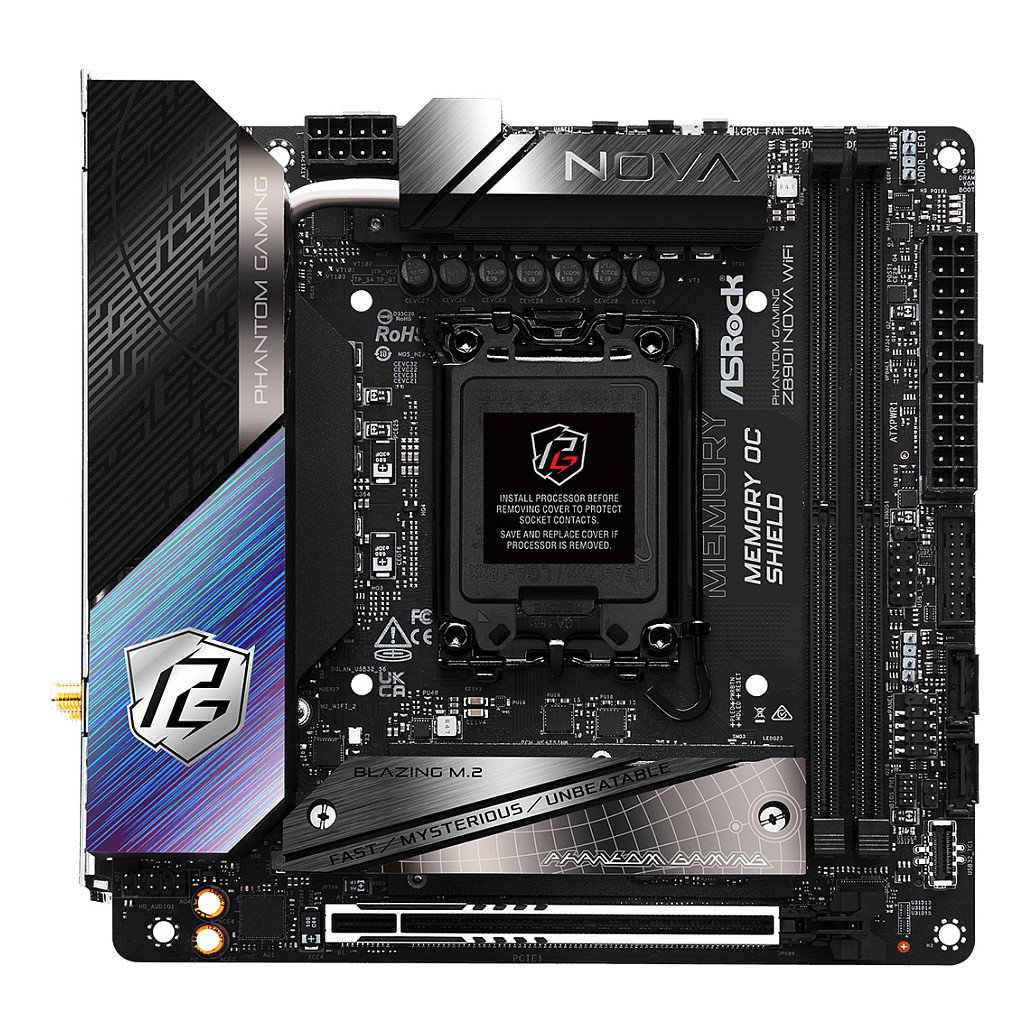

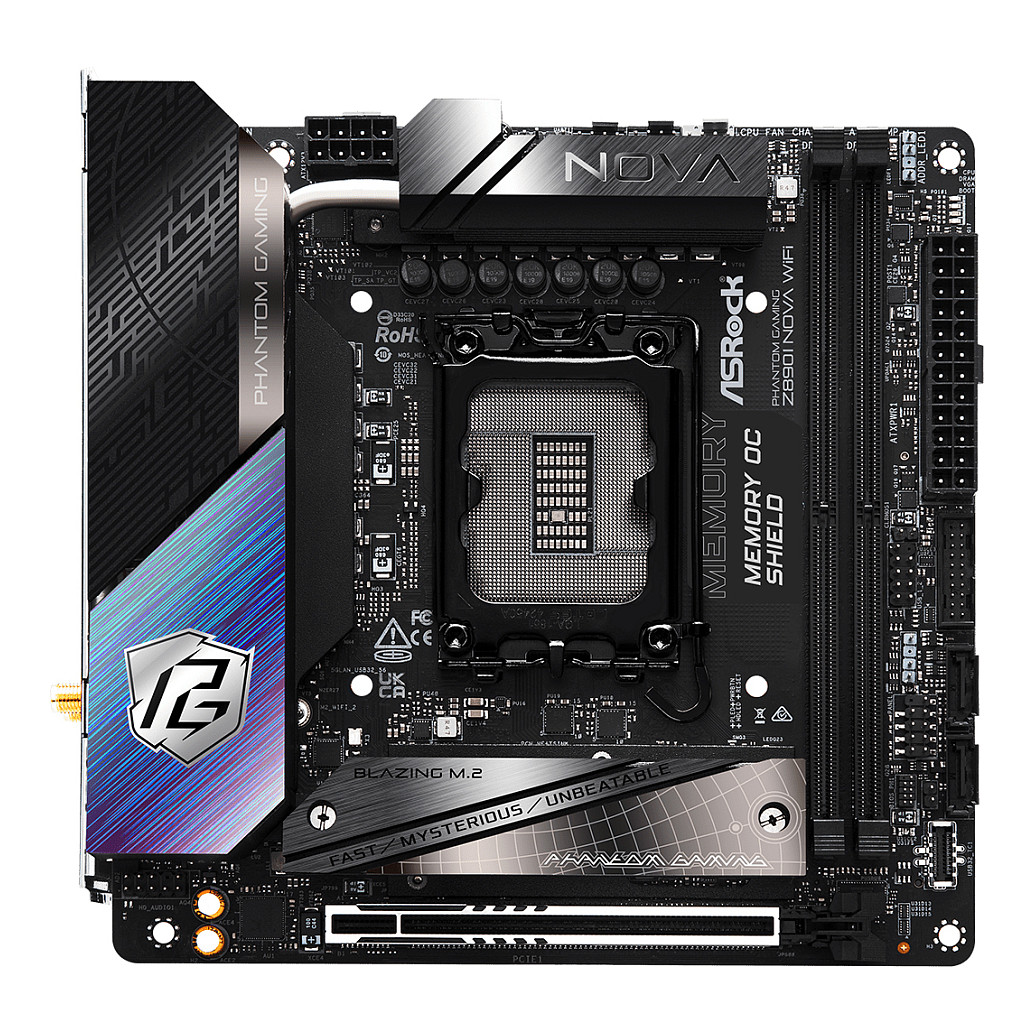

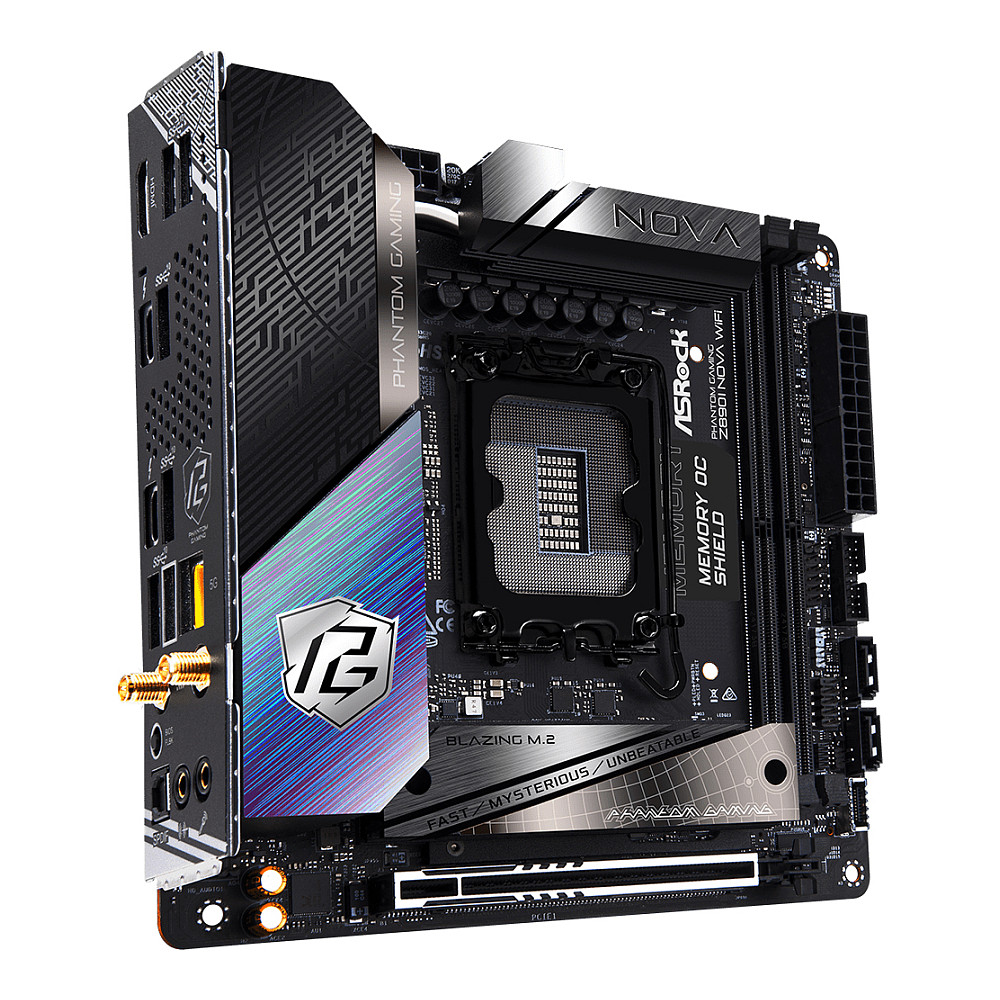

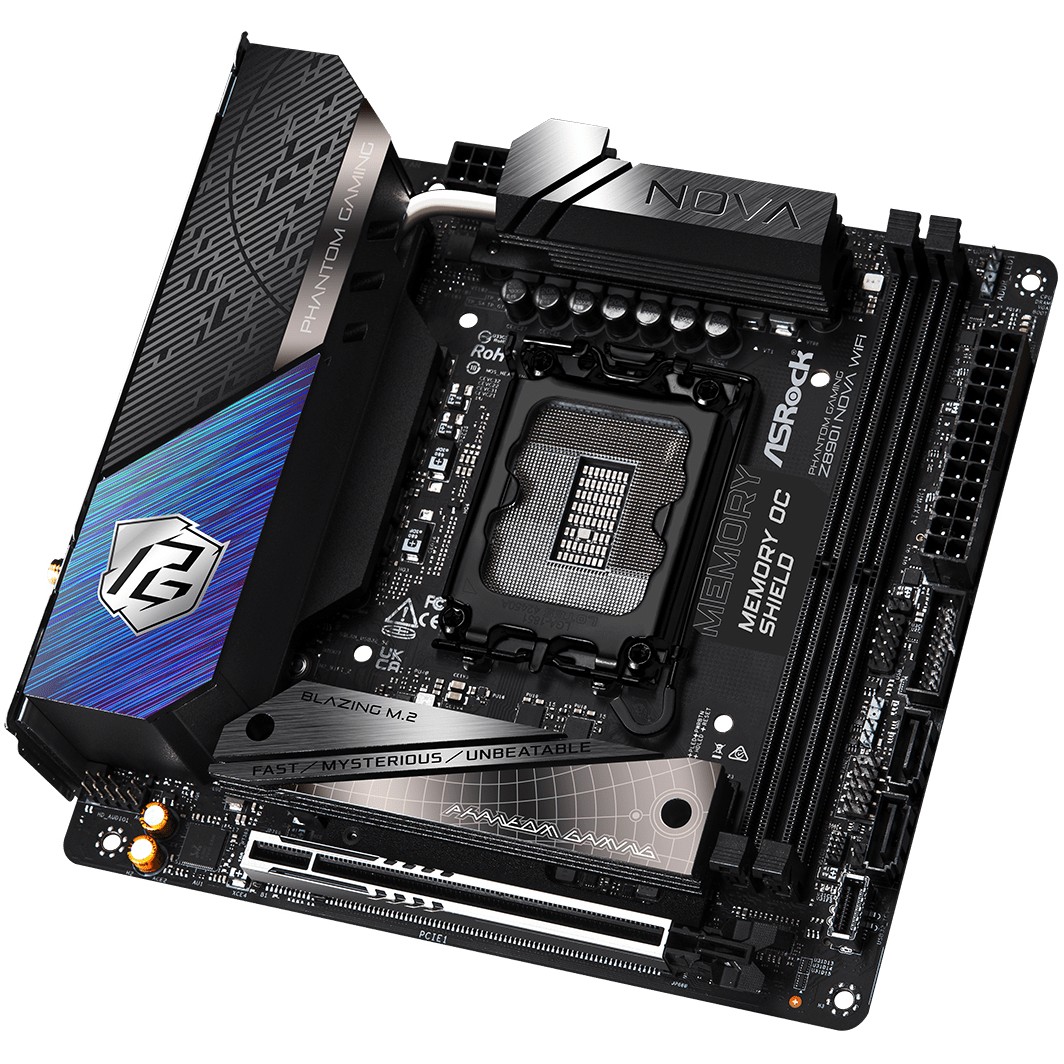

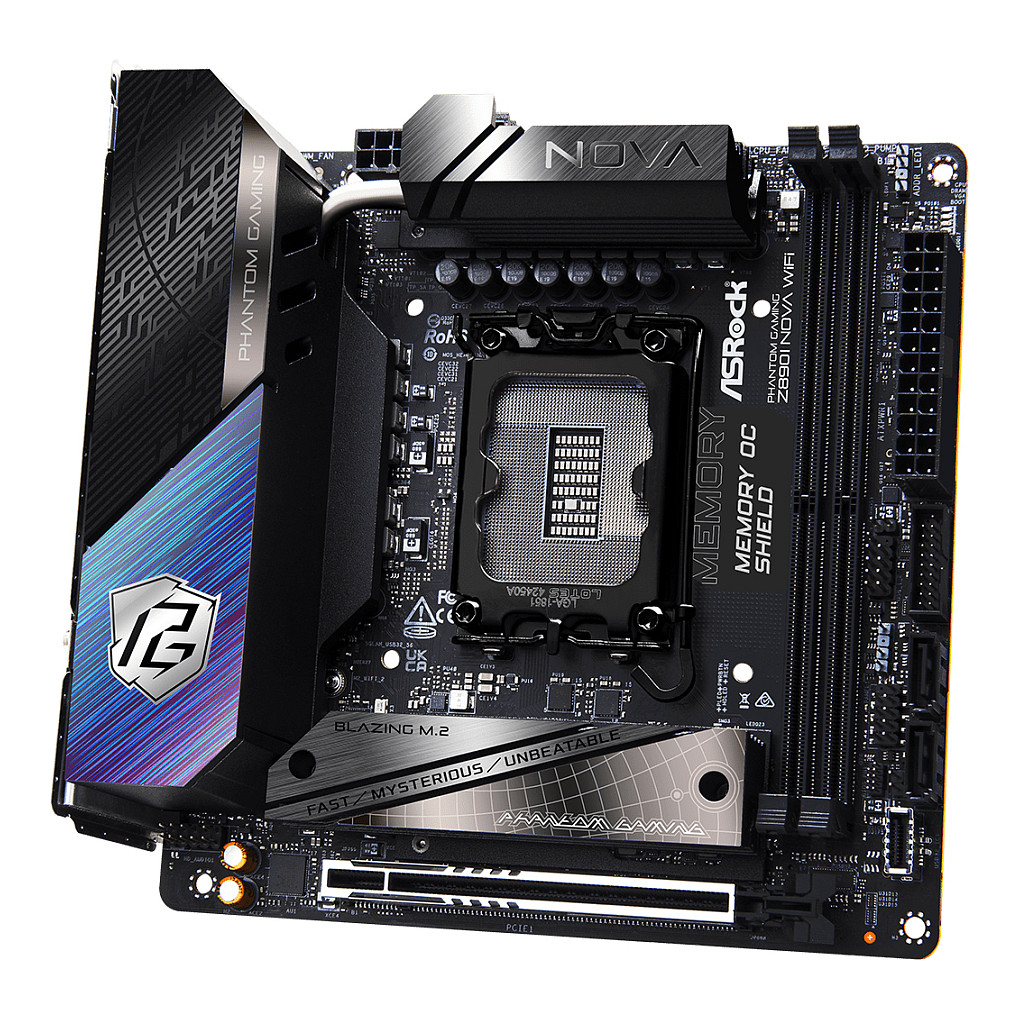

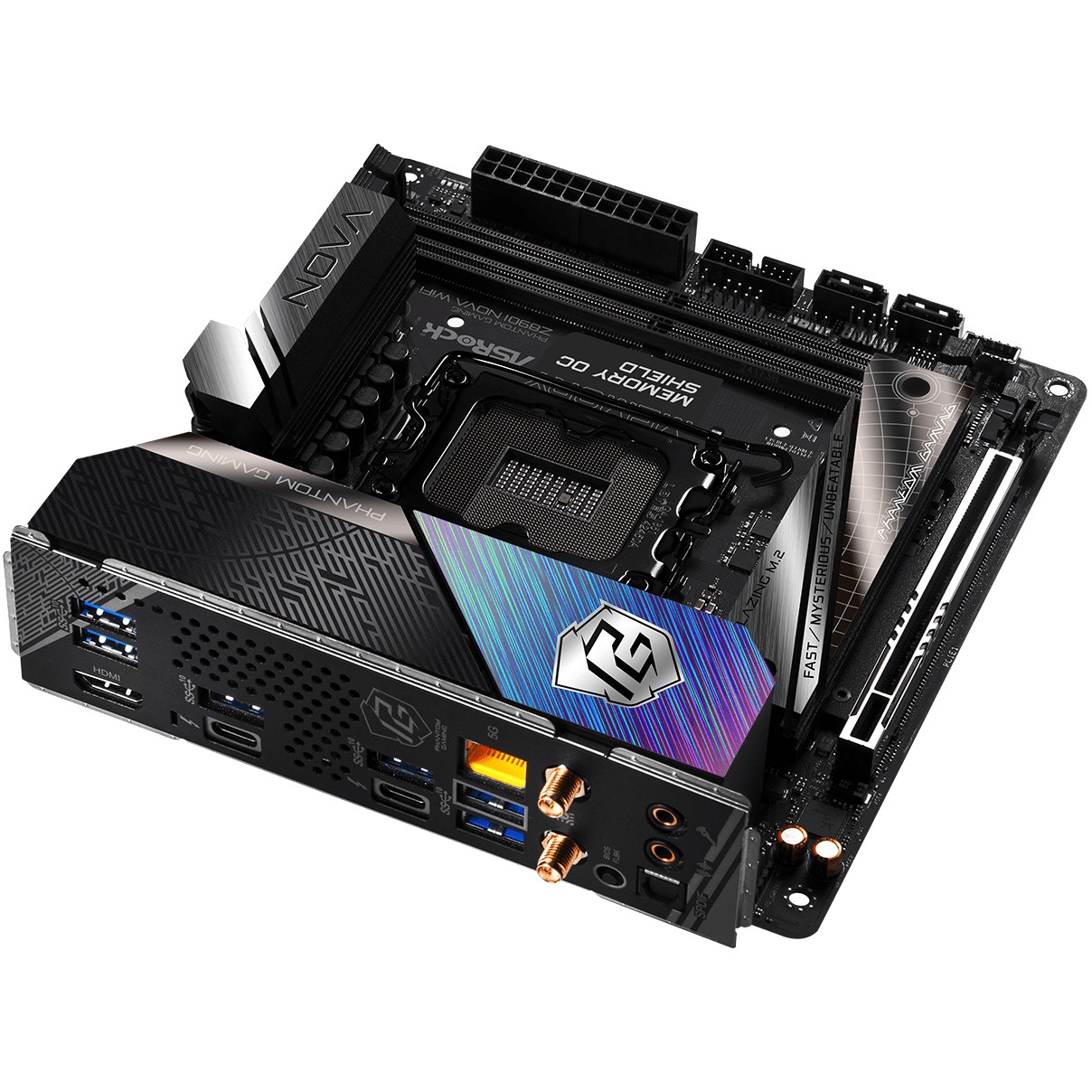

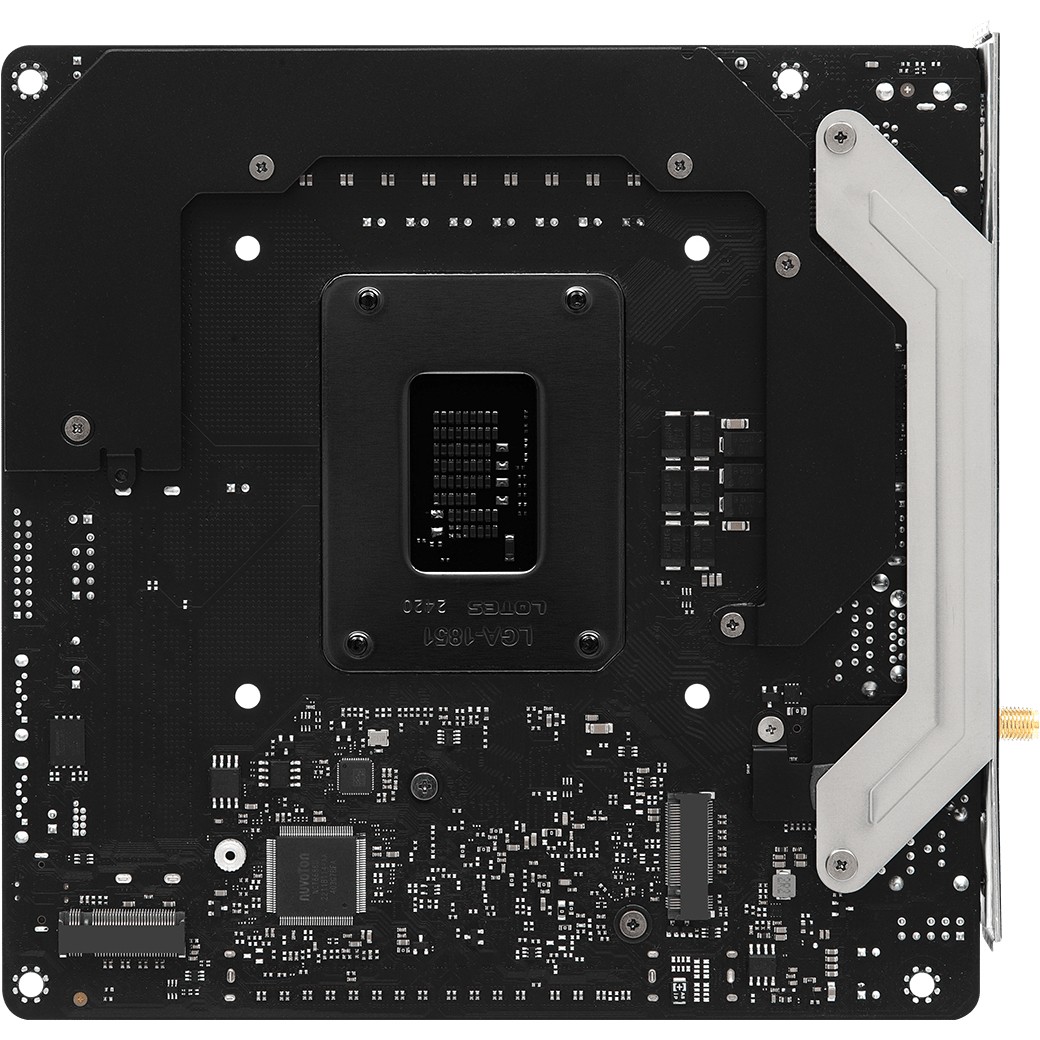

ASROCK Z890I NOVA WIFI (1851) (D)
Pre-Order
€297.99
VAT (19%) included
Description

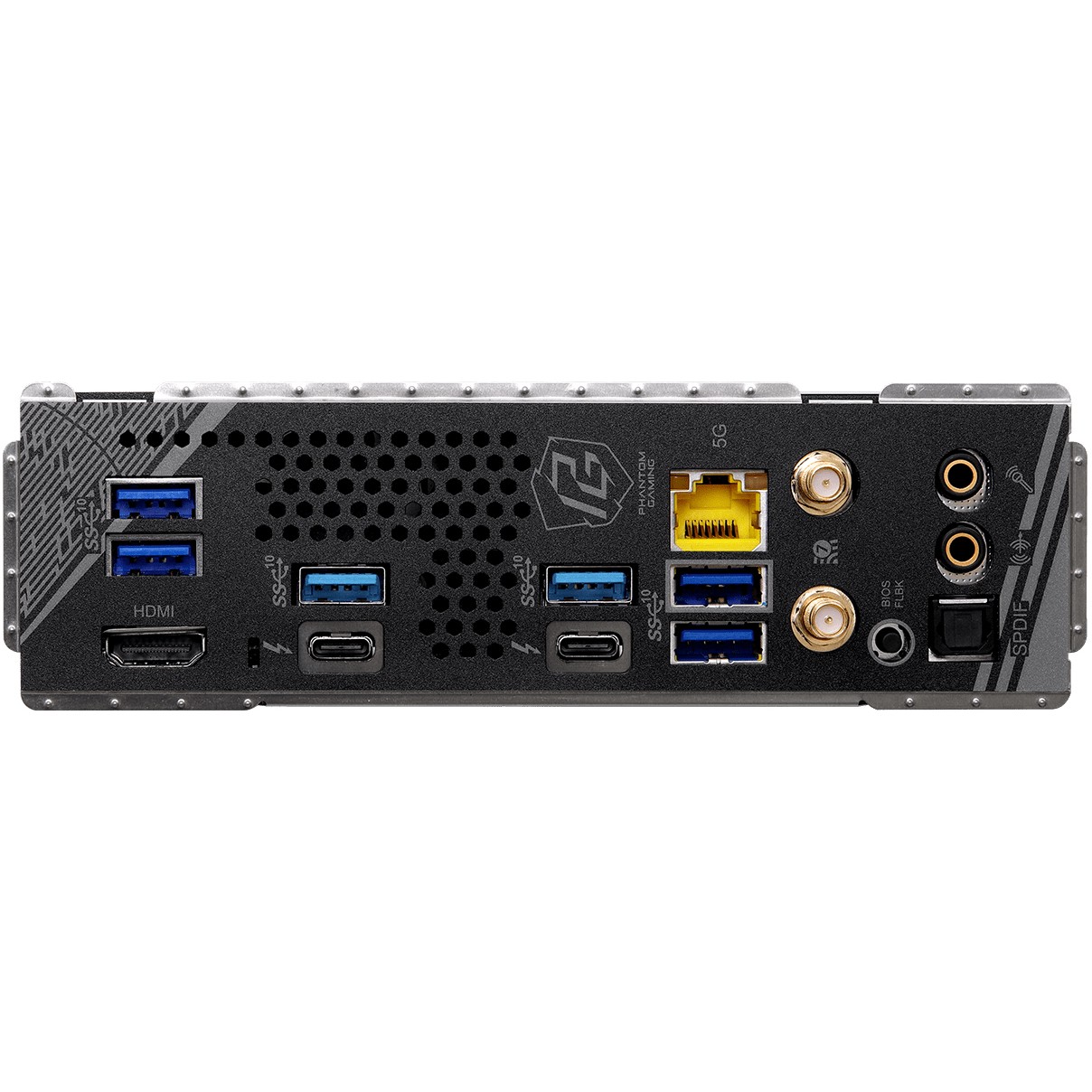

Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) 12+1+1+1+1 Power Phase, 110A SPS for VCore 2 x DDR5 DIMMs, Supports Dual Channel, up to 9866+ (OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio 2 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3) 2 Thunderbolt™ 4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front) 5Gbps LAN 802.11be Wi-Fi 7 + Bluetooth
Technical Specifications
SKU
K90-MXBPN0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
PCI Express 4.0, PCI Express 5.0, SATA III
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
7680 x 4320 pixels
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
2
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Eps Power Connectors (8-Pin)
1
Number Of Water Pump Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
6
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Headphone Outputs
1
Thunderbolt Ports Quantity
2
Wifi-Ap Antenna Jack
2
Usb Connector Type
USB Type-A, USB Type-C
Ethernet Interface Type
5 Gigabit Ethernet
Lan Controller
Realtek RTL8126
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
Intel Z890
Audio Chip
Realtek ALC4082
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Certification
FCC, CE, ErP/EuP
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
170 mm
Depth
170 mm
Cables Included
SATA
