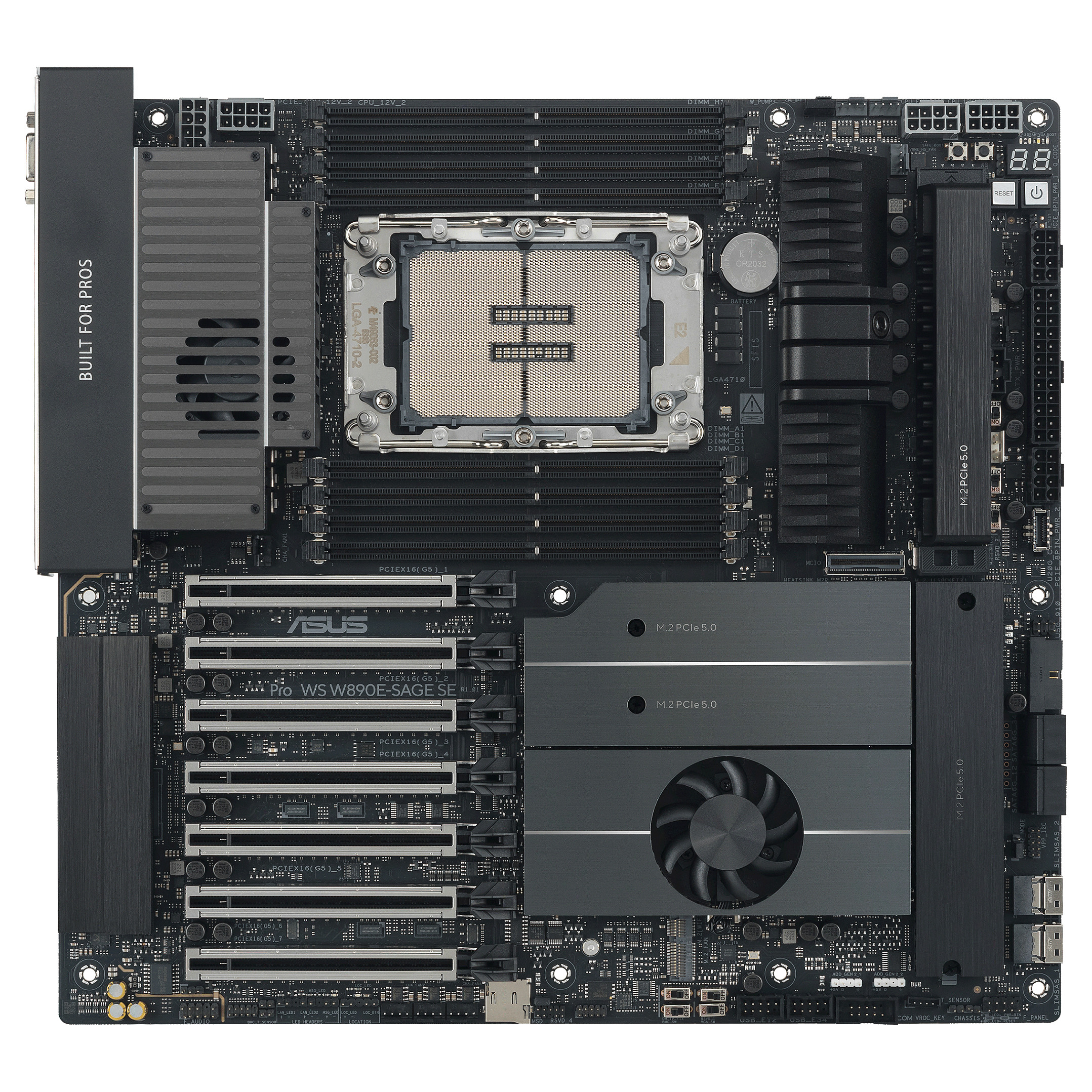

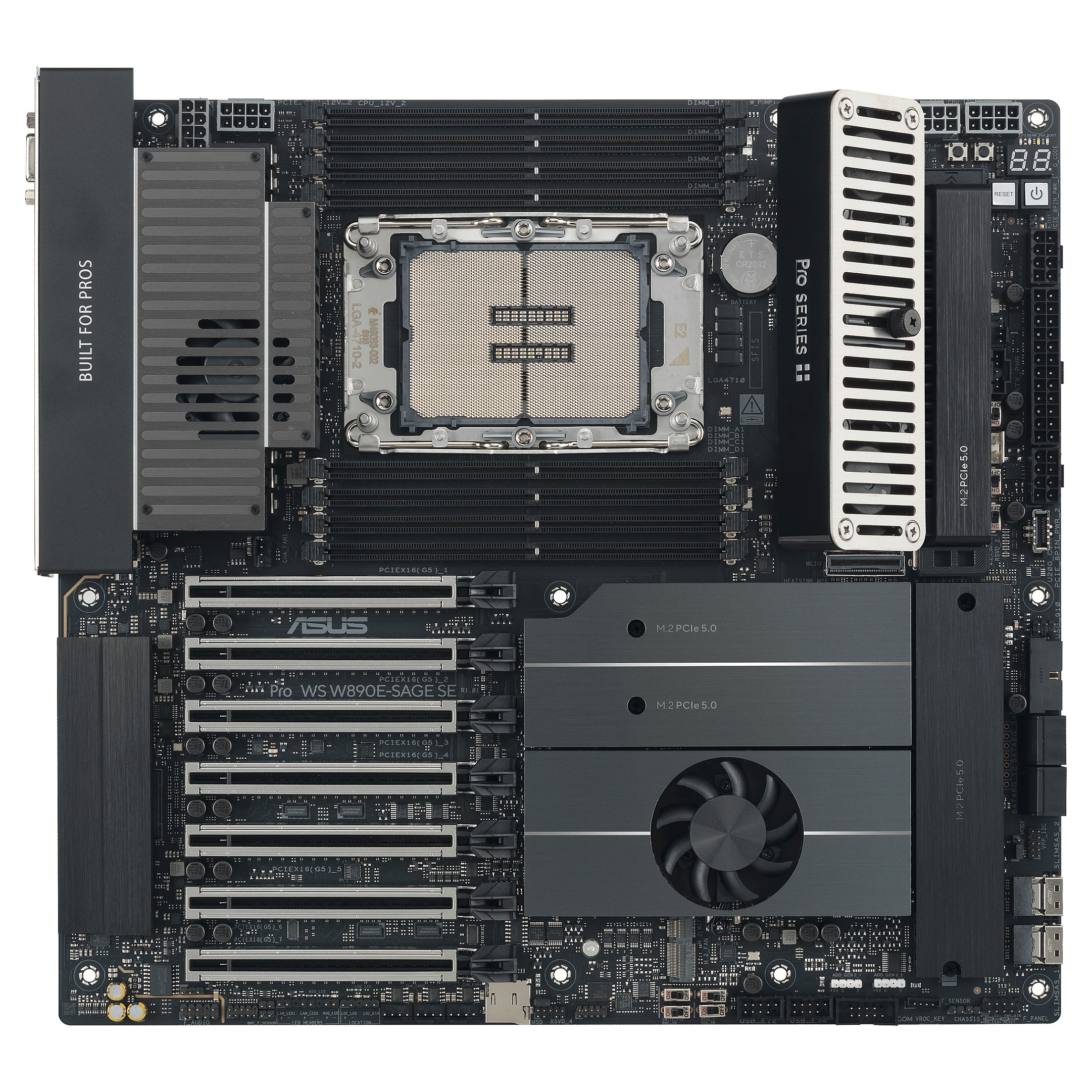

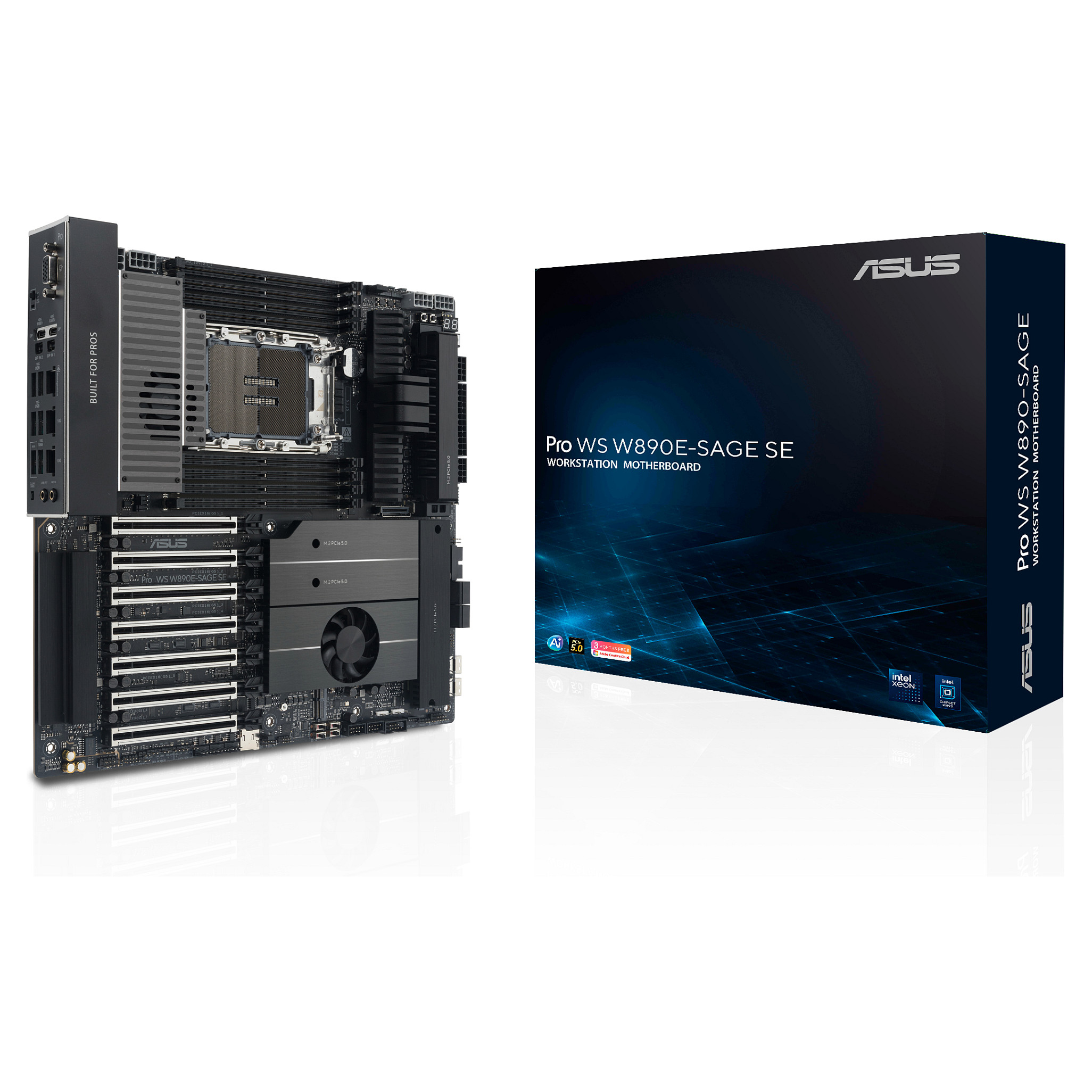

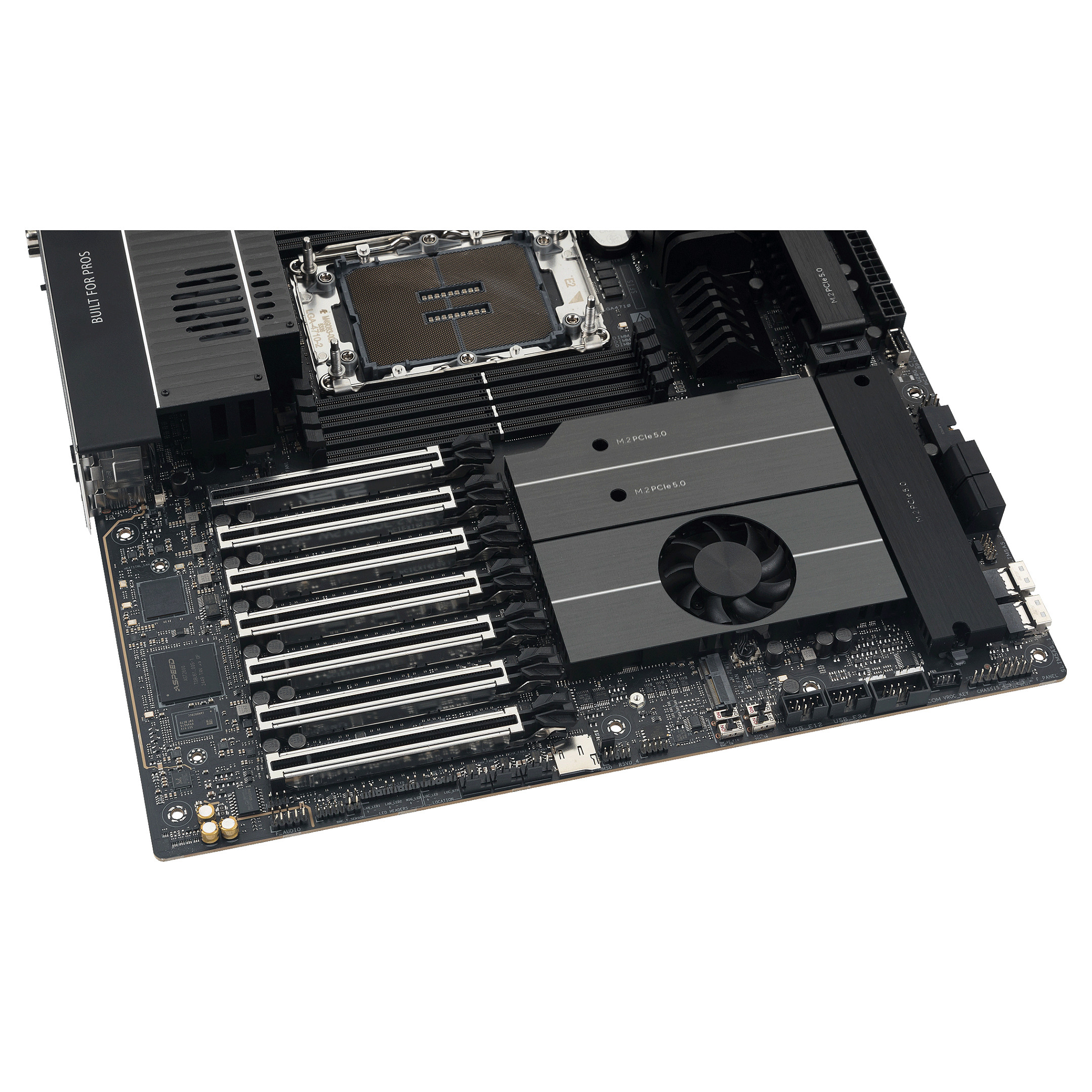

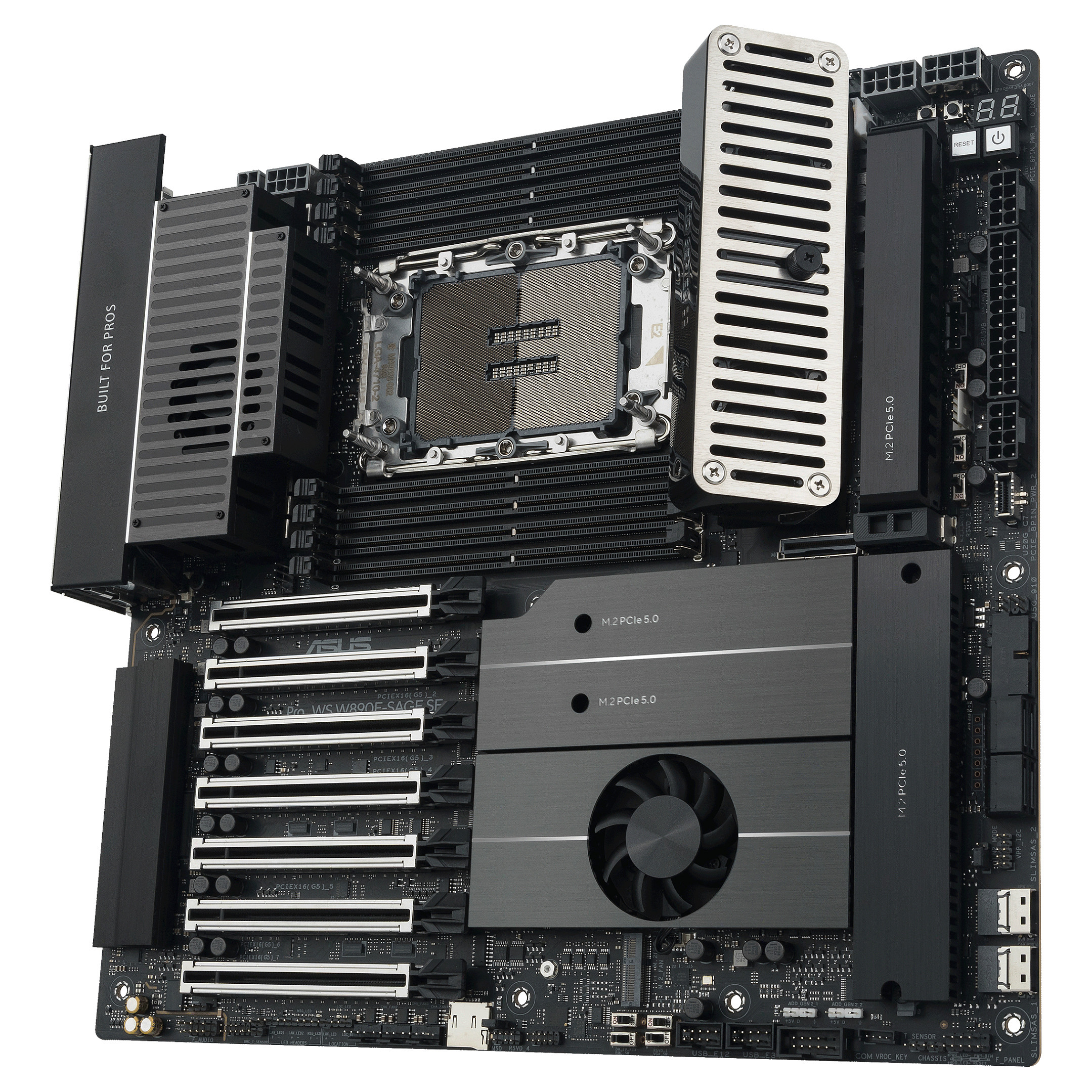

ASUS PRO WS W890E-SAGE SE (INTEL,4710,DDR5,EBB)
Pre-Order
€1425.99
VAT (19%) included
Description
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel® LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation. Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support. CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC). Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad. Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management. Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Technical Specifications
SKU
K90MB1LH0-M0EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 4710-2
Compatible Processor Series
Intel® Xeon®
Supported Processor Sockets
LGA 4710-2
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
8
Memory Slots Type
DIMM
Memory Channels
Octa-channel
Ecc Сompatibility
ECC
Maximum Internal Memory
4 TB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III, SlimSAS
Number Of Hdds Supported
4
Number Of Storage Drives Supported
10
Raid Levels
0, 5, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
7680 x 4320 pixels
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
5
Number Of Eps Power Connectors (8-Pin)
5
Number Of Com Connectors
1
Integrated Sas Ports
2
Number Of Water Pump Connectors
1
Number Of Temperature Sensor Headers
1
Number Of Rgb Led Pin Headers
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
6
Usb4 Gen 3X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
3
Vga (D-Sub) Ports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Ethernet Interface Type
10 Gigabit Ethernet, Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel W890
Audio Chip
Realtek ALC1220P
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
Workstation
Motherboard Form Factor
EEB
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 11
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
7
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
22110
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
5.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
5.0
4Th M.2 Largest Key Size
2280
4Th M.2 Highest Pci Express Generation
5.0
Bios Type
UEFI AMI
Bios Memory Size
512 Mbit
Package Width
362 mm
Package Depth
377 mm
Package Height
103 mm
Package Weight
3.7 kg
Width
305 mm
Depth
330 mm
Height
50 mm
Cables Included
SATA, DisplayPort
Mini Displayports Quantity
2
Weight
3.4 kg
Number Of M.2 (E) Slots
1
