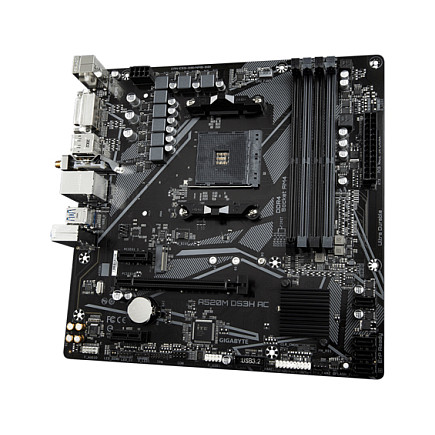

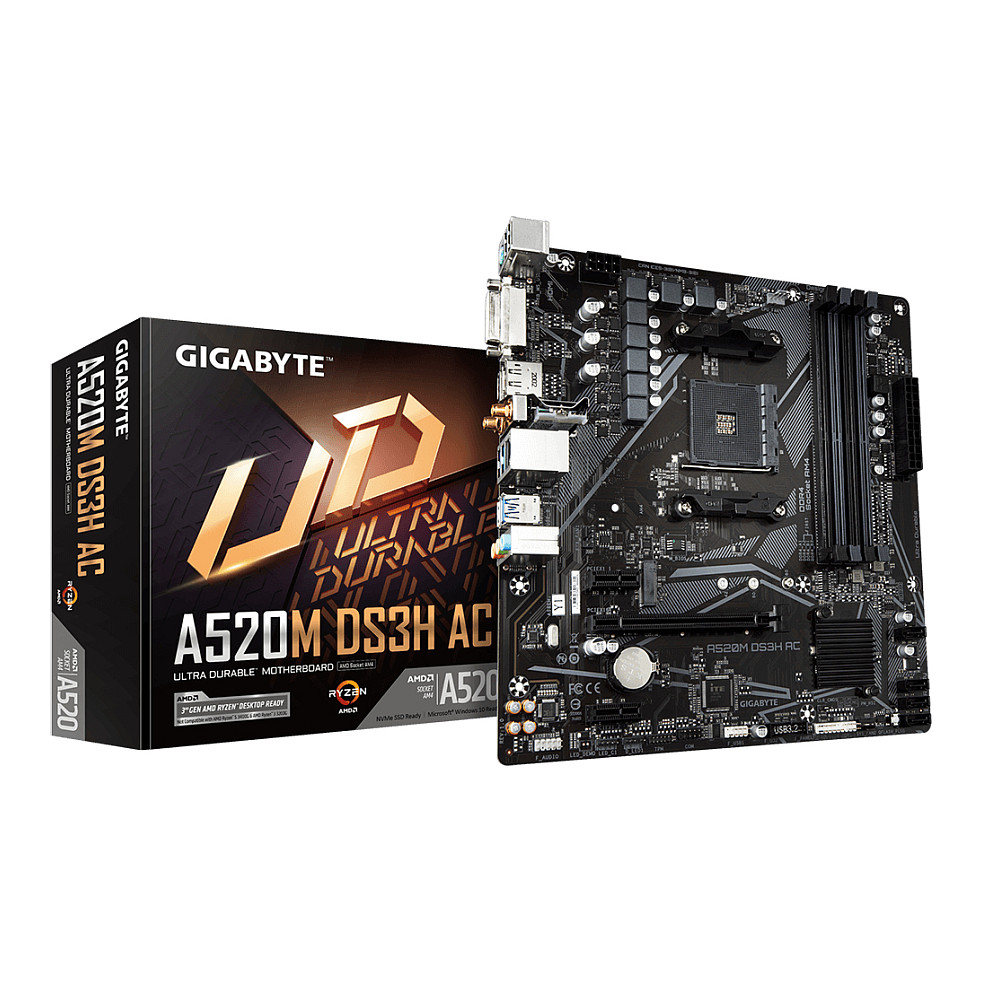

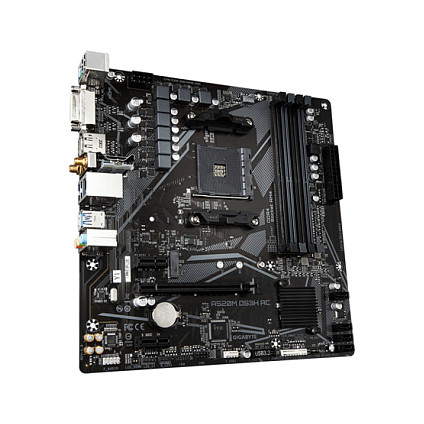

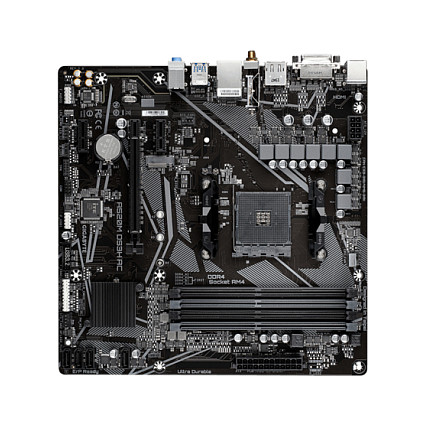

Gigabyte A520M DS3H AC (A520.AM4.mATX.DDR4)
Pre-Order
€89.99
VAT (19%) included
Description
Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, Display Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Technical Specifications
SKU
KA520M-DS3H AC
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400, 4733 MHz
Supported Memory Clock Speed (Max)
4733 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
32 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
5120 x 2880 pixels
Number Of Displays Supported
3
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Serial Port Headers
1
Number Of Rgb Led Pin Headers
2
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Dvi-D Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 5 (802.11ac)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wlan Controller Model
Intel Dual Band Wireless-AC 3168
Bluetooth Version
4.2
Motherboard Chipset
AMD A520
Audio Output Channels
7.1 channels
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
270 mm
Package Depth
268 mm
Package Height
68 mm
Package Weight
1.21 kg
Width
244 mm
Depth
244 mm
Height
35 mm
Weight
720 g
Warranty Period
3 year(s)
