ASRock

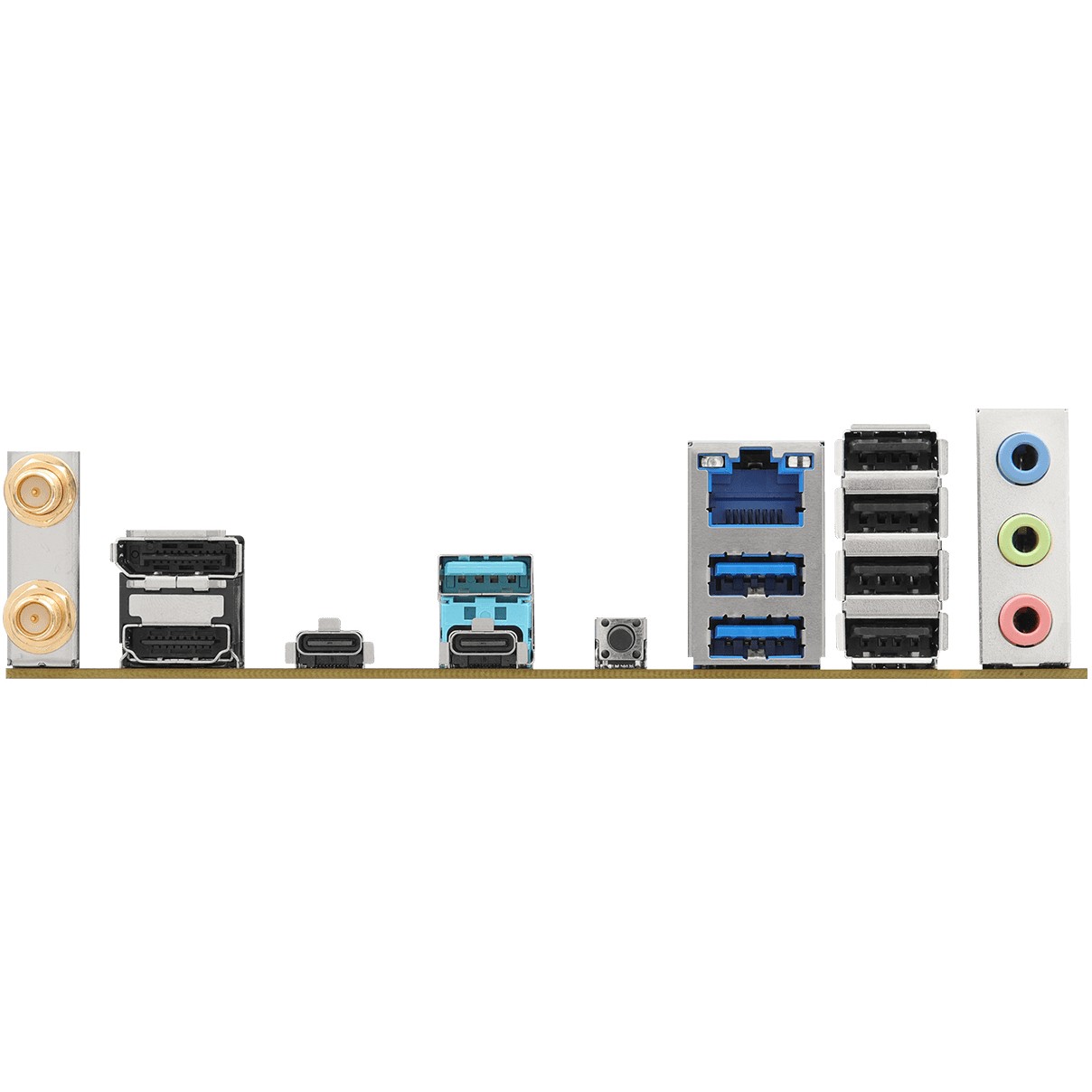

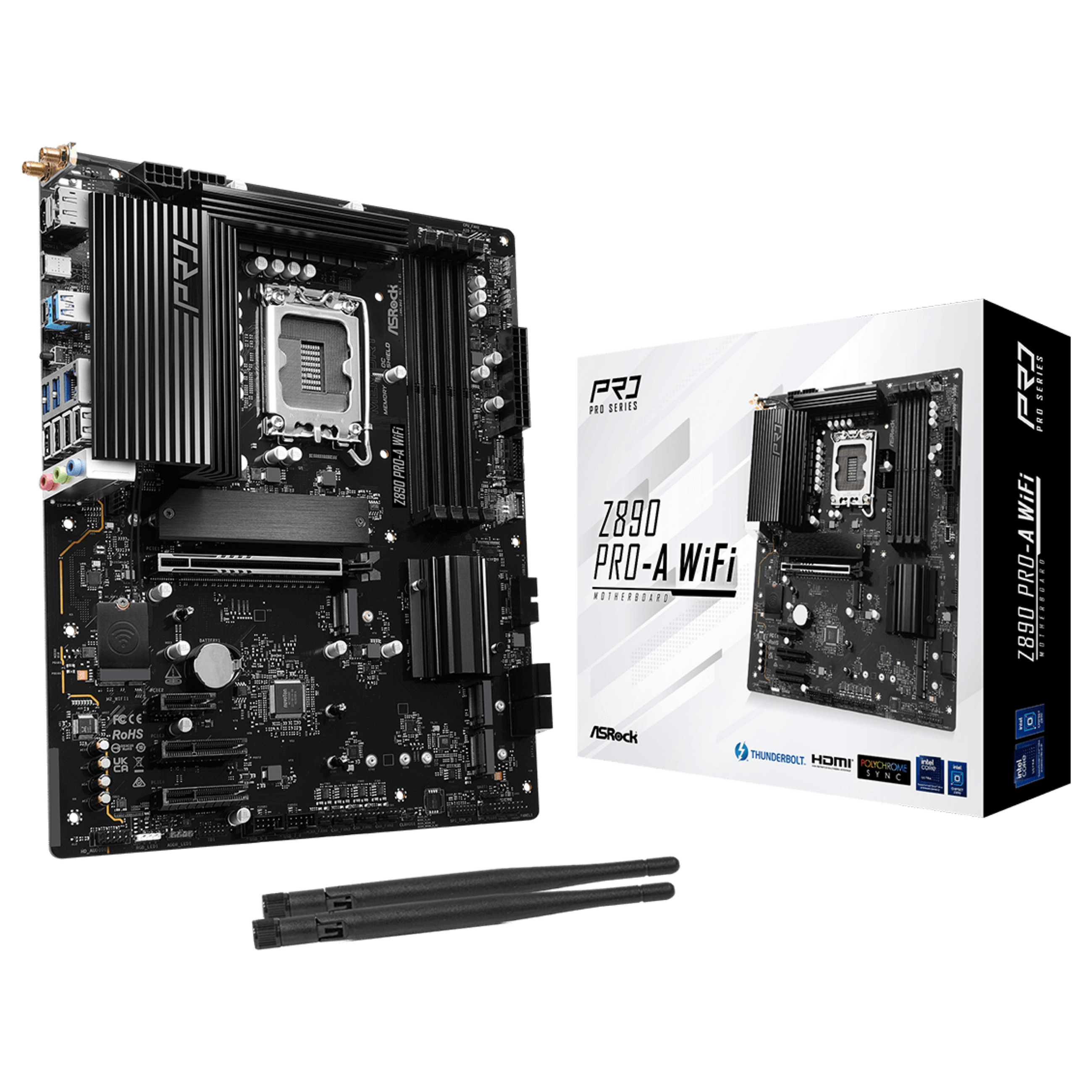

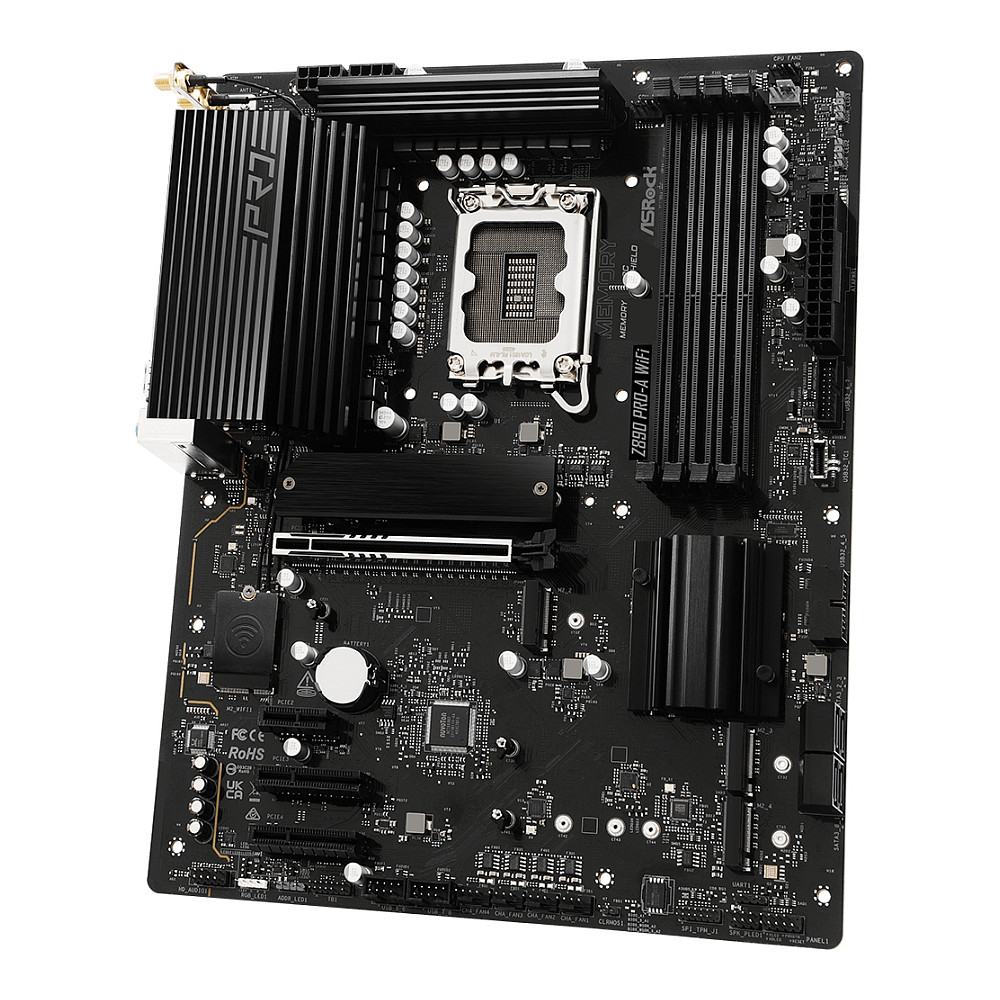

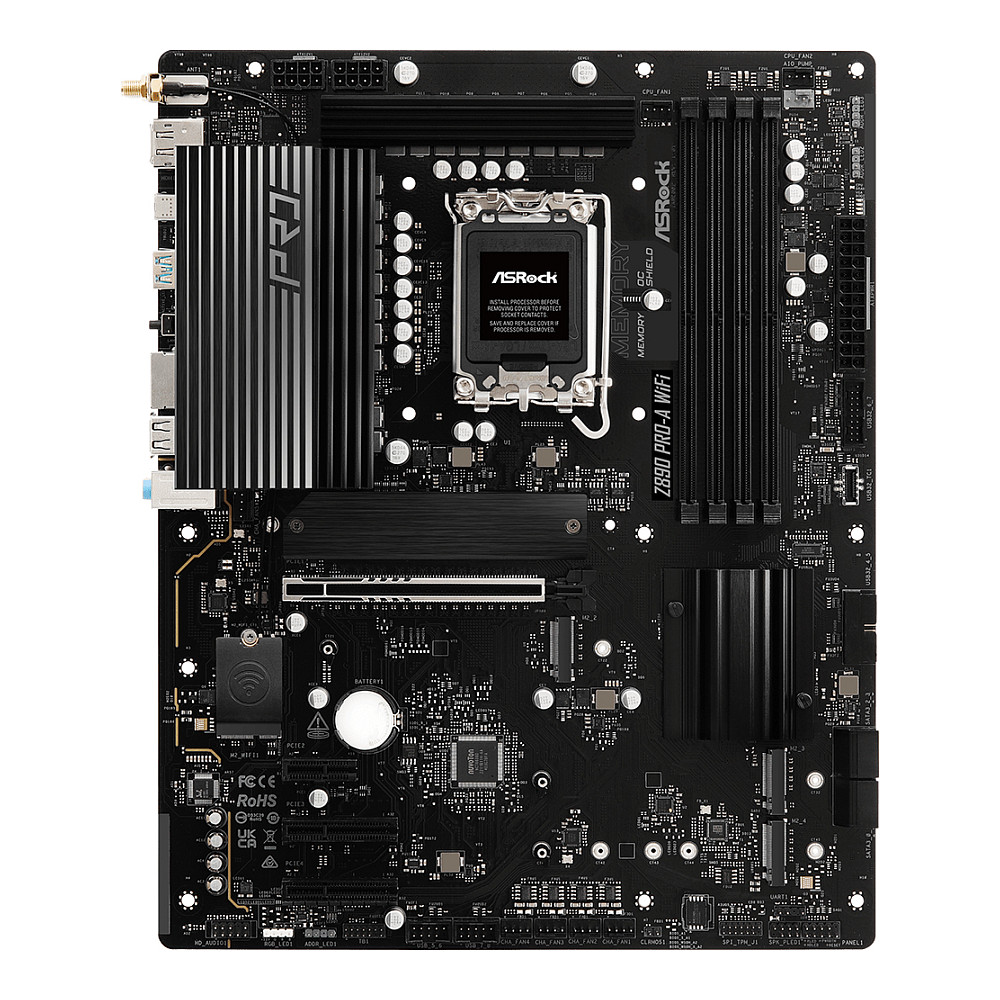

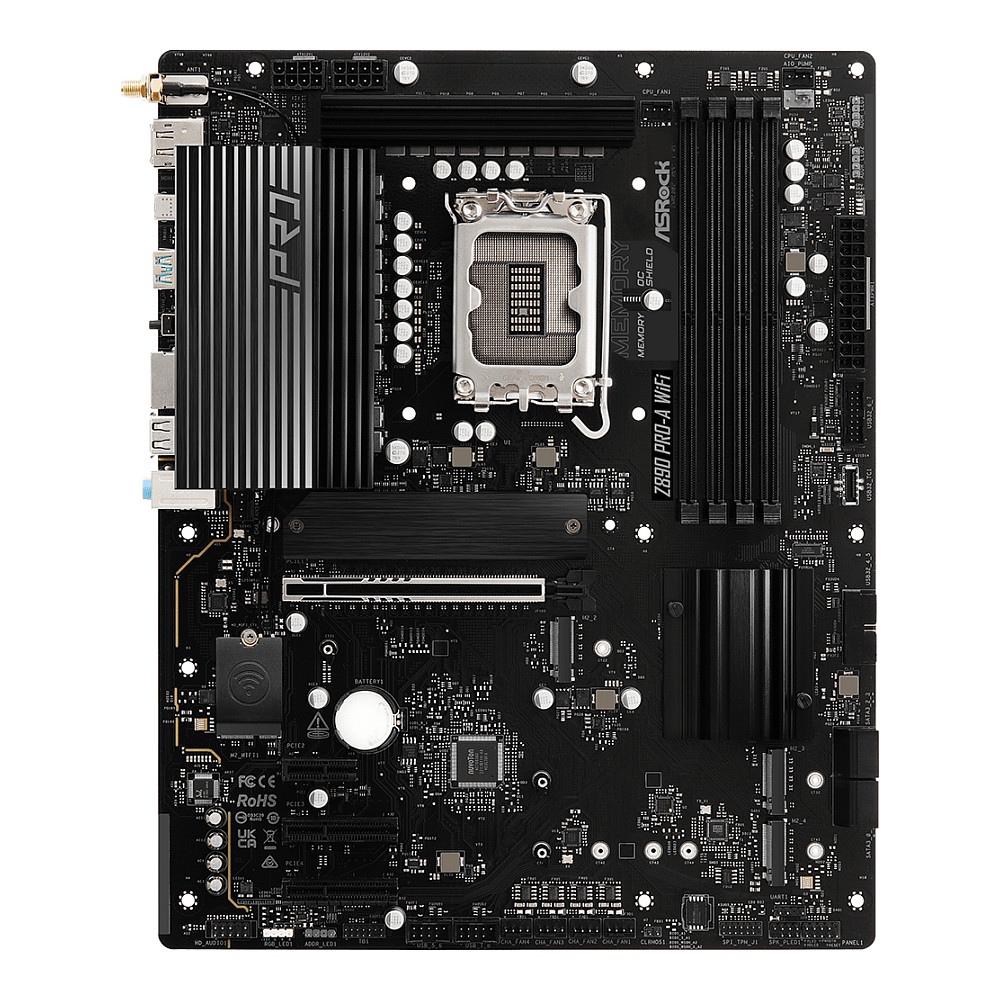

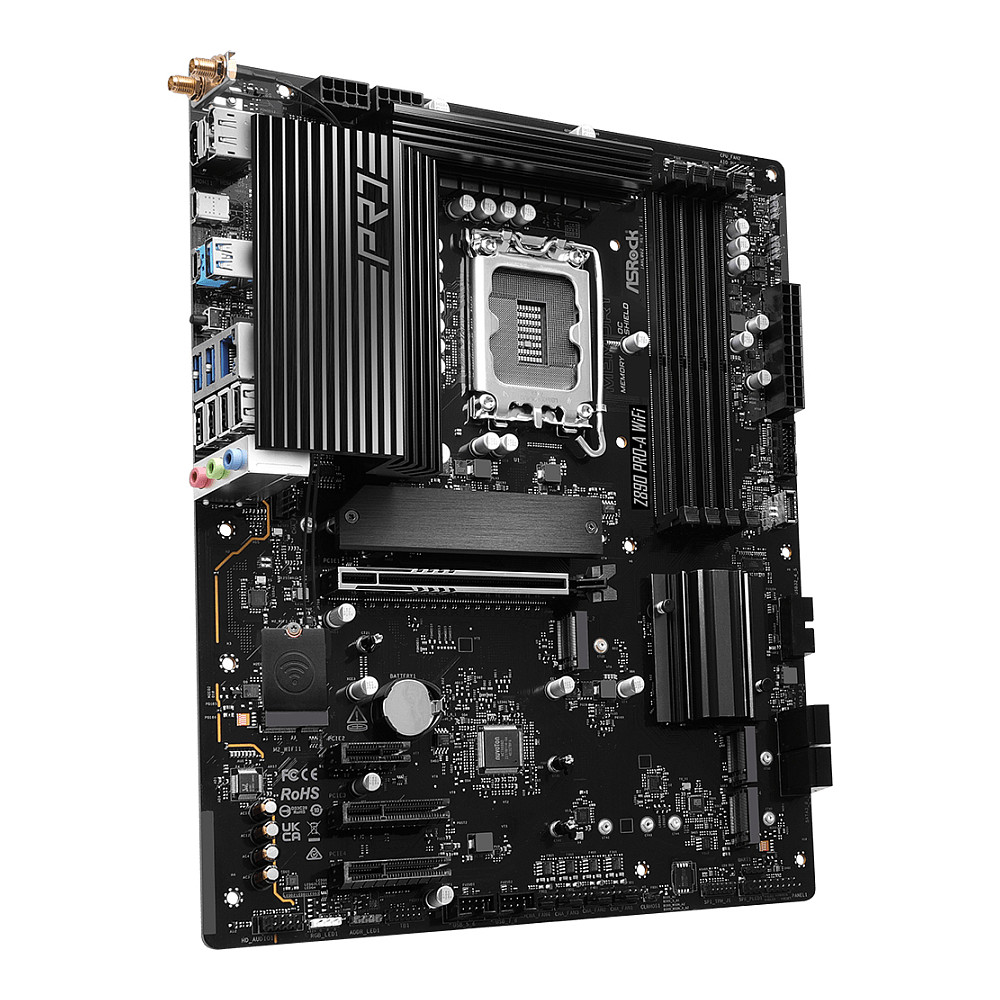

1851 ASRock Z890 Pro-A Wifi DDR5
Pre-Order
€212.99
VAT (19%) included
Description
Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851) 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT 4 x DDR5 DIMMs Supports Dual Channel, up to 9066+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1 Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) 1 Thunderbolt™ 4 Type-C (Rear) 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front) 1 USB 3.2 Gen2 Type-A (Rear) 6 USB 3.2 Gen1 (2 Rear, 4 Front) 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
Technical Specifications
SKU
K90-MXBP60-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speed (Max)
9066 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
5
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Thunderbolt Ports Quantity
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Version
5.3
Motherboard Chipset
Intel Z890
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Pci Express X1 (Gen 4.X) Slots
1
Pci Express X4 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
4
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
305 mm
Depth
244 mm
Cables Included
SATA
Compliance Certificates
Federal Communications Commission (FCC), CE
