Sapphire

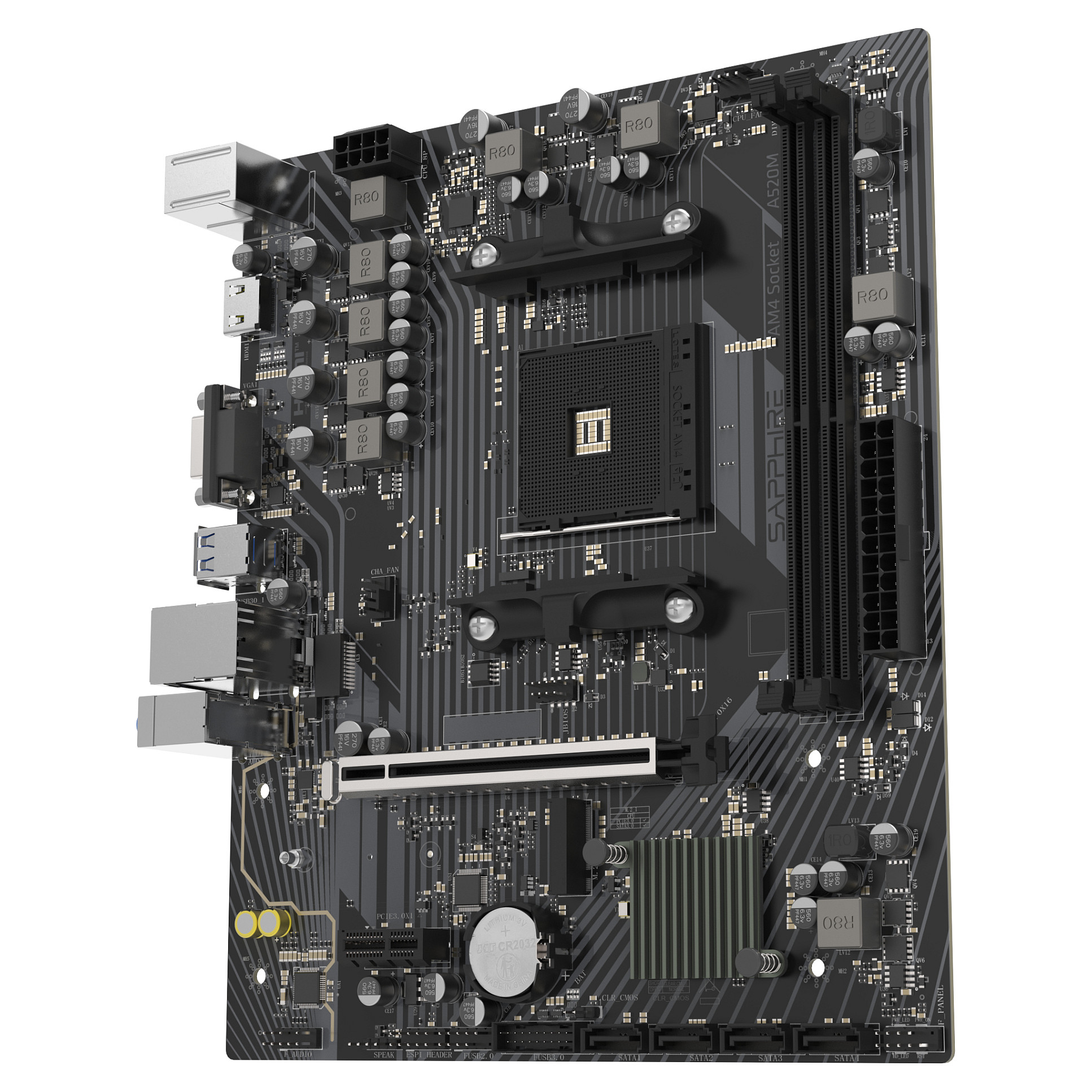

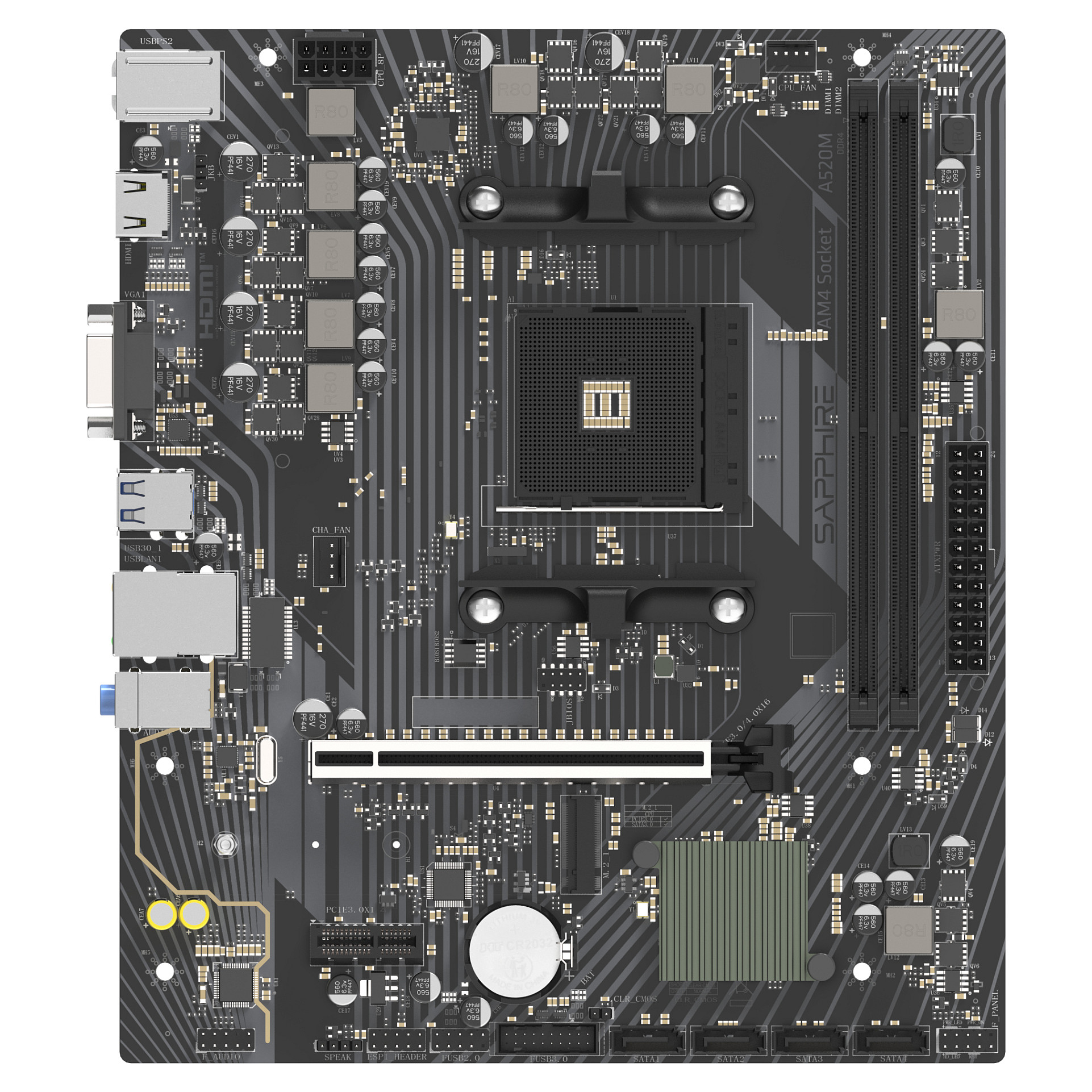

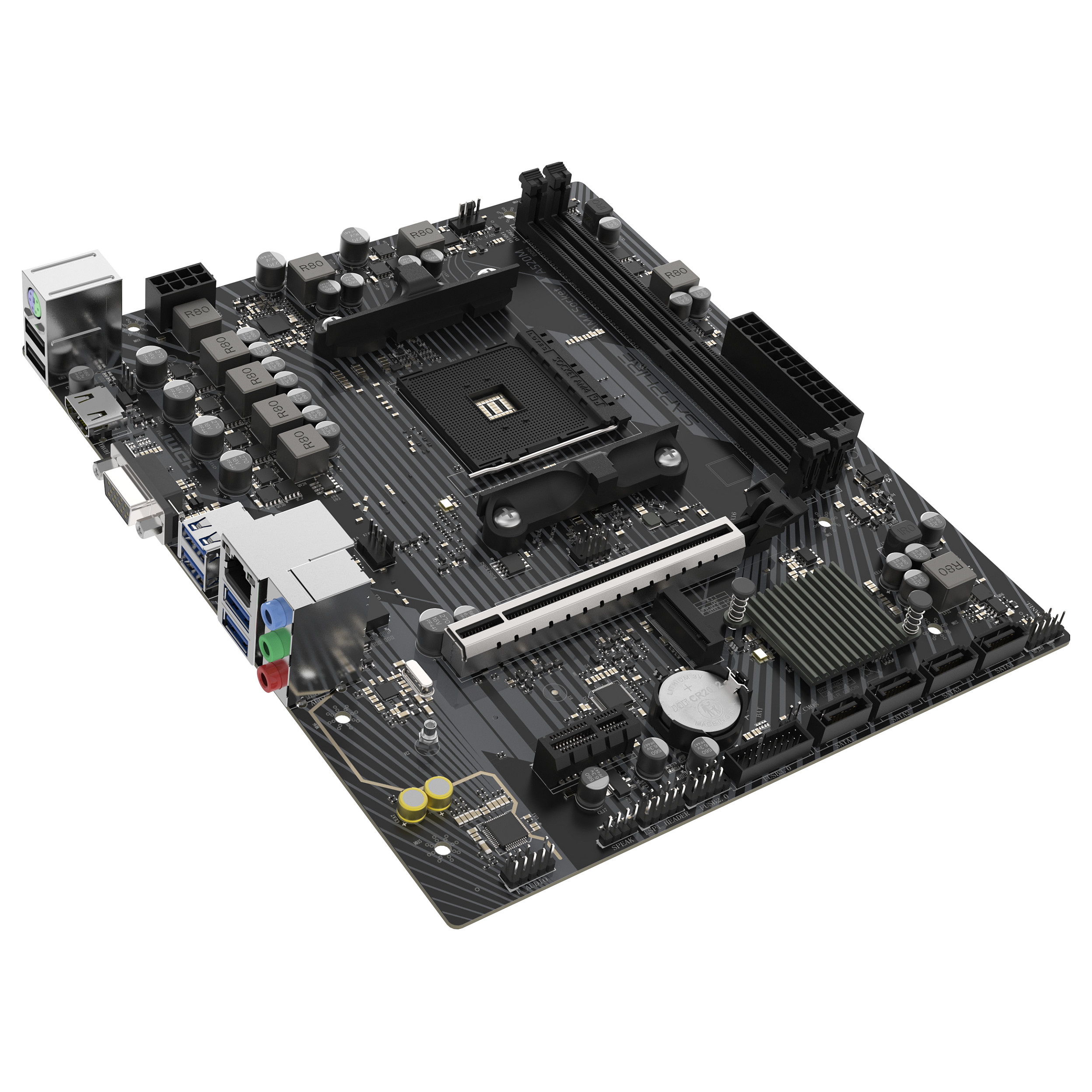

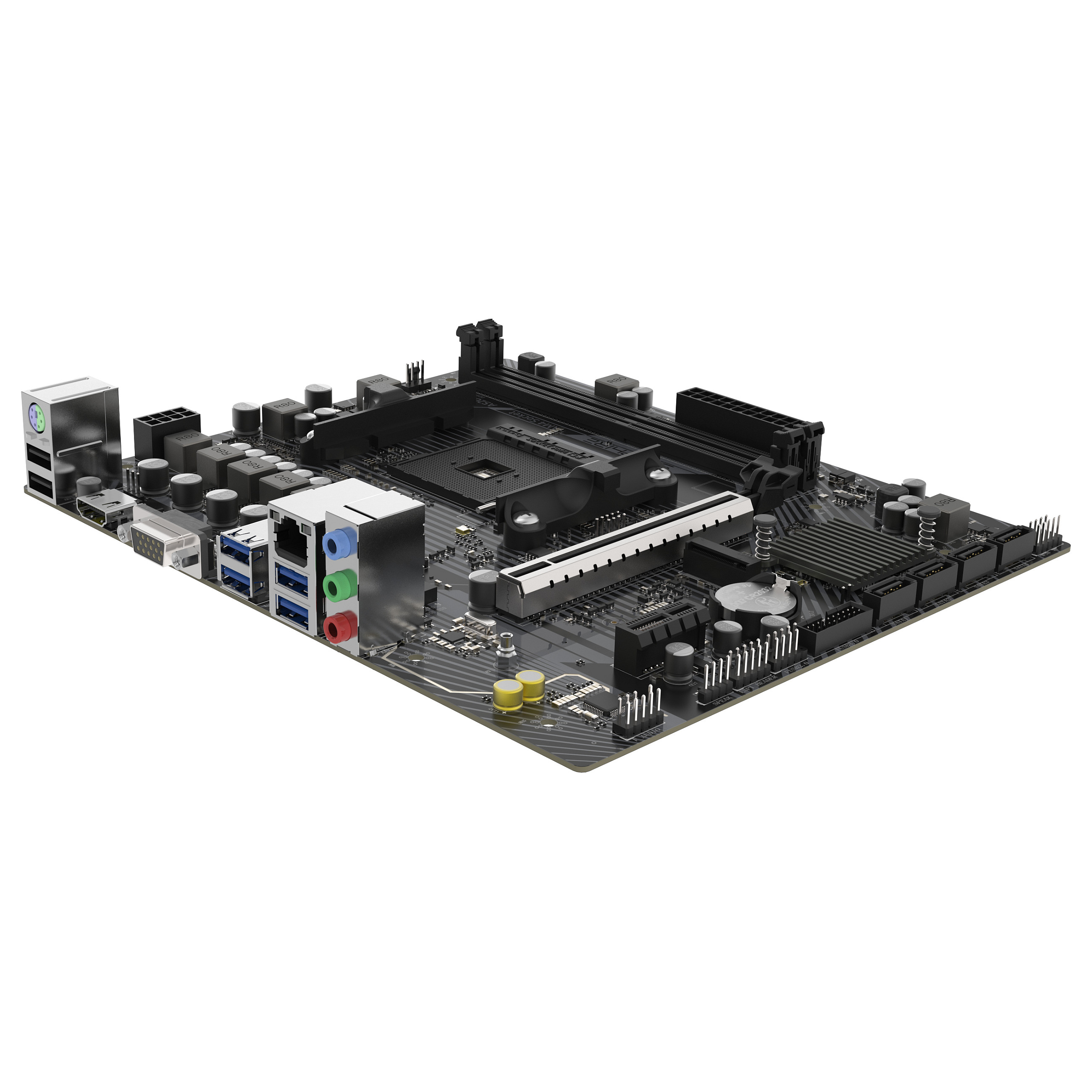

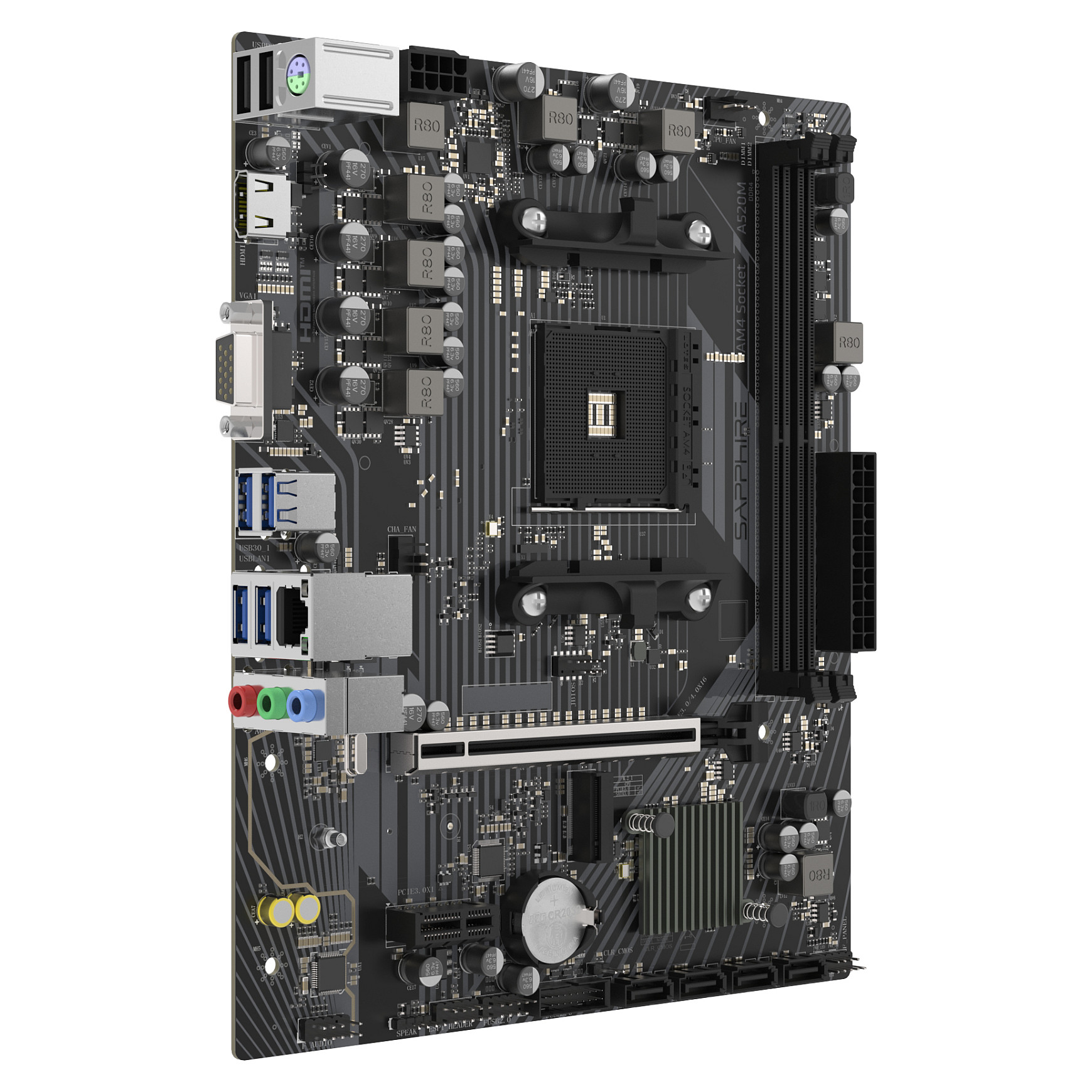

AM4 SAPPHIRE A520M-E Mainboard Sockel AM4
Pre-Order
€72.99
VAT (19%) included
Description
AMD AM4 CPU SUPPORT 4+2+1 Phase CPU Power, 50A Per Phase PCI Express 3.0 x16 PCIe 3.0 M.2 Support
Technical Specifications
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Supported Memory Clock Speed (Max)
3200 MHz
Maximum Internal Memory
64 GB
Maximum Internal Memory Per Slot
32 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
PCI Express 3.0, SATA III
Number Of Storage Drives Supported
5
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Headphone Outputs
3
Usb Connector Type
USB Type-A
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111M
Motherboard Chipset
AMD A520
Audio Chip
Realtek ALC897
Audio Output Channels
5.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
3.0
Width
230 mm
Depth
197 mm
