ASRock

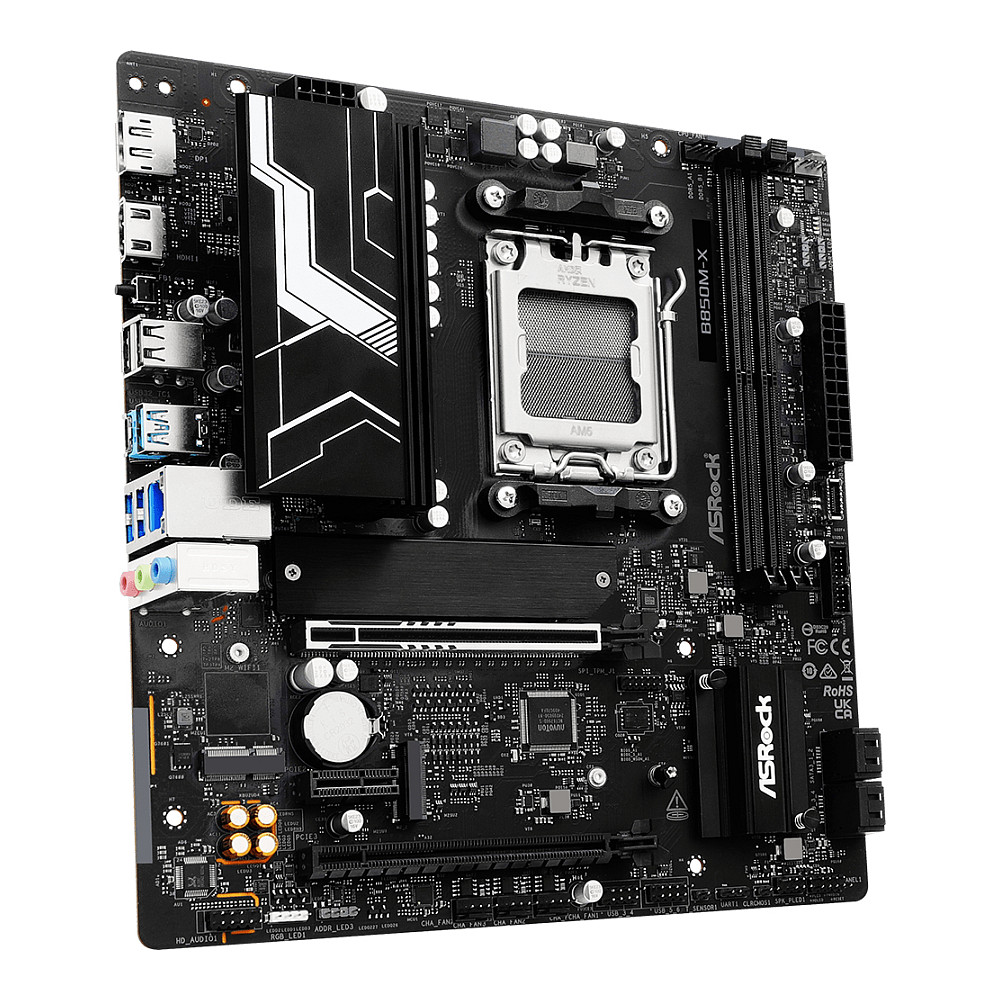

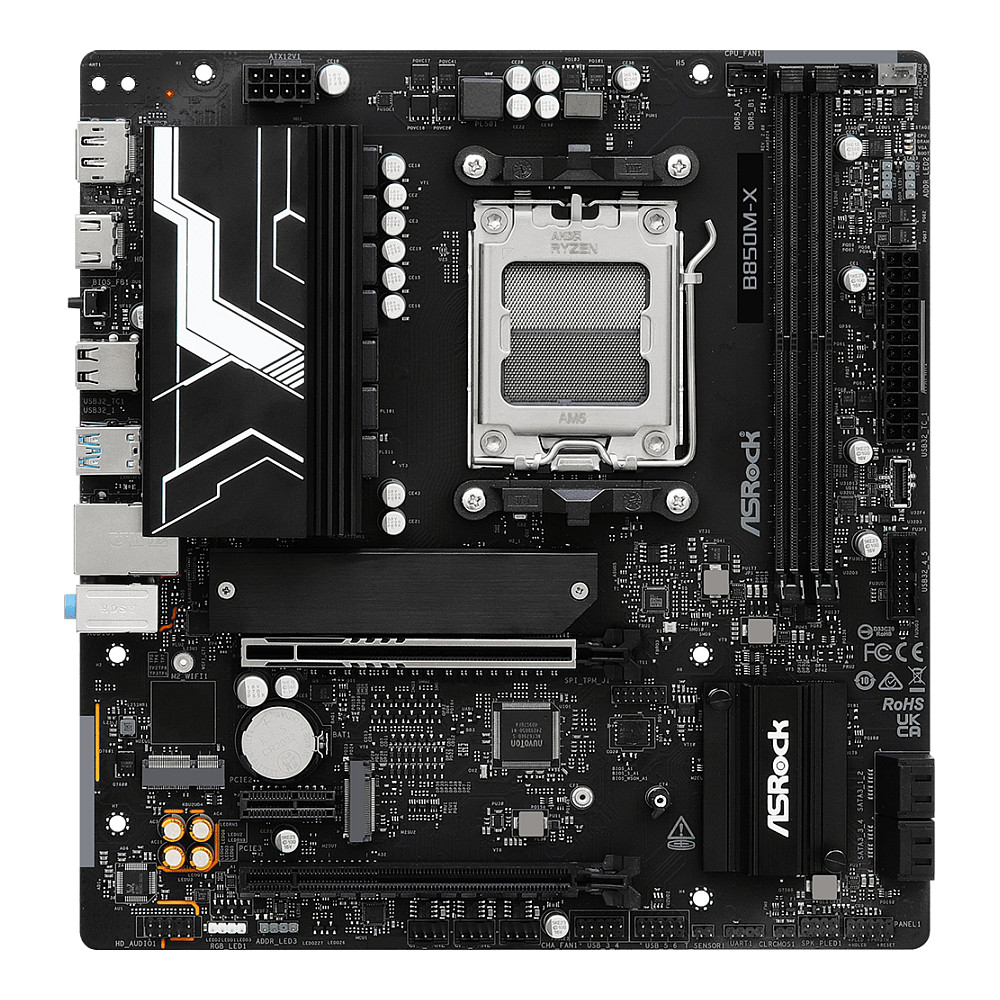

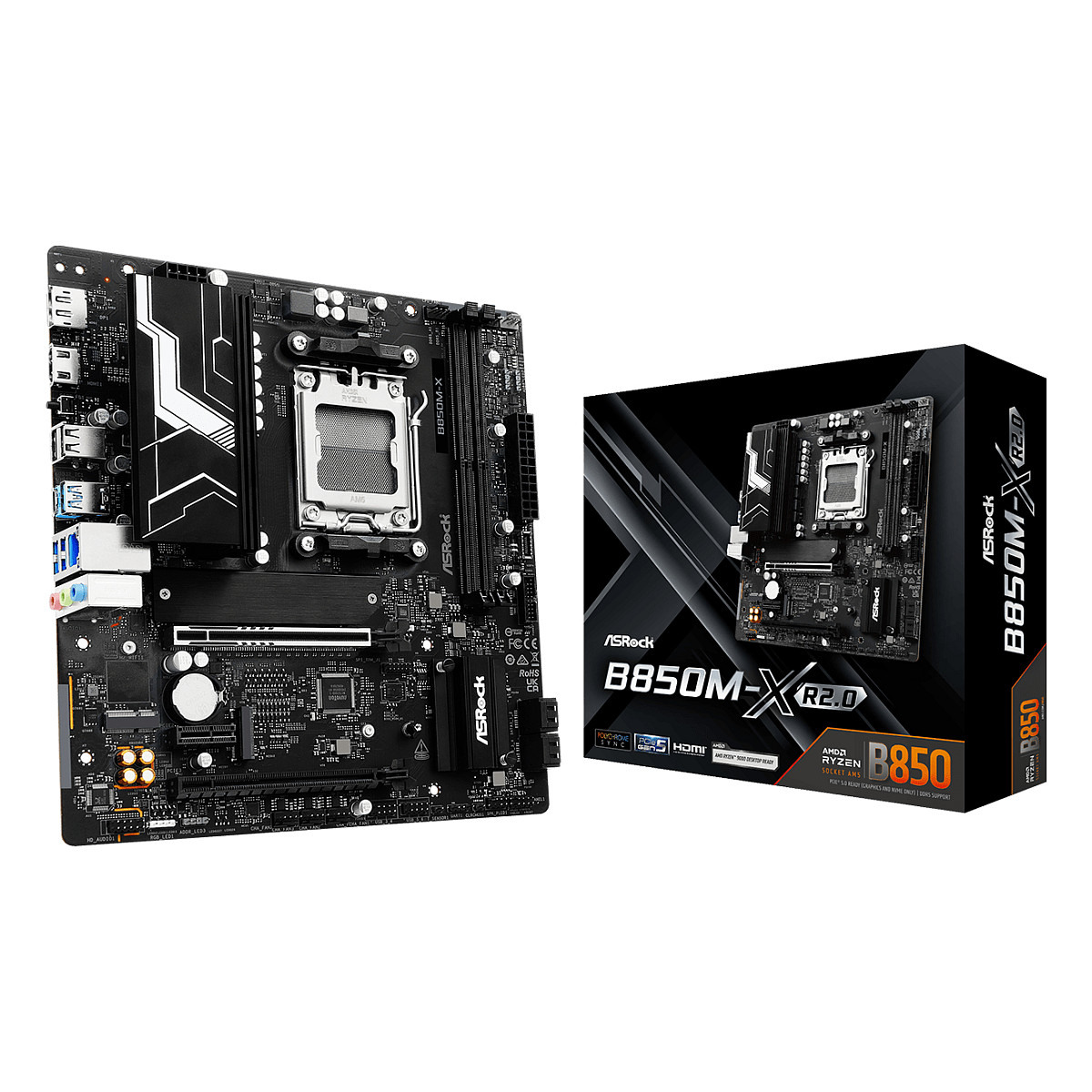

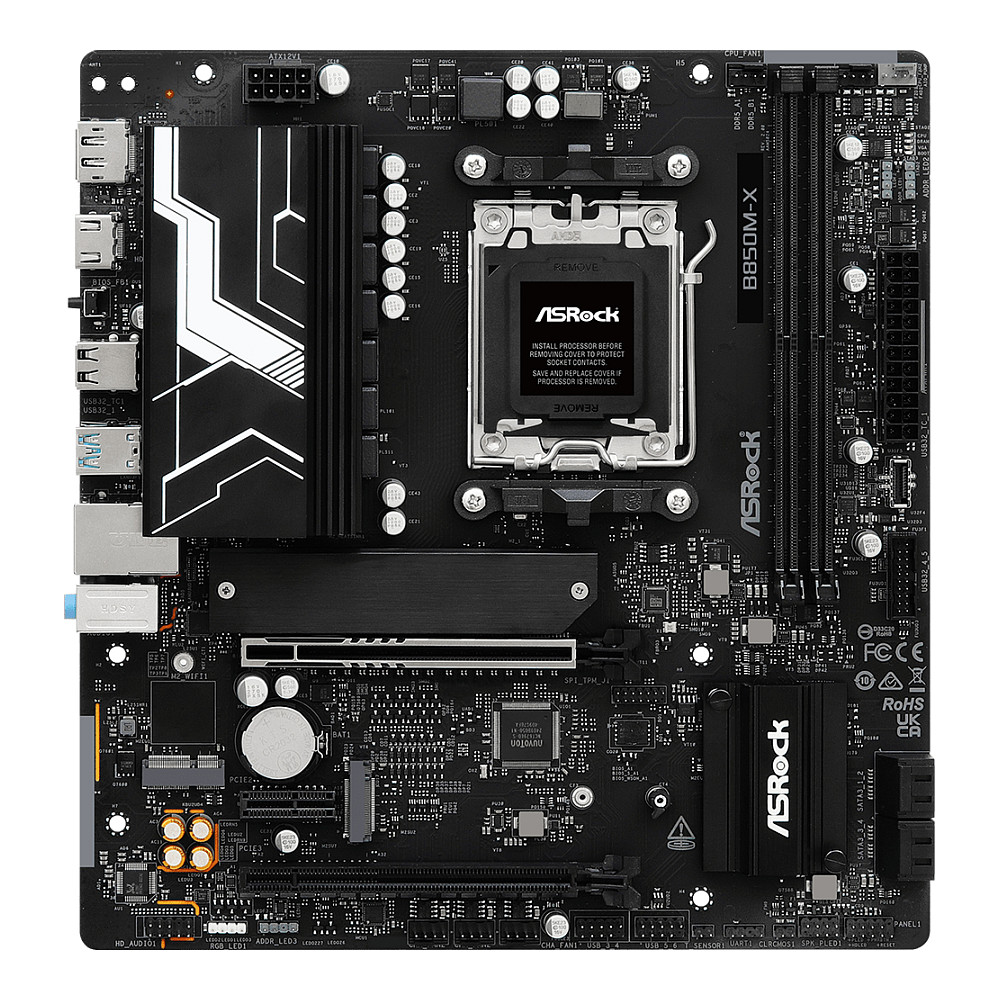

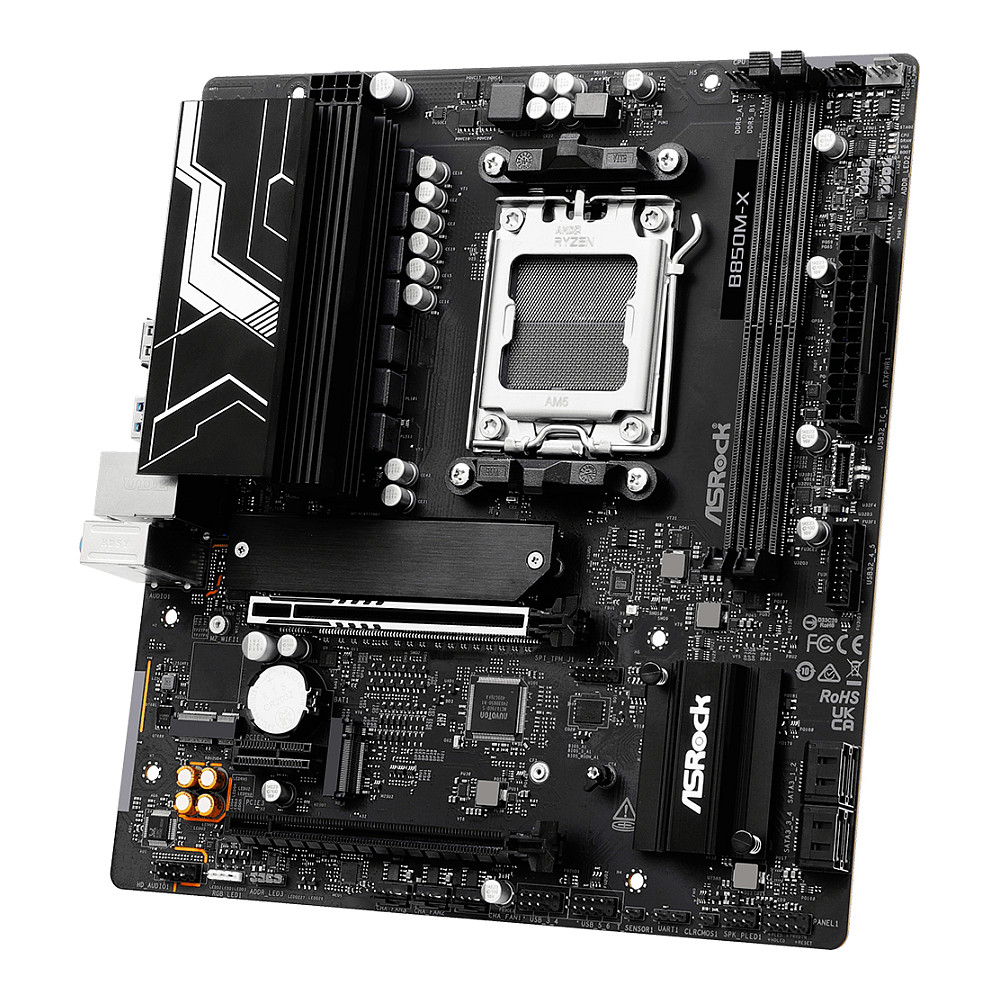

ASROCK B850M-X R2.0 (AM5) (D)
Pre-Order
€132.99
VAT (19%) included
Description
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors 6+1+1 Phase Power Design, Dr.MOS for VCore 2 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 4 SATA3 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 USB 3.2 Gen1 (3 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front) Realtek 2.5G LAN Supports BIOS Flashback
Technical Specifications
SKU
K90-MXBSG0-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD B850
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 4.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
244 mm
Depth
226 mm
