ASRock

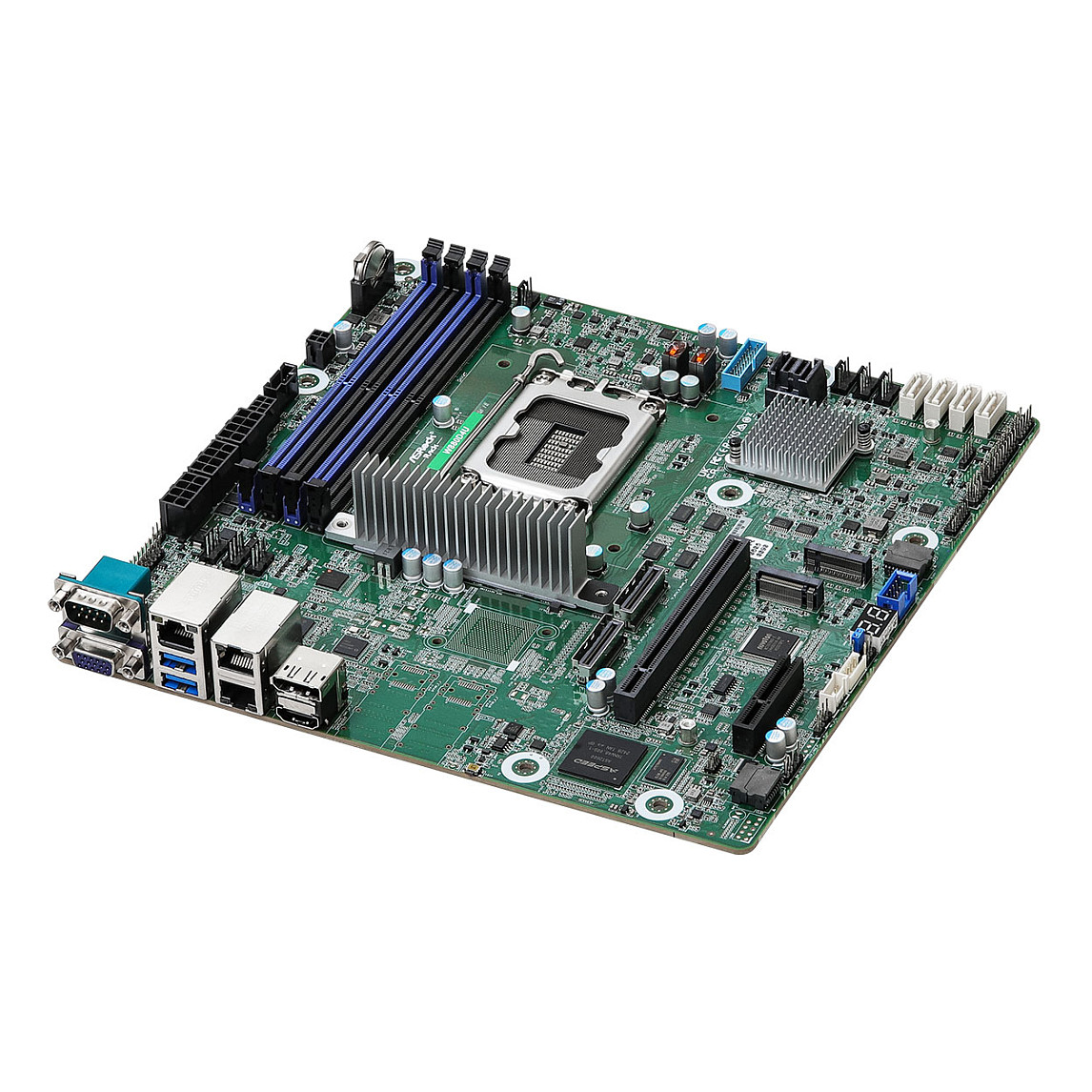

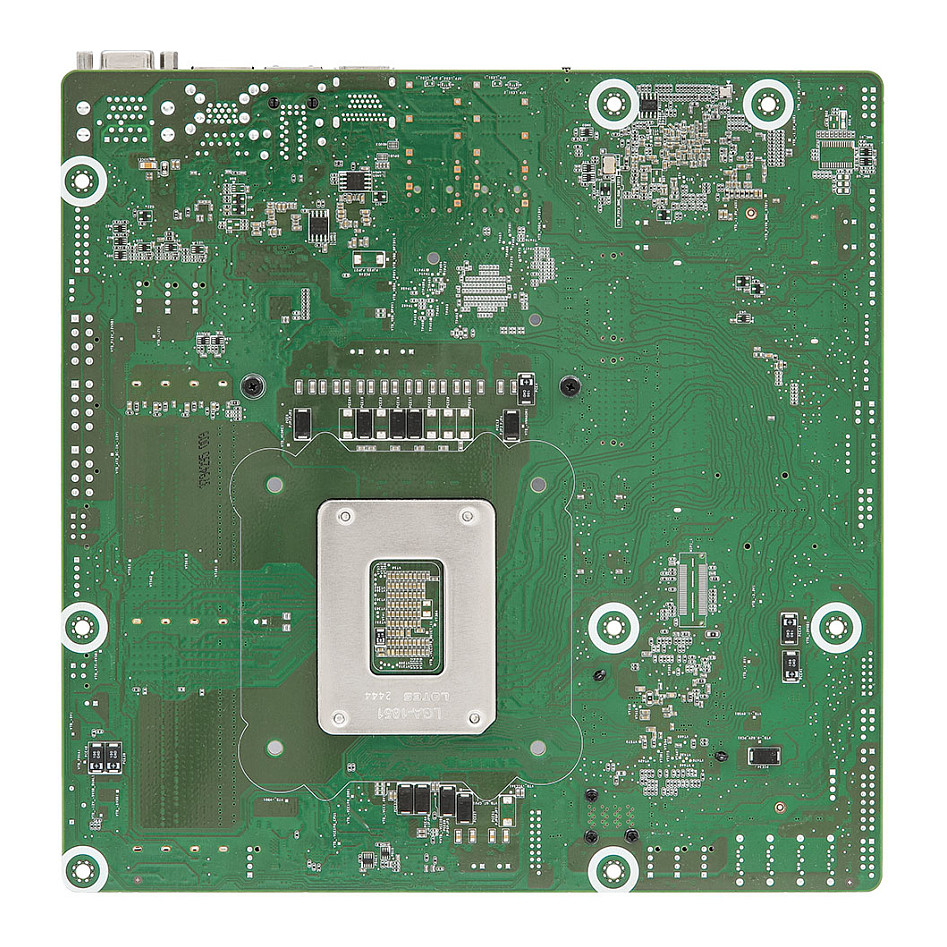

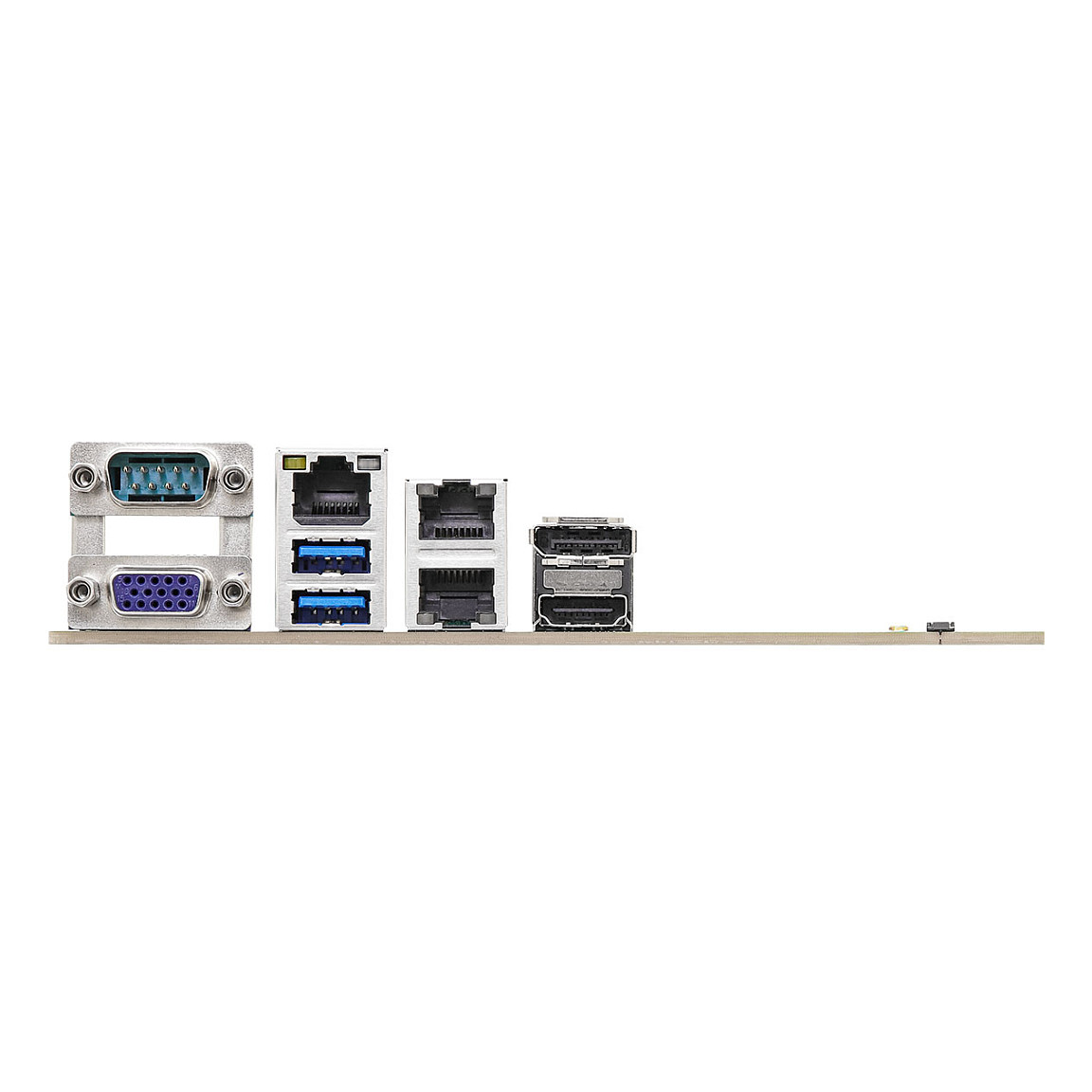

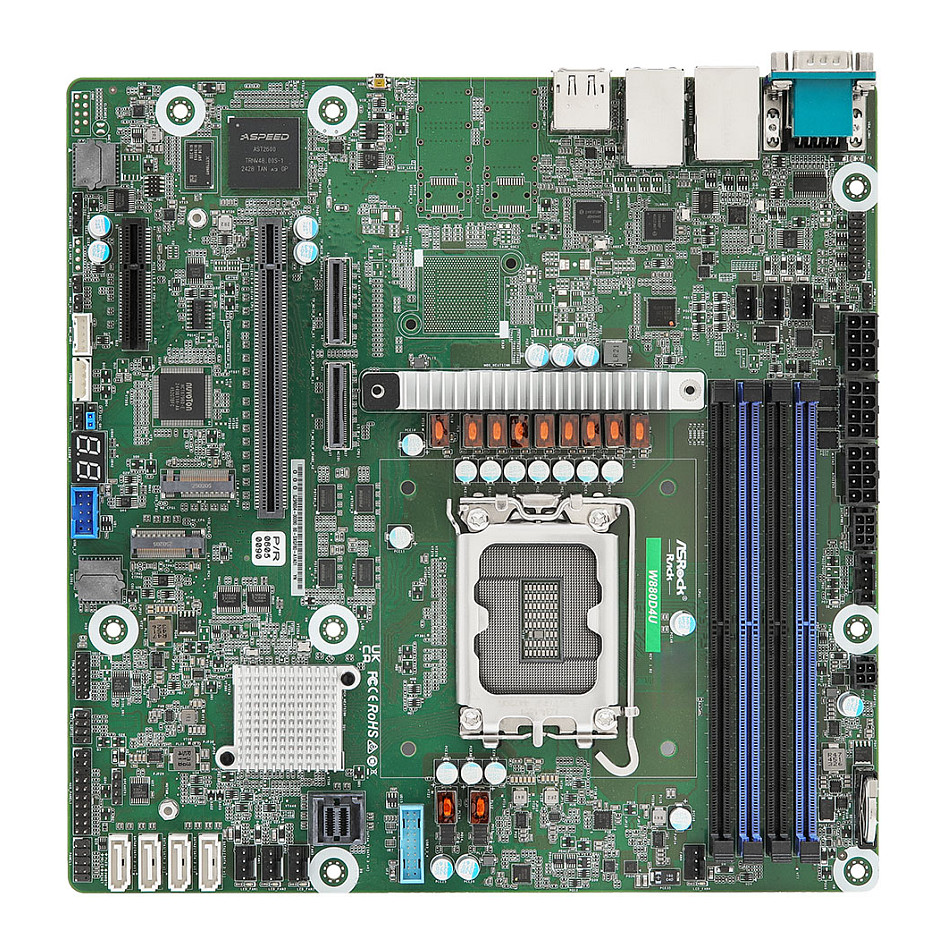

ASRock Mainboard W880D4U Micro-ATX Sockel LGA 1851 Single
Pre-Order
€513.99
VAT (19%) included
Ast2600
Description
Support ATX PSU or 12V DC-in Micro-ATX (9.6" x 9.6") Supports Intel® Core™ Ultra Desktop Processors (Series 2) 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM, CUDIMM Memory 1 PCIe5.0 x16*, 1 PCIe5.0 x4 1 MCIO (PCIe5.0 x8 or 2 PCIe5.0 x4)*, 1 MCIO (2 PCIe4.0 x4) Supports 2 M.2 (PCIe4.0 x4) 8 SATA 6Gb/s 2 RJ45 (1GbE) by Intel® i210 1 HDMI, 1 DisplayPort Remote management (IPMI)
Technical Specifications
Graphics Card
Ast2600
SKU
KW880D4U
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Slot Pin Count
288
Memory Voltage
1.1 V
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
4400, 4800, 5600 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Interfaces
SATA III
Raid Levels
0, 1, 5, 10
Graphics Card Family
ASPEED
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
8
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Serial Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Intel I210
Motherboard Chipset
Intel W880
Component For
Server
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Pci Express X16 (Gen 5.X) Slots
1
Bios Type
AMI
Acpi Version
6.4
System Management Bios (Smbios) Version
2.3
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Operating Relative Humidity (H-H)
20 - 90%
Width
243.8 mm
Depth
243.8 mm
