Gigabyte

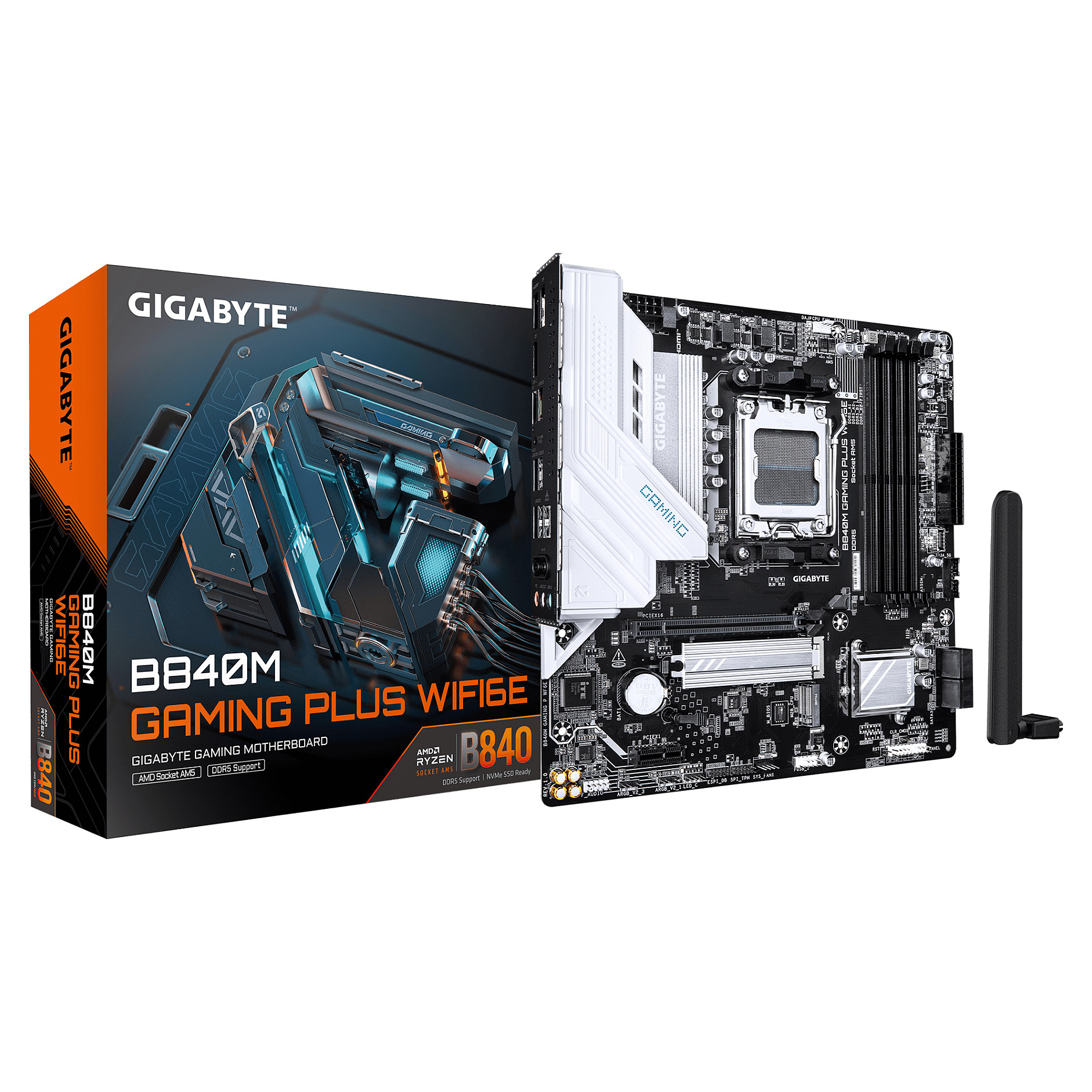

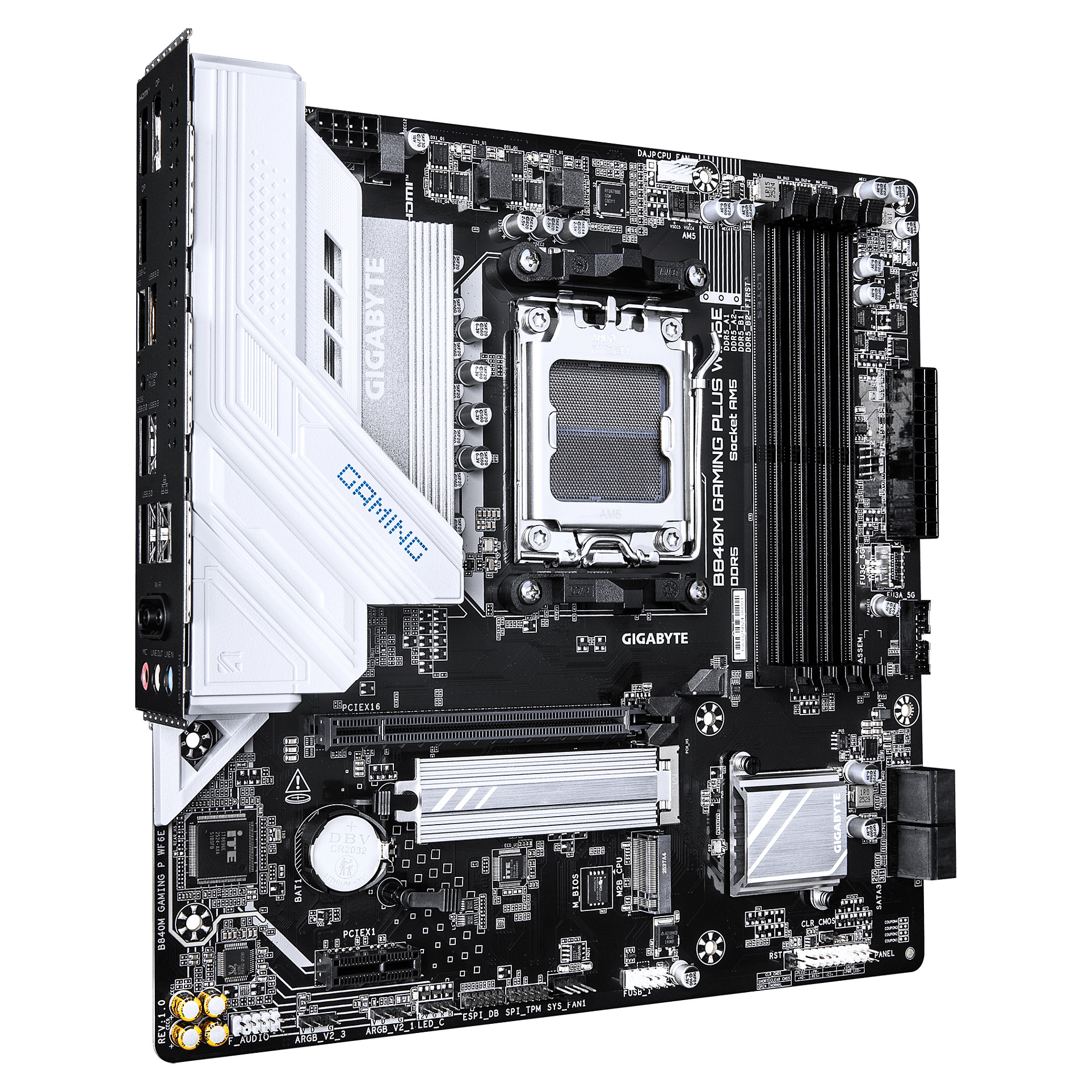

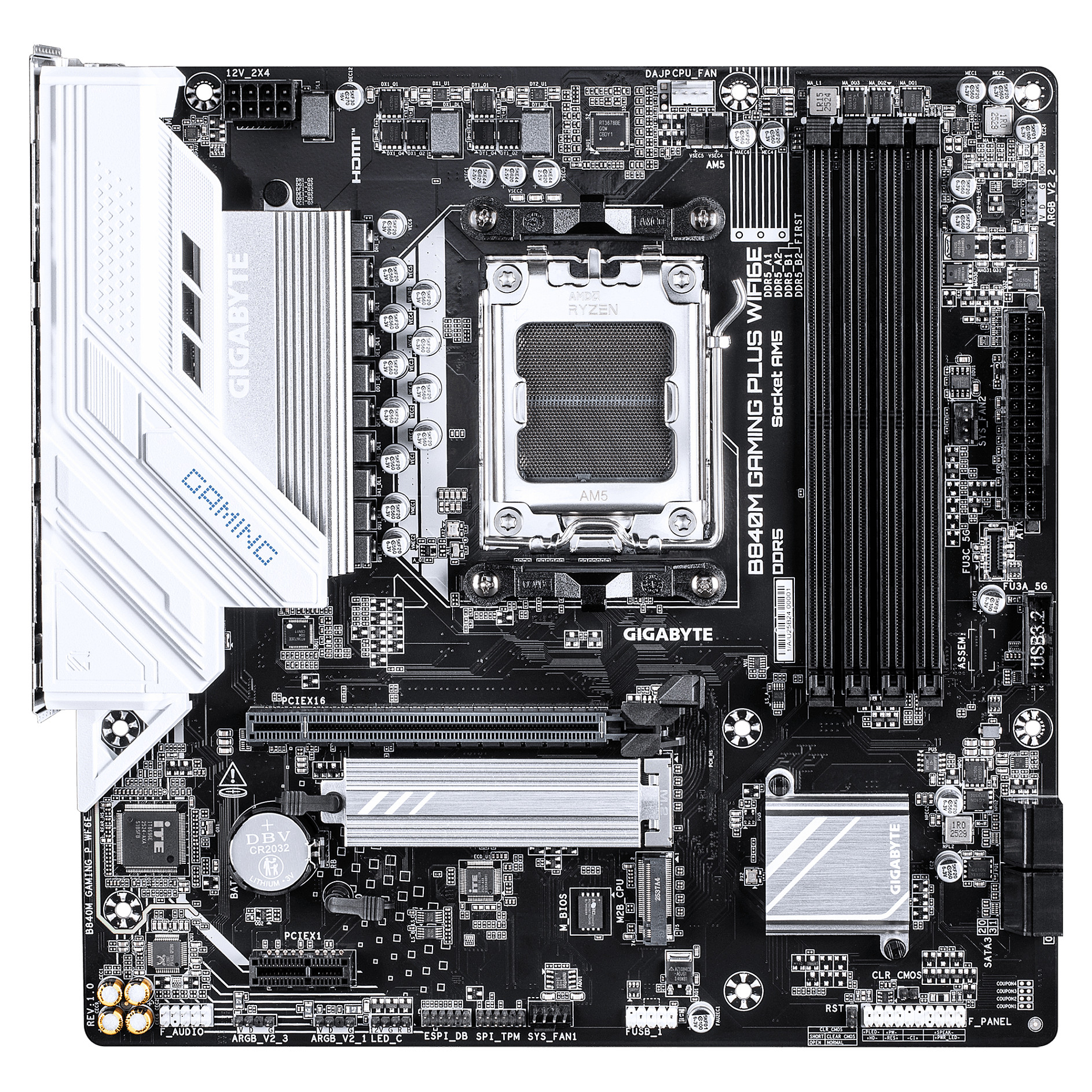

Gigabyte B840M Gaming P WF6E (AM5) (D)
Pre-Order
€146.99
VAT (19%) included
Description
X3D Turbo Mode: Unleash new era gaming performance Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 8200MT/s AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 8+2+2 phases VRM solution WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch: PCIe and M.2 slots with Quick Release Design Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking: GbE LAN & Wi-Fi 6E Extended Connectivity: HDMI, 2*Displayport
Technical Specifications
SKU
KB840M GAMING P WF6E
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
8200, 8000, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5800 MHz
Supported Memory Clock Speed (Max)
8200 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10, 5
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Hdcp Version
2.3
Directx Version
12.0
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Number Of Rgb Led Pin Headers
4

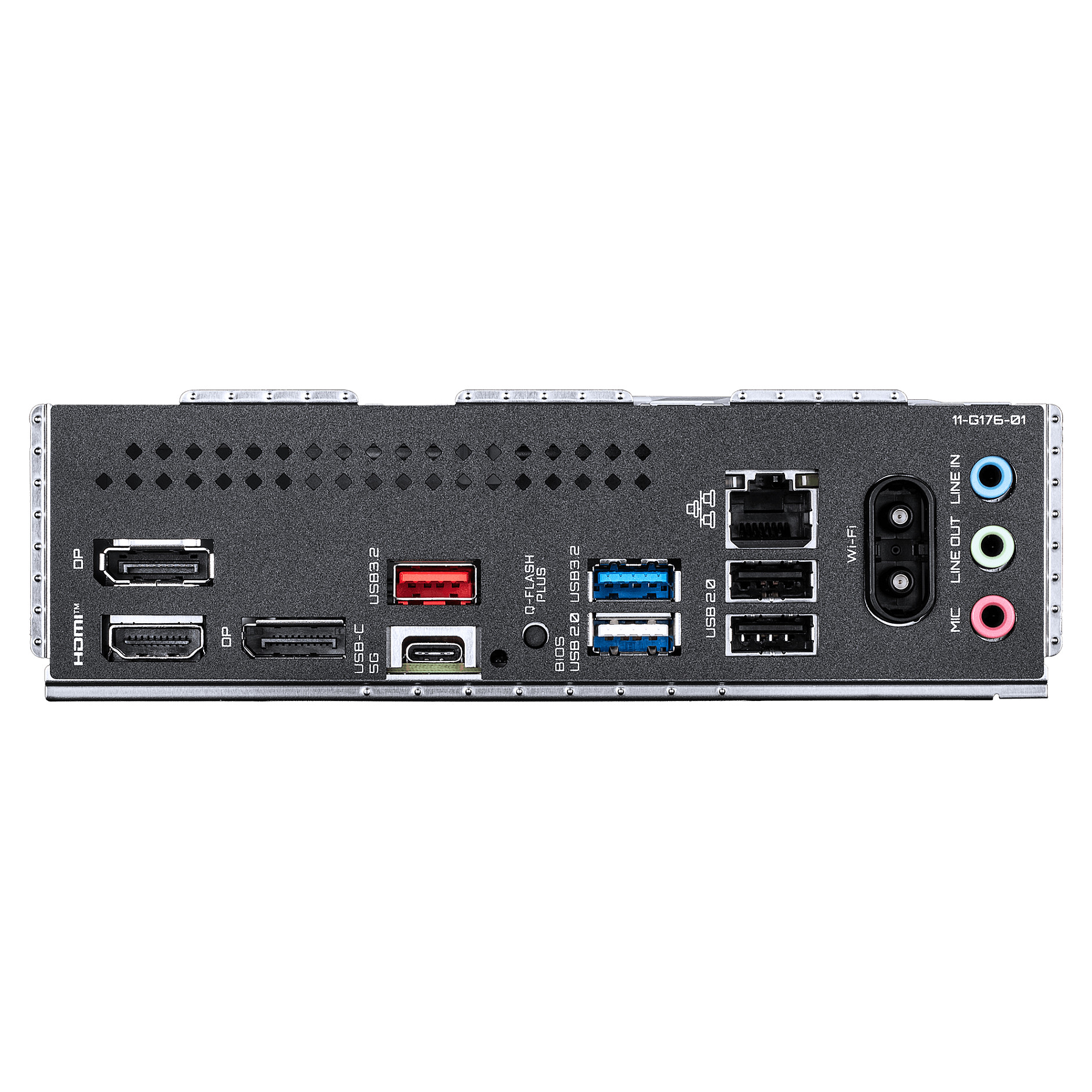

Usb 2.0 Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
2
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
Wi-Fi 6E (802.11ax)
Wlan Controller Model
MediaTek MT7902
Bluetooth Version
5.3
Motherboard Chipset
AMD B840
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2580
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Capacity
220 mAh
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
270 mm
Package Depth
268 mm
Package Height
68 mm
Package Weight
1.24 kg
Width
244 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version)
Weight
1.15 kg
Warranty Period
3 year(s)
