Gigabyte

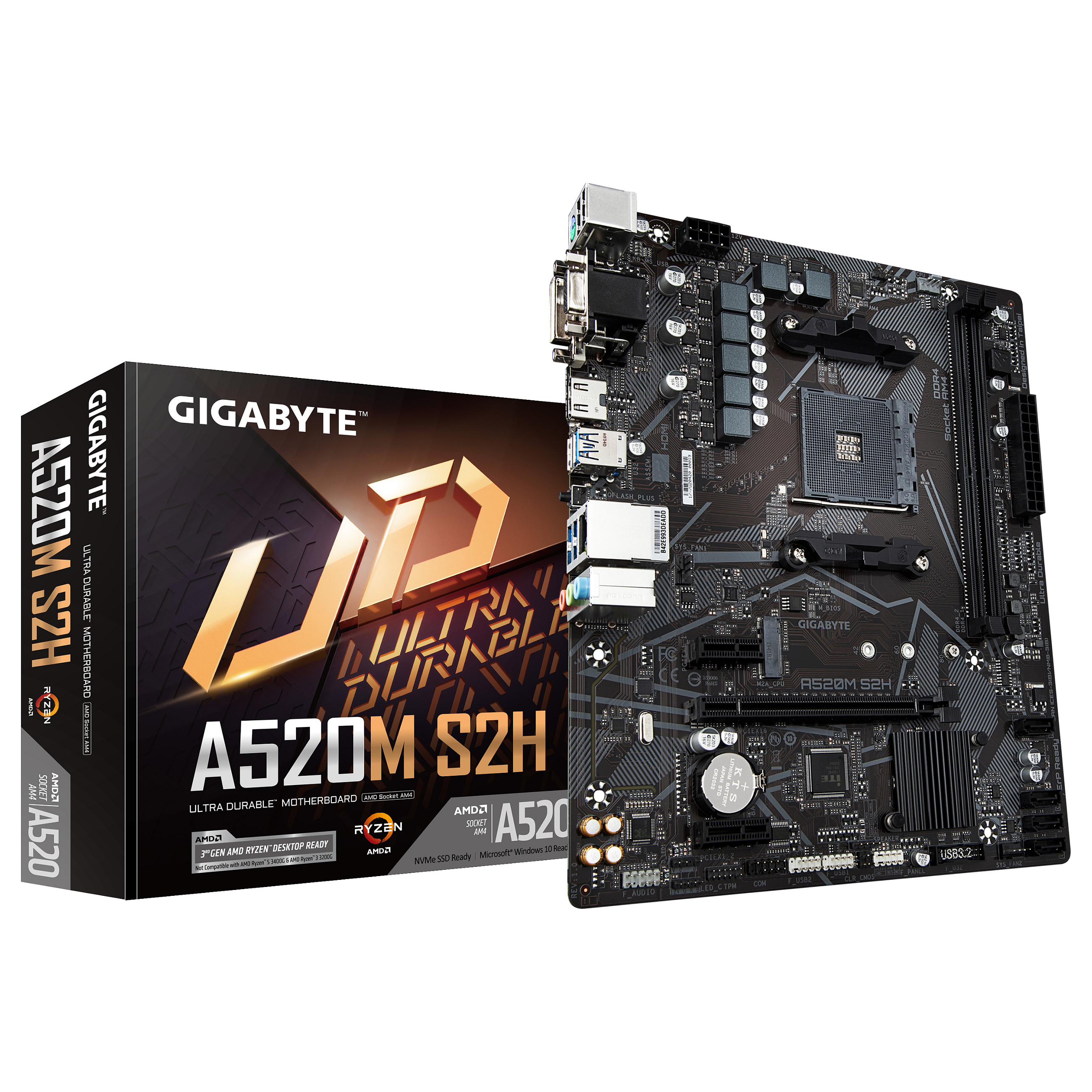

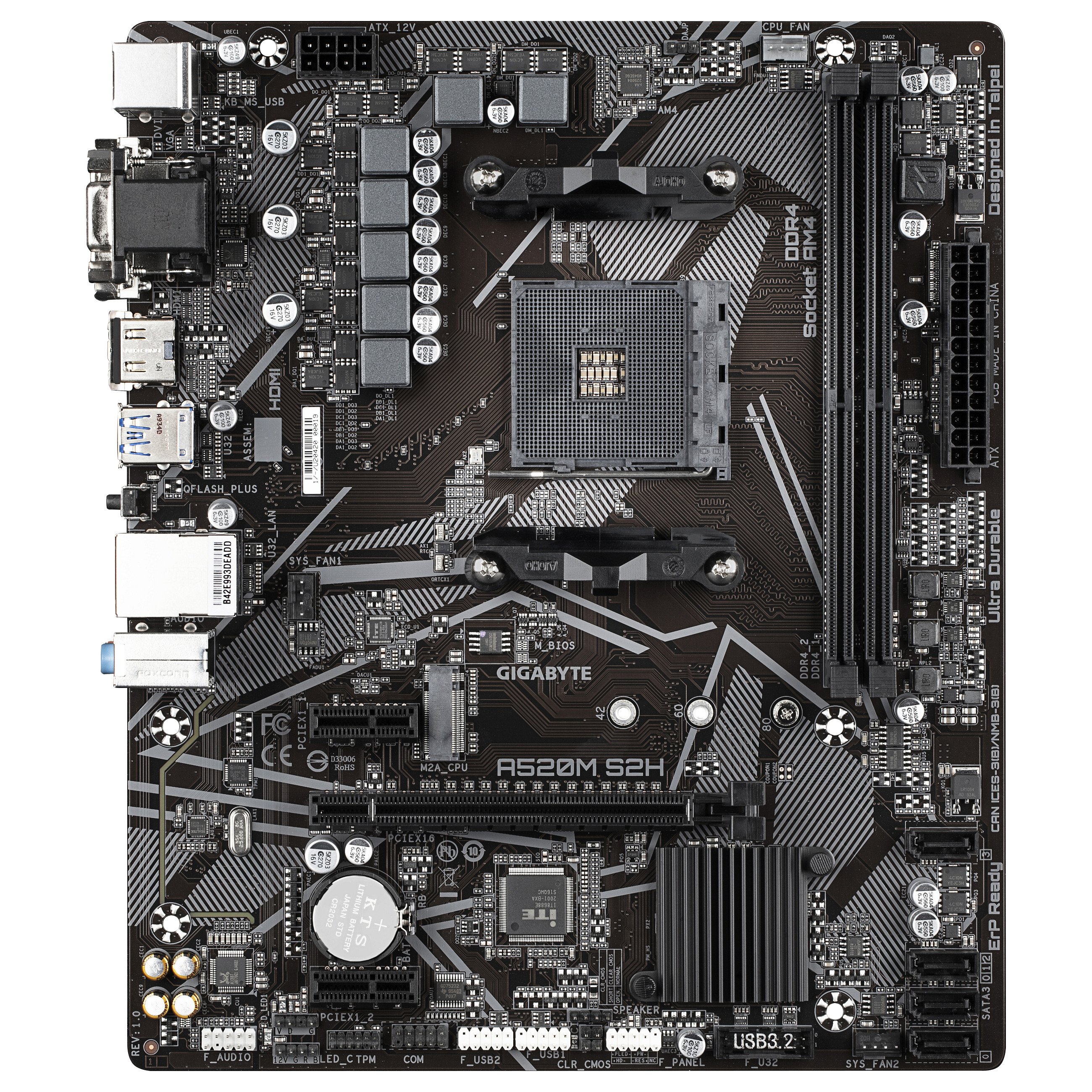

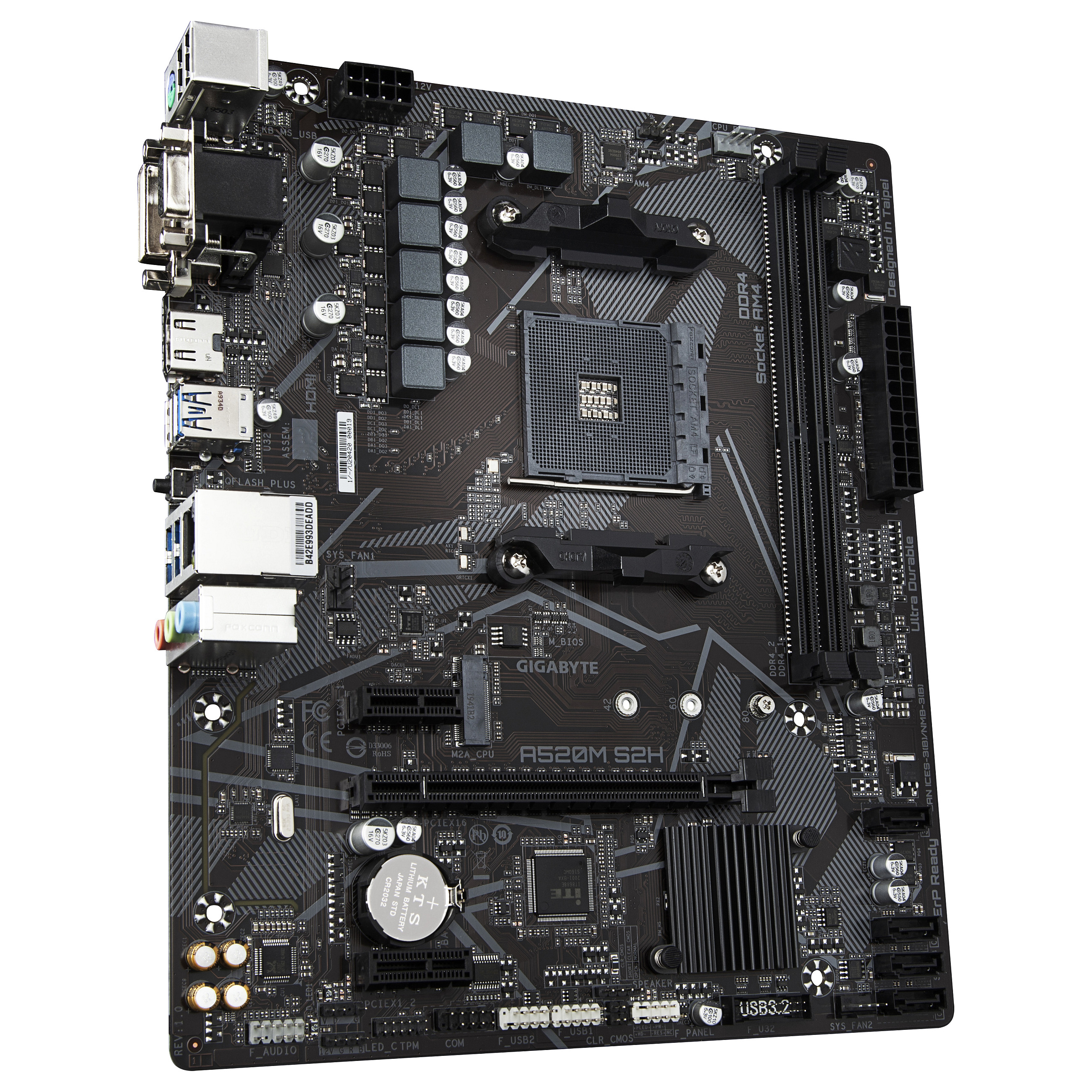

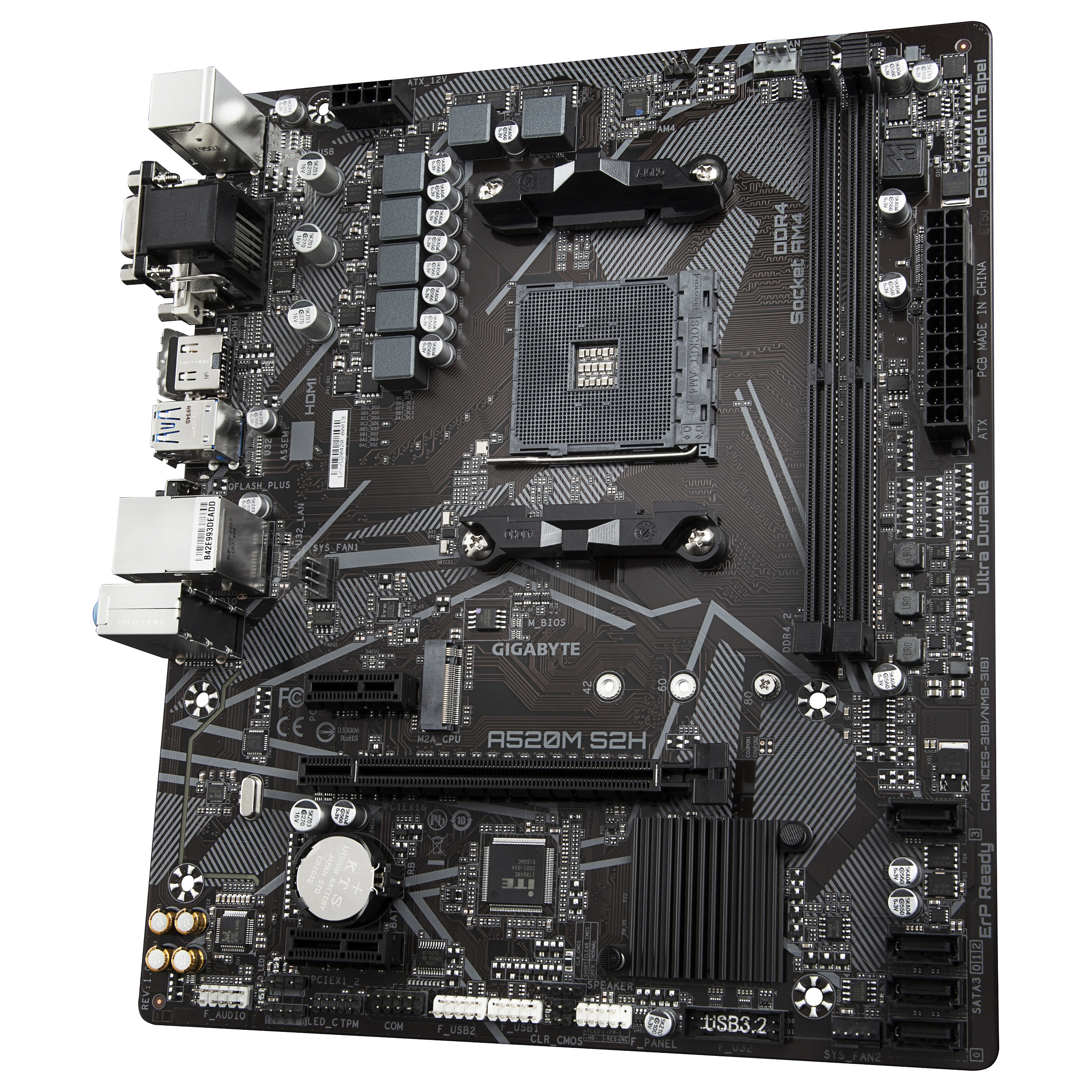

AM4 Gigabyte A520M S2H mATX
Pre-Order
€67.99
VAT (19%) included
Description
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, D-sub Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design
Technical Specifications
SKU
KA520M S2H
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM4
Maximum Internal Memory Supported By Processor
64 GB
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4866, 5000 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Interfaces
M.2, PCI Express 3.0, SATA
Raid Levels
0, 1, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Dvi-D Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Motherboard Chipset
AMD A520
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Harmonized System (Hs) Code
84733020
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
235 mm
Package Height
52 mm
Package Weight
740 g
Width
244 mm
Depth
205 mm
Height
35 mm
Warranty Period
3 year(s)
