ASUS

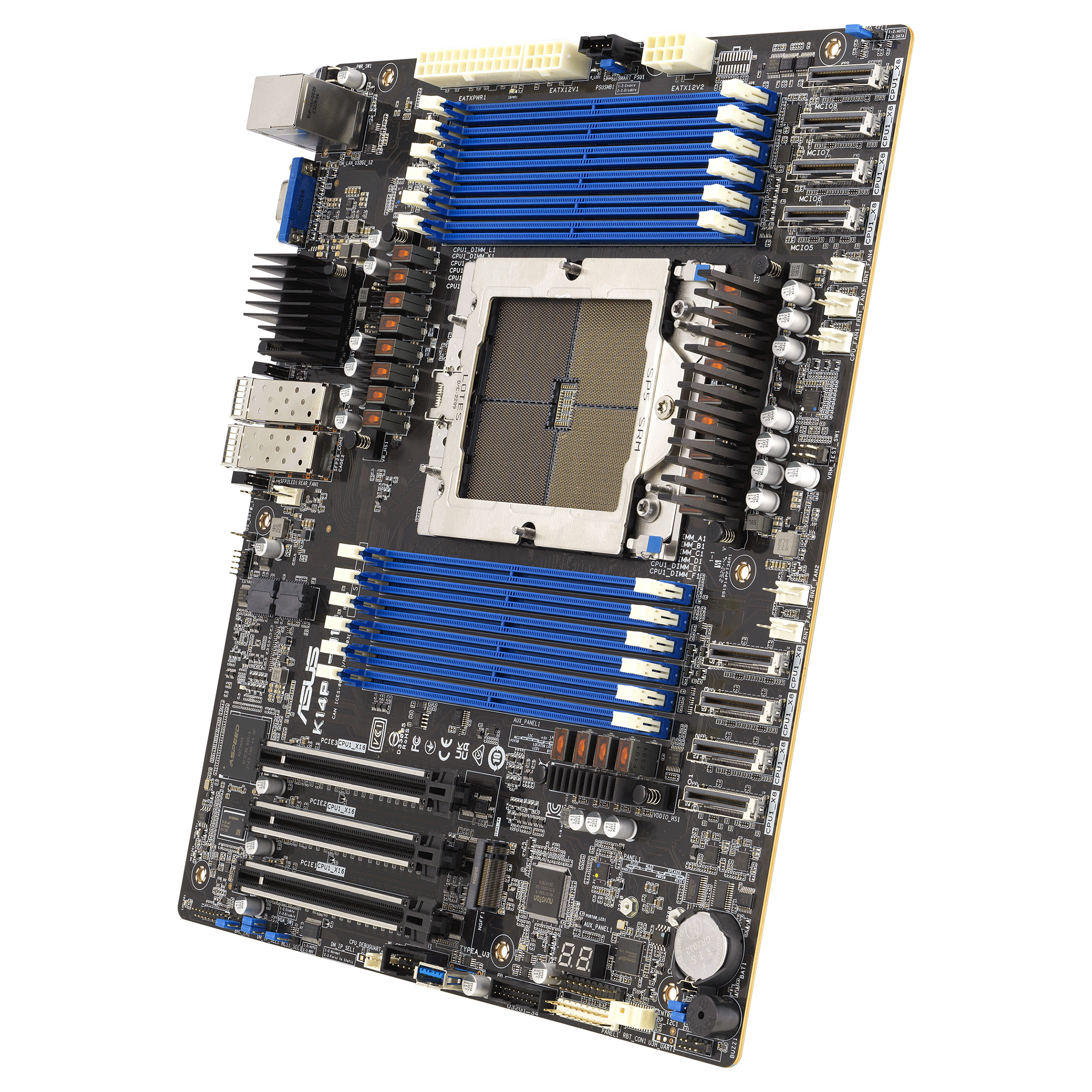

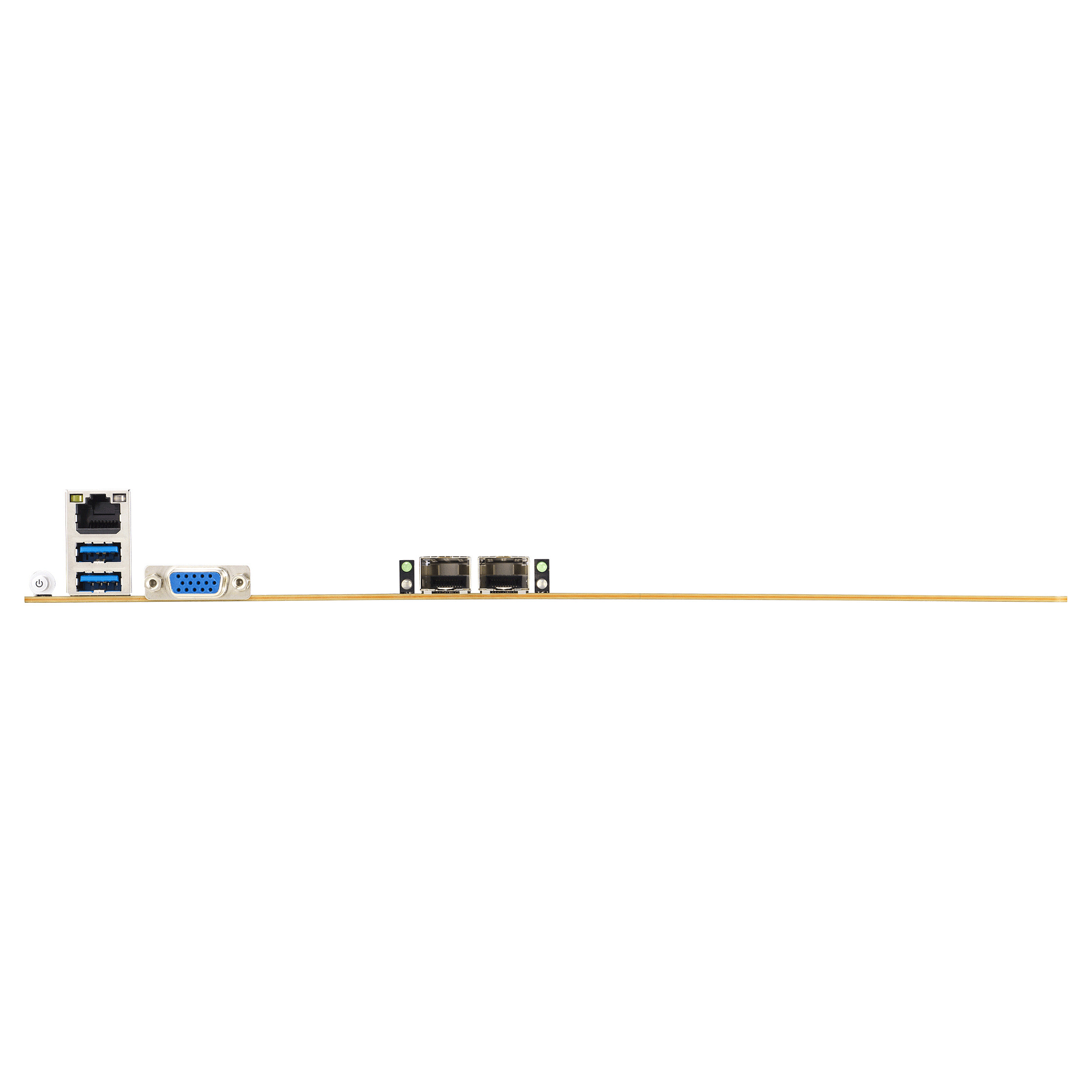

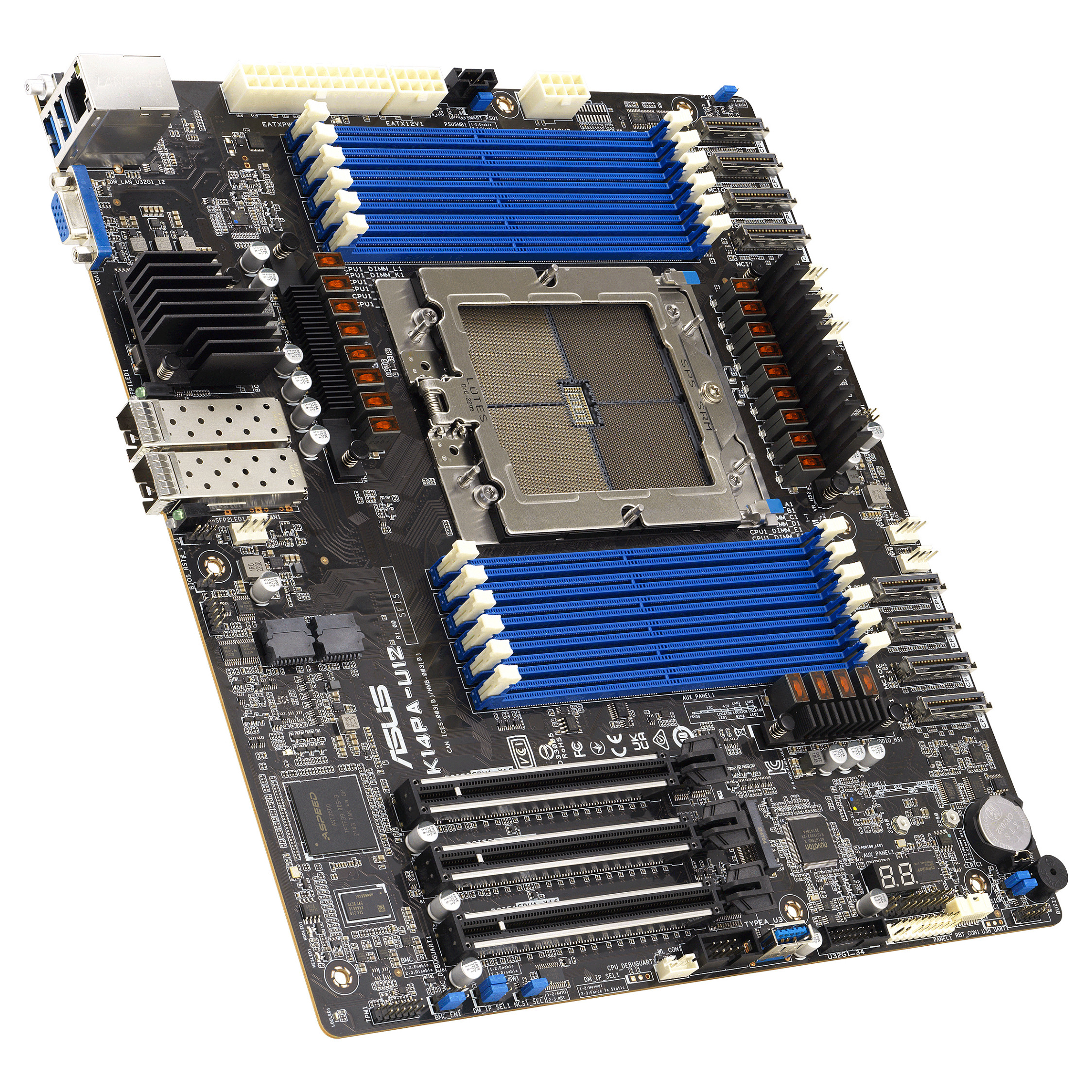

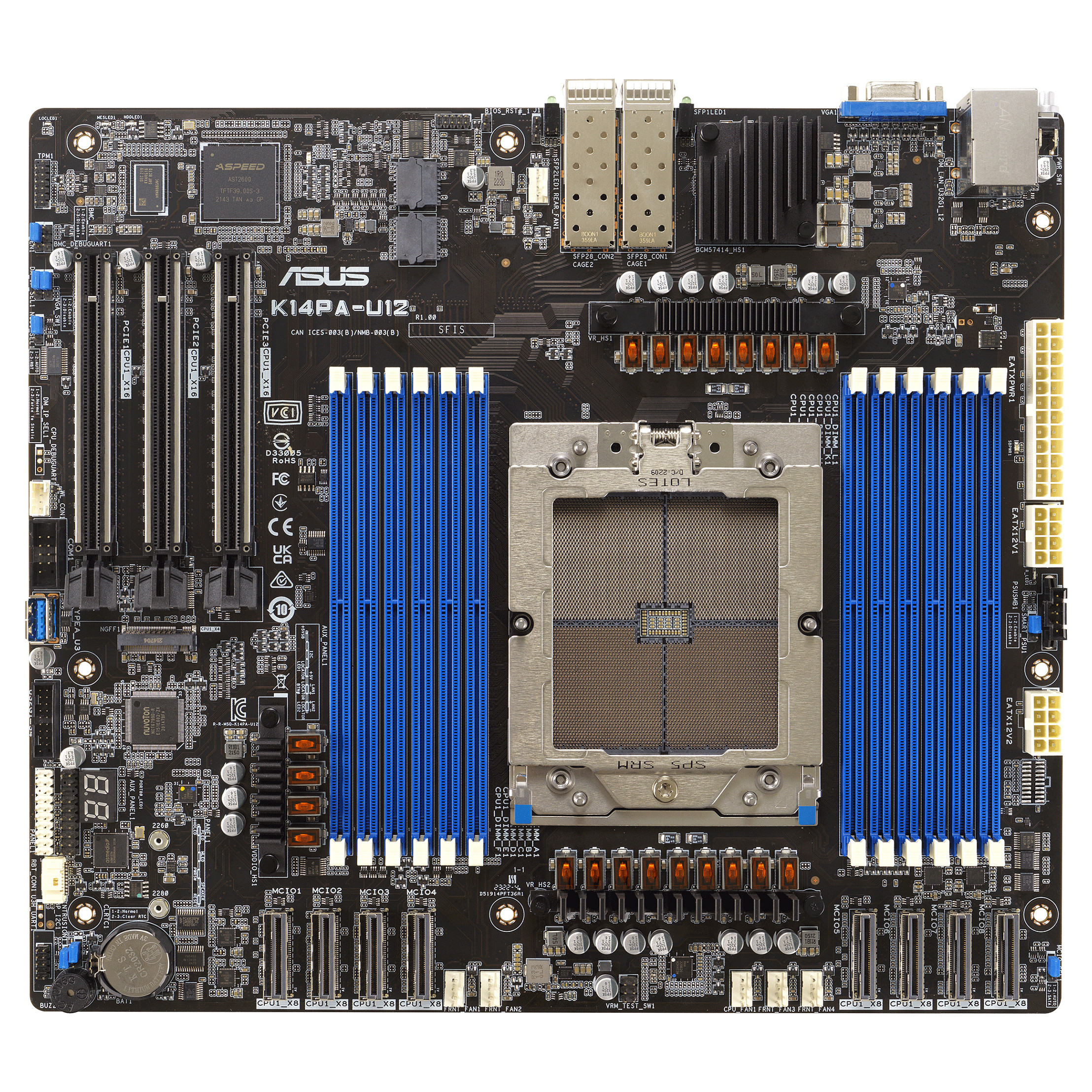

ASUS K14PA-U12/ASMB11 CEB 1x LGA 6096 DDR5 2x25G
Pre-Order
€742.99
VAT (19%) included
Ast2600
Description
Ready for 128 core AMD EPYC 9004-series processors with support for up to 400 W TDP Dual SFP28 25 Gbps Ethernet with teaming support Up two dual-slot GPUs supported 12 x DDR5 4800 RDIMM for up to 3TB RAM Integrated 2280 M.2 provides PCIe 5.0 x4 bandwidth for faster OS booting, and support for SATA mode Flexible expandability with eight MCIO, supporting up to 16 NVMe drives onboard, plus SATA support Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
Technical Specifications
Graphics Card
Ast2600
SKU
K90SB0CI0-M0UAY0
Processor Manufacturer
AMD
Processor Socket
Socket SP5
Compatible Processor Series
AMD EPYC 9004
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
12
Supported Memory Clock Speeds
4800 MHz
Maximum Internal Memory
3 TB
Supported Memory Module Capacities
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Supported Storage Drive Interfaces
M.2
Graphics Card Family
ASPEED
On-Board Graphics Card Model
Aspeed AST2600
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Serial Port Headers
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Ethernet Interface Type
25 Gigabit Ethernet
Top Wi-Fi Standard
Not available
Component For
Server
Motherboard Form Factor
SSI CEB
Motherboard Chipset Family
AMD
Pci Express X16 (Gen 5.X) Slots
3
Number Of M.2 (M) Slots
1
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Storage Relative Humidity (H-H)
20 - 90%
Package Width
425 mm
Package Depth
395 mm
Package Height
81 mm
Package Weight
2.2 kg
Width
409 mm
Depth
376 mm
Height
63 mm
Weight
1.4 kg
