ASUS

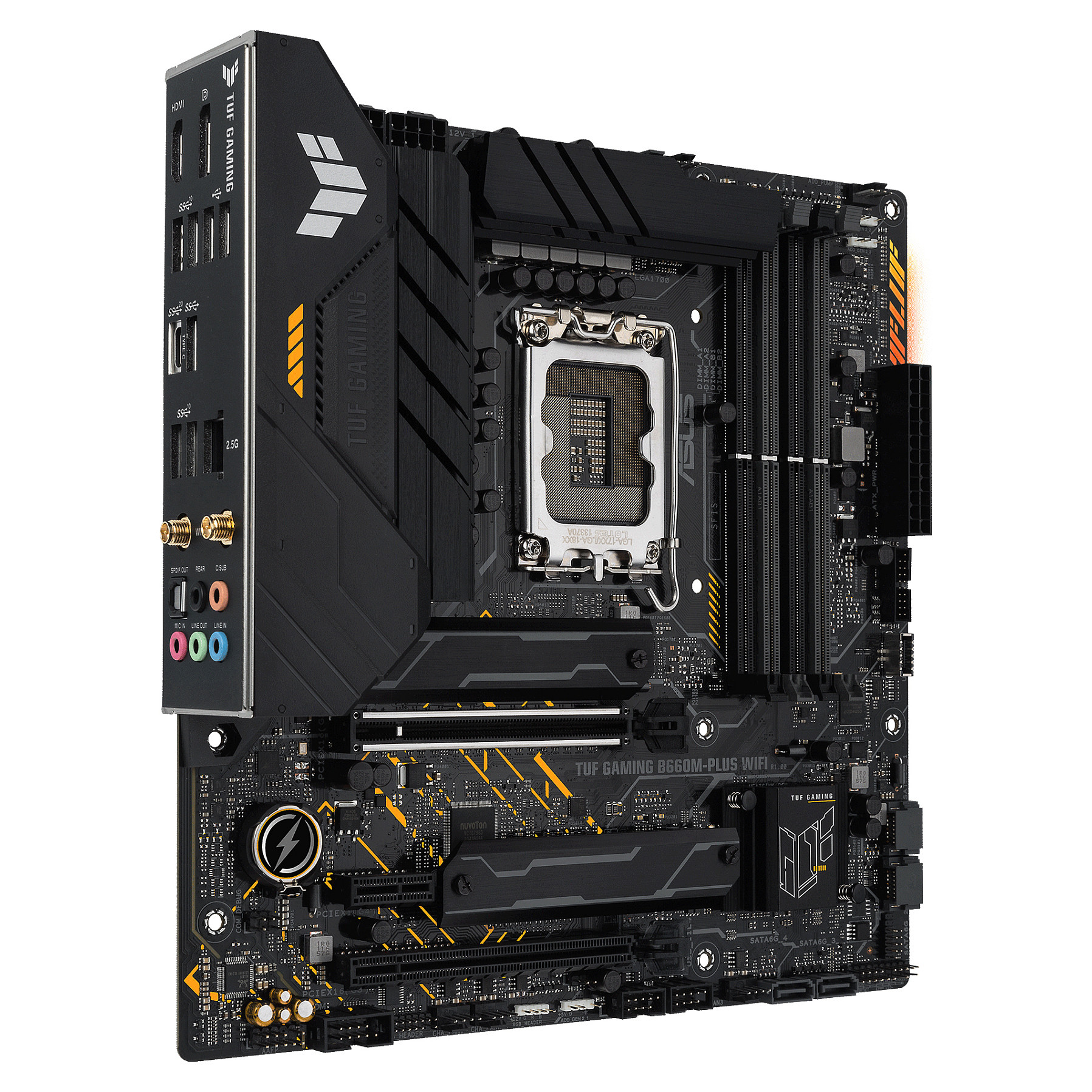

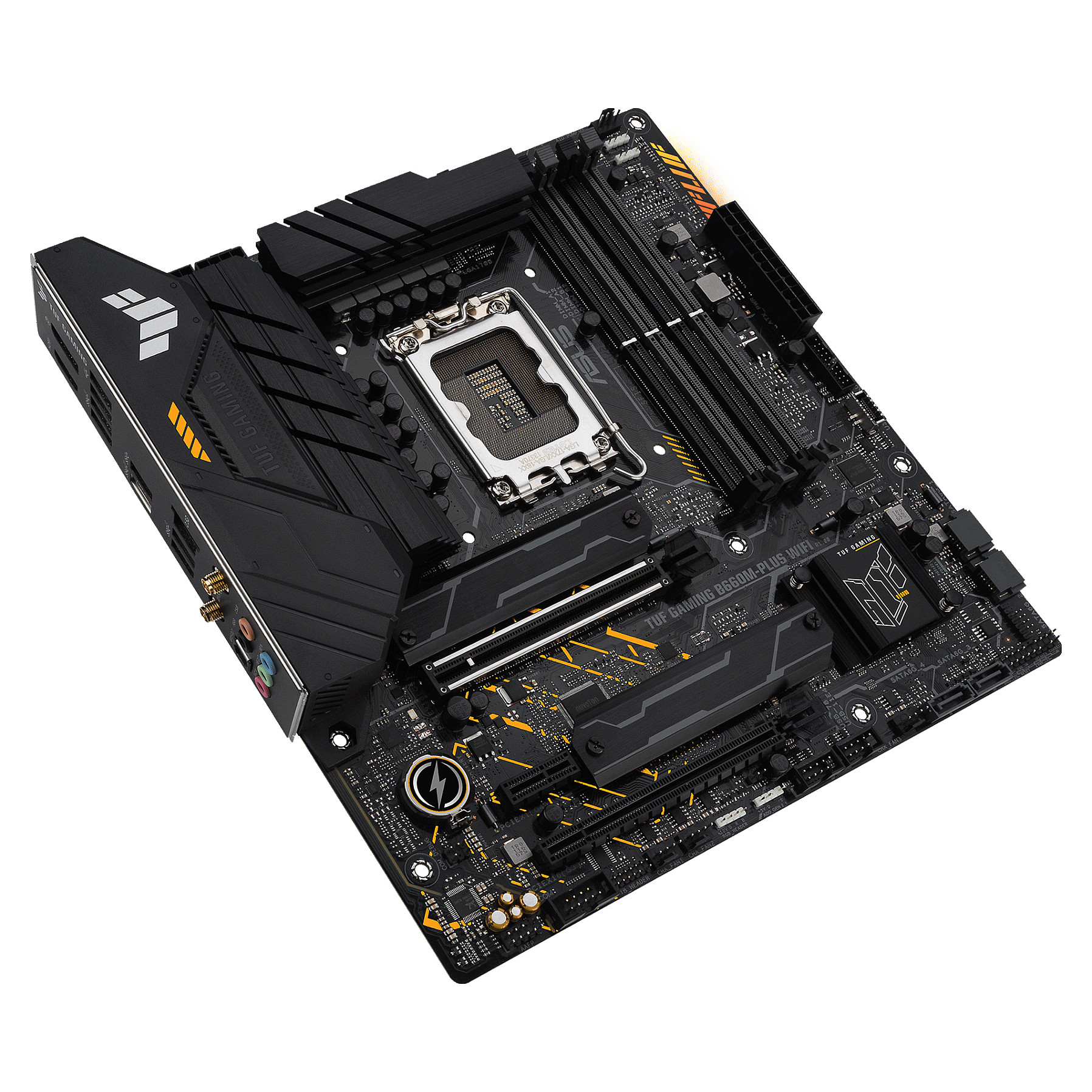

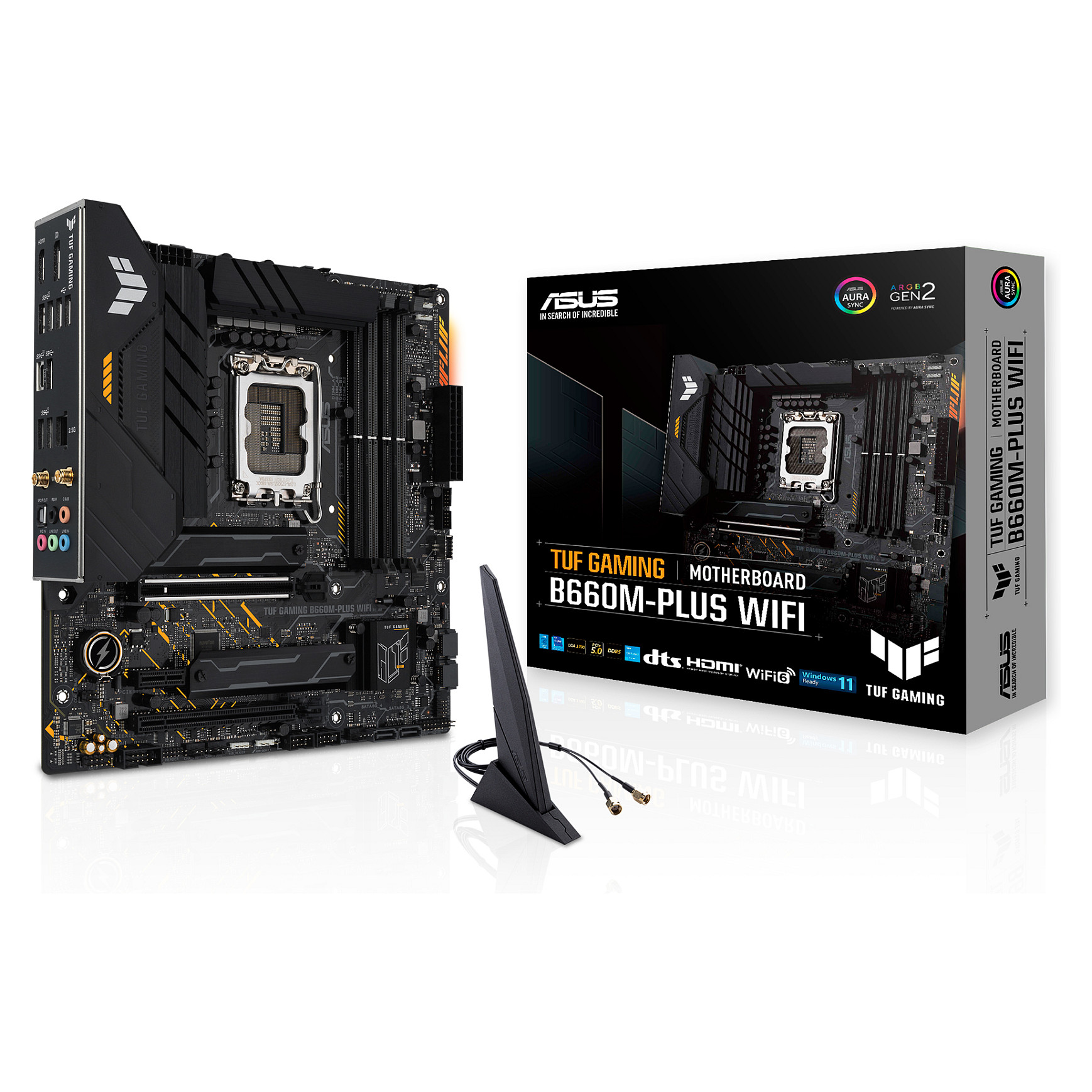

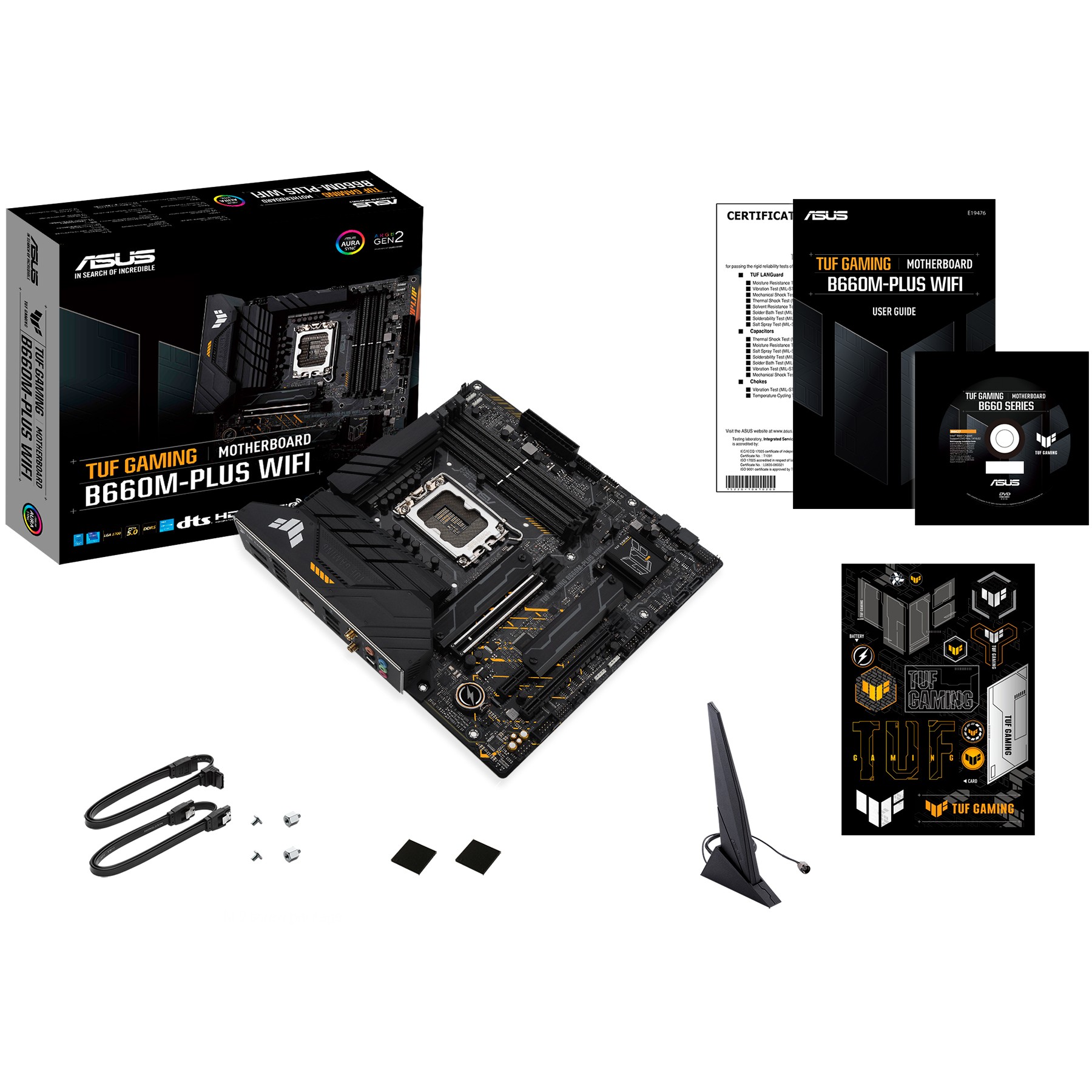

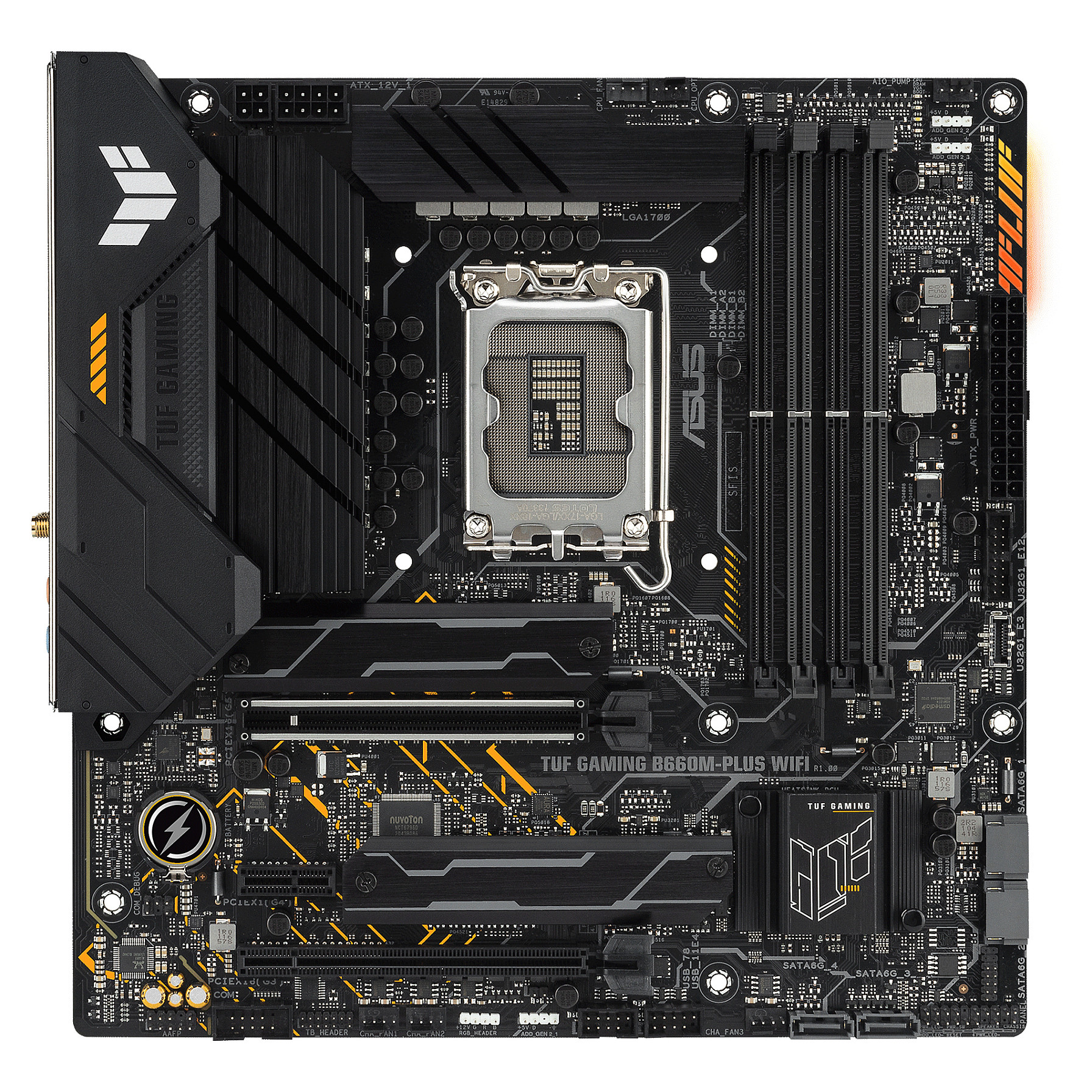

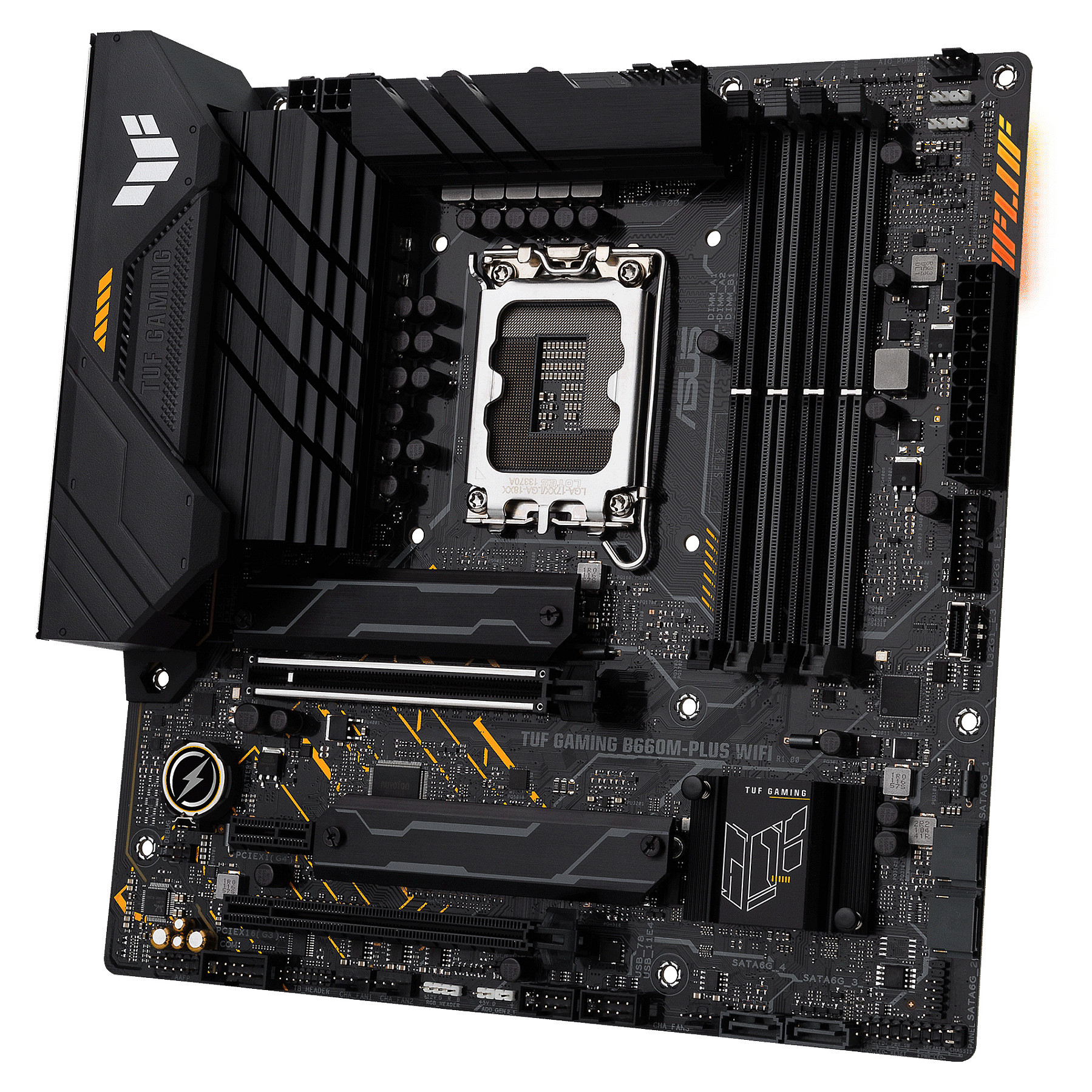

1700 ASUS TUF GAMING B660M-PLUS WIFI
Pre-Order
€208.99
VAT (19%) included
Description
Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Latest connectivity: PCIe 5.0 slot, DDR5 memory, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Technical Specifications
SKU
K90MB1AZ0-M1EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
3
Number Of Com Connectors
1
Thunderbolt Headers
1

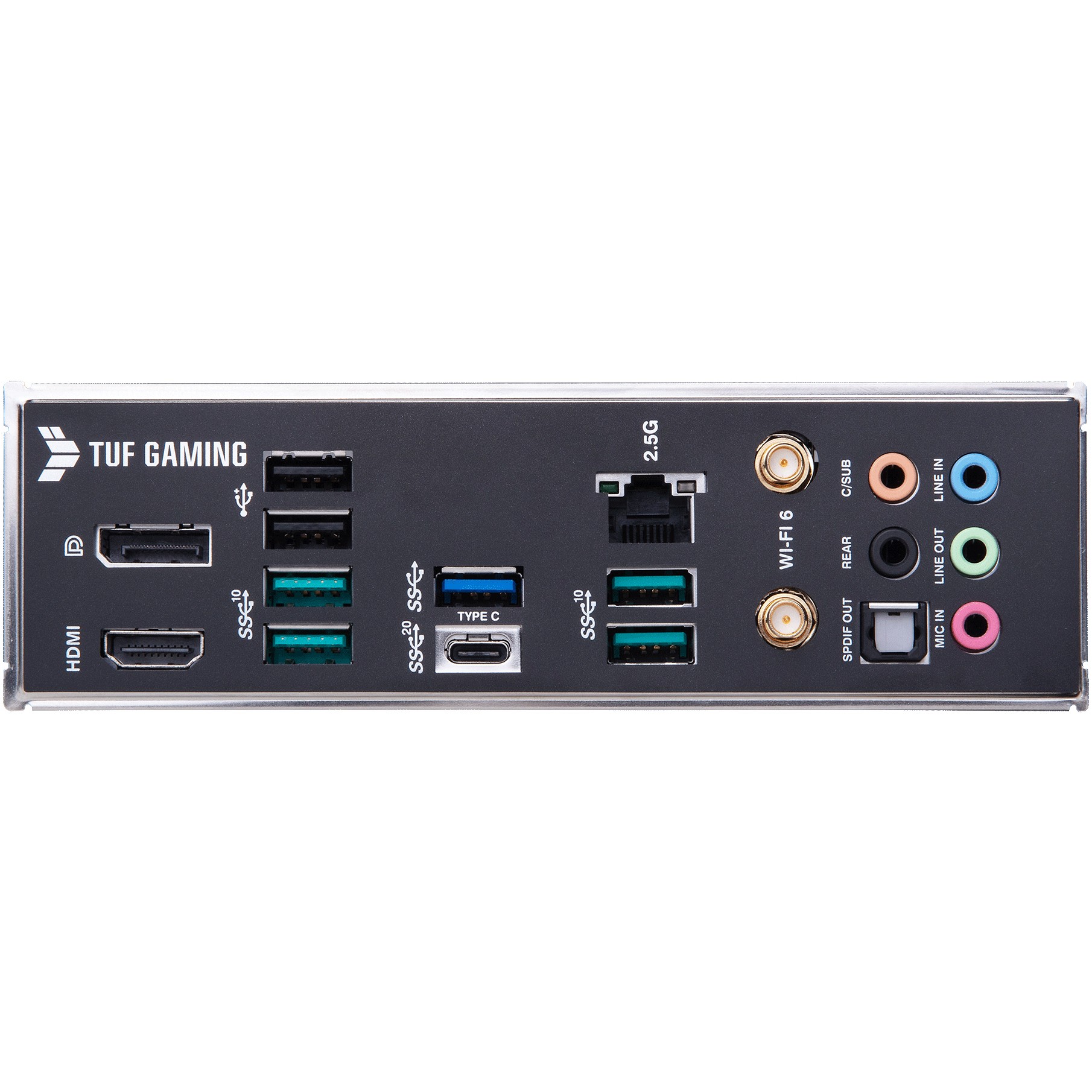

Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
5
Digital Audio Optical Out
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6 (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
Intel B660
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Harmonized System (Hs) Code
84733020
Width
244 mm
Depth
244 mm
Height
68 mm
Cables Included
SATA
Weight
1.35 kg
