Gigabyte

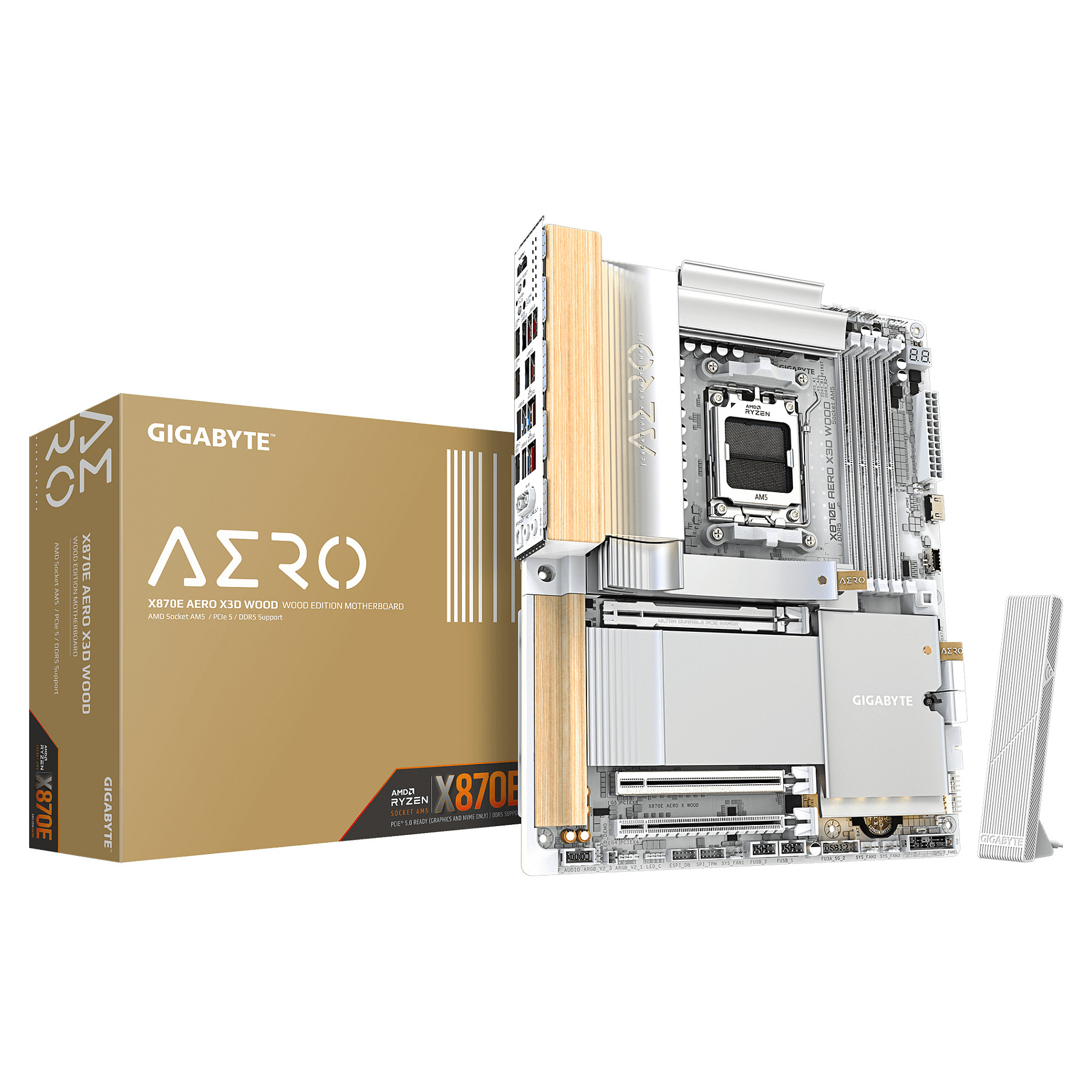

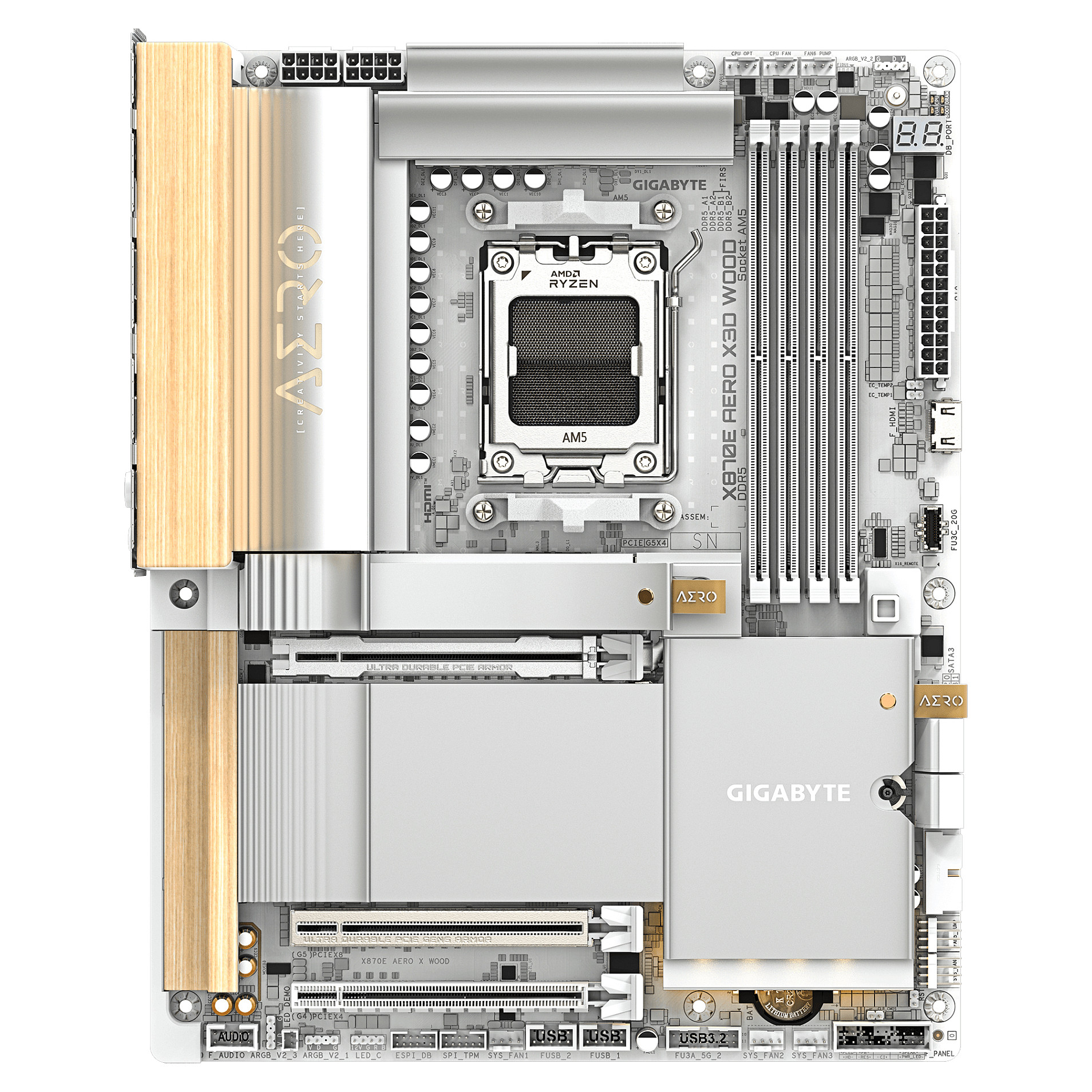

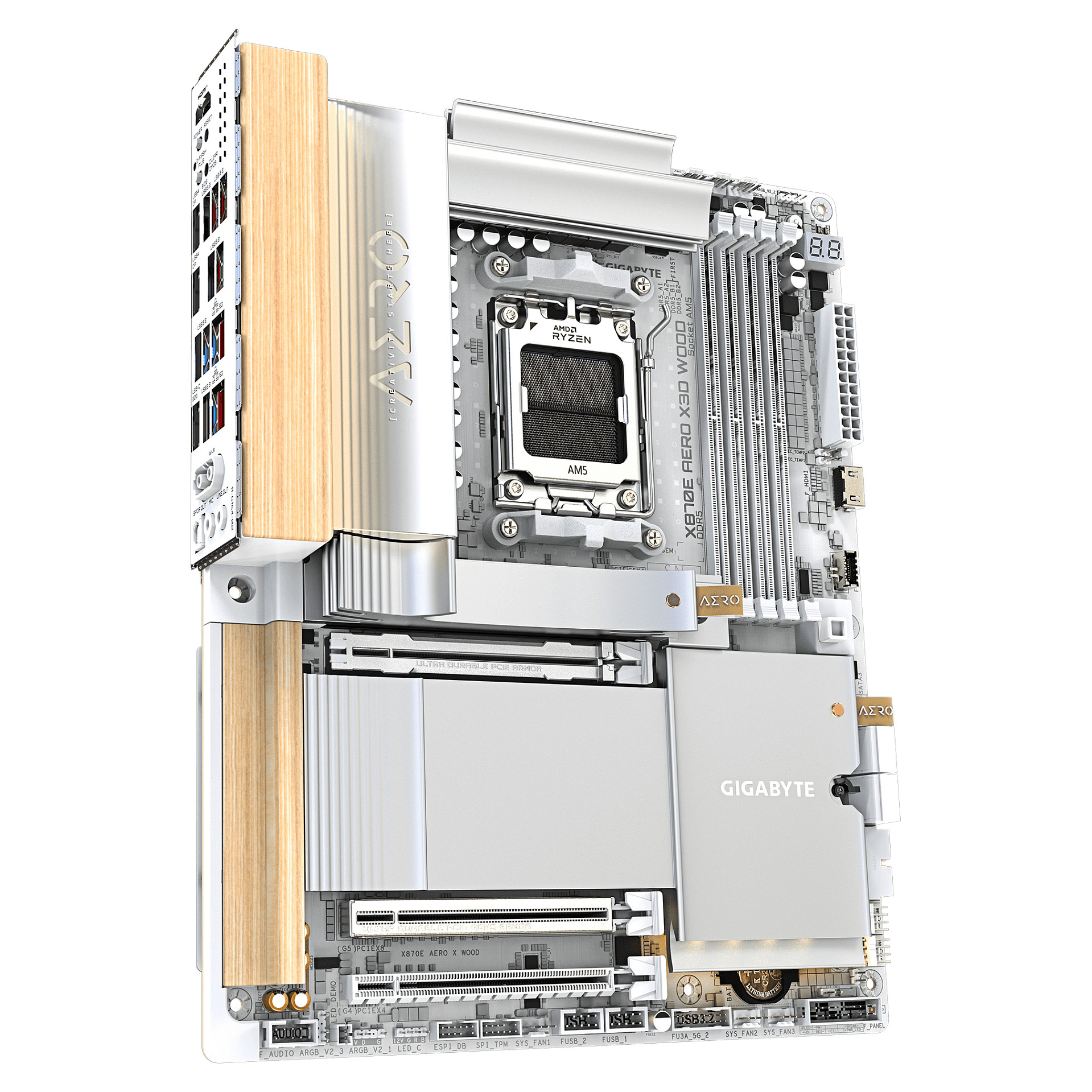

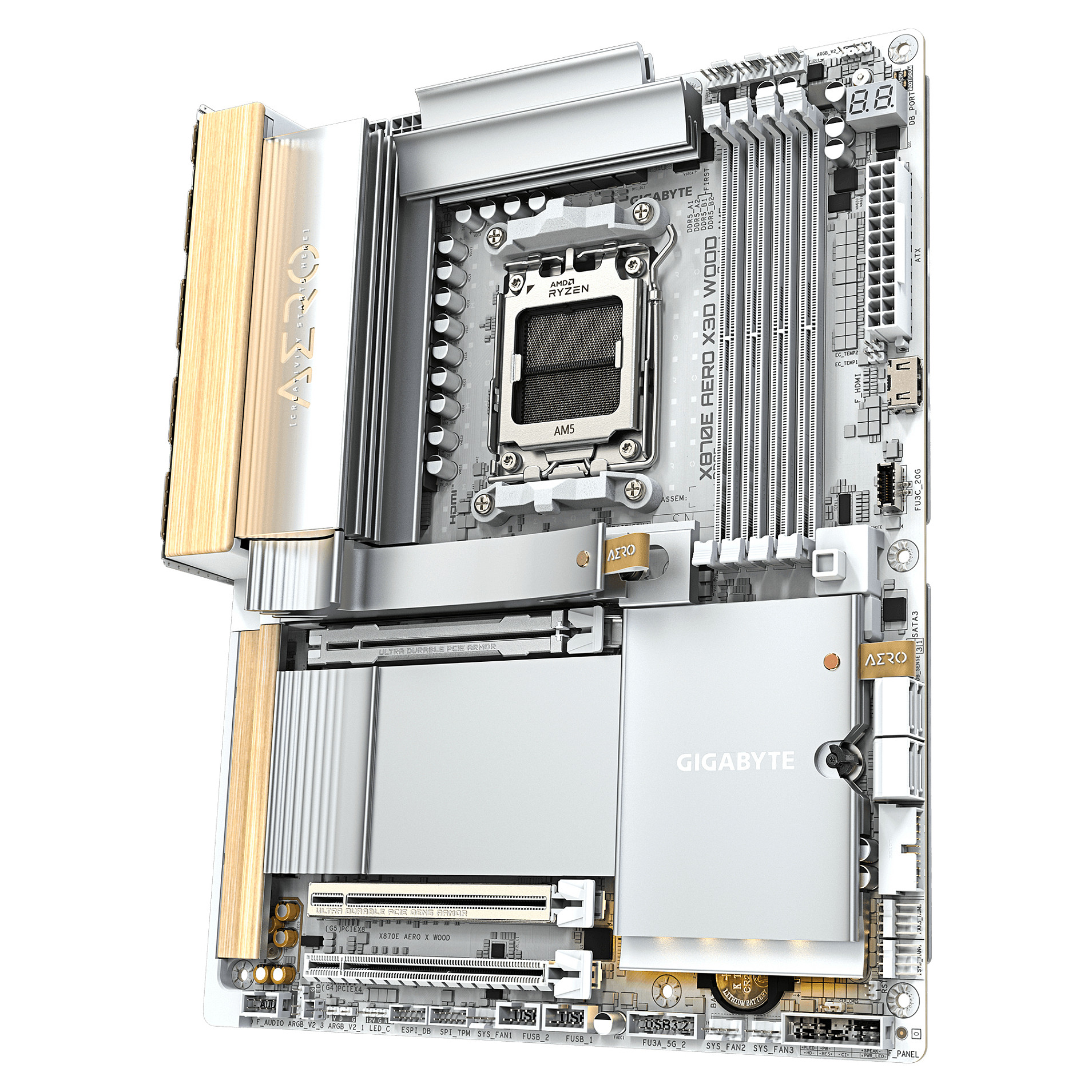

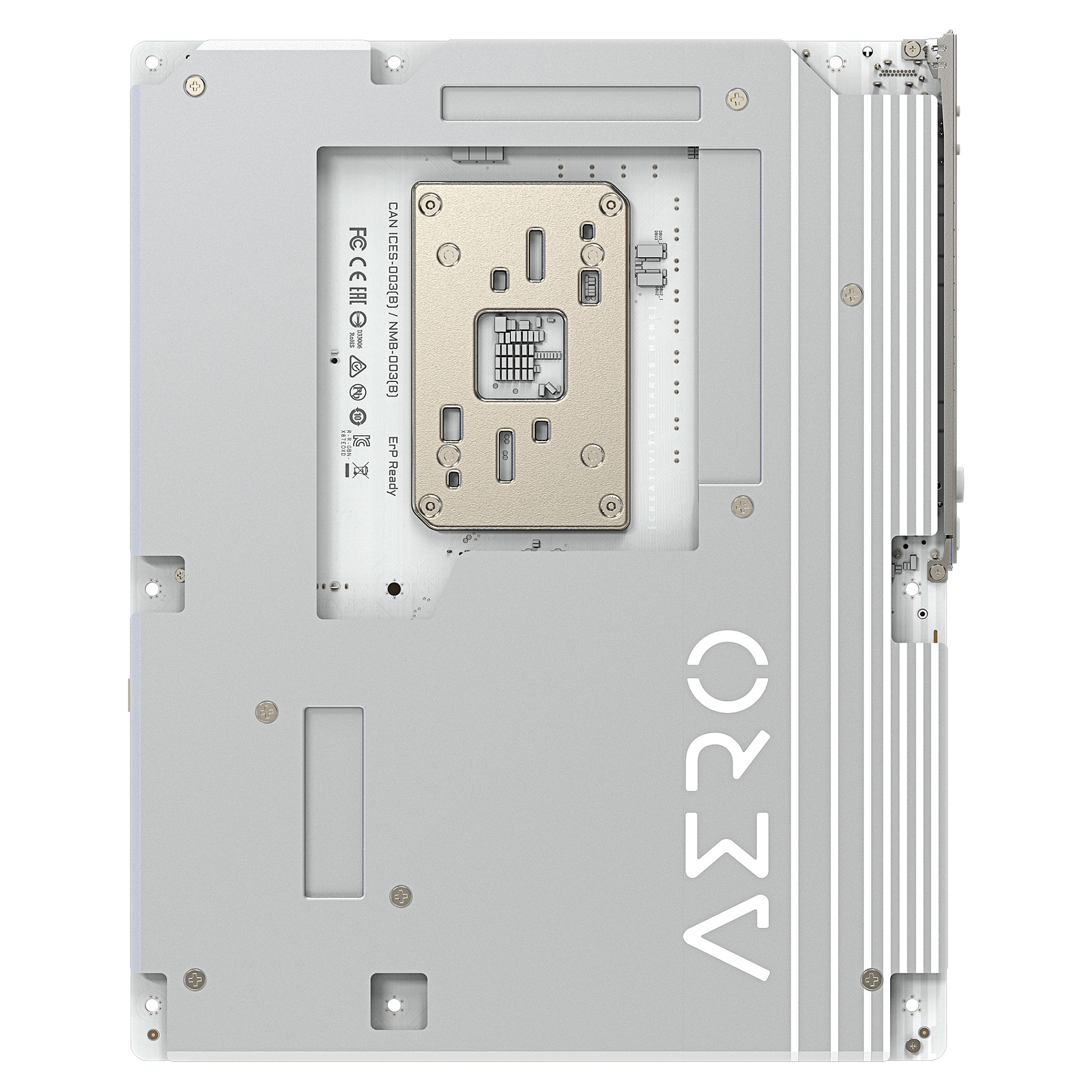

Gigabyte X870E AERO X3D WOOD (AM5) (D)
Pre-Order
€452.99
VAT (19%) included
Description
Raw textures reveal timeless elegance X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4 Fast Networking: Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
Technical Specifications
SKU
KX870E AERO X WOOD
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
9000, 8800, 8600, 8400, 8000, 7800, 7600, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Supported Memory Clock Speed (Max)
9000 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 5.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Hdcp Version
2.3
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
6
Number Of Eps Power Connectors (8-Pin)
2
Number Of Water Pump Connectors
2
Number Of Temperature Sensor Headers
2
Number Of Noise Detection Headers
1
Number Of Rgb Led Pin Headers
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
5
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Usb4 Gen 2X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayport Version
1.4
Headphone Outputs
1
Digital Audio Optical Out
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Lan Controller
Realtek RTL8126
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wlan Controller Model
MediaTek MT7927
Bluetooth Version
5.4
Motherboard Chipset
AMD X870E
Audio Chip
Realtek ALC1220-VB
Audio Output Channels
7.1 channels
Product Colour
White
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
2
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
2580
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
5.0
3Rd M.2 Largest Key Size
22110
3Rd M.2 Highest Pci Express Generation
4.0
4Th M.2 Largest Key Size
22110
4Th M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Capacity
220 mAh
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
341 mm
Package Depth
306 mm
Package Height
89 mm
Package Weight
3.67 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version)
Weight
3.17 kg
Warranty Period
3 year(s)
