ASUS

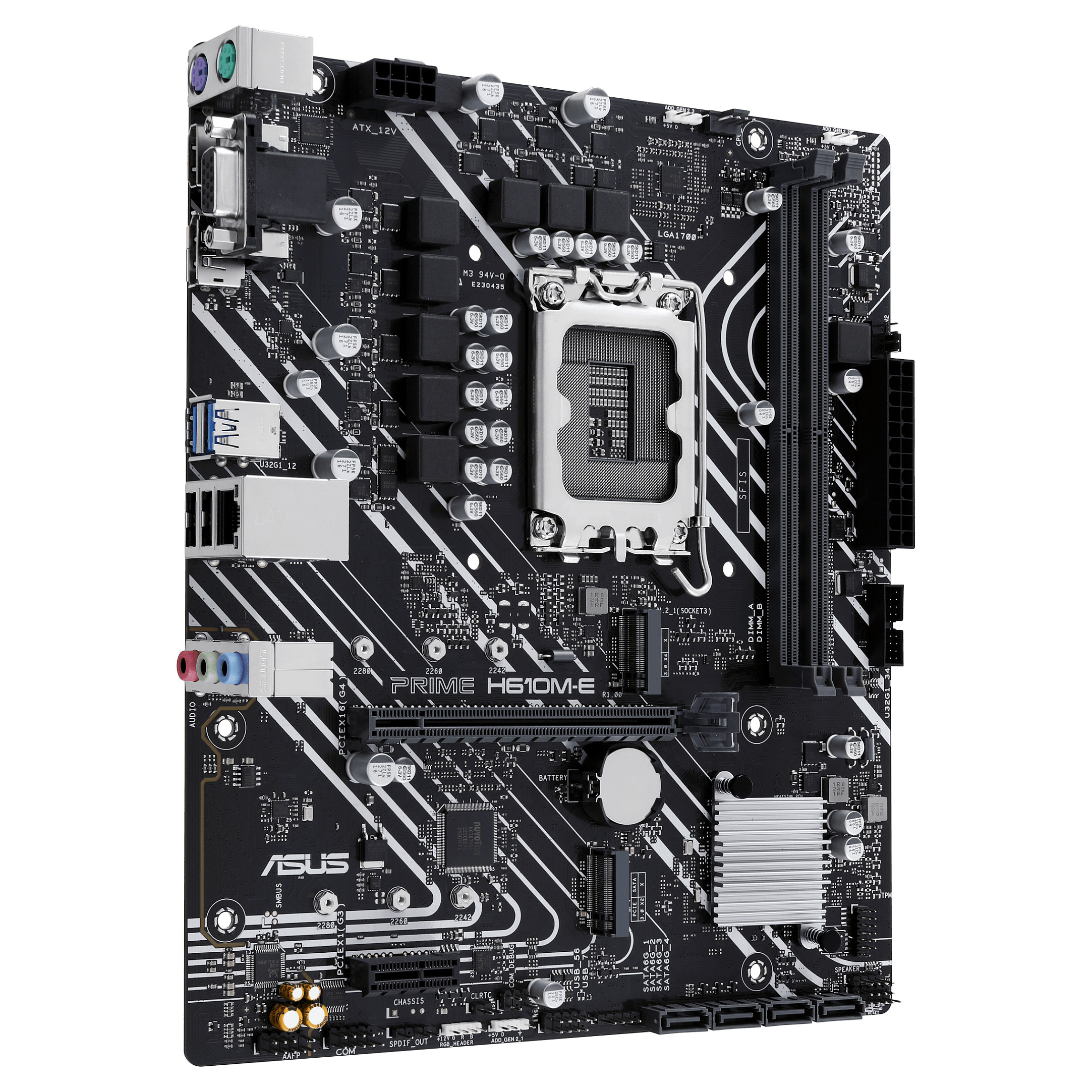

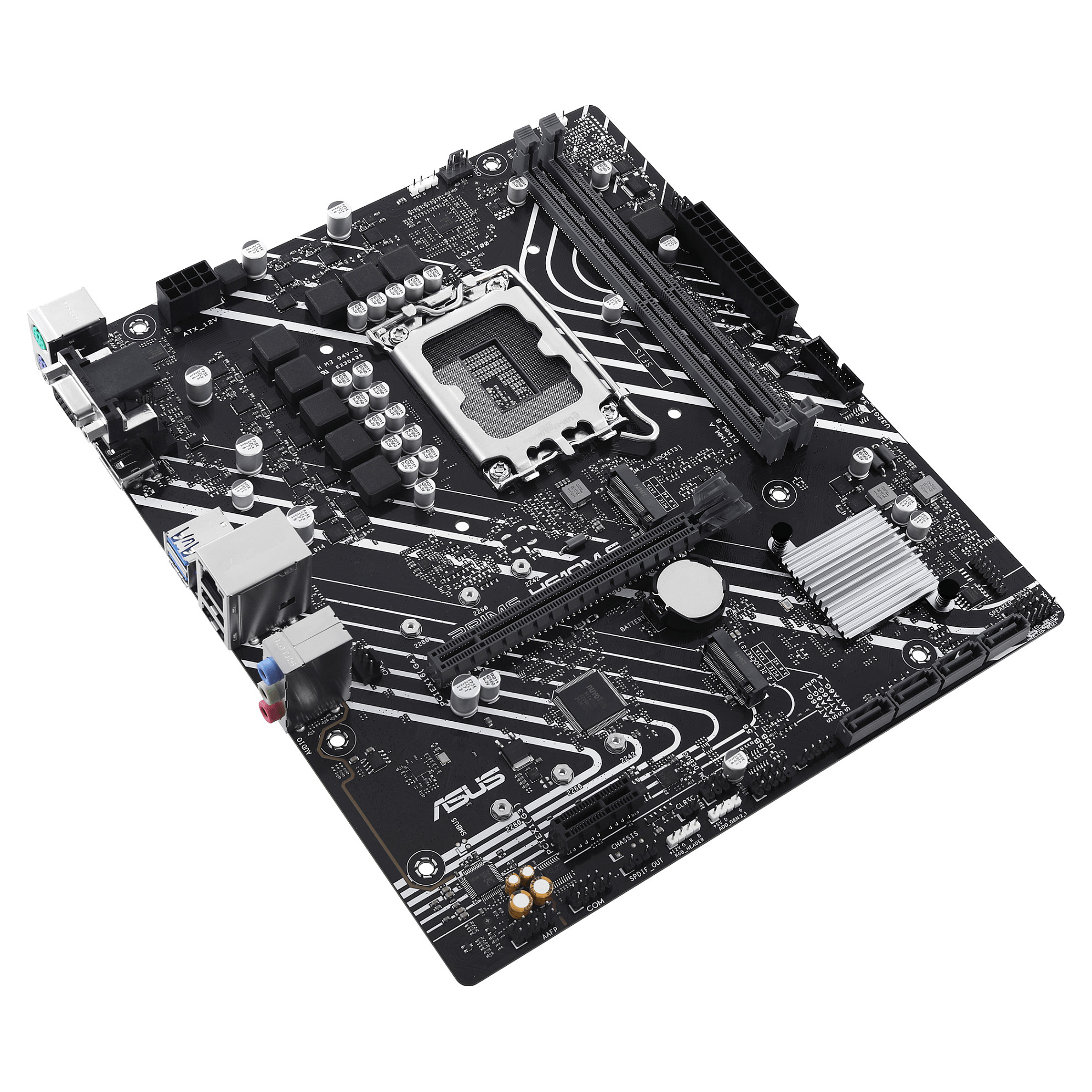

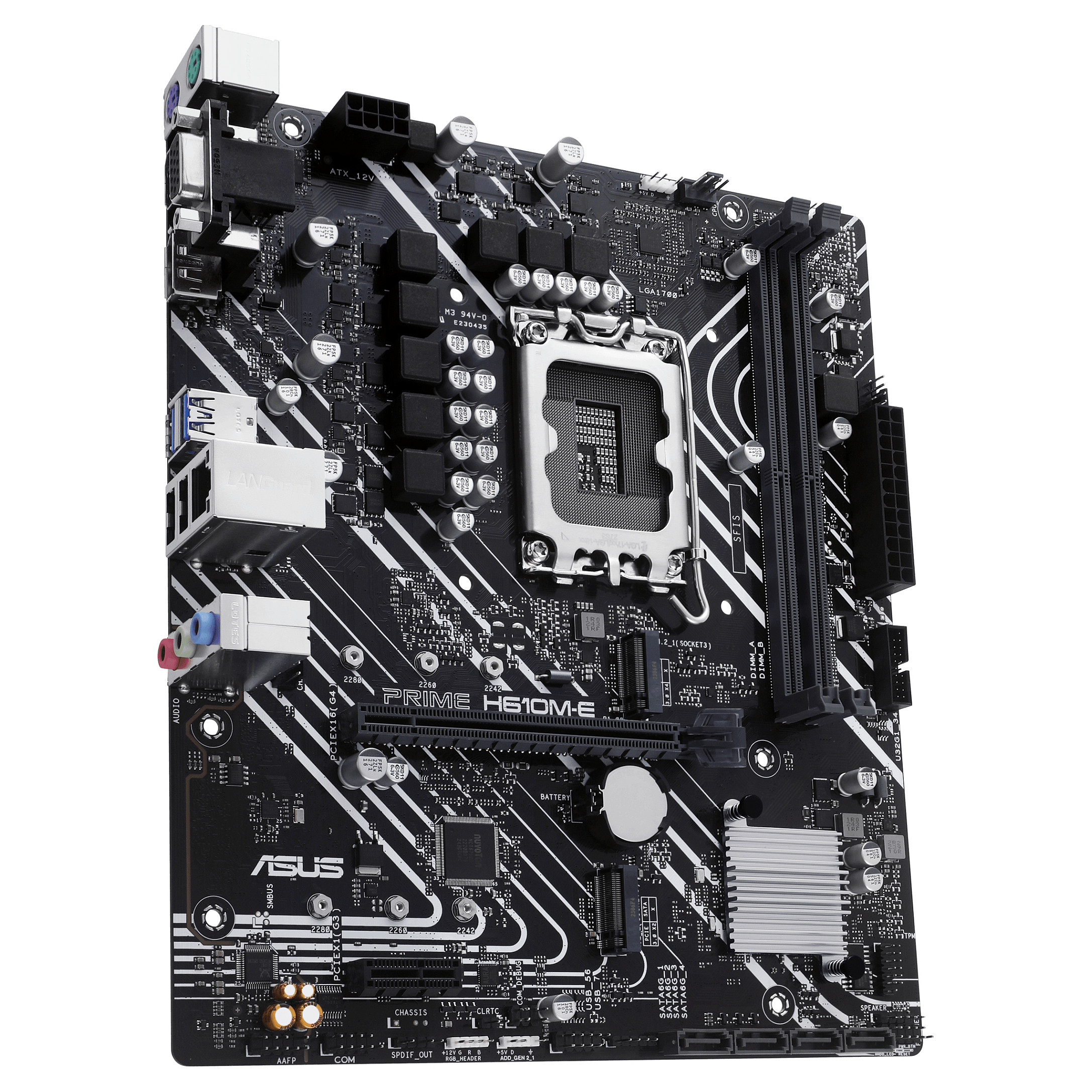

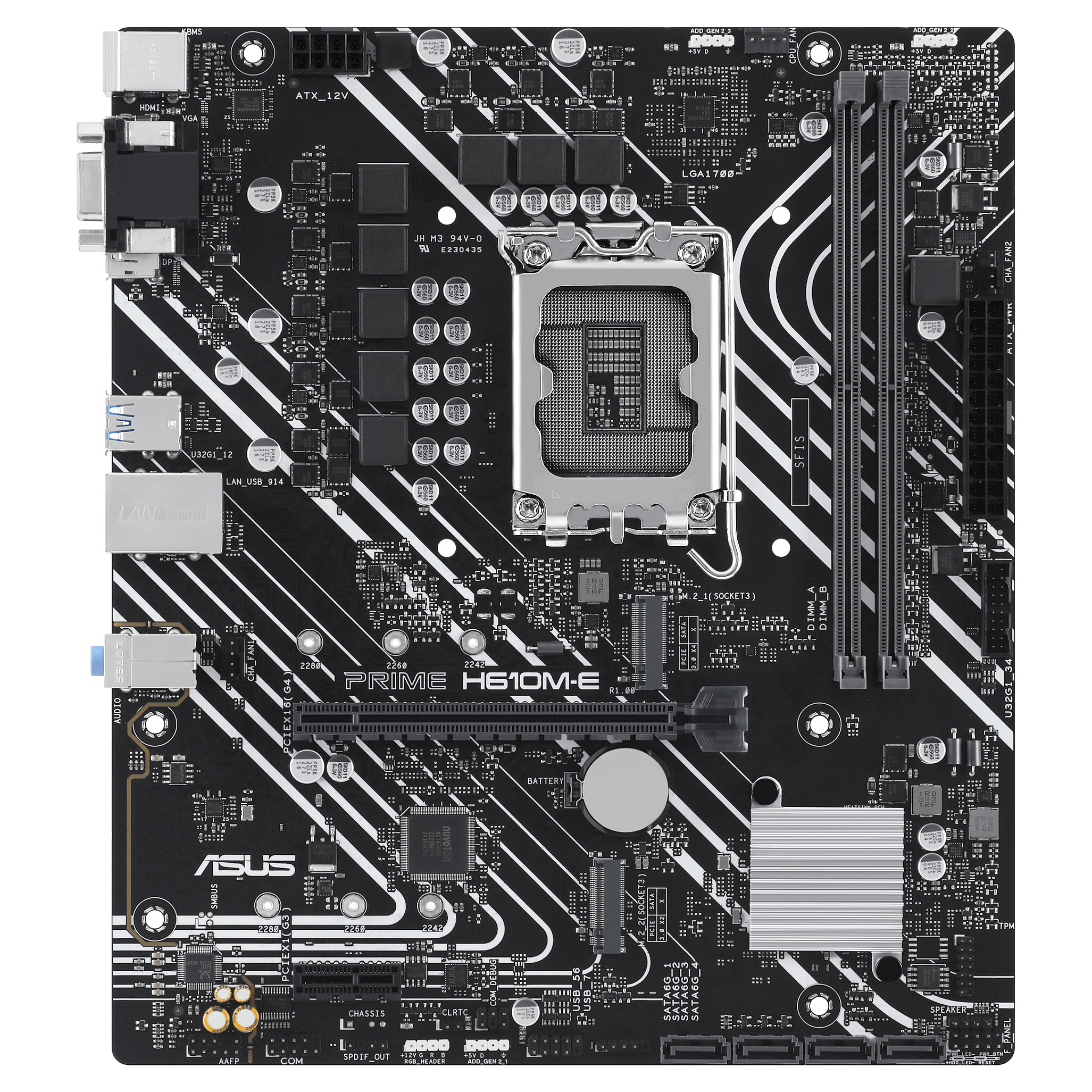

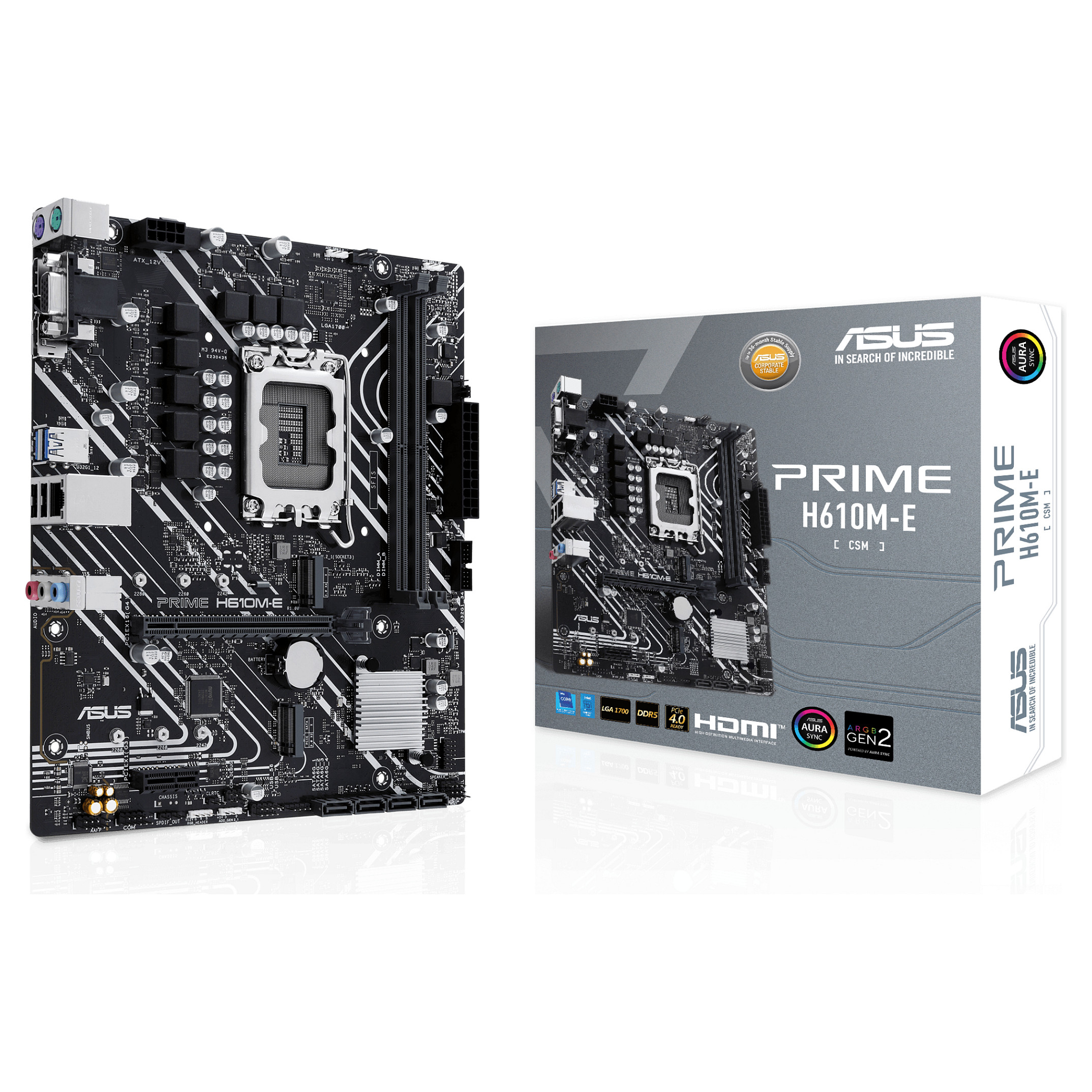

1700 ASUS PRIME H610M-E-CSM mATX
Pre-Order
€134.99
VAT (19%) included
Description
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Comprehensive Cooling: PCH heatsink and Fan Xpert 2+ Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Technical Specifications
SKU
K90MB1G10-M0EAYC
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4800, 5000, 5200, 5400, 5600 MHz
Supported Memory Clock Speed (Max)
5600 MHz
Maximum Internal Memory
96 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
2
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel H610
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Package Width
270 mm
Package Depth
263 mm
Package Height
51.5 mm
Package Weight
890 g
Width
244 mm
Depth
211 mm
Cables Included
SATA
