Gigabyte

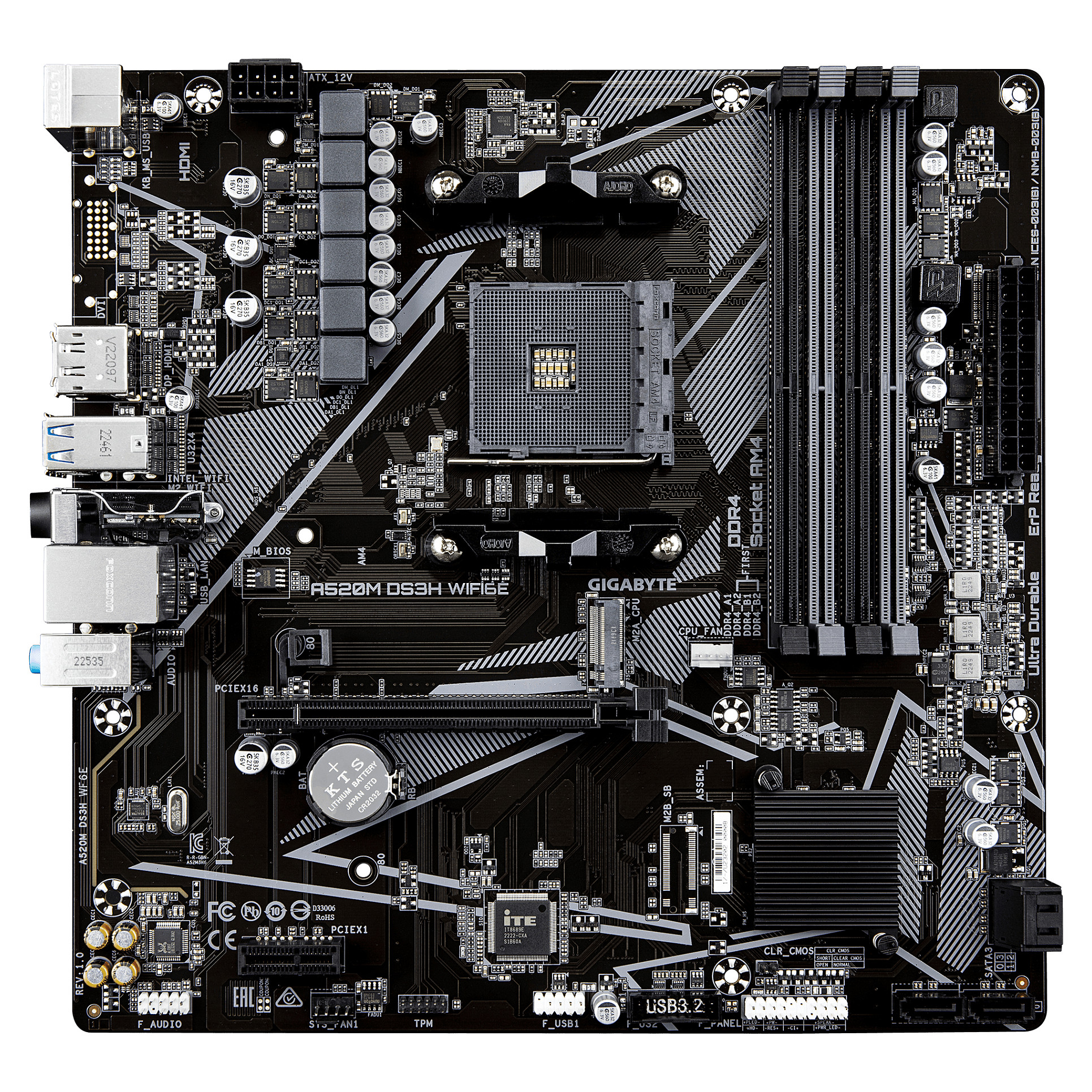

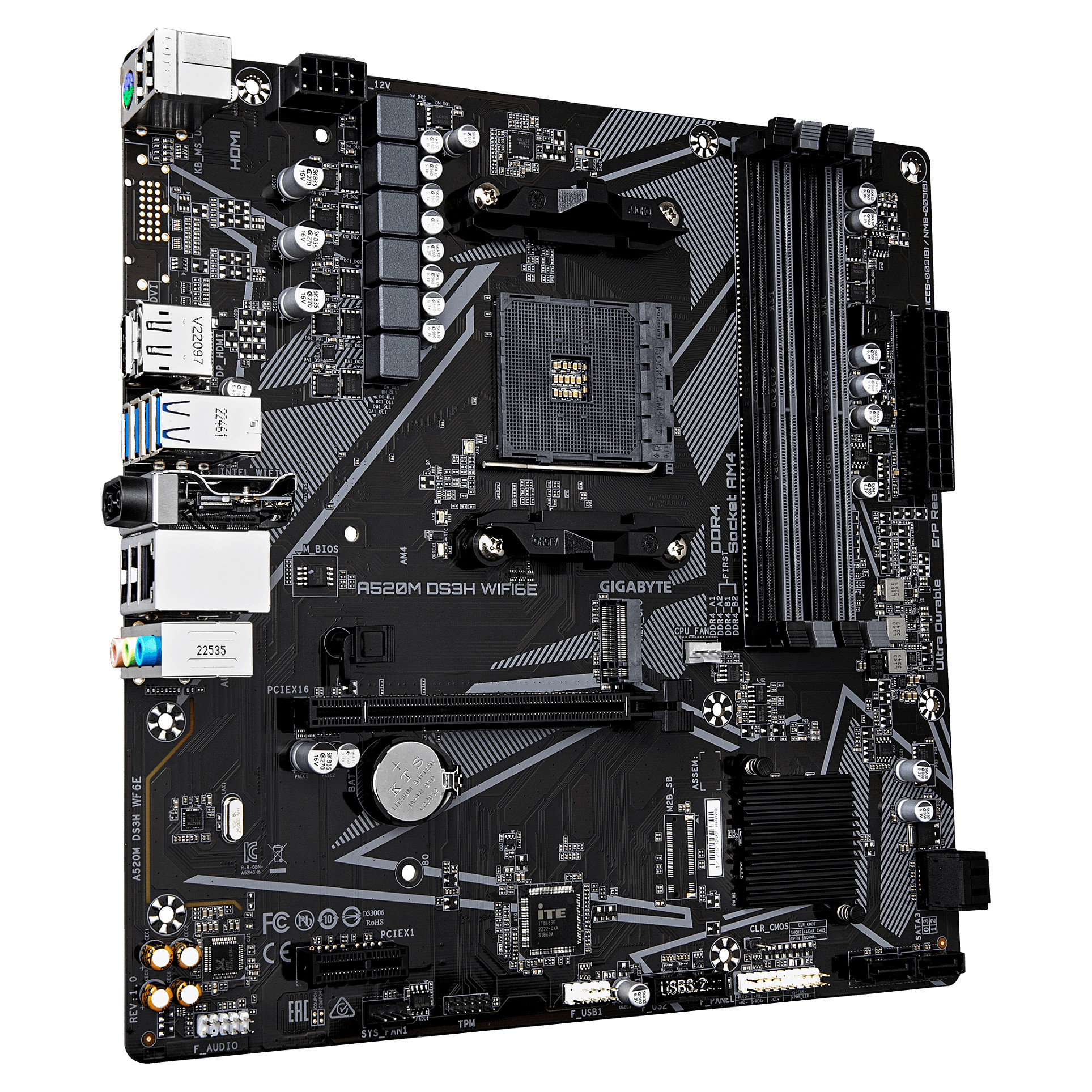

Gigabyte A520M DS3H WiFi6E (A520,AM4,mATX,DDR4)
Pre-Order
€88.99
VAT (19%) included
Description
Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Ultra Durable PCIe 3.0 x16 Slot NVMe PCIe 3.0 x4 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation Rear DisplayPort and HDMI for Multi-display Support Anti-Sulfur Resistors Design
Technical Specifications
SKU
KA520M DS3H WF6E
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3600, 4000, 4400, 4733, 3400, 3466, 3733, 3866, 4133, 4266, 4600 MHz
Supported Memory Clock Speed (Max)
4733 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
32 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
5120 x 2880 pixels
Hdcp Version
2.3
Directx Version
12.0
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Eps Power Connectors (8-Pin)
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet, Fast Ethernet
Lan Controller
Realtek RTL8111H
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wlan Controller Model
MediaTek MT7902
Bluetooth Version
5.3
Motherboard Chipset
AMD A520
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Temperature, Voltage, Fan
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Capacity
220 mAh
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
270 mm
Package Depth
268 mm
Package Height
68 mm
Package Weight
972 g
Width
244 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version)
Weight
880 g
Warranty Period
3 year(s)
