ASUS

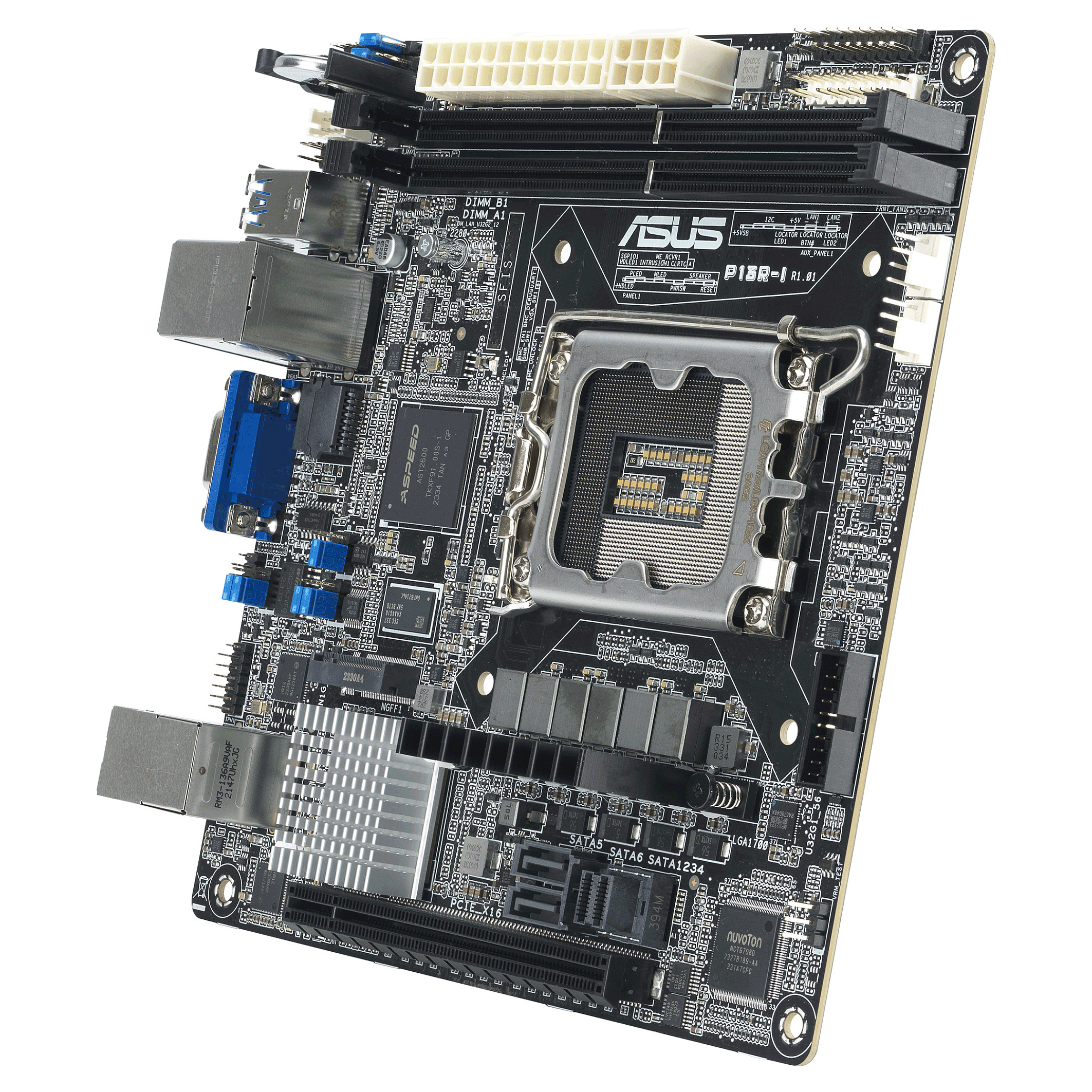

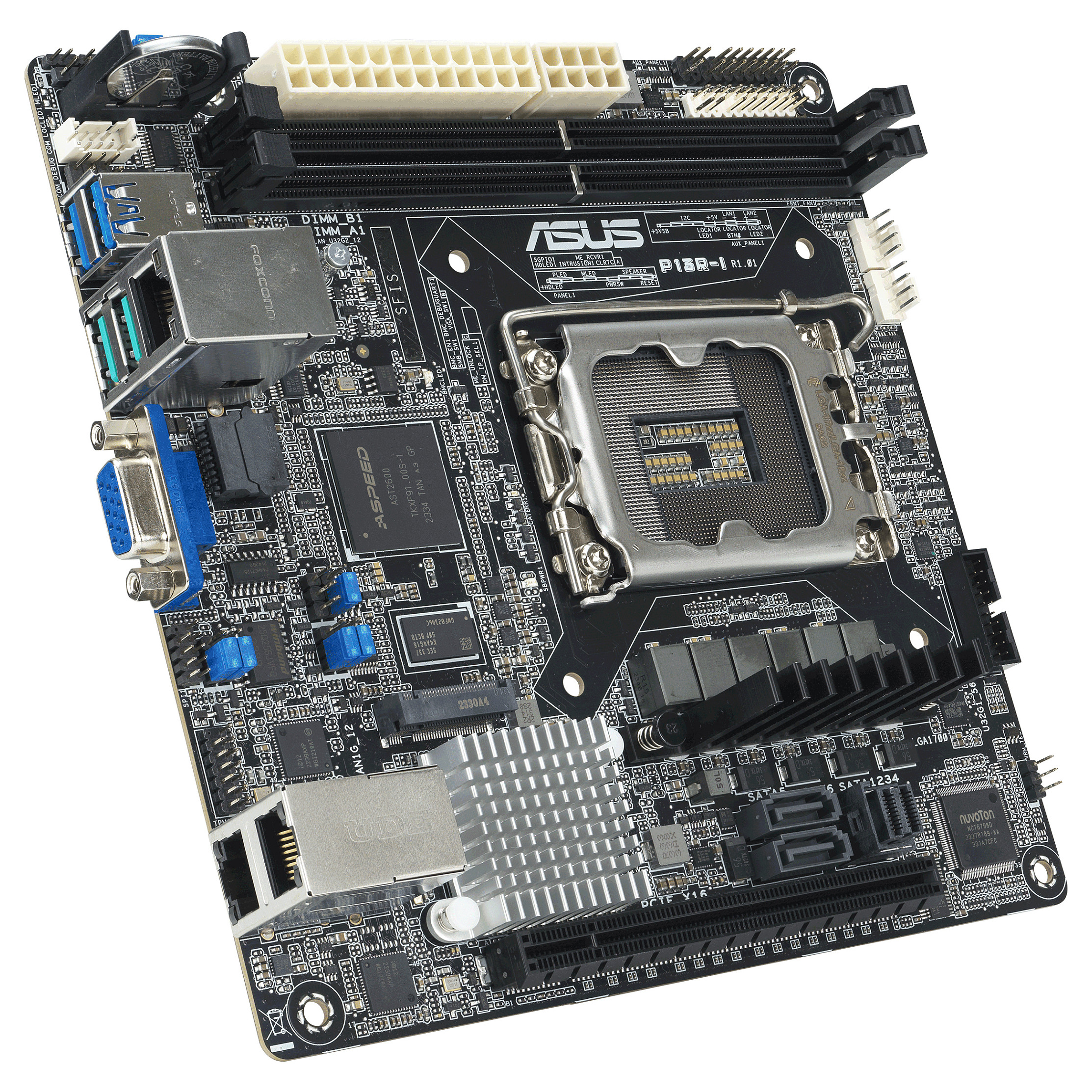

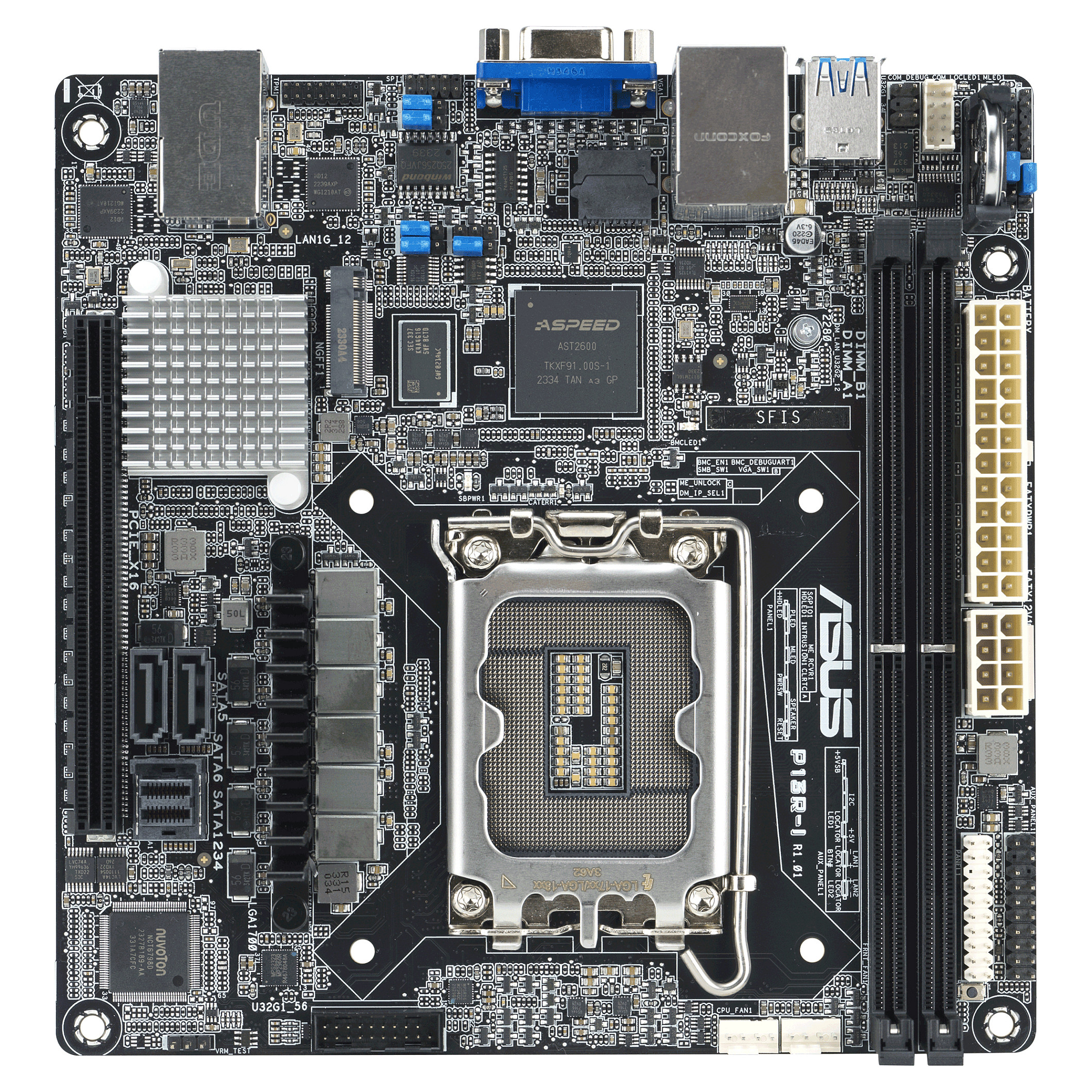

ASUS SERVER P13R-I S1700 C262/DDR5/VGA/2xGBL/mITX (ASMB11-iKVM onboard)
Pre-Order
€379.99
VAT (19%) included
Ast2600
Description
Powered by an 8-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 watt TDP Flexible expandability with six native SATA ports and one PCIe 5.0 x16 slot Dual Intel I210-AT2 gigabit Ethernet ports with teaming support One M.2 slot for faster OS booting, and two DDR5 ECC UDIMM slots up to 64 Gbps Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management Mini-ITX board in a compact footprint, making it a popular choice for SMB general purpose, mail and storage applications
Technical Specifications
Graphics Card
Ast2600
SKU
K90SB0CR0-M0UAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Pentium®, Intel® Xeon®, Intel Xeon E
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
3600, 4000, 4400, 4800 MHz
Supported Memory Clock Speed (Max)
4800 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
PCI Express 4.0, SATA III
Number Of Hdds Supported
6
Number Of Storage Drives Supported
7
Parallel Processing Technology Support
Not supported
On-Board Graphics Card Memory
64 MB
Number Of Sata Iii Connectors
6
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
3
Vga (D-Sub) Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Motherboard Chipset
Intel C262
Product Colour
Black
Component For
Server
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 50 °C
Storage Relative Humidity (H-H)
20 - 90%
Width
170 mm
Depth
170 mm
