ASUS

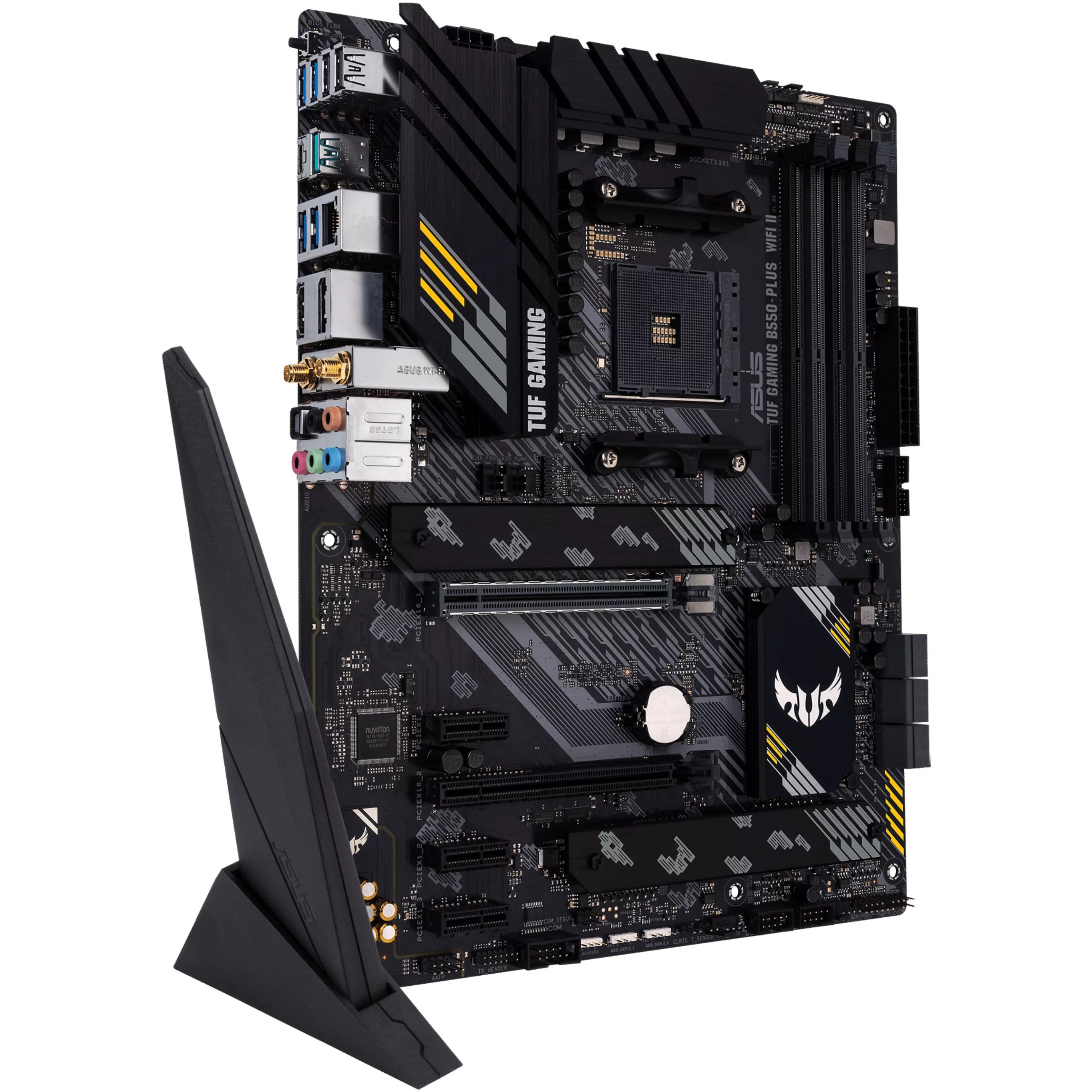

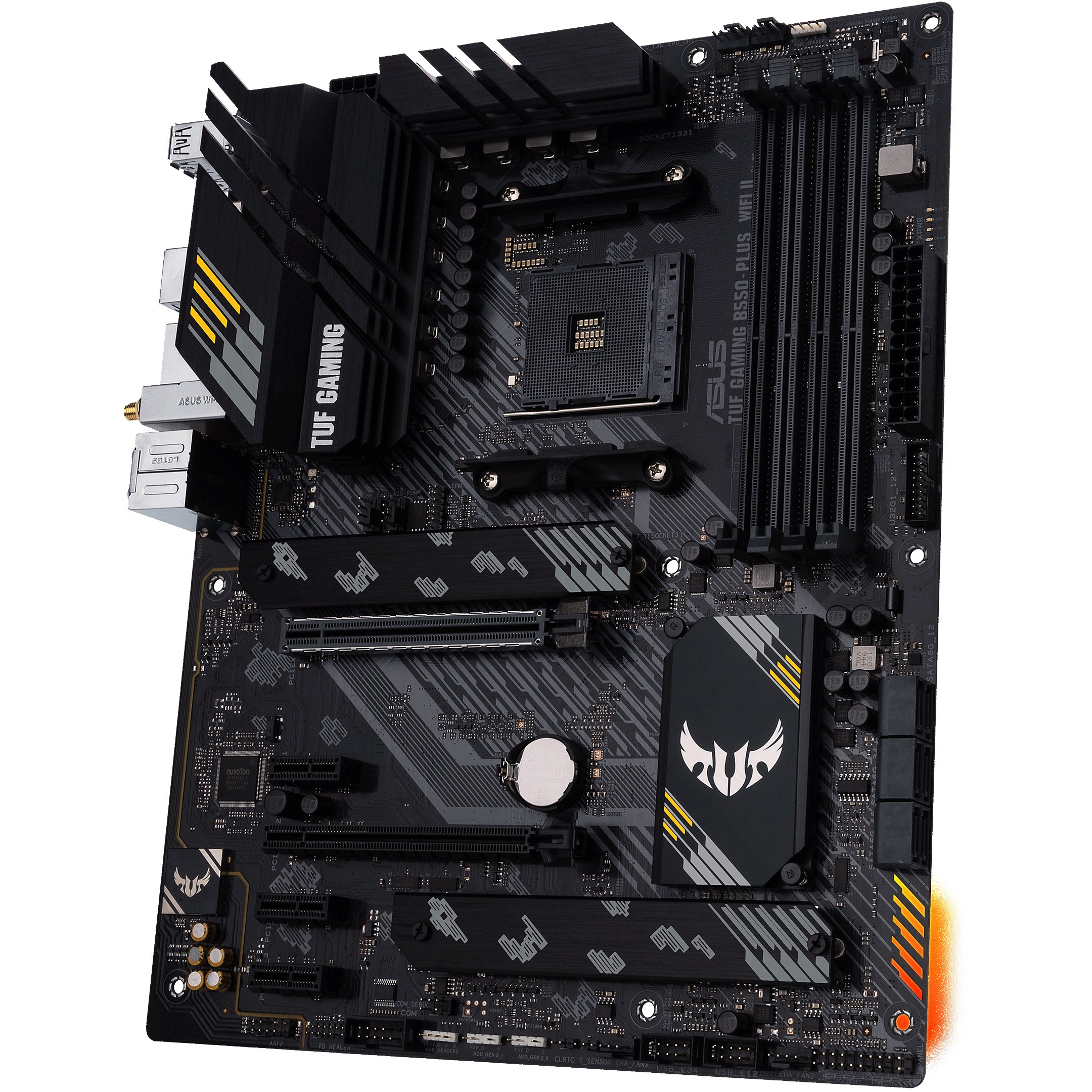

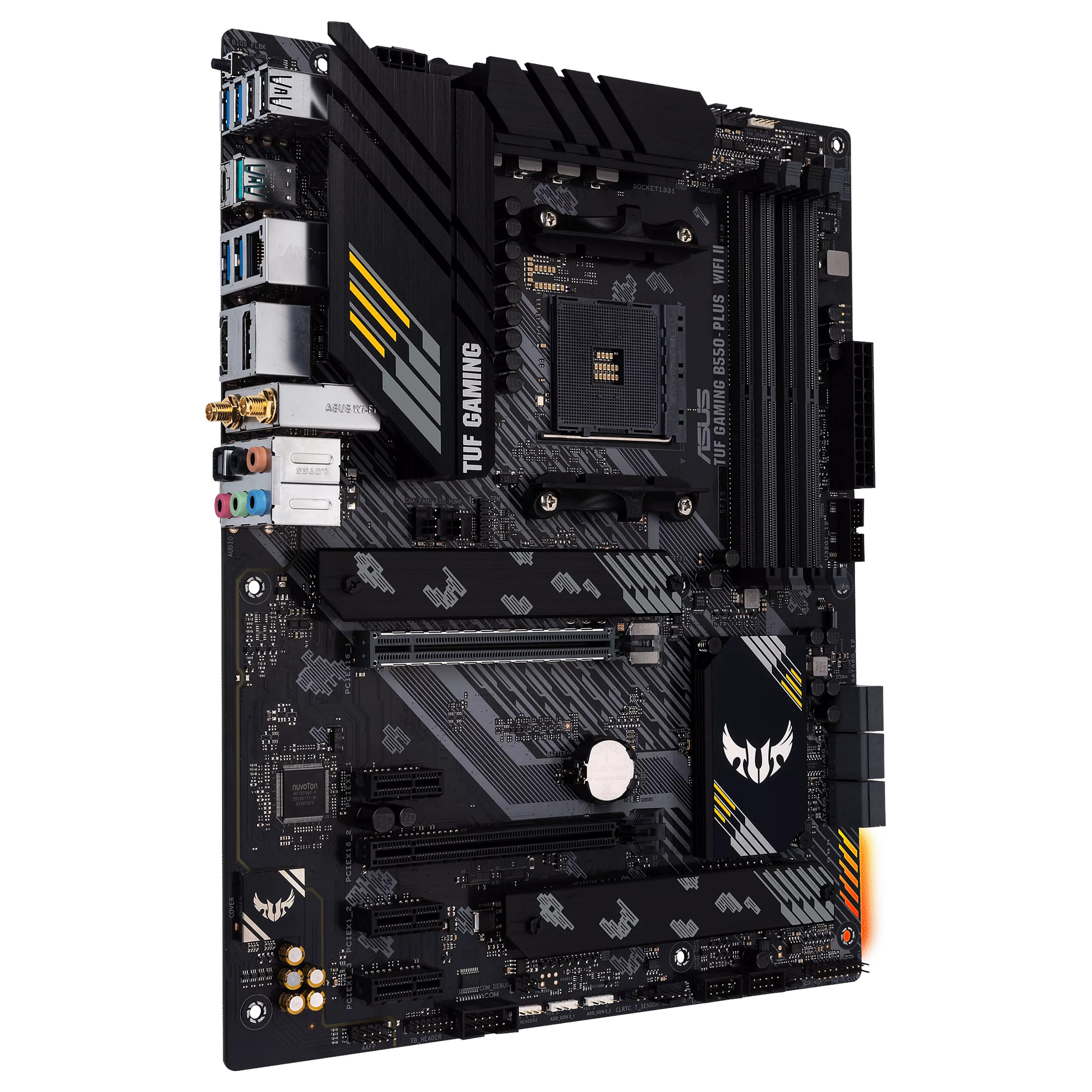

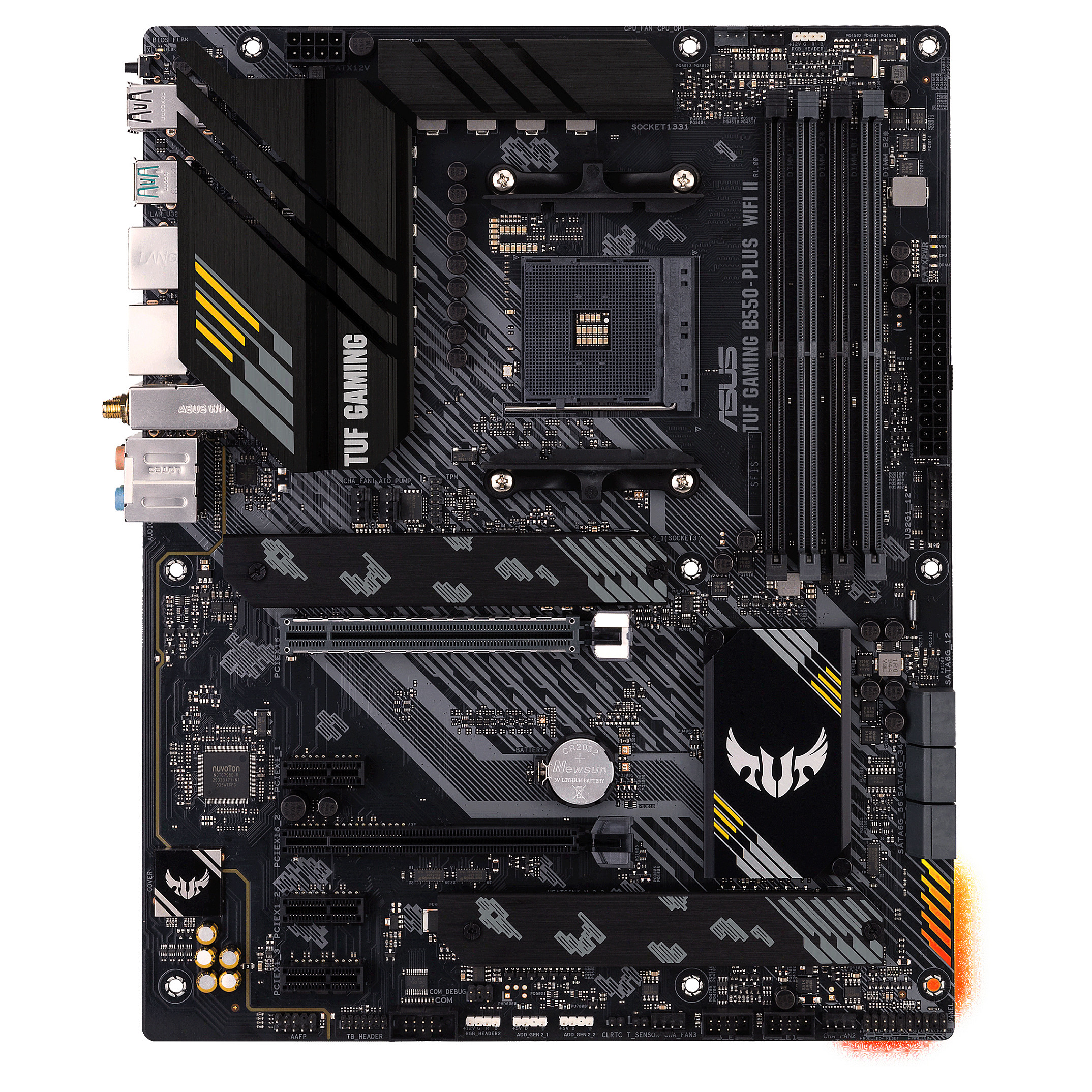

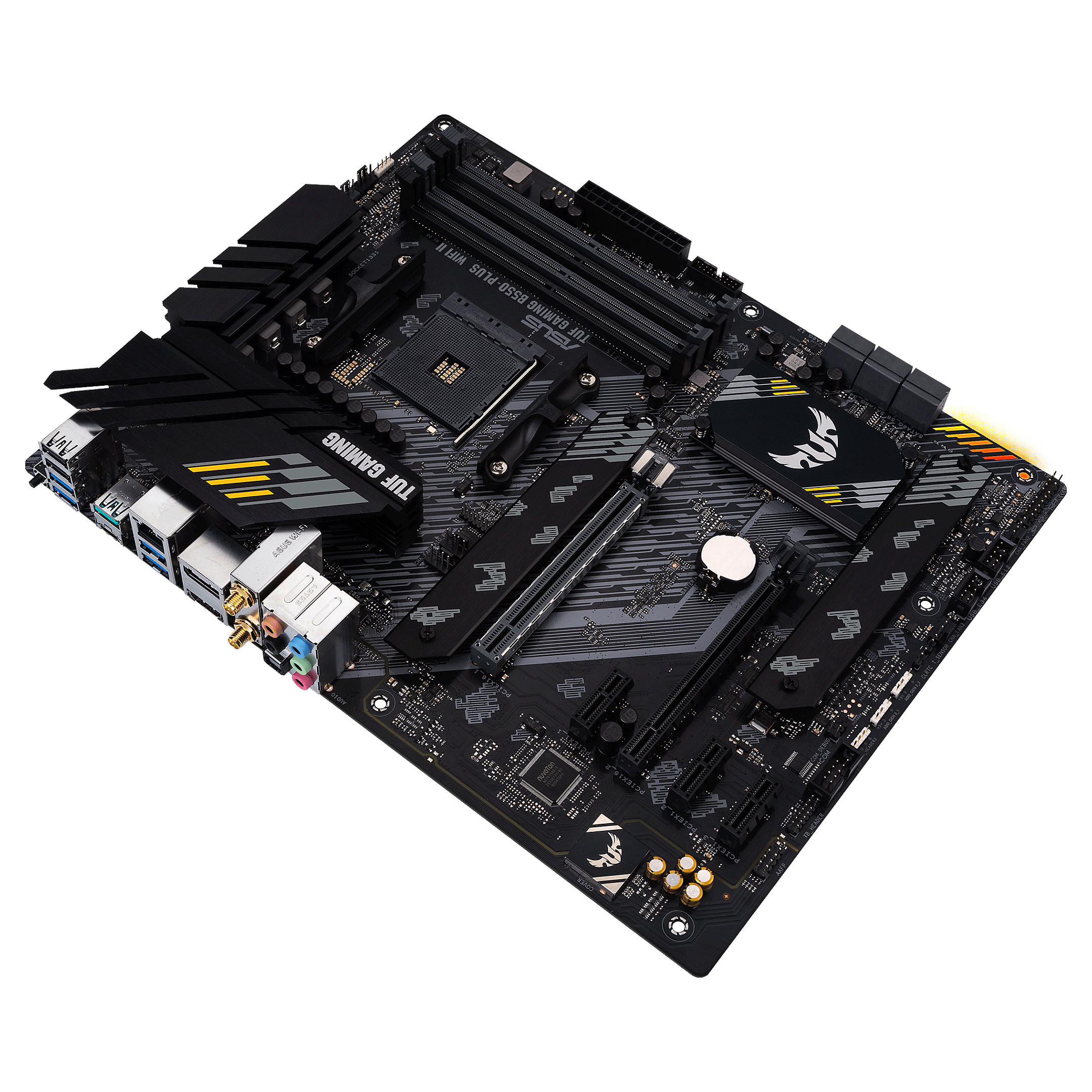

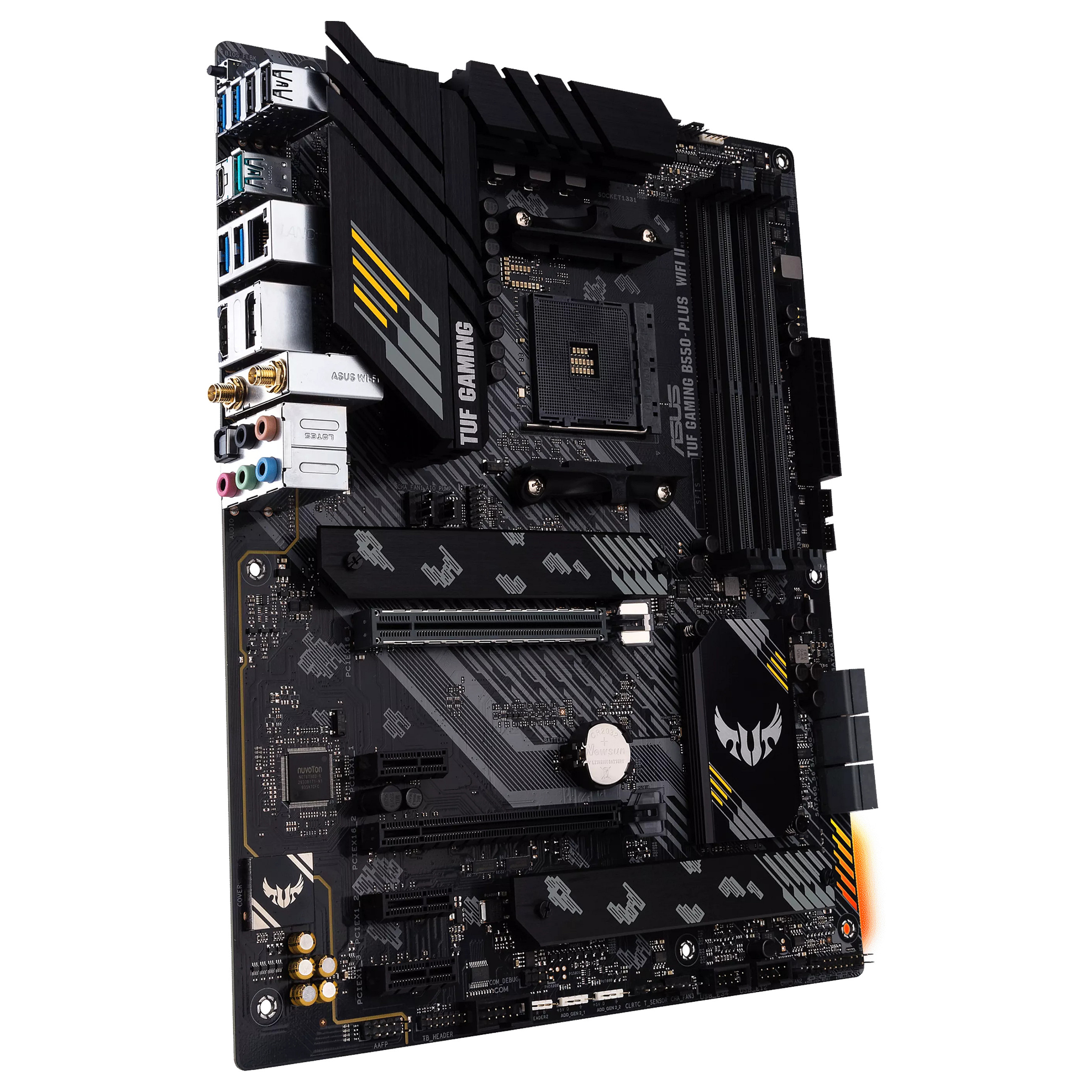

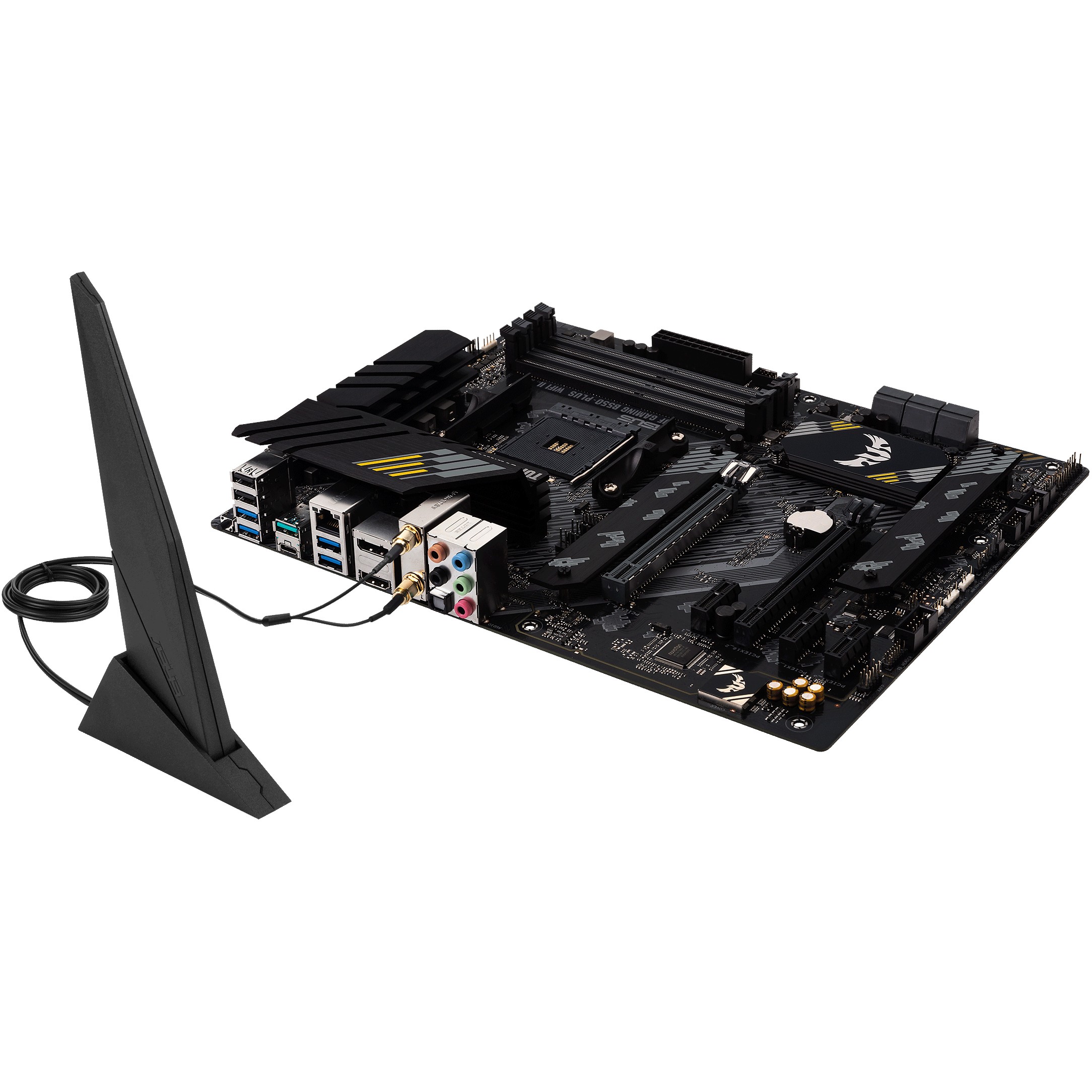

MB ASUS TUF GAMING B550-PLUS(WI-FI II) (AMD.AM4.DDR4.ATX)
Pre-Order
€179.99
VAT (19%) included
Description
AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard AI noise-canceling microphone: provides crystal-clear in-game voice communication
Technical Specifications
SKU
K90MB19U0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800, 4866 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Number Of Displays Supported
2
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
6
Number Of Chassis Fan Connectors
3
Number Of Com Connectors
1
Thunderbolt Headers
1

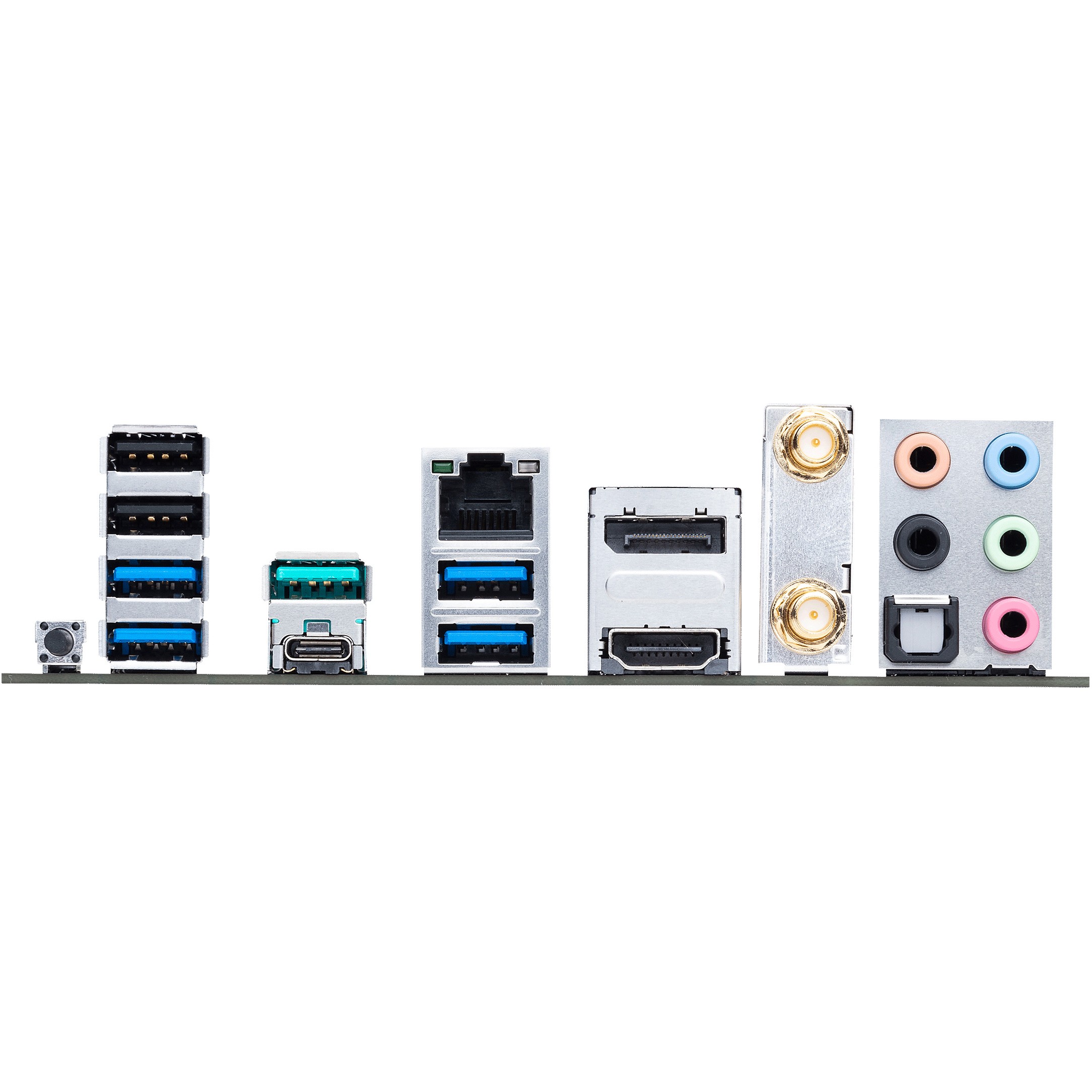

Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Headphone Outputs
1
Usb Connector Type
USB Type-A, USB Type-C
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6 (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
AMD B550
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X1 (Gen 3.X) Slots
3
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Harmonized System (Hs) Code
84733020
Width
305 mm
Depth
244 mm
Height
75 mm
Cables Included
SATA
Weight
945 g

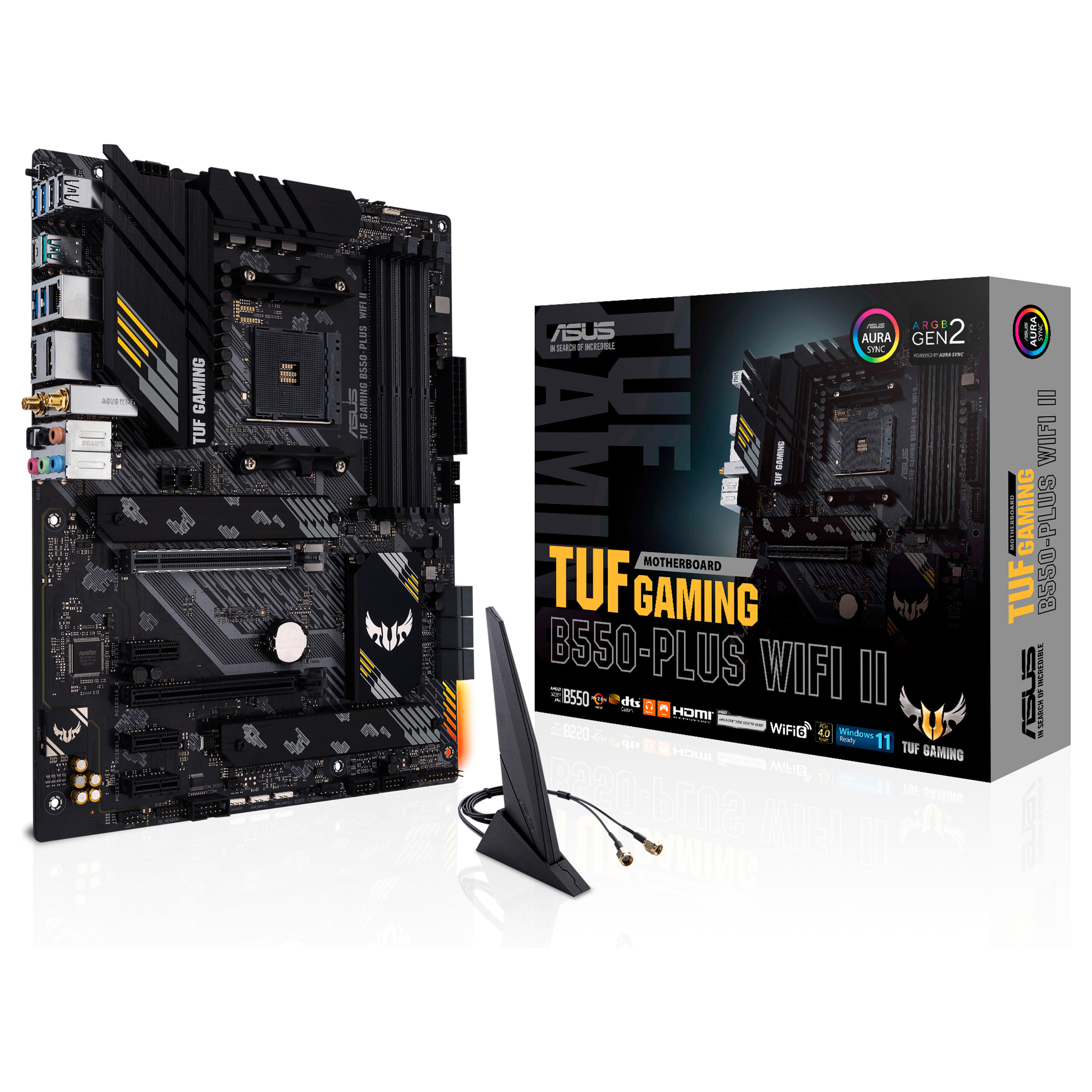

Packaging Content
2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide
