ASUS

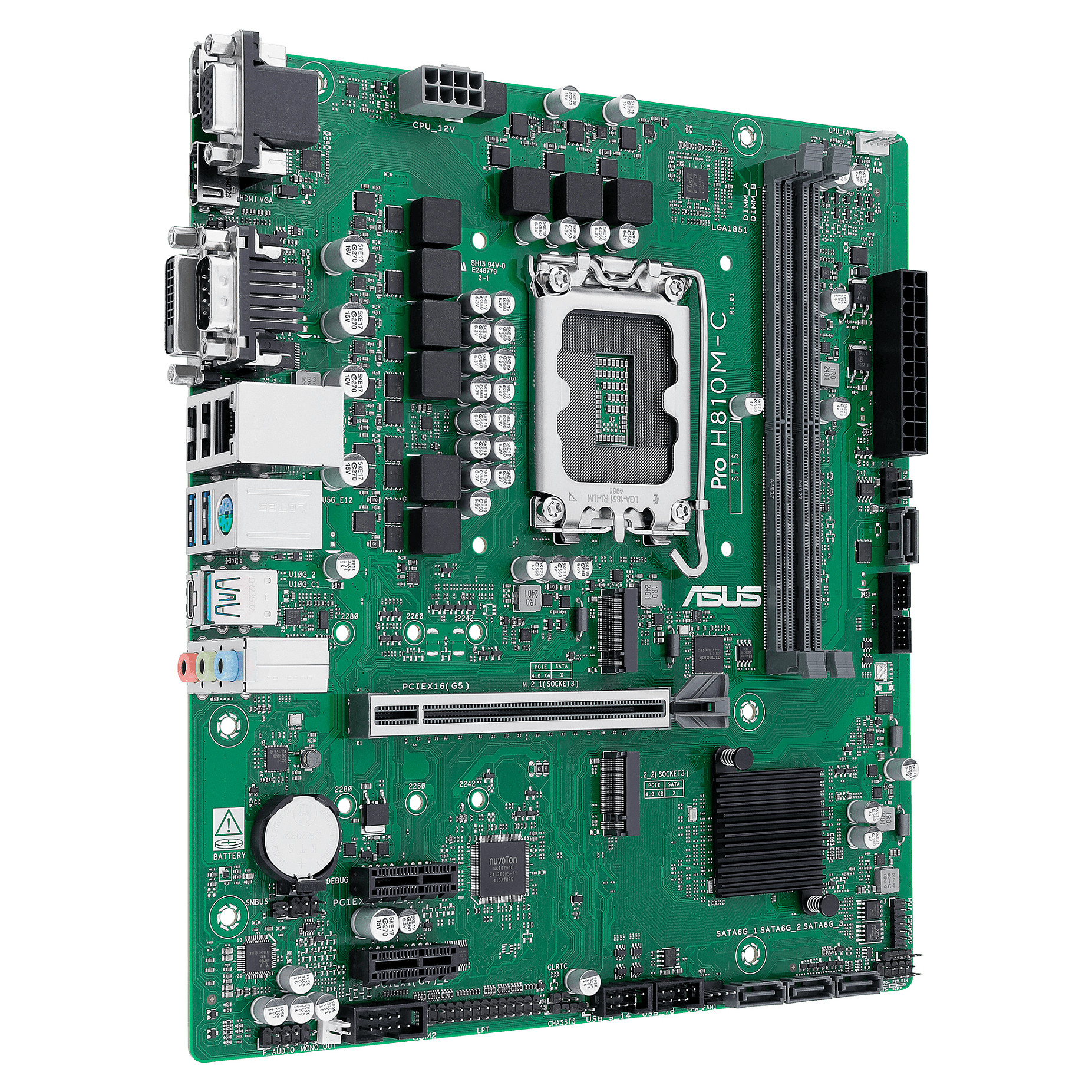

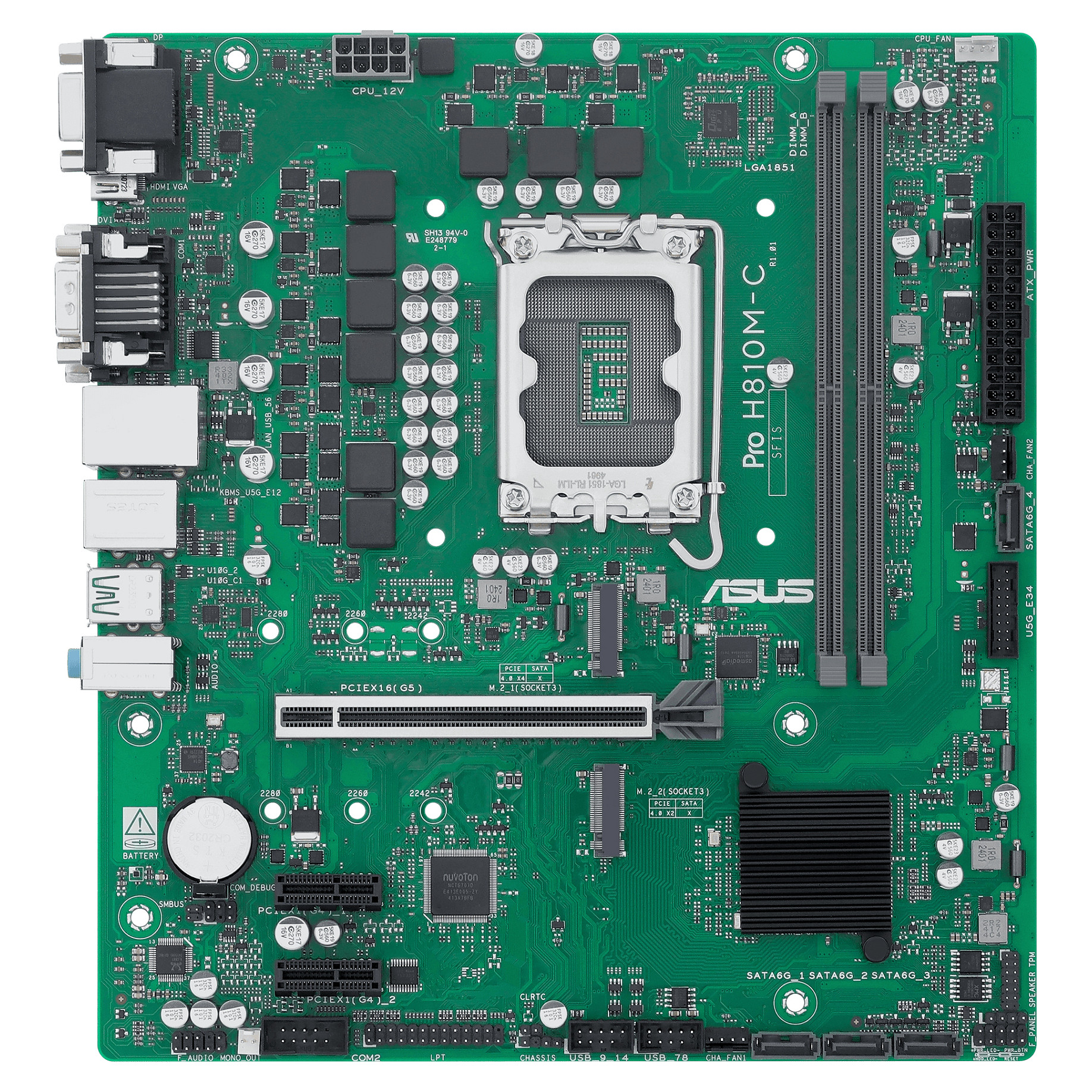

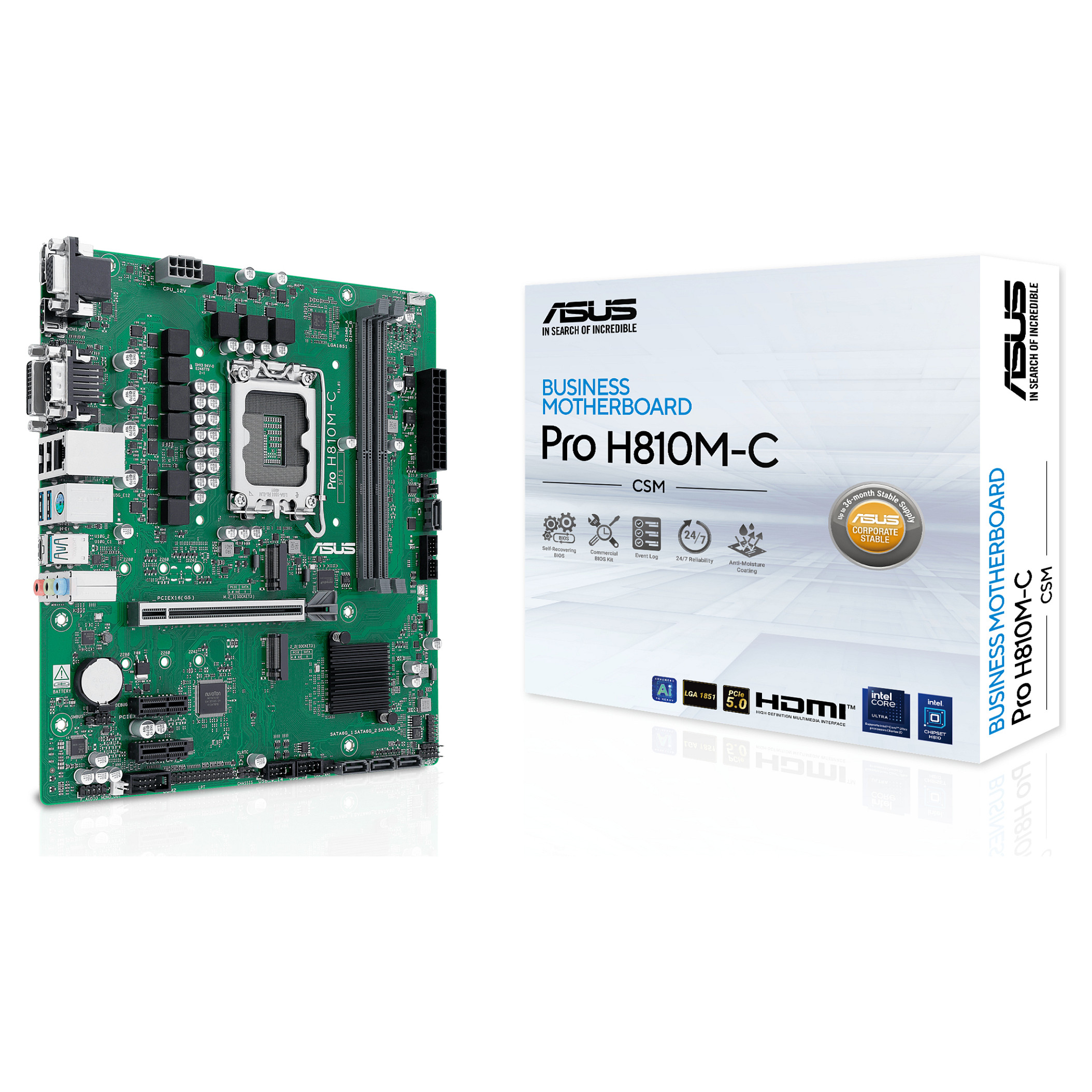

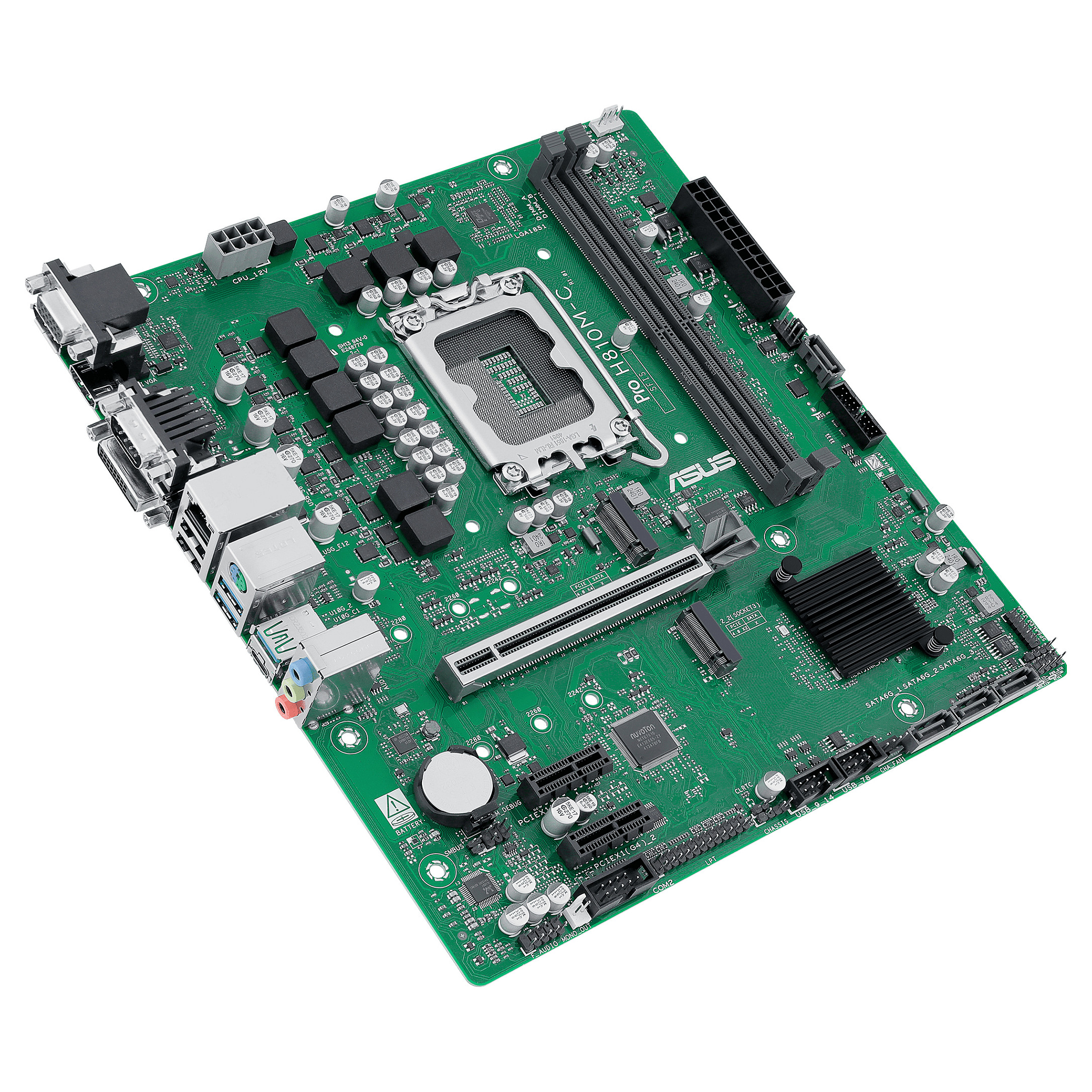

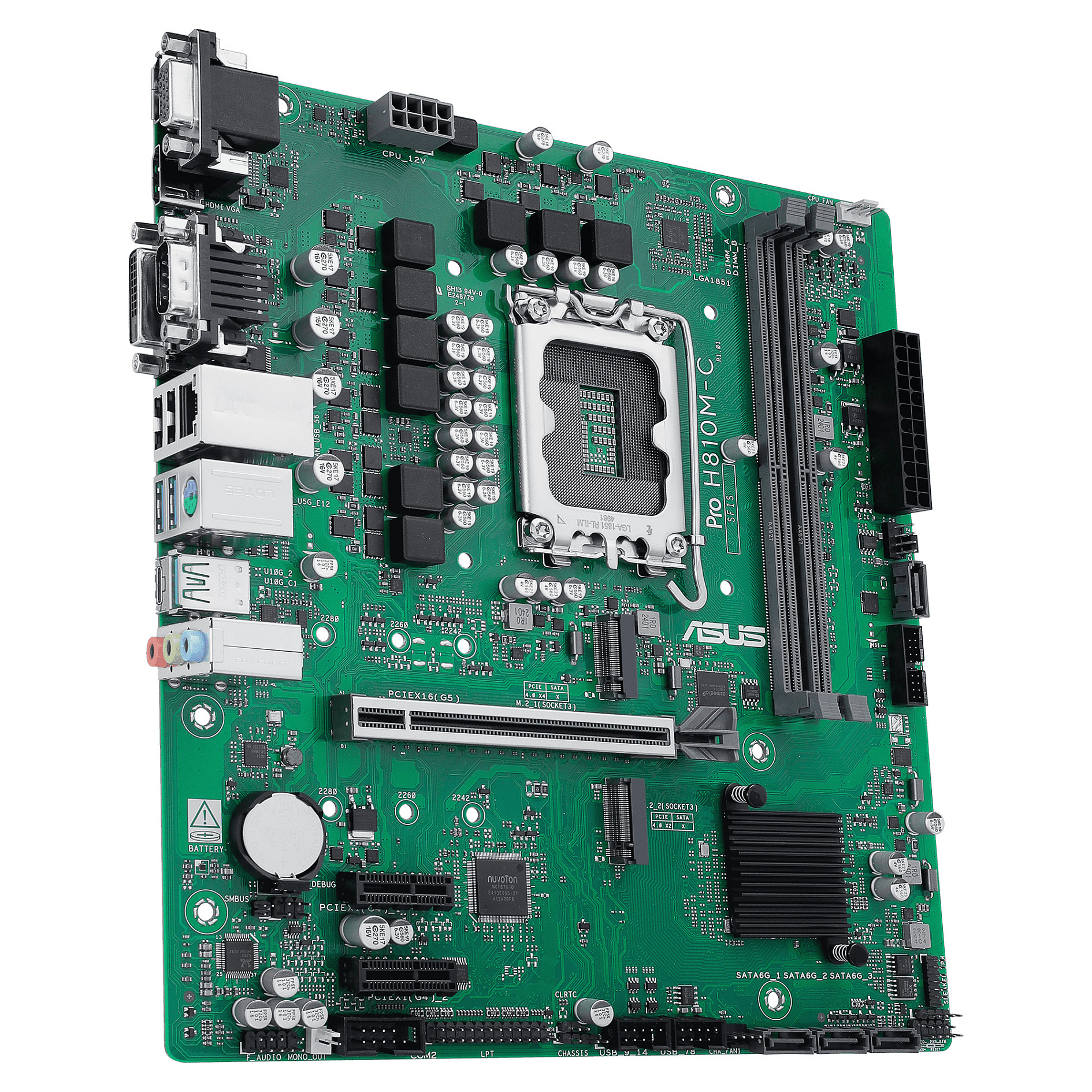

MB ASUS PRO H810M-C-CSM (Intel.LGA1851.DDR5.mATX)
Pre-Order
€148.99
VAT (19%) included
Description
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2) ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced System Security: Self-recovering BIOS to safeguard PCs Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C® DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Technical Specifications
SKU
K90MB1KHP-M0EAYC
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Dvi-D Ports Quantity
1
Displayports Quantity
1
Com Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel H810
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X1 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
270 mm
Package Depth
263 mm
Package Height
51.5 mm
Package Weight
1 kg
Width
244 mm
Depth
222 mm
Cables Included
SATA
