ASRock

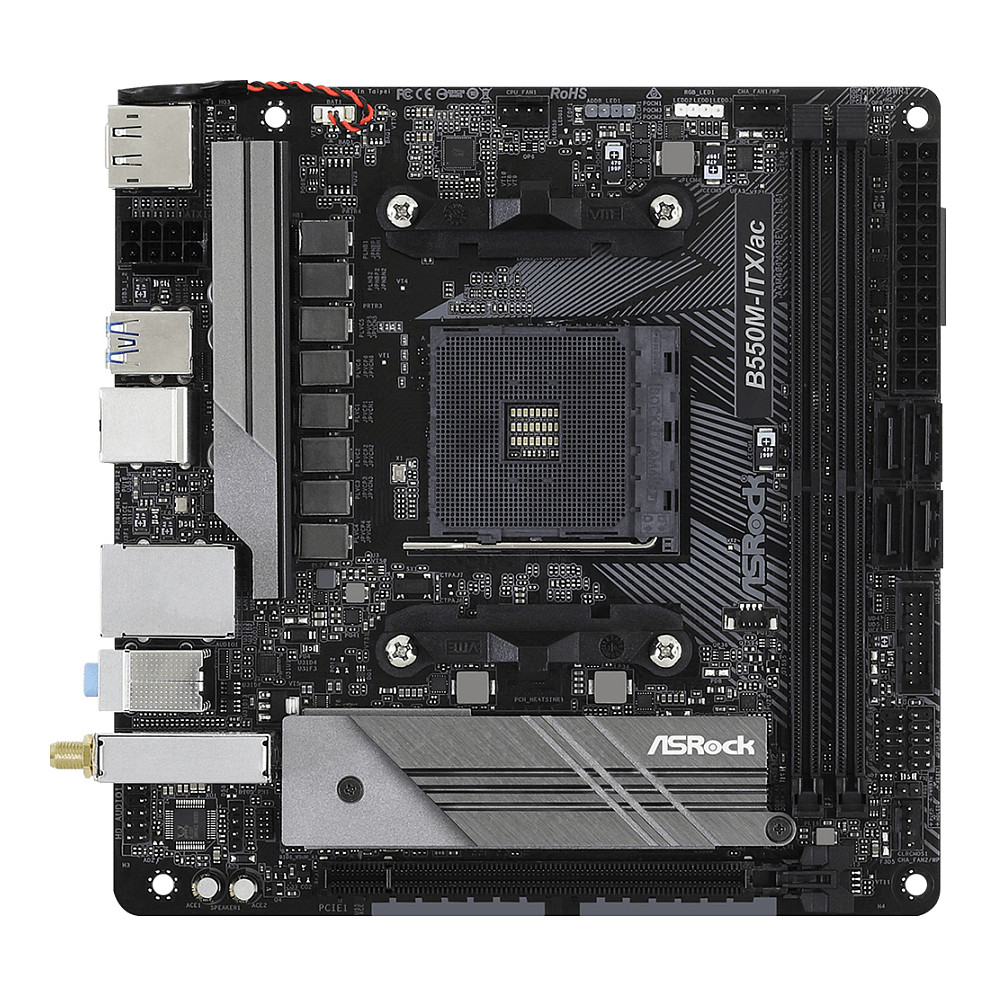

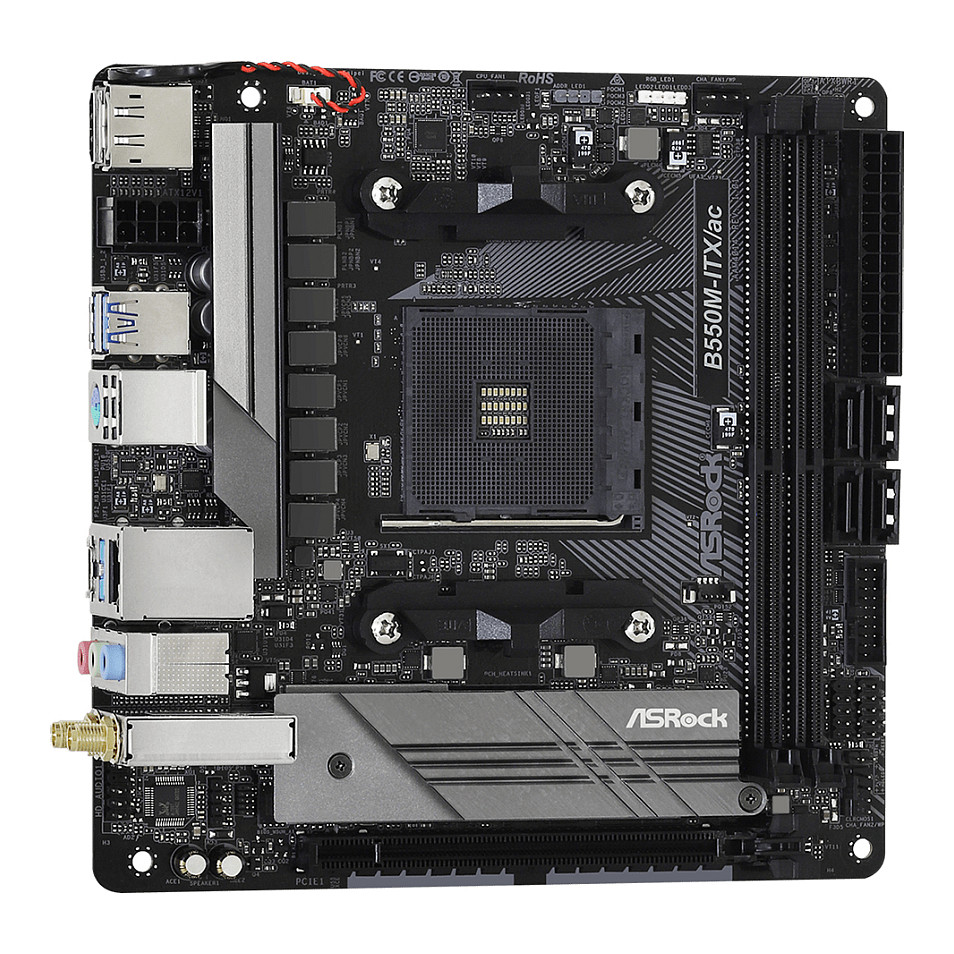

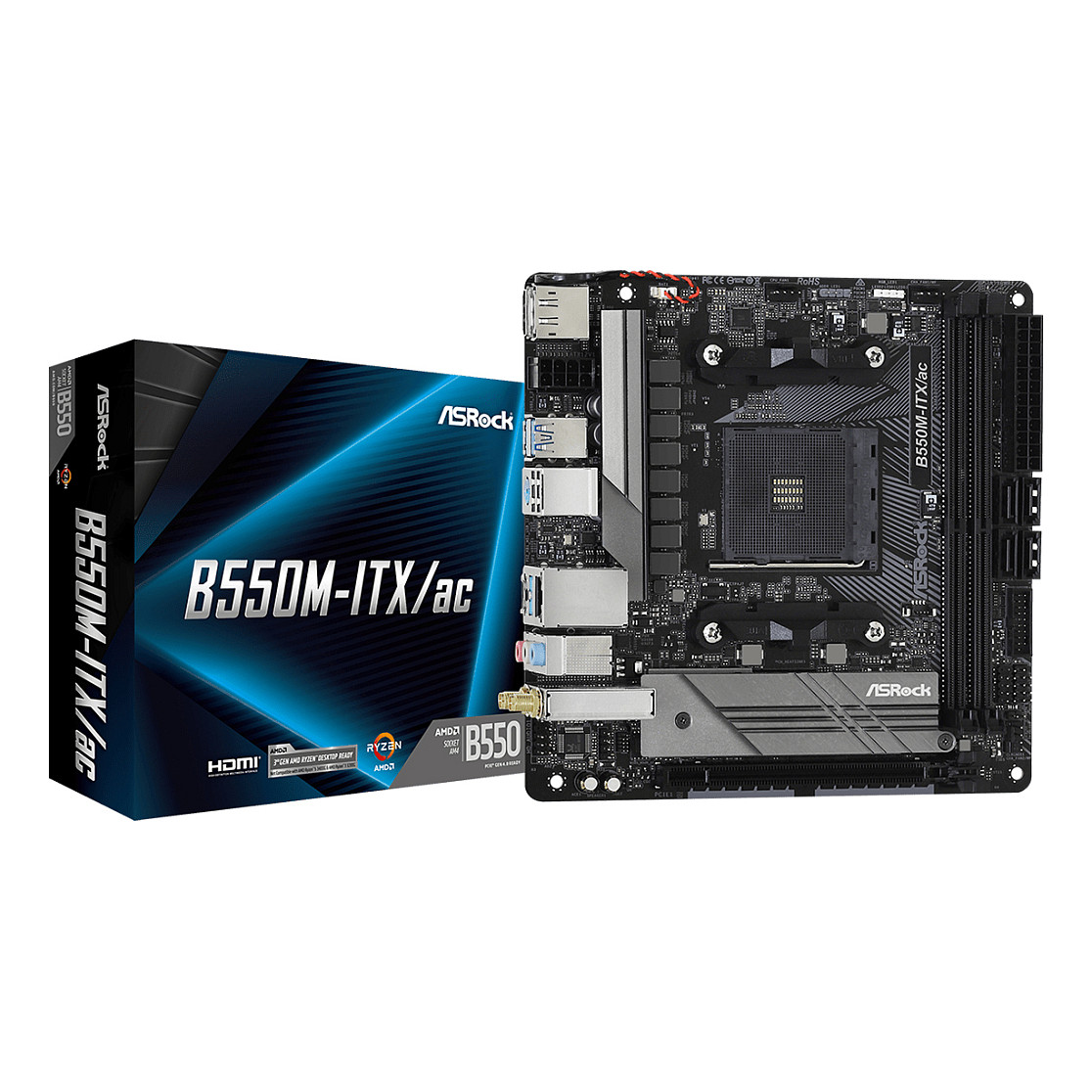

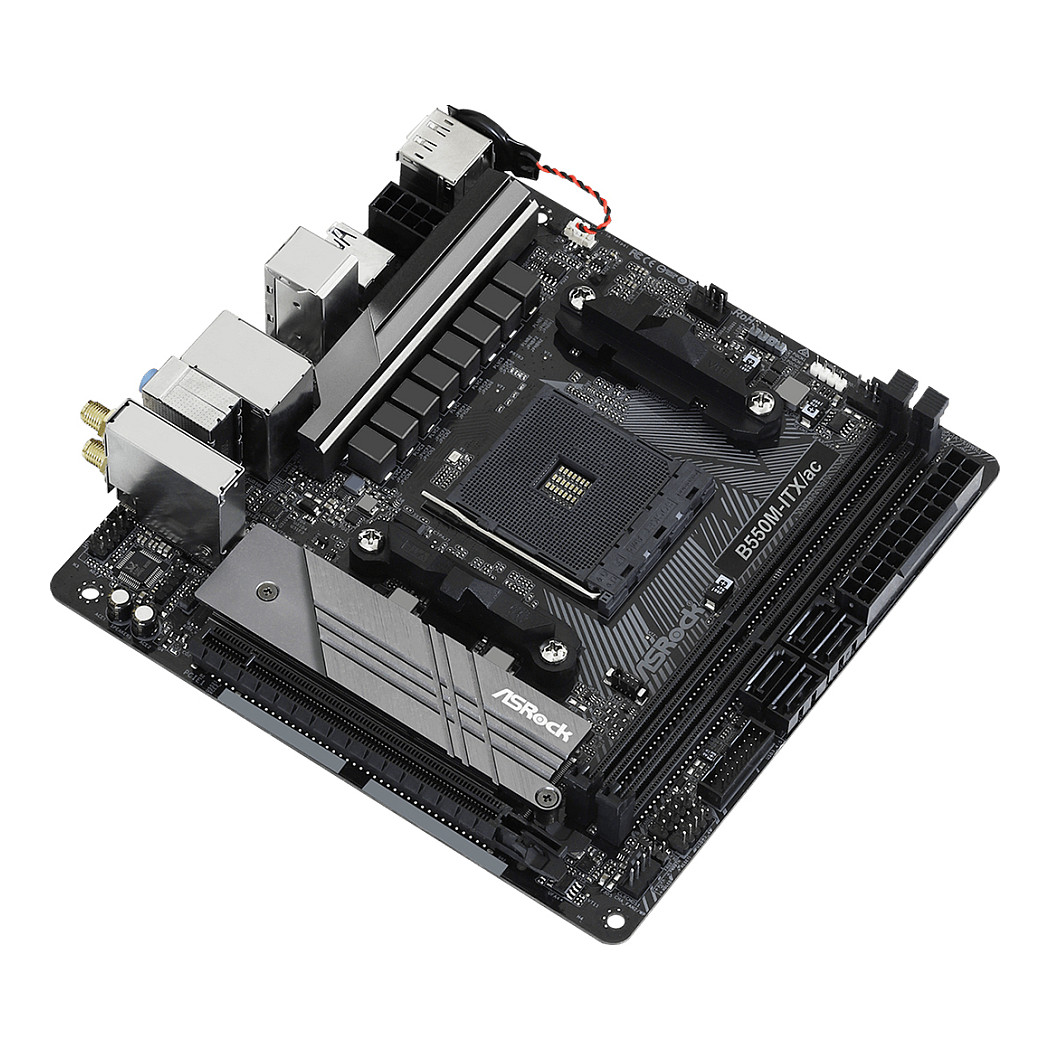

ASRock B550M-ITX/ac AM4 mITX HDMI/DP DDR4 retail
Pre-Order
€140.99
VAT (19%) included
Radeon Vega
Description
Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16 Graphics Output: DisplayPort, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) 6 USB 3.1 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C) Realtek Gigabit LAN Intel® 802.11ac WiFi + BT 4.2
Technical Specifications
Graphics Card
Radeon Vega
SKU
K90-MXBDH0-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Interfaces
M.2, SATA III
Graphics Card Family
AMD
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Version
4.2
Motherboard Chipset
AMD B550
Audio Chip
Realtek ALC887
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
AMD
Bios Type
UEFI AMI
Harmonized System (Hs) Code
84733020
Width
170 mm
Depth
170 mm
Height
70 mm
Weight
465 g
