ASRock

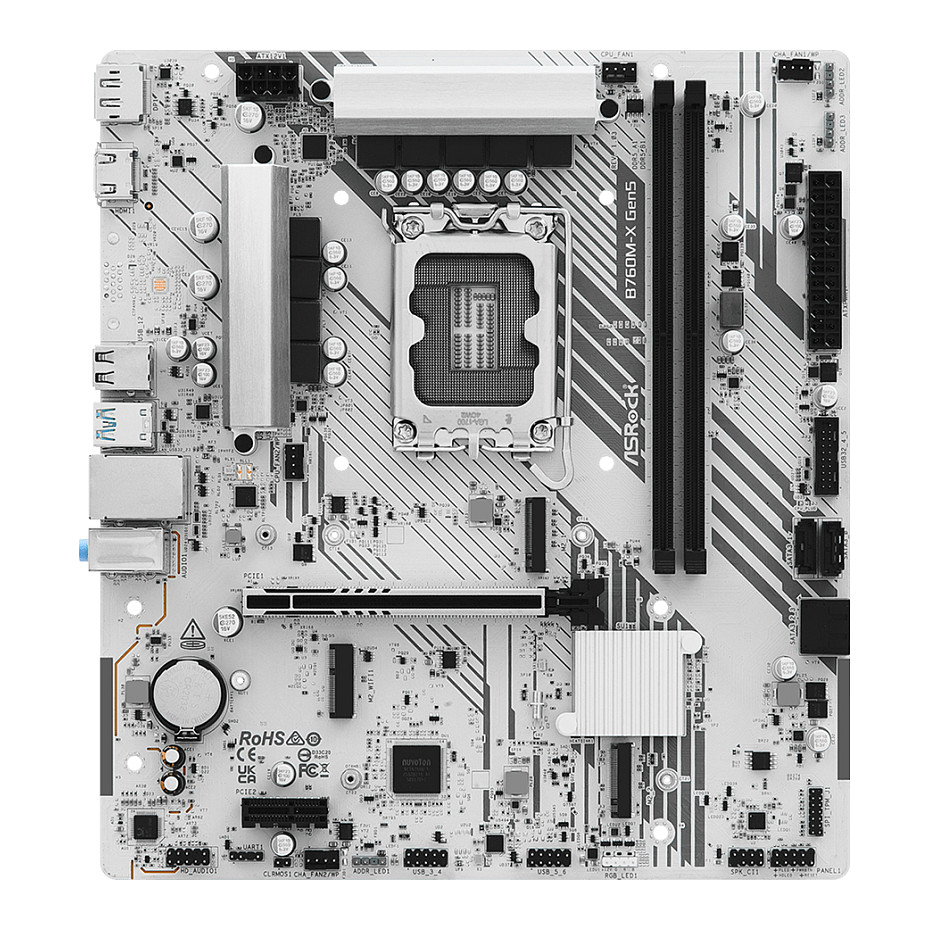

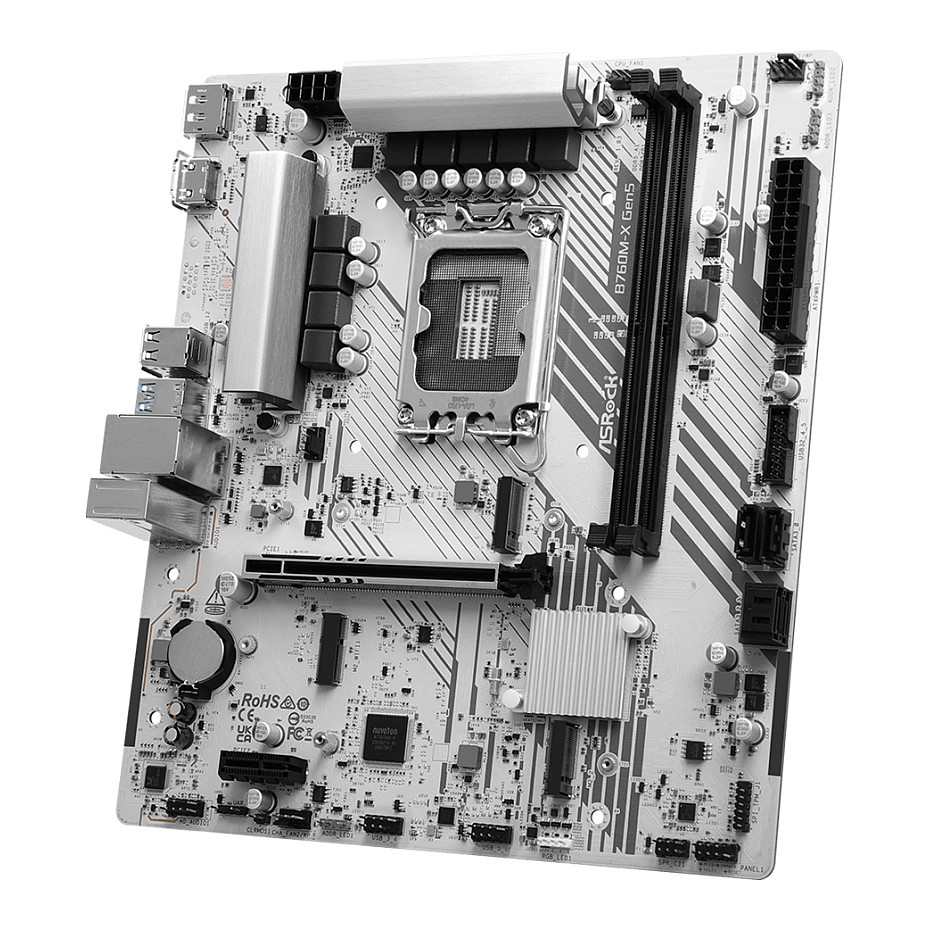

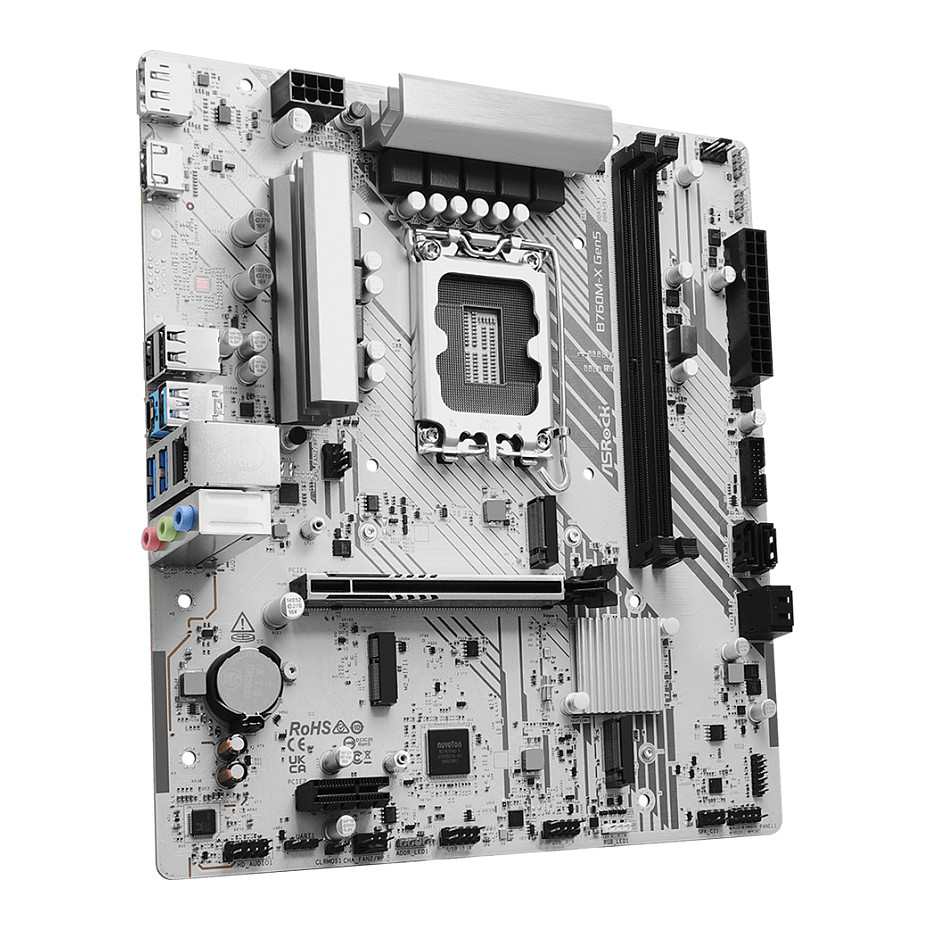

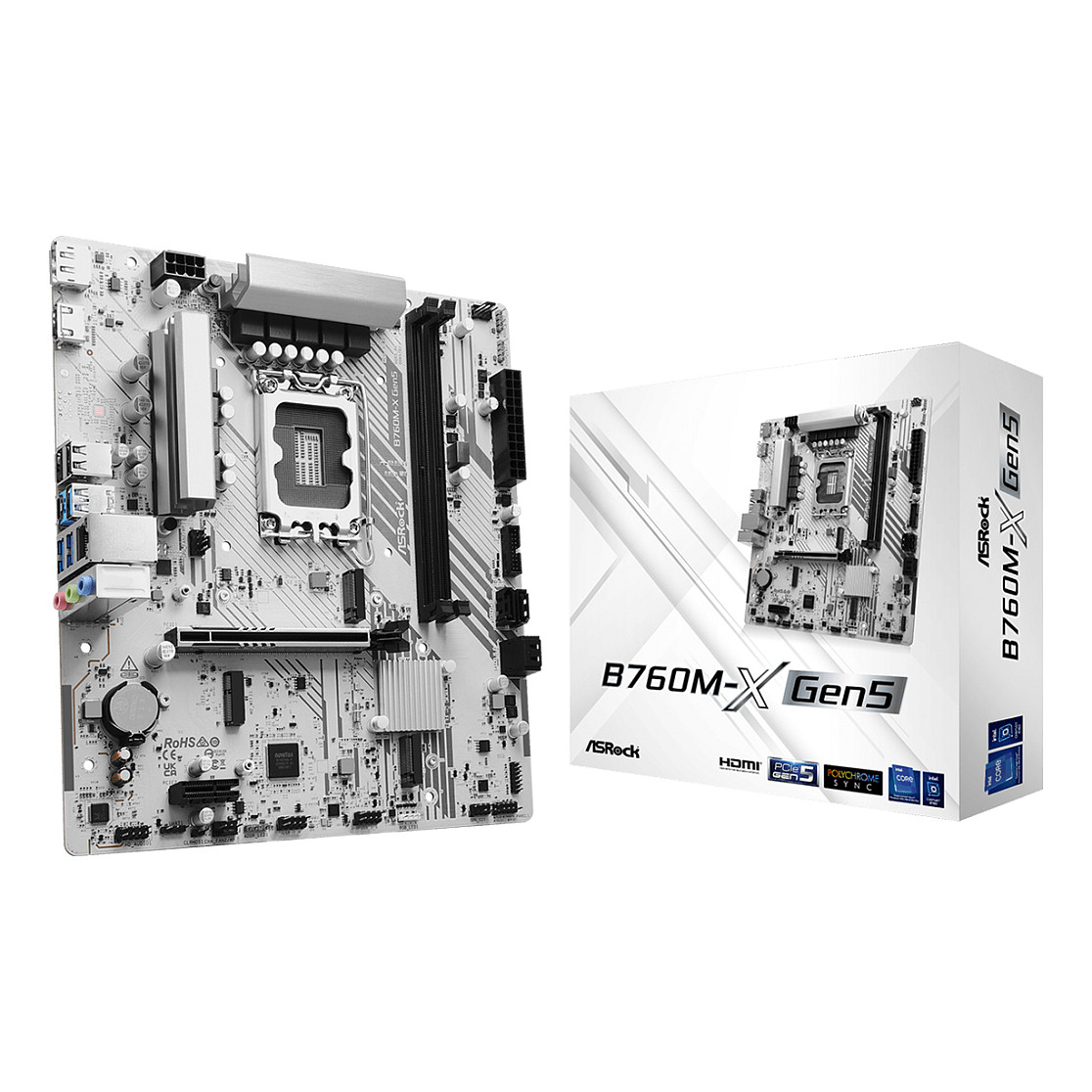

ASROCK B760M-X GEN5 Intel S1700 retail
Pre-Order
€105.99
VAT (19%) included
Description

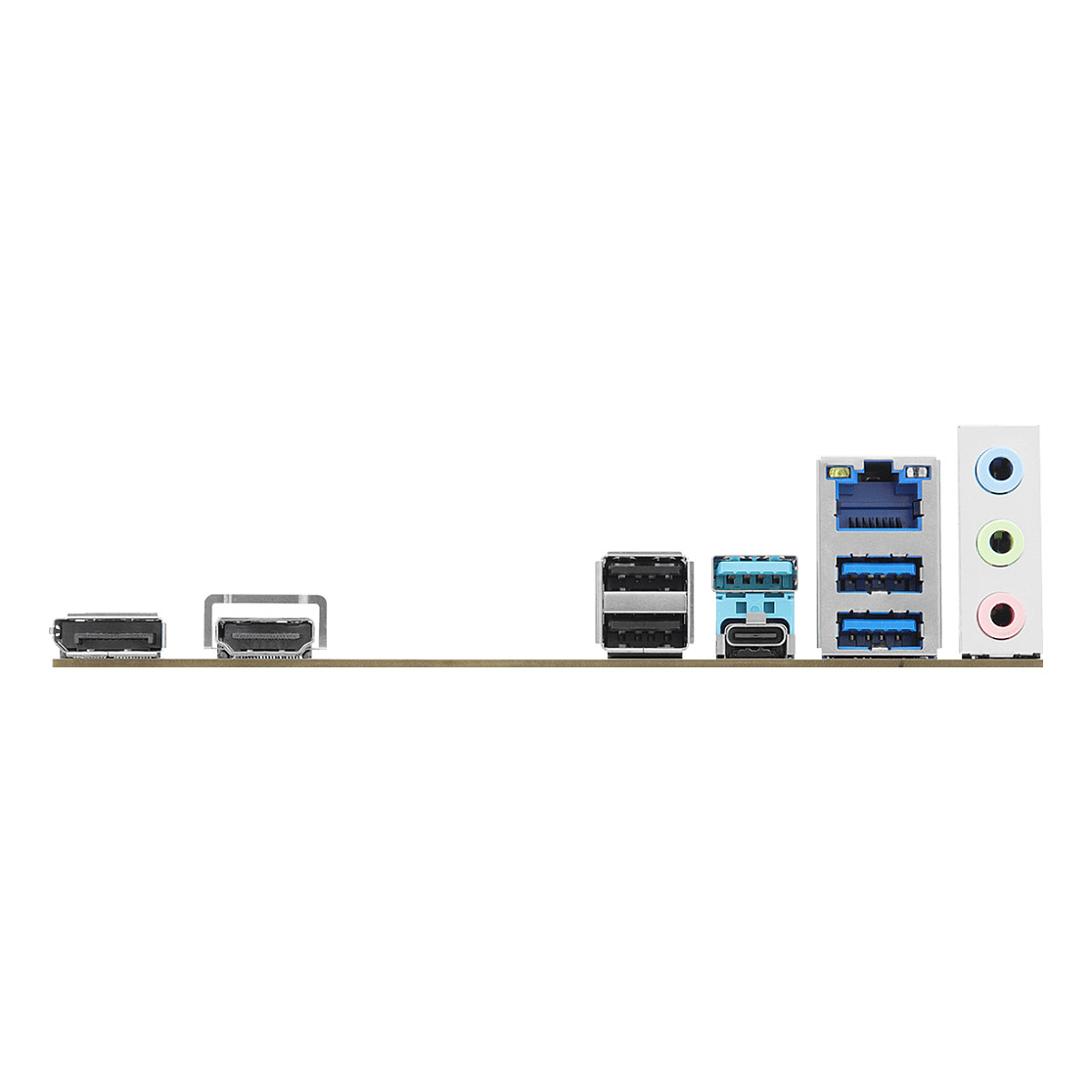

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 7+1+1 Power Phase 2 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC897 7.1 CH HD Audio Codec 1 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4) 4 SATA3 1 USB 3.2 Gen1 Type-C (Rear) 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front) Realtek 2.5G LAN
Technical Specifications
SKU
K90-MXBTR0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i3 13th Gen, Intel Core i3 12th Gen
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
SO-DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
7200 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
SATA III, M.2
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Width
244 mm
Depth
221 mm
Cables Included
SATA
