Gigabyte

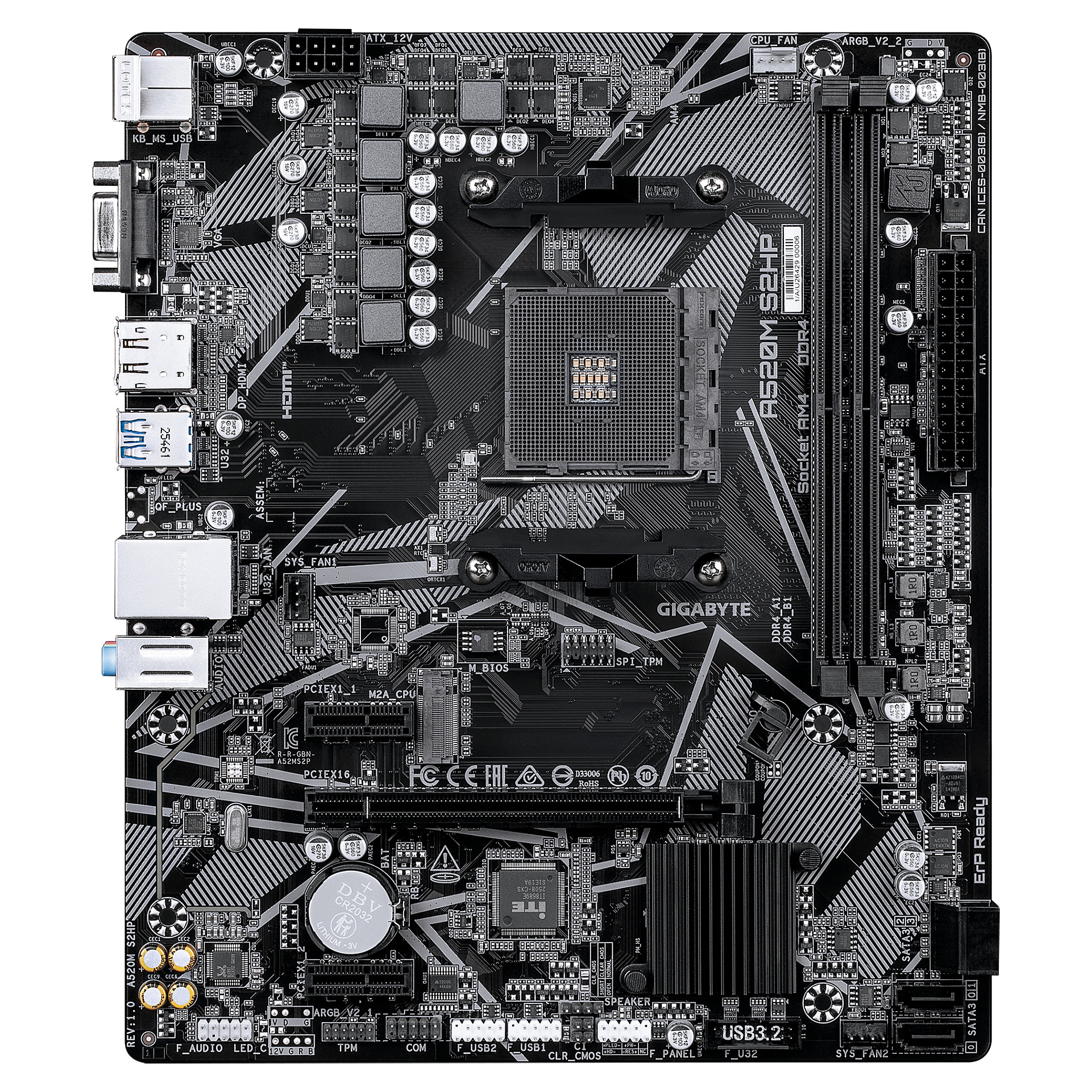

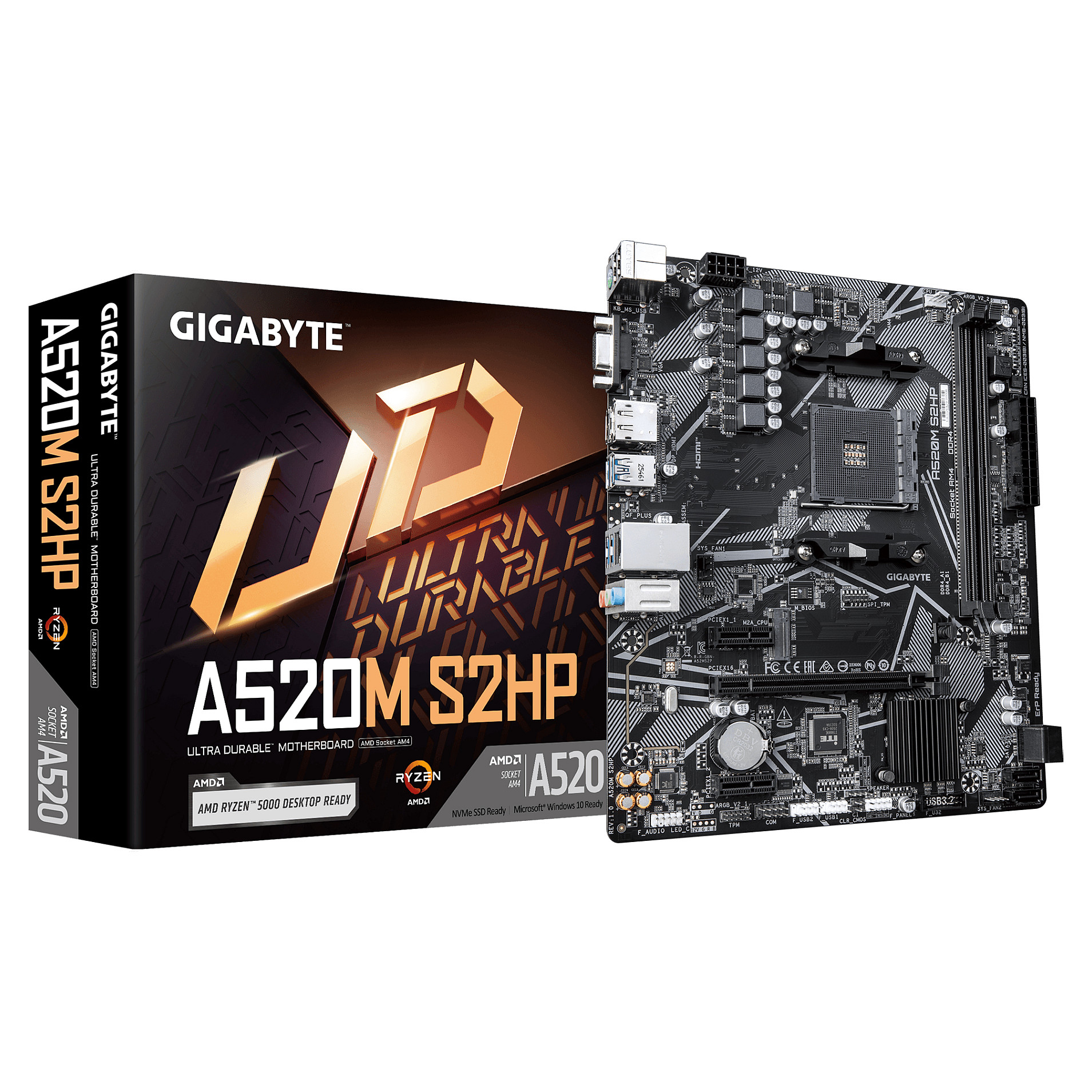

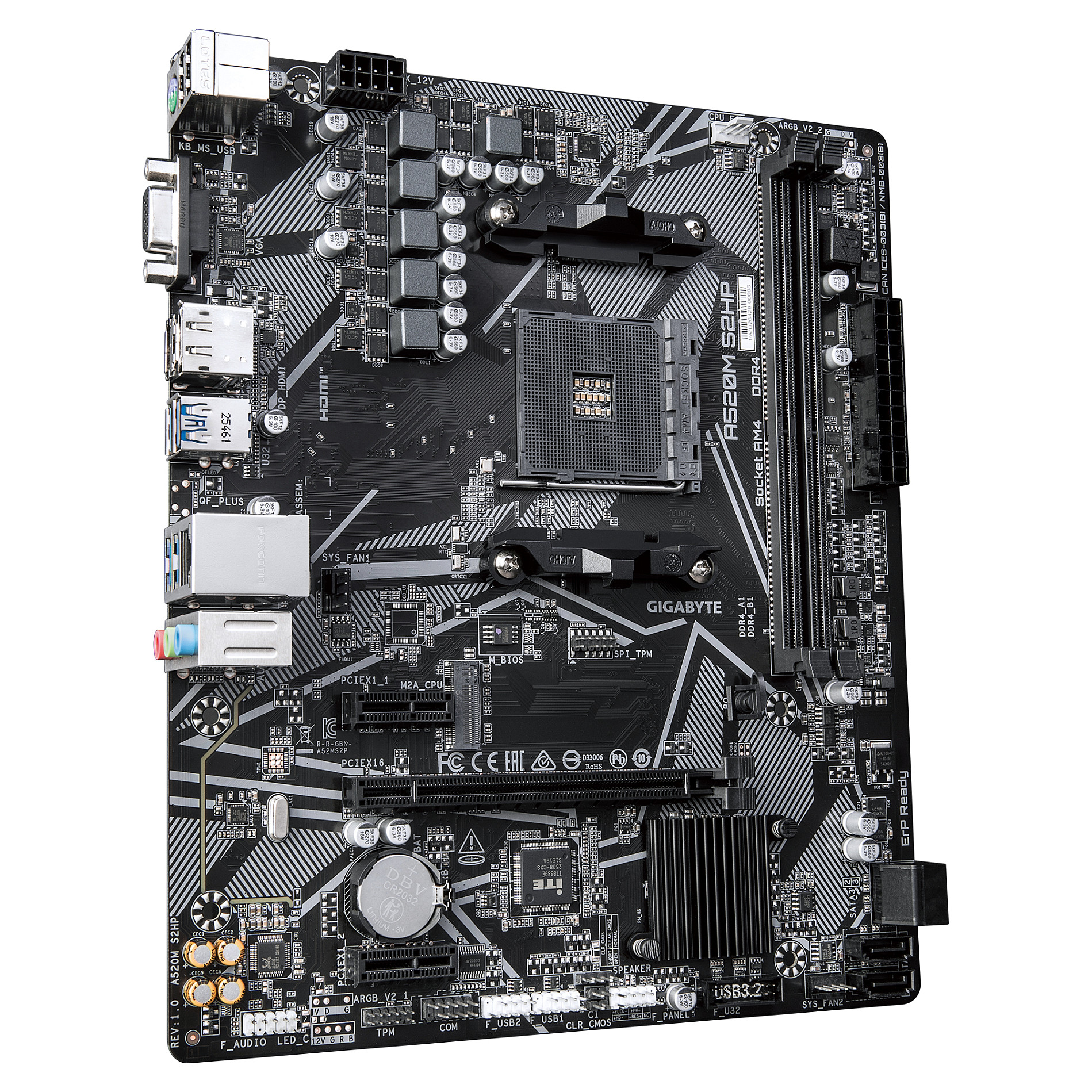

GIGABYTE A520M S2HP AM4 2xDDR4 D-sub HDMI DP M.2
Pre-Order
€69.99
VAT (19%) included
Description

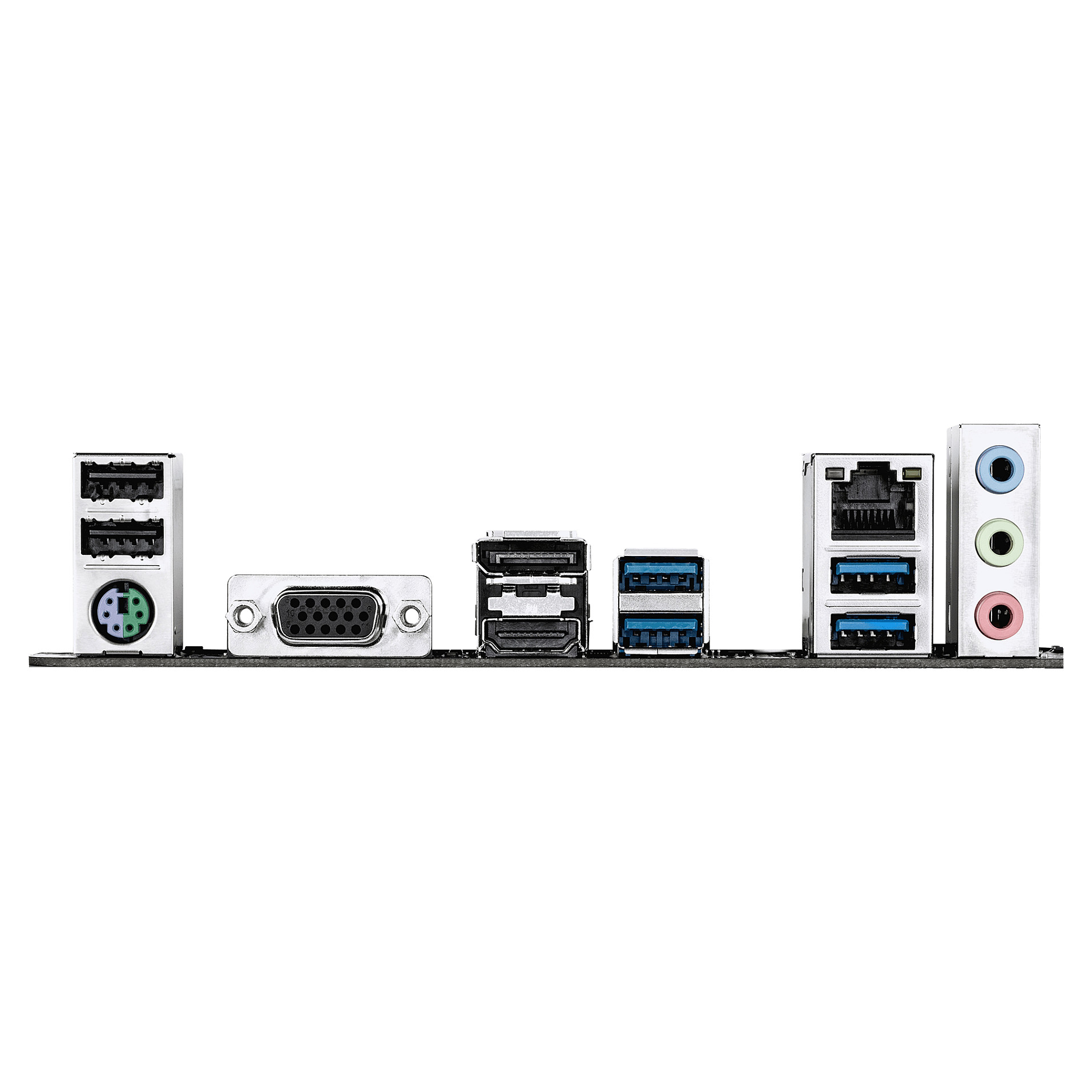

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs 4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector Fast Networks: GbE LAN HDMI, Display Port, D-sub Ports for Multiple Display Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design
Technical Specifications
SKU
KA520M S2HP
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3333, 3600, 4866 MHz
Supported Memory Clock Speed (Max)
3200 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Interfaces
M.2, PCI Express 3.0, SATA
Raid Levels
0, 1, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Motherboard Chipset
AMD A520
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Capacity
220 mAh
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
235 mm
Package Height
52 mm
Package Weight
772 g
Width
244 mm
Depth
205 mm
Height
35 mm
Warranty Period
3 year(s)
