ASUS

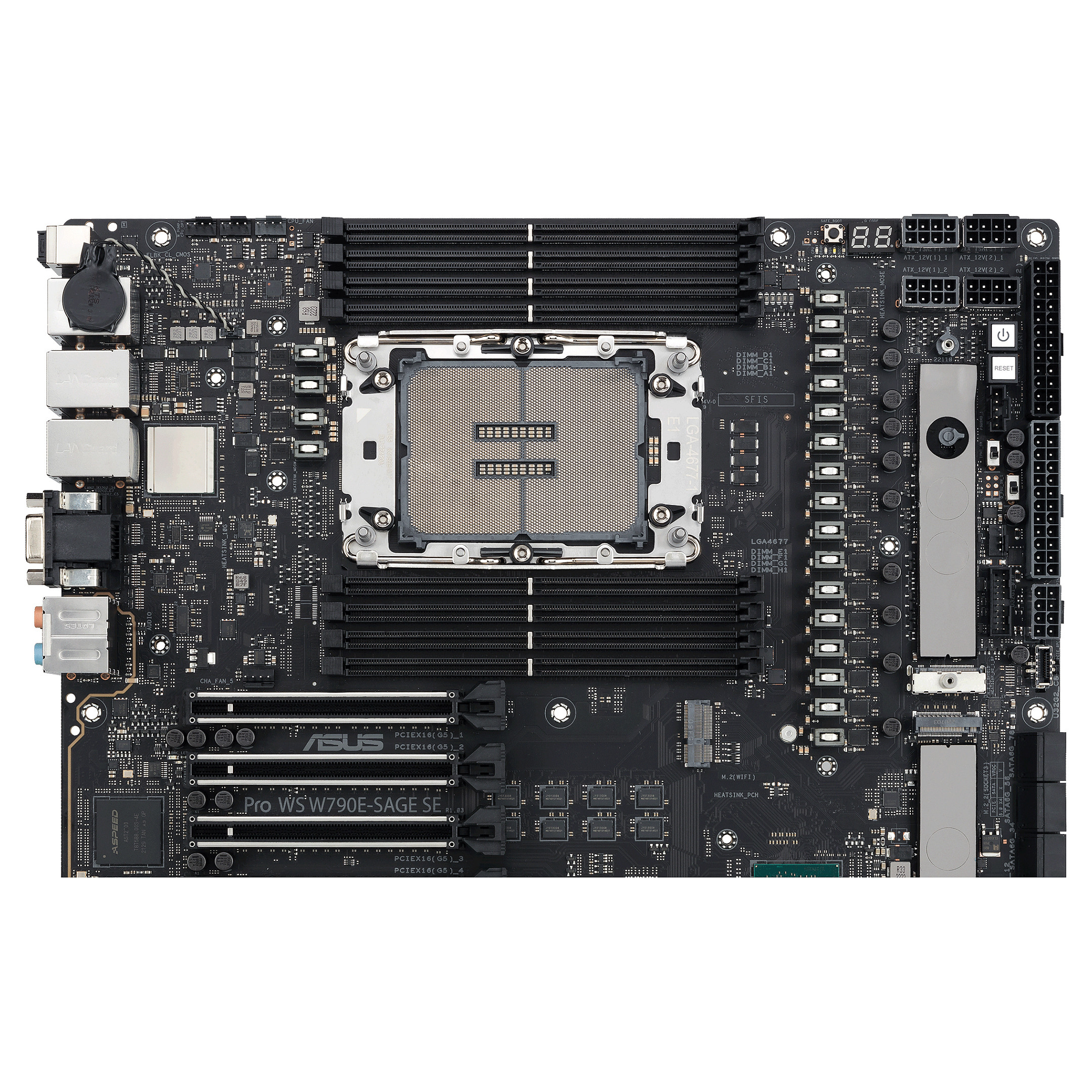

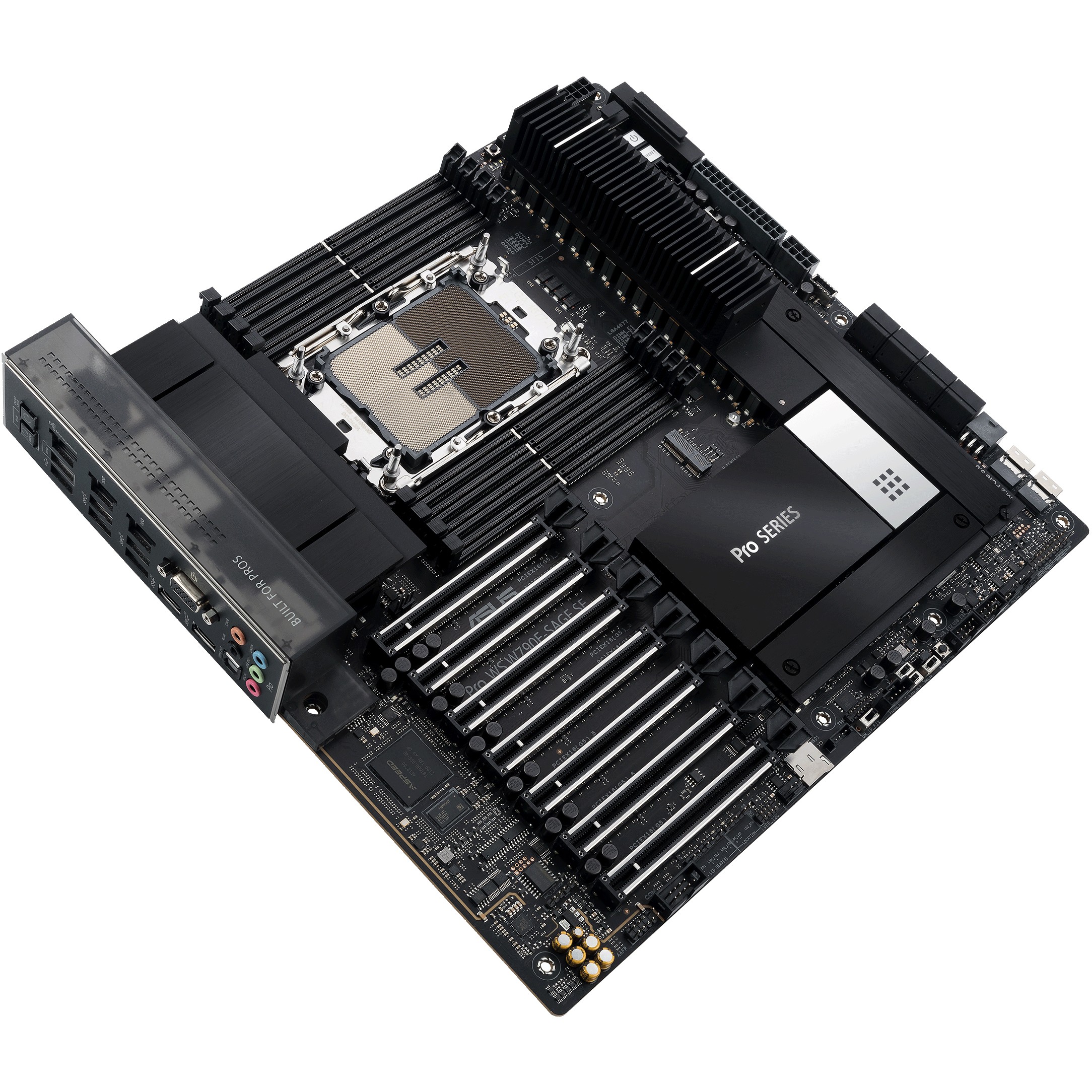

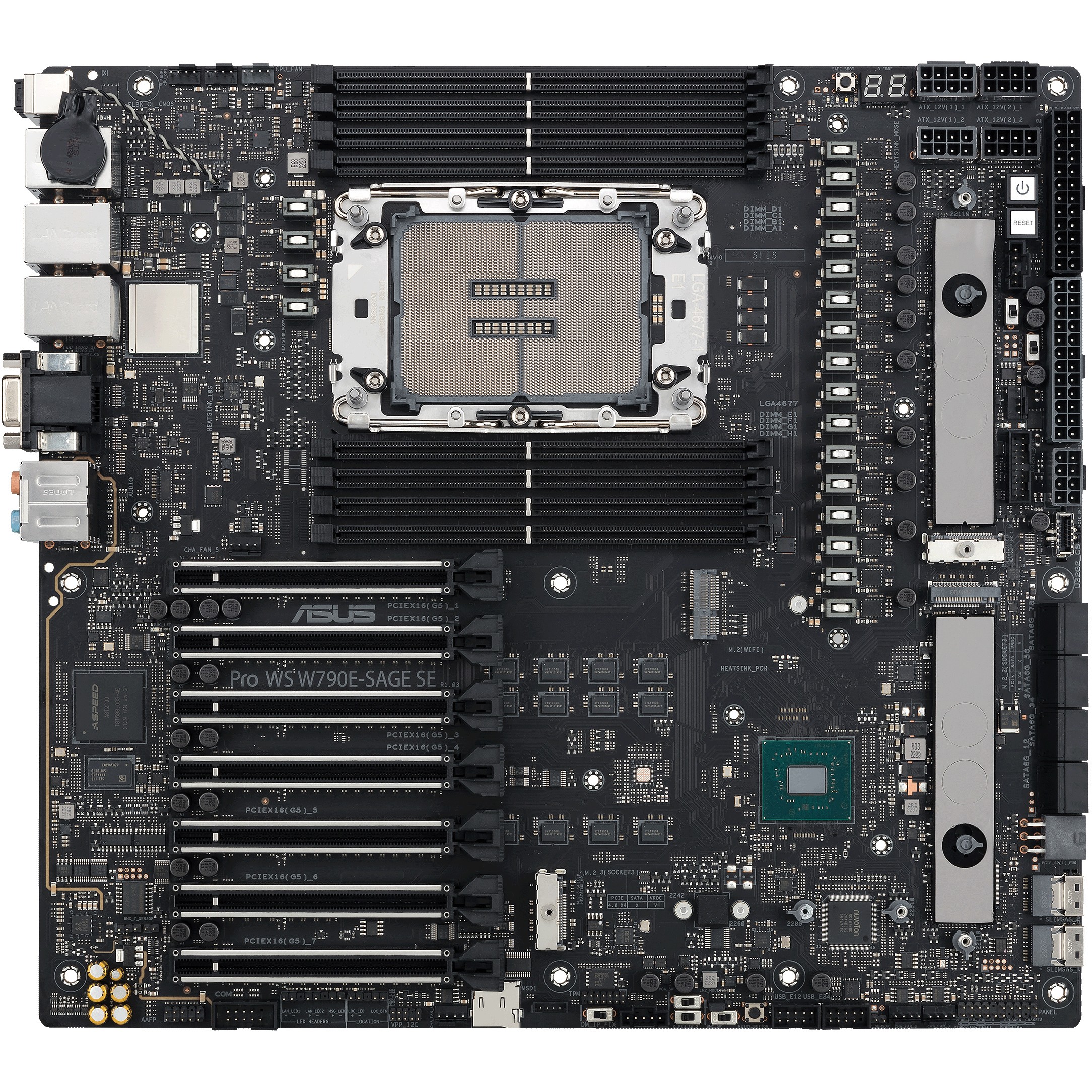

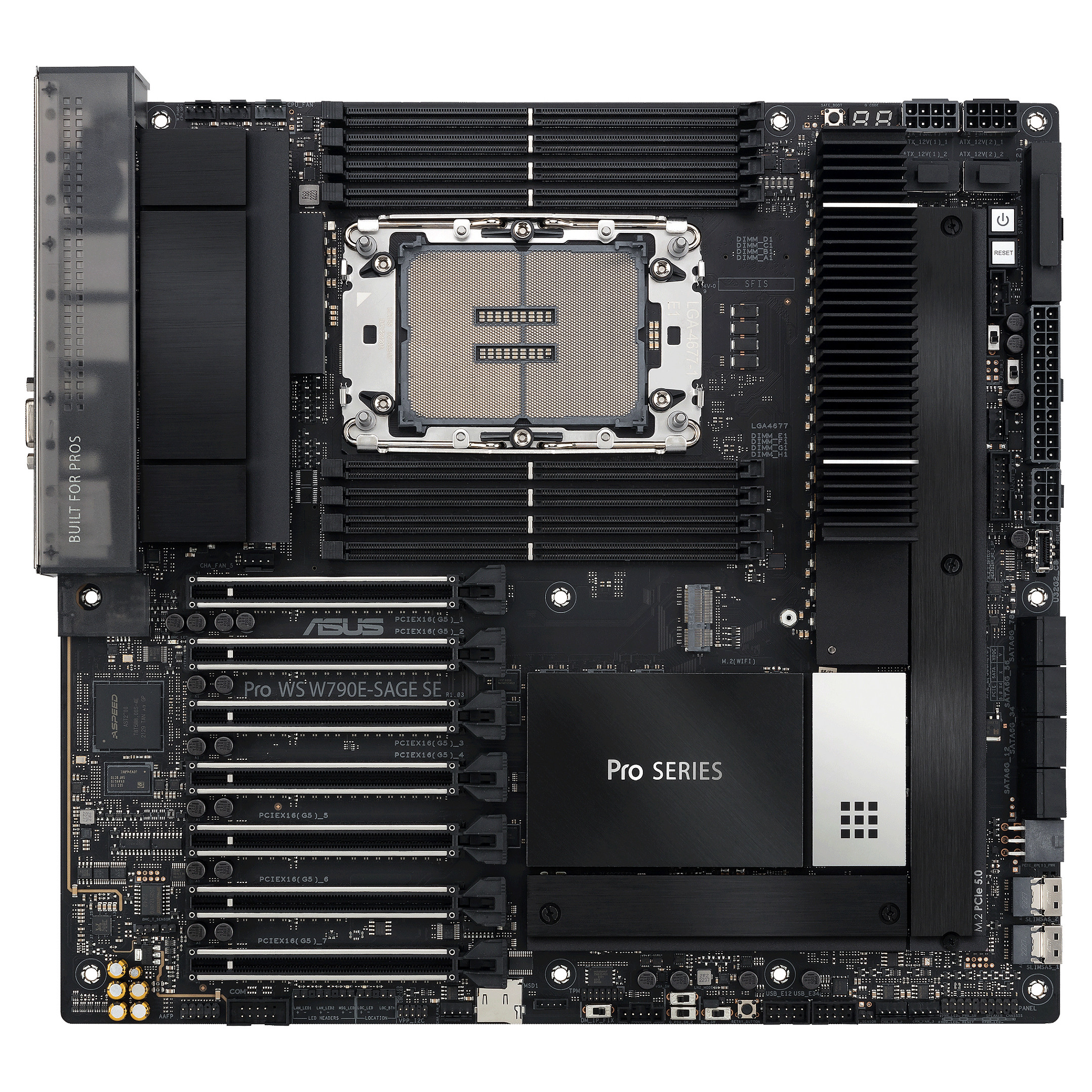

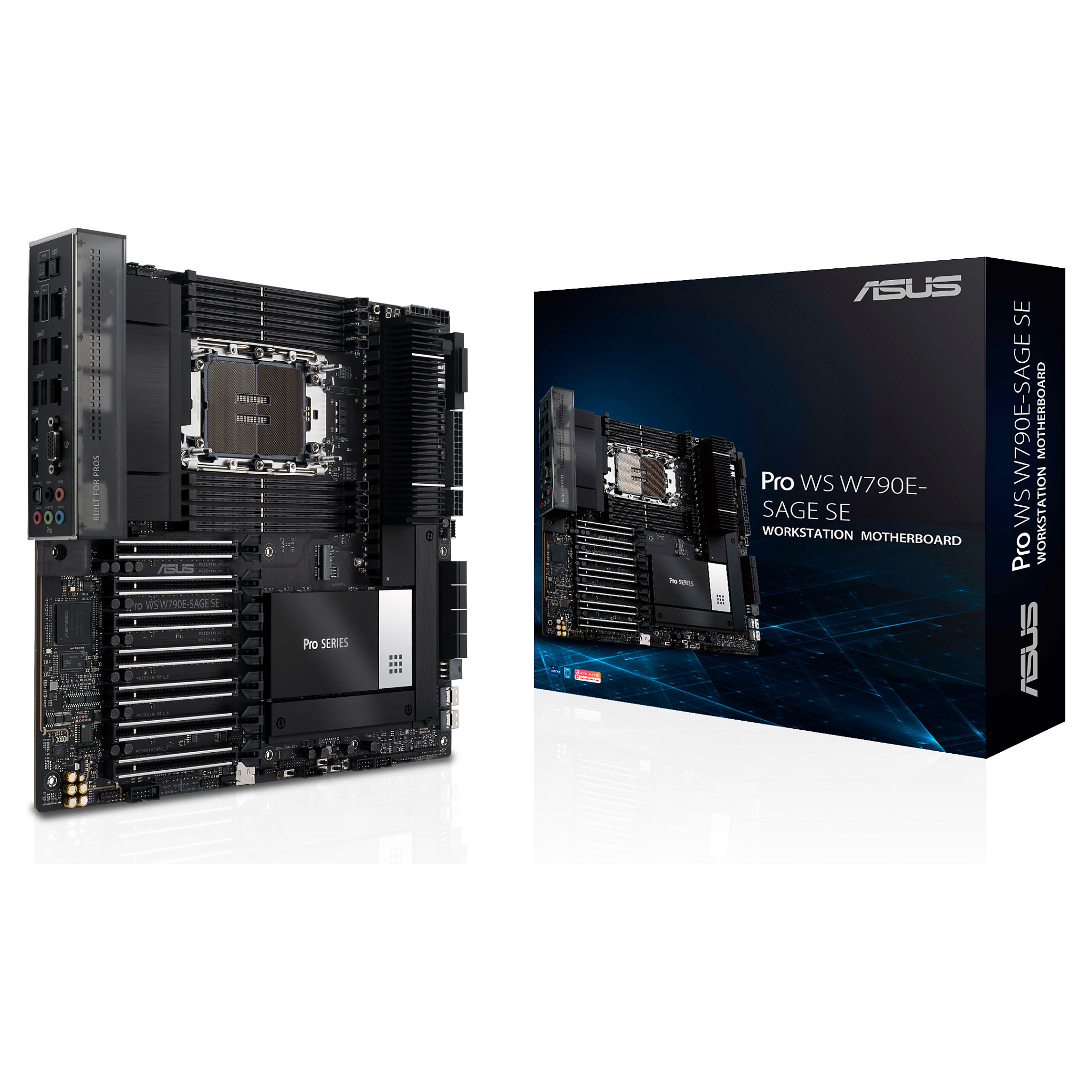

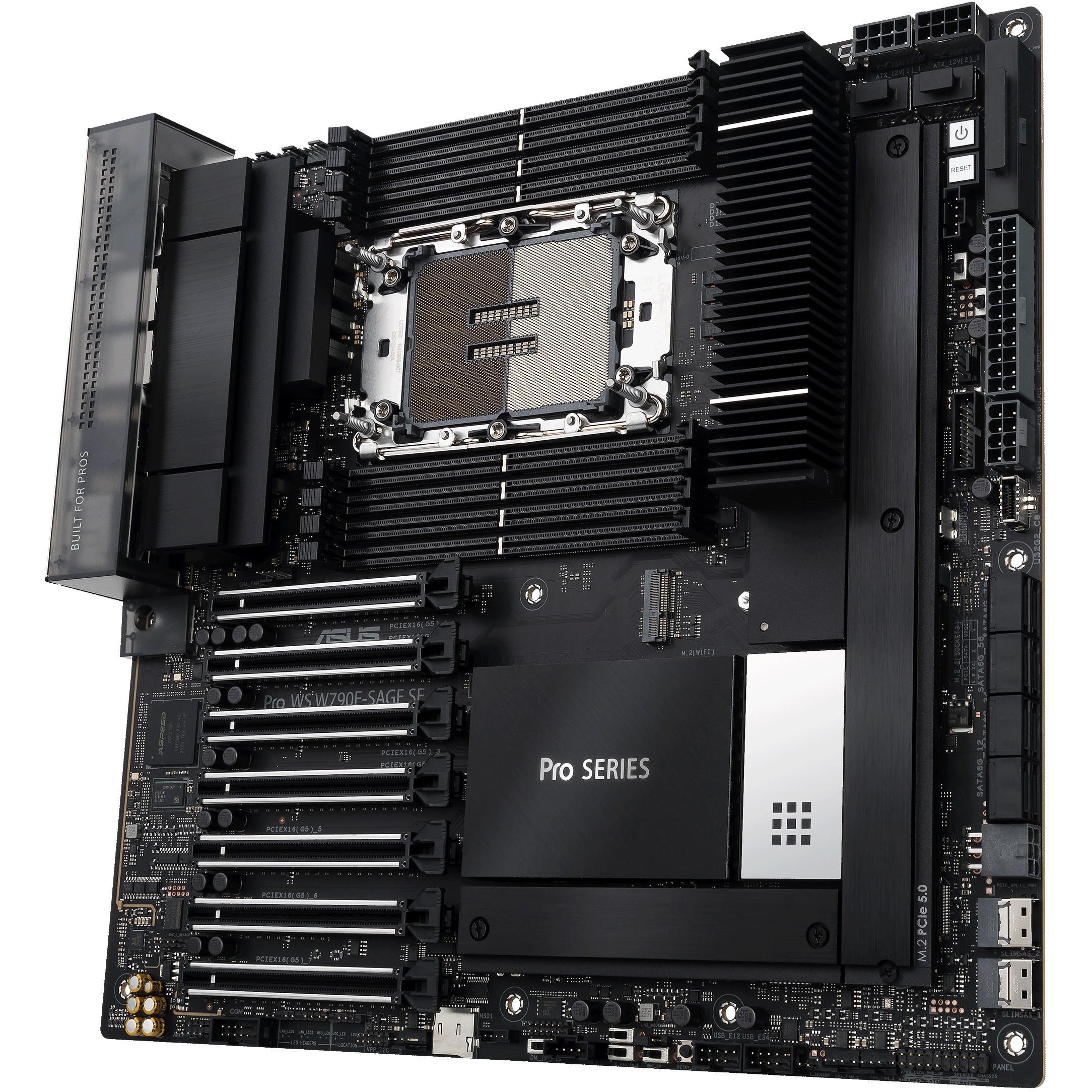

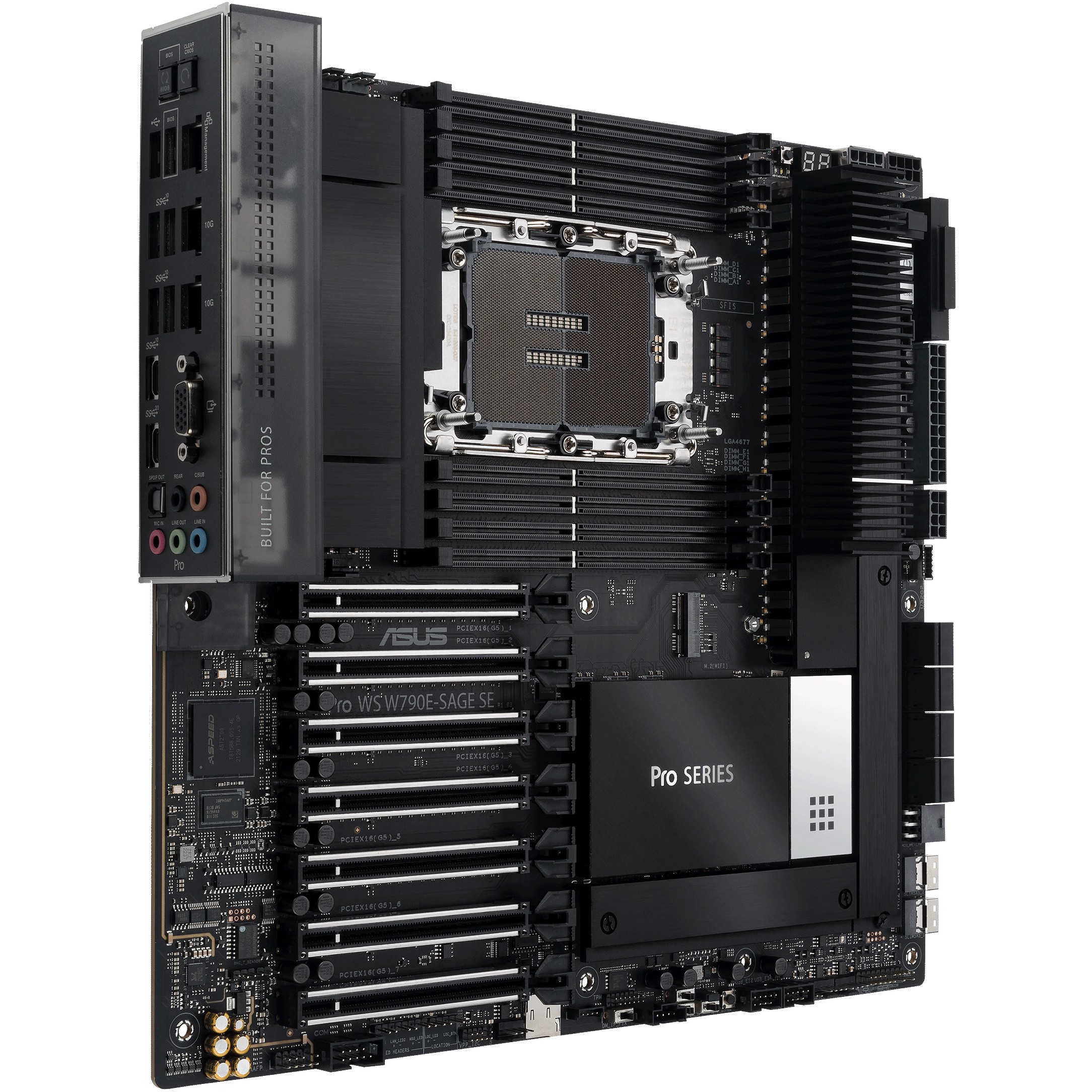

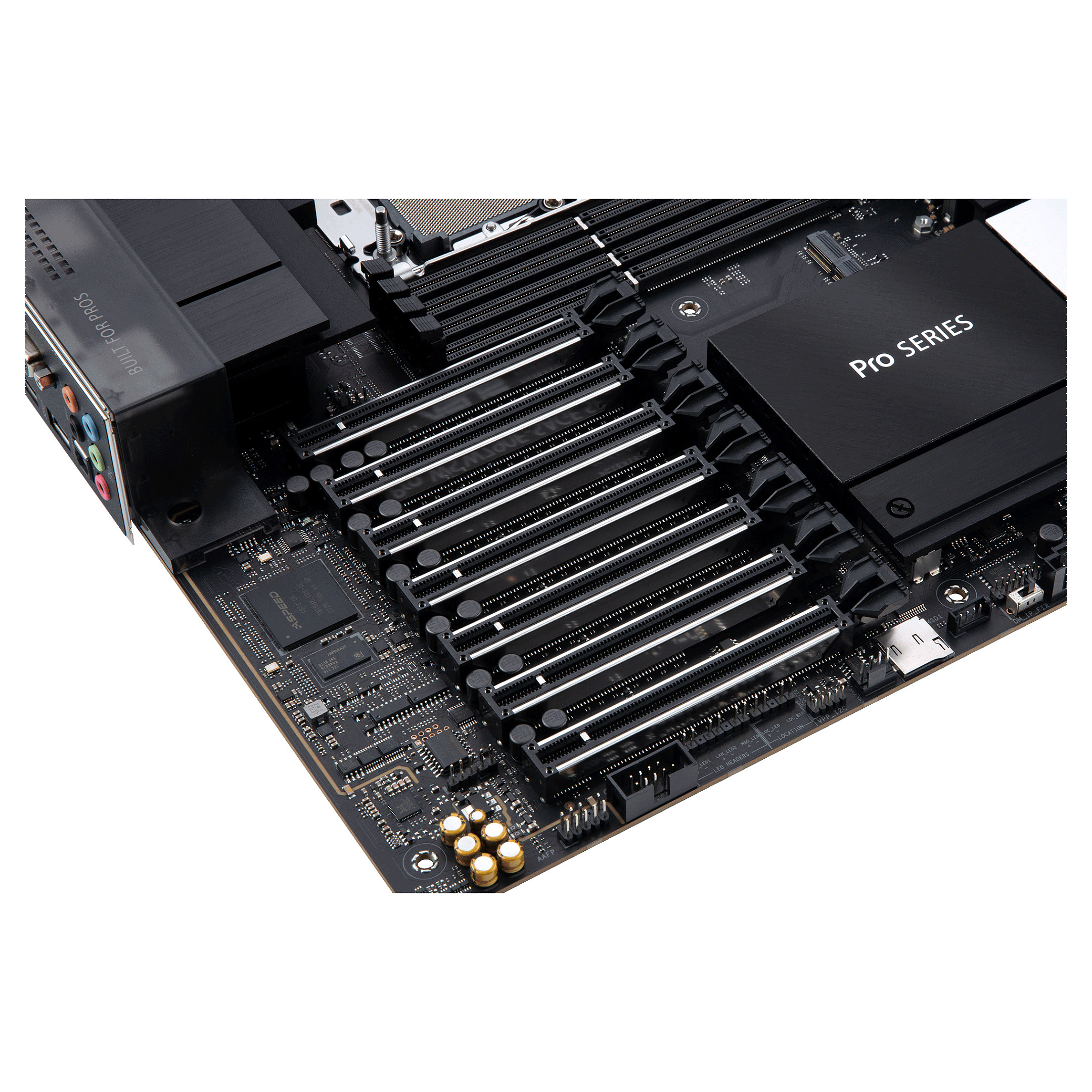

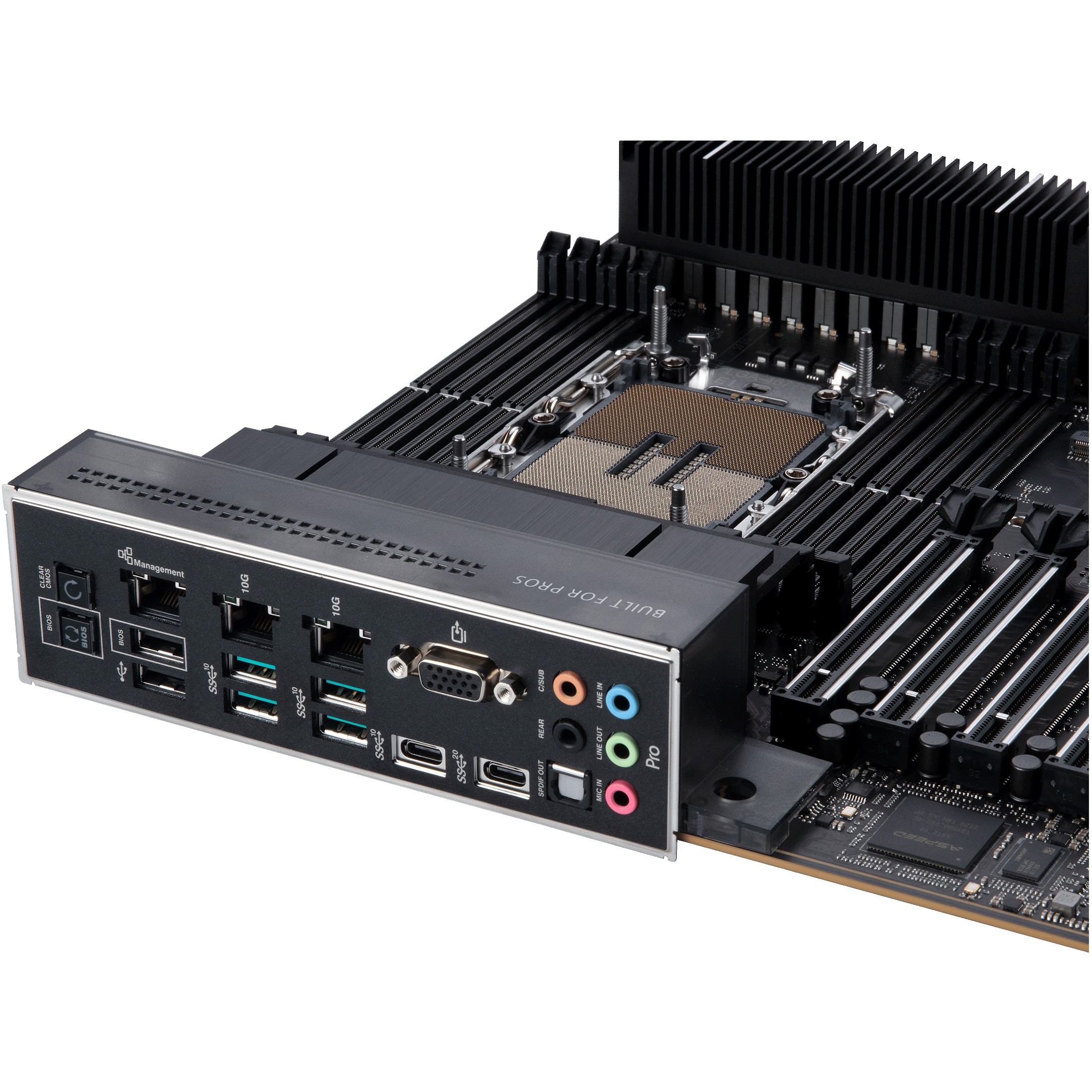

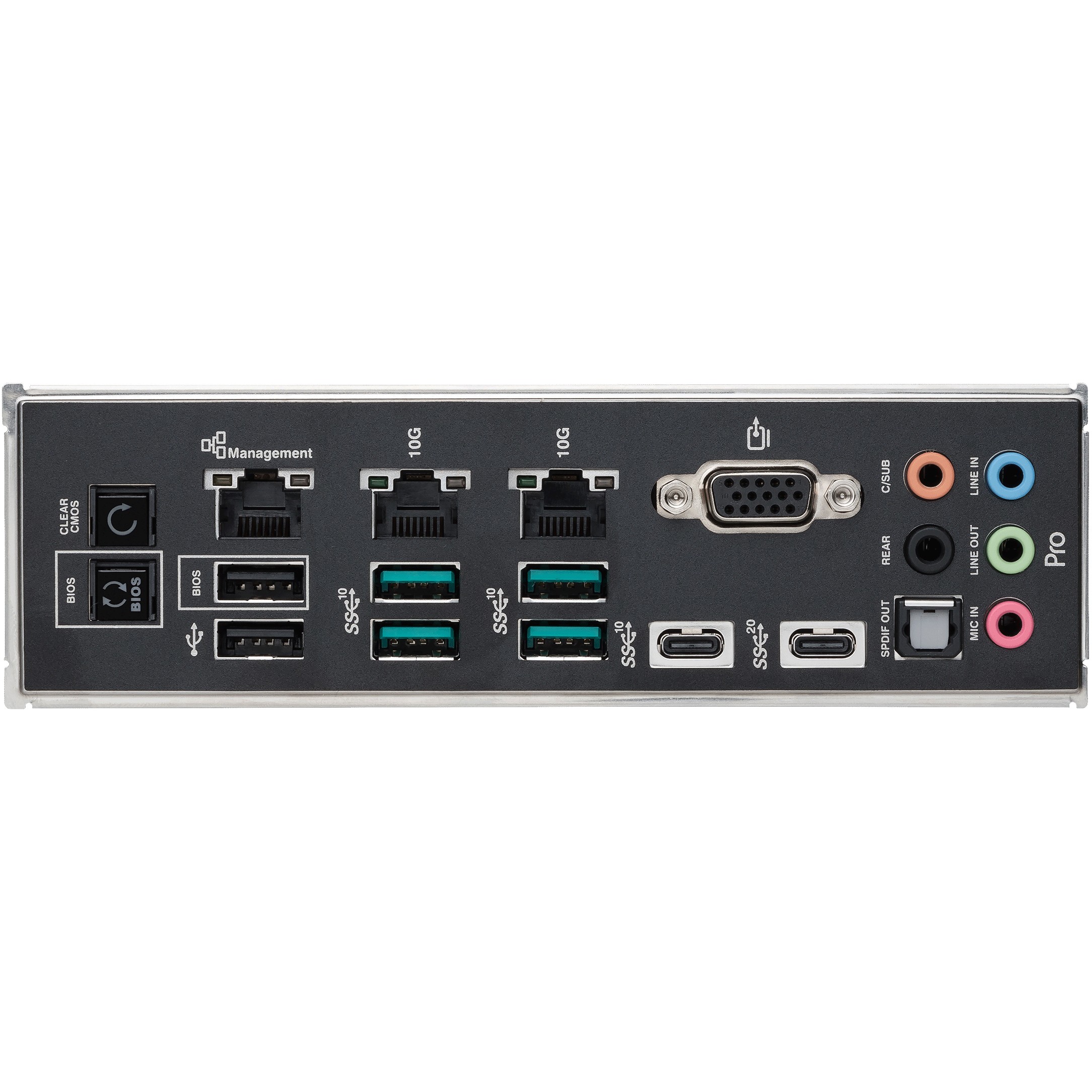

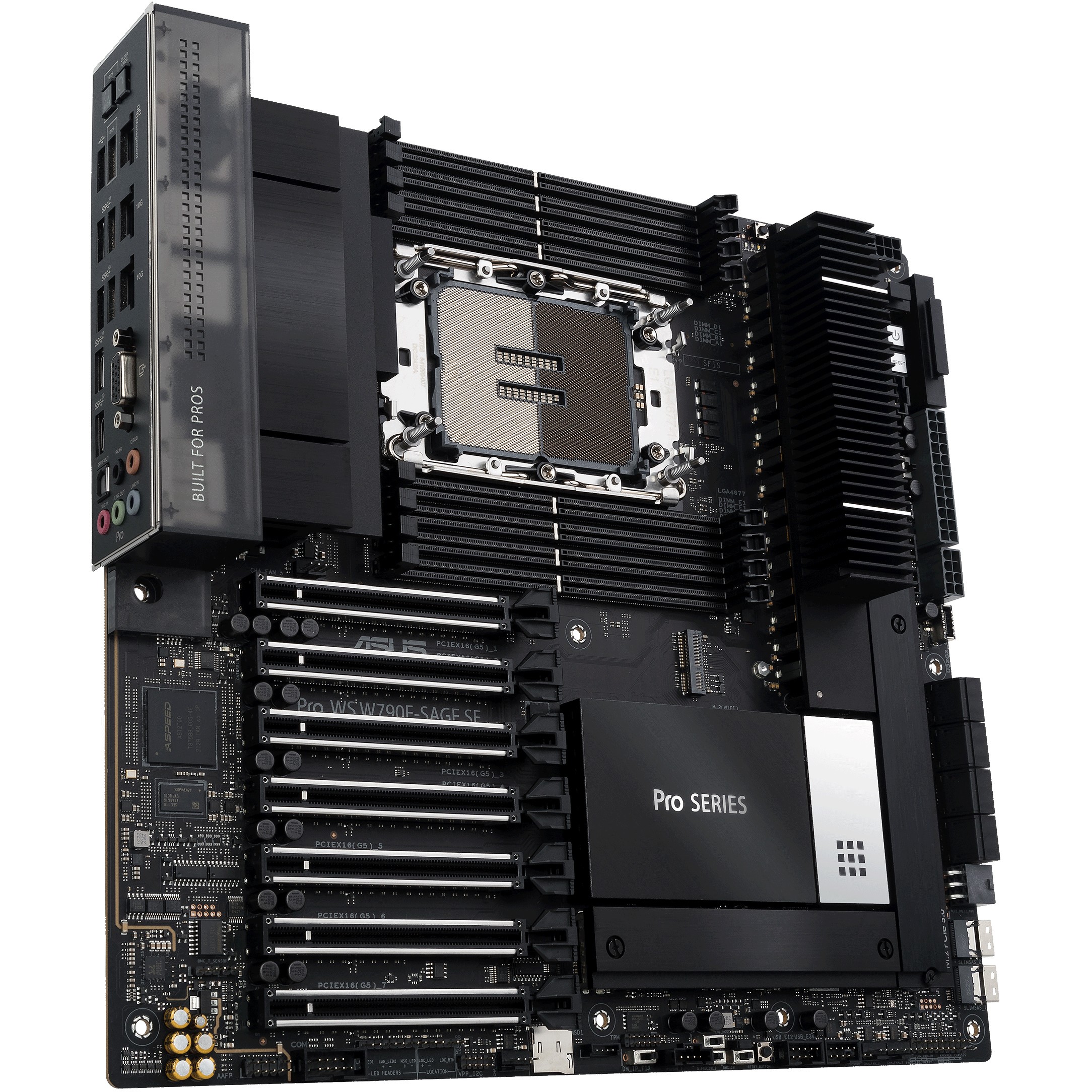

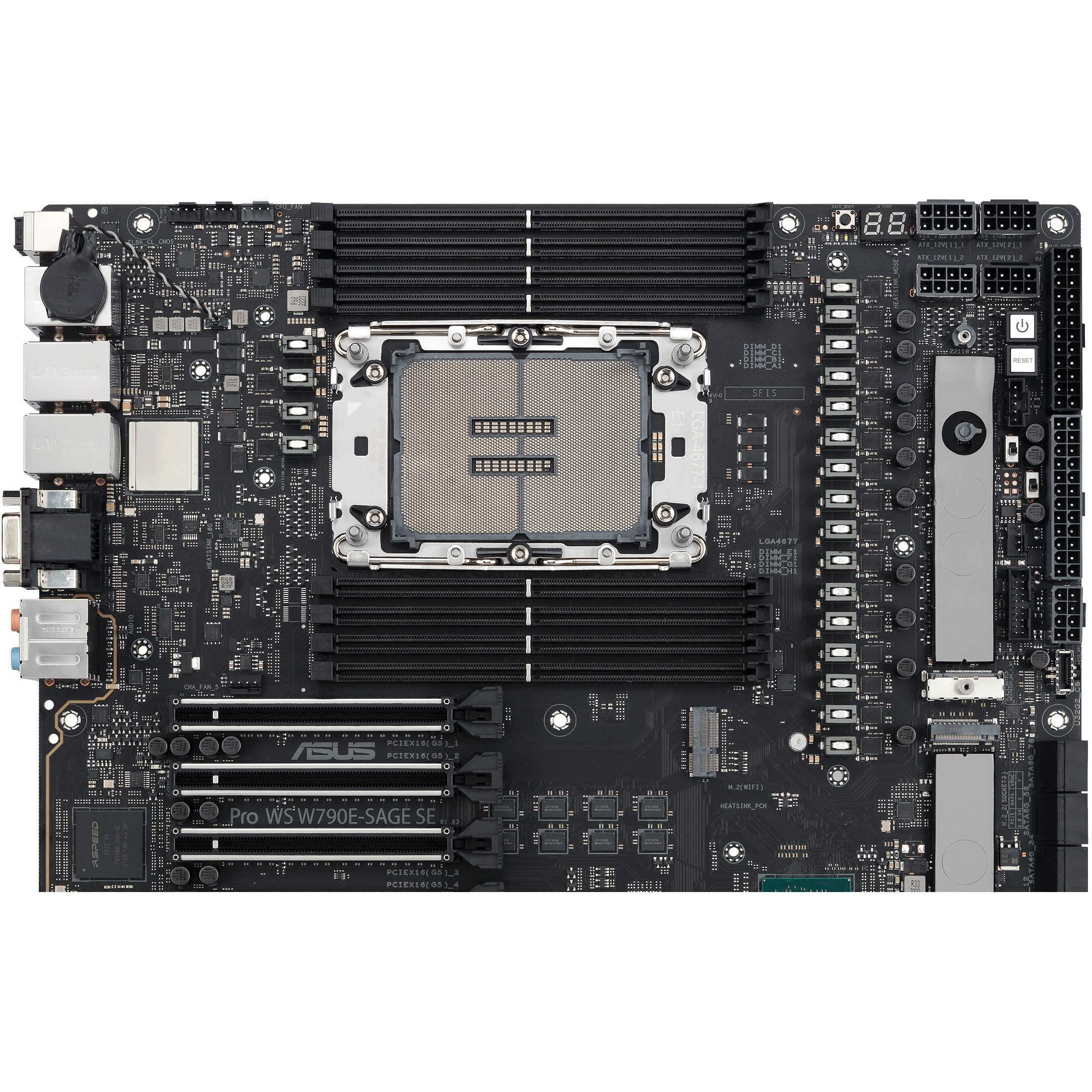

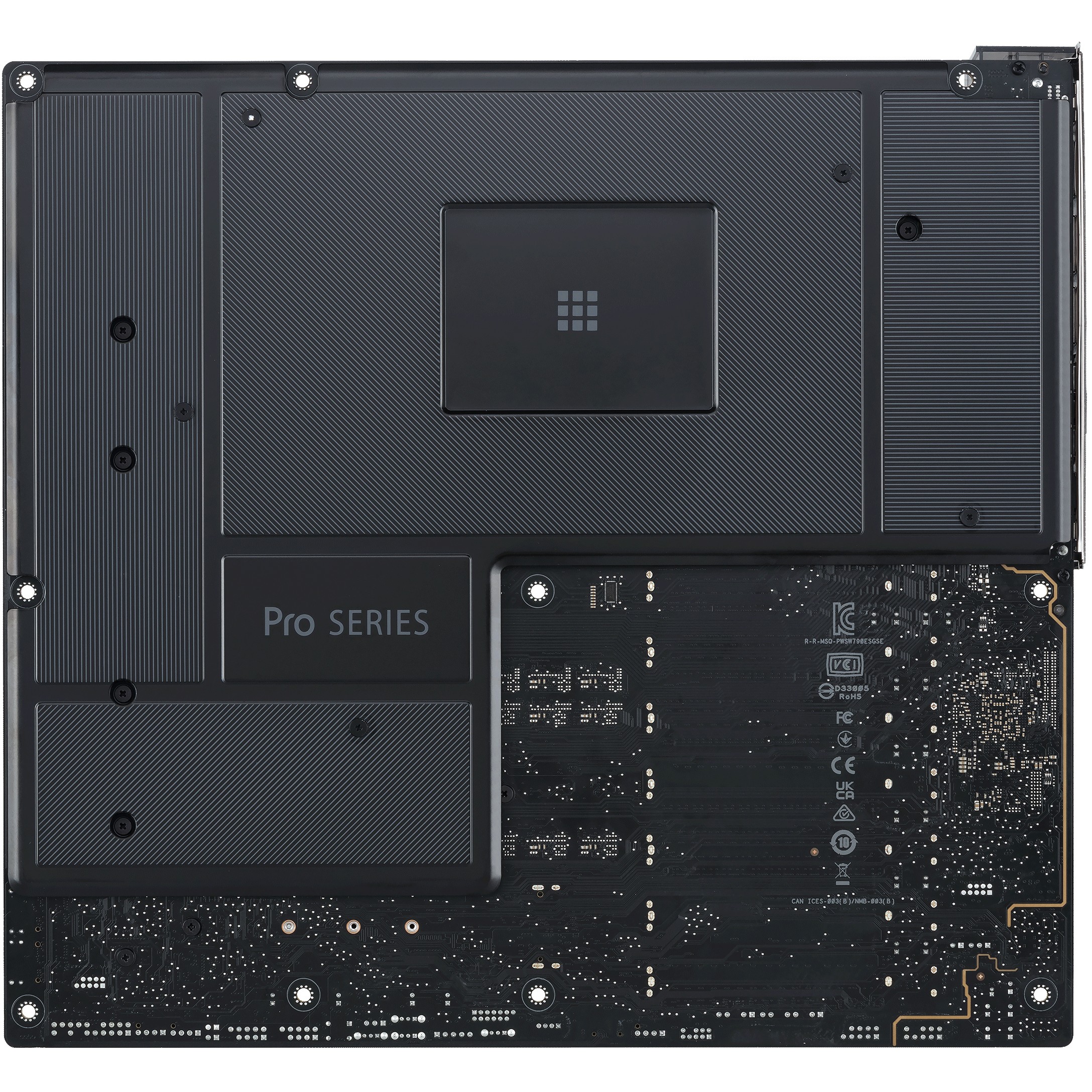

Asus LGA4677 Pro WS W790E-Sage SE
Pre-Order
€1301.99
VAT (19%) included
Description
Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC) Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Technical Specifications
SKU
K90MB1C20-M0EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 4677 (Socket E)
Compatible Processor Series
Intel Xeon W
Intel Xeon Series
W-2400, W-3400
Supported Processor Sockets
LGA 4677 (Socket E)
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
8
Memory Slots Type
DIMM
Memory Channels
Octa-channel
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz
Supported Memory Clock Speed (Max)
6800 MHz
Maximum Internal Memory
2 TB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
SlimSAS, M.2, SATA III
Number Of Hdds Supported
10
Number Of Storage Drives Supported
13
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
8
Number Of Chassis Fan Connectors
5
Number Of Com Connectors
1
Integrated Sas Ports
2
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
3
Vga (D-Sub) Ports Quantity
1
Headphone Outputs
1
Ethernet Interface Type
10 Gigabit Ethernet, Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel W790
Audio Chip
Realtek S1220A
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
Workstation
Motherboard Form Factor
EEB
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X16 (Gen 5.X) Slots
7
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
512 Mbit
Package Width
379 mm
Package Depth
362 mm
Package Height
81 mm
Package Weight
2.99 kg
Width
305 mm
Depth
330 mm
Cables Included
SATA
Number Of M.2 (E) Slots
1
