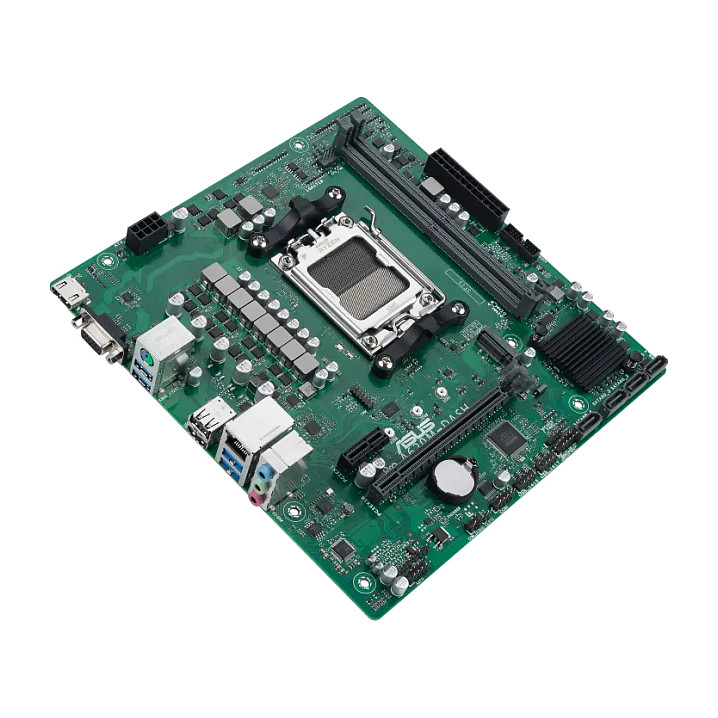

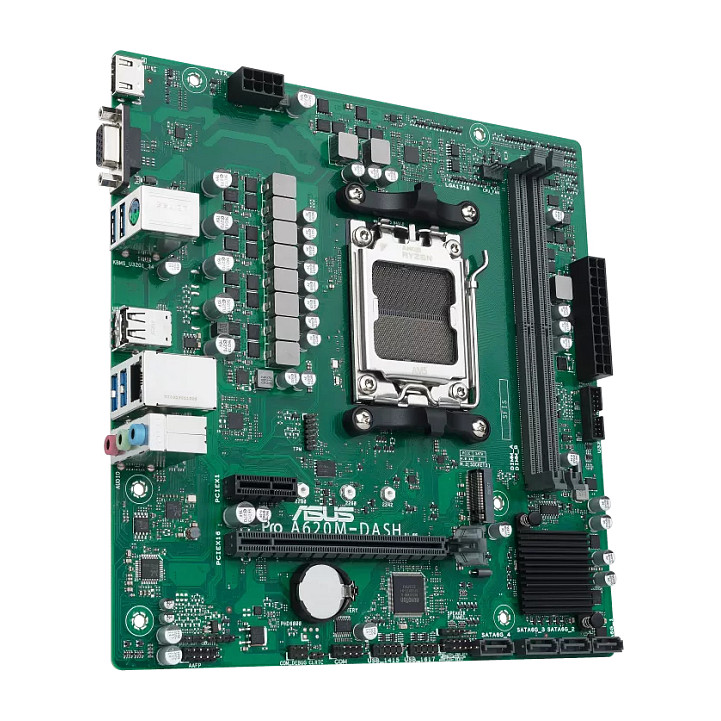

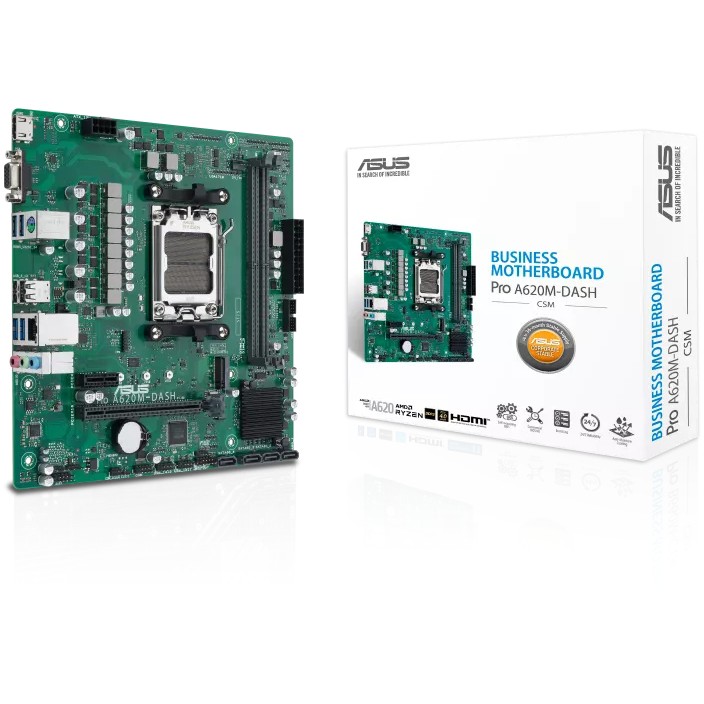

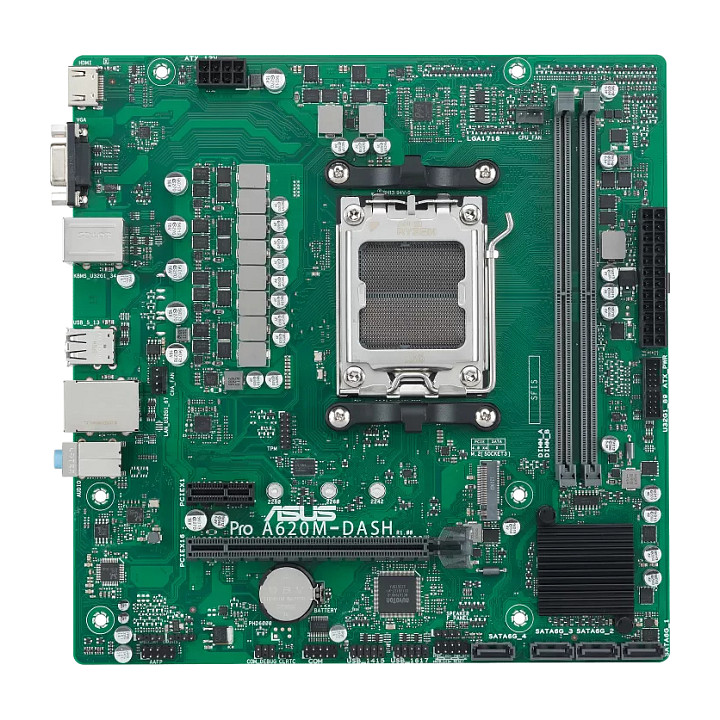

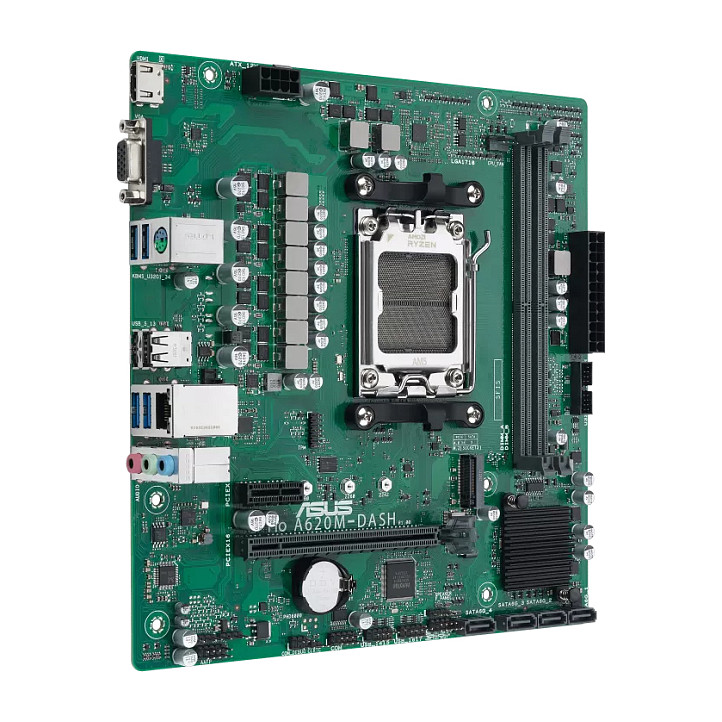

AM5 ASUS PRO A620M-DASH-CSM mATX
Pre-Order
€126.99
VAT (19%) included
Description
AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series Desktop processors ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software ASUS Control Center Express for business motherboards Remote IT management: DASH hardware ready for capable of DASH software Enhanced system security: A self-recovering BIOS Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Technical Specifications
SKU
K90MB1GD0-M0EAYC
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Supported Memory Clock Speed (Max)
7200 MHz
Maximum Internal Memory
96 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
1
Number Of Com Connectors
1

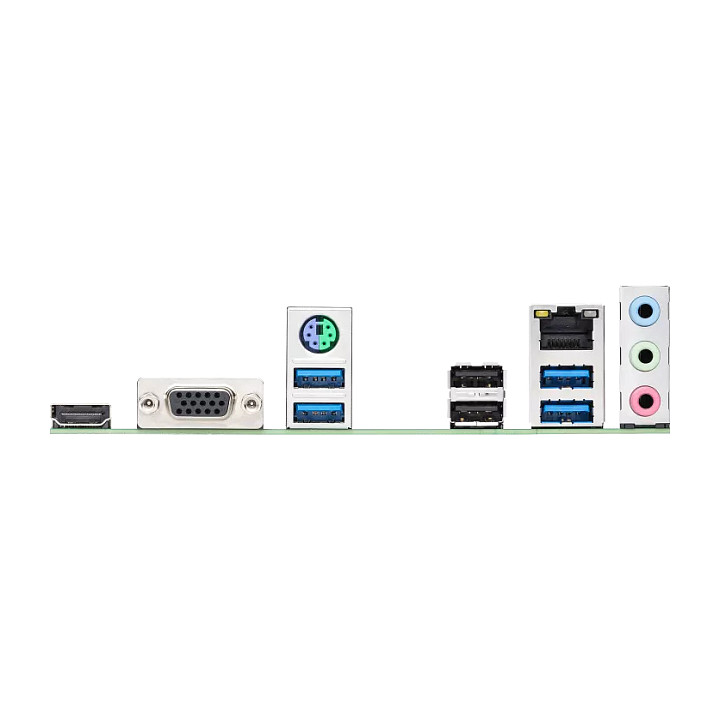

Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek 8111EPV
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD A620
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
280 mm
Package Depth
265 mm
Package Height
71 mm
Width
226 mm
Depth
221 mm
Cables Included
SATA
