ASRock

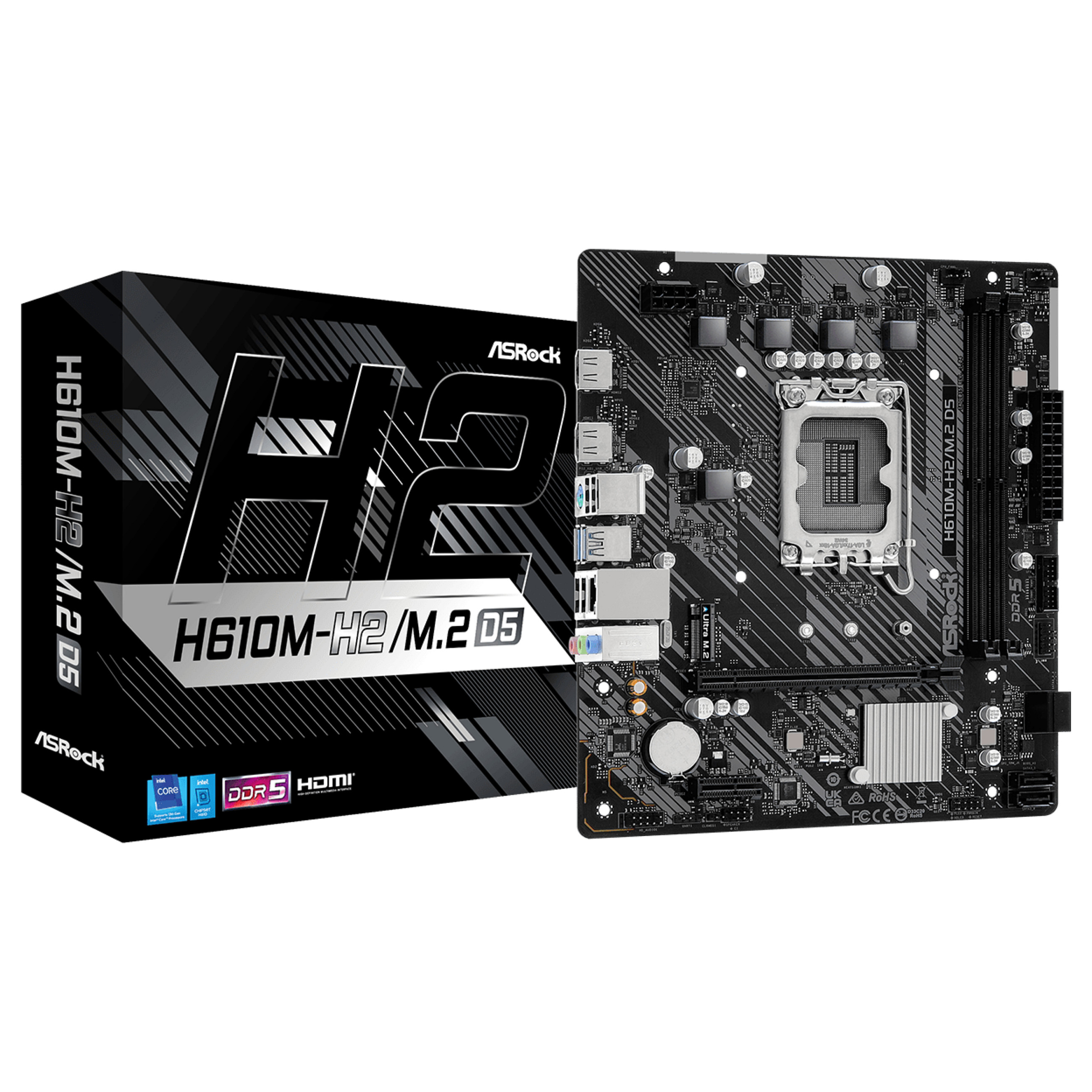

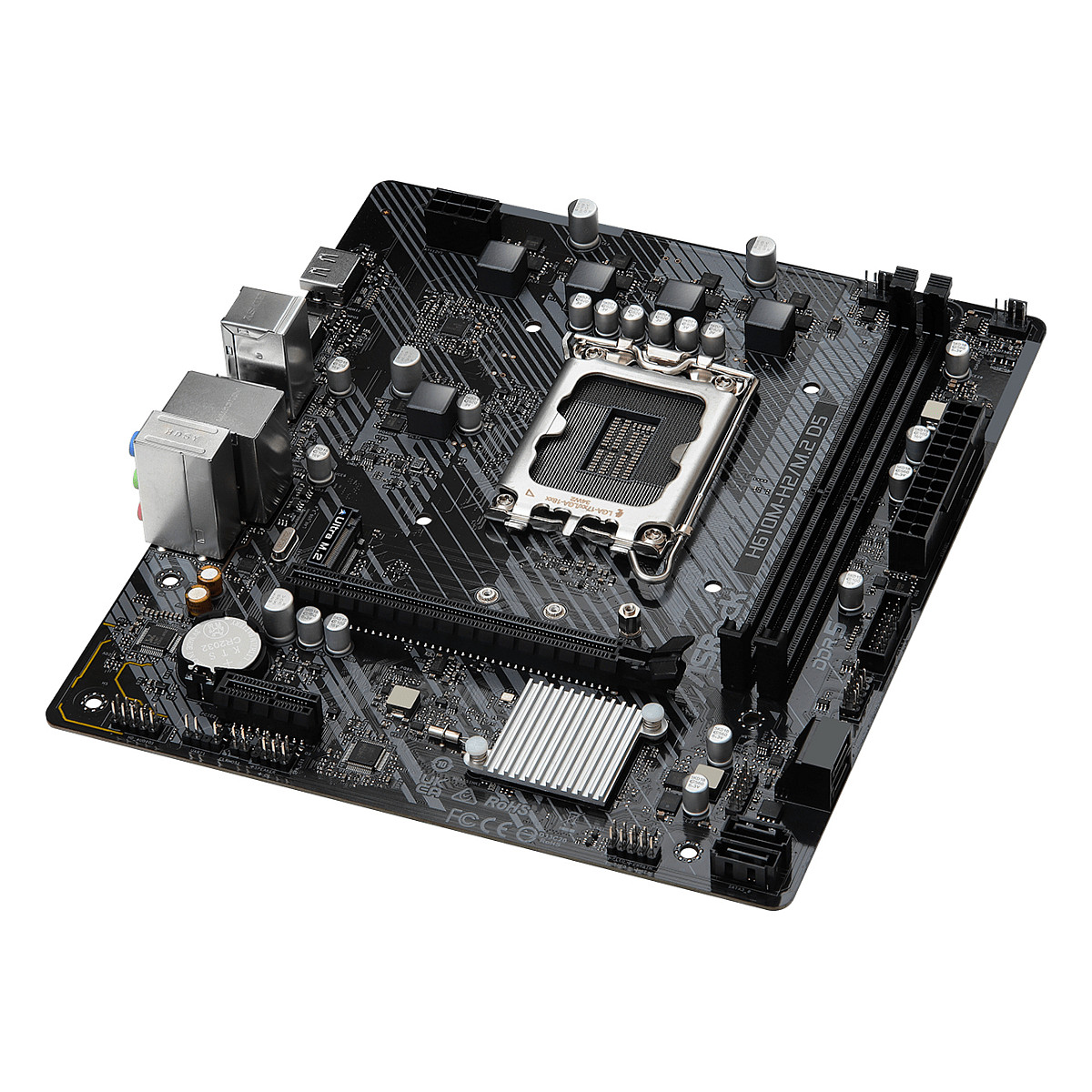

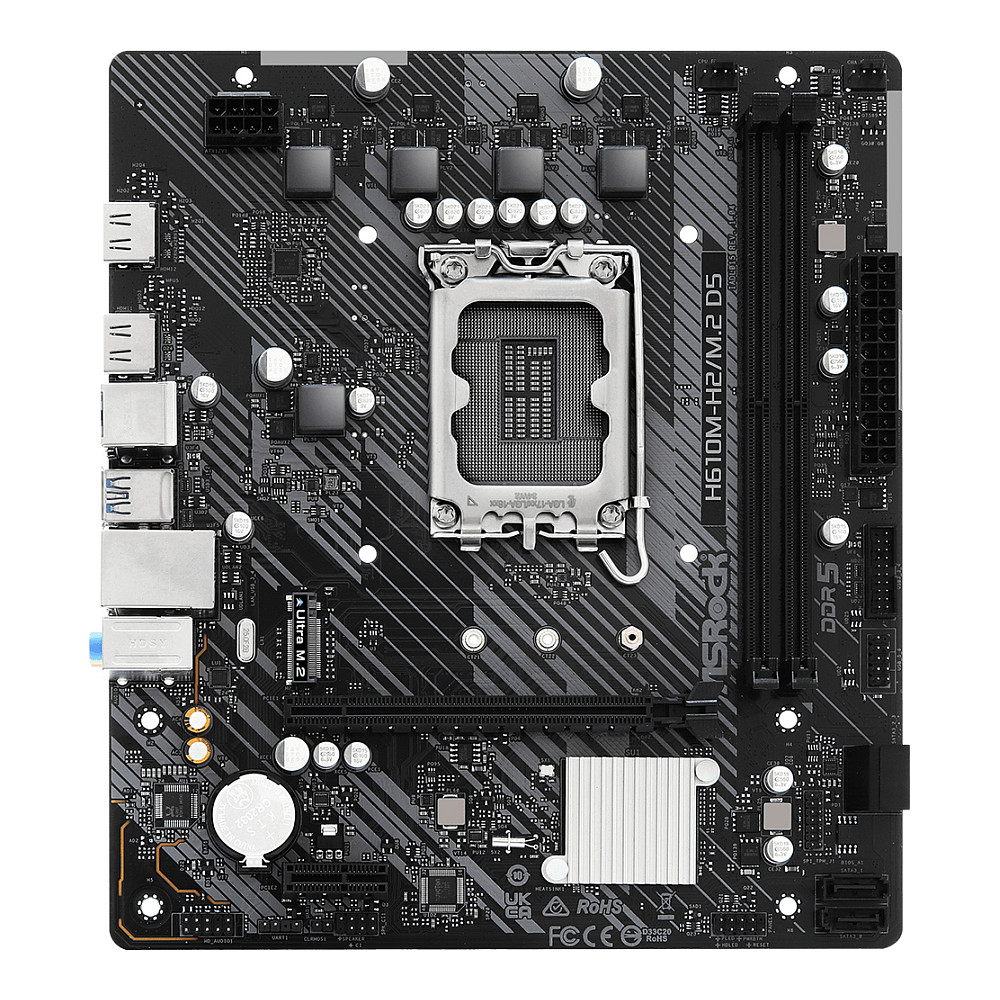

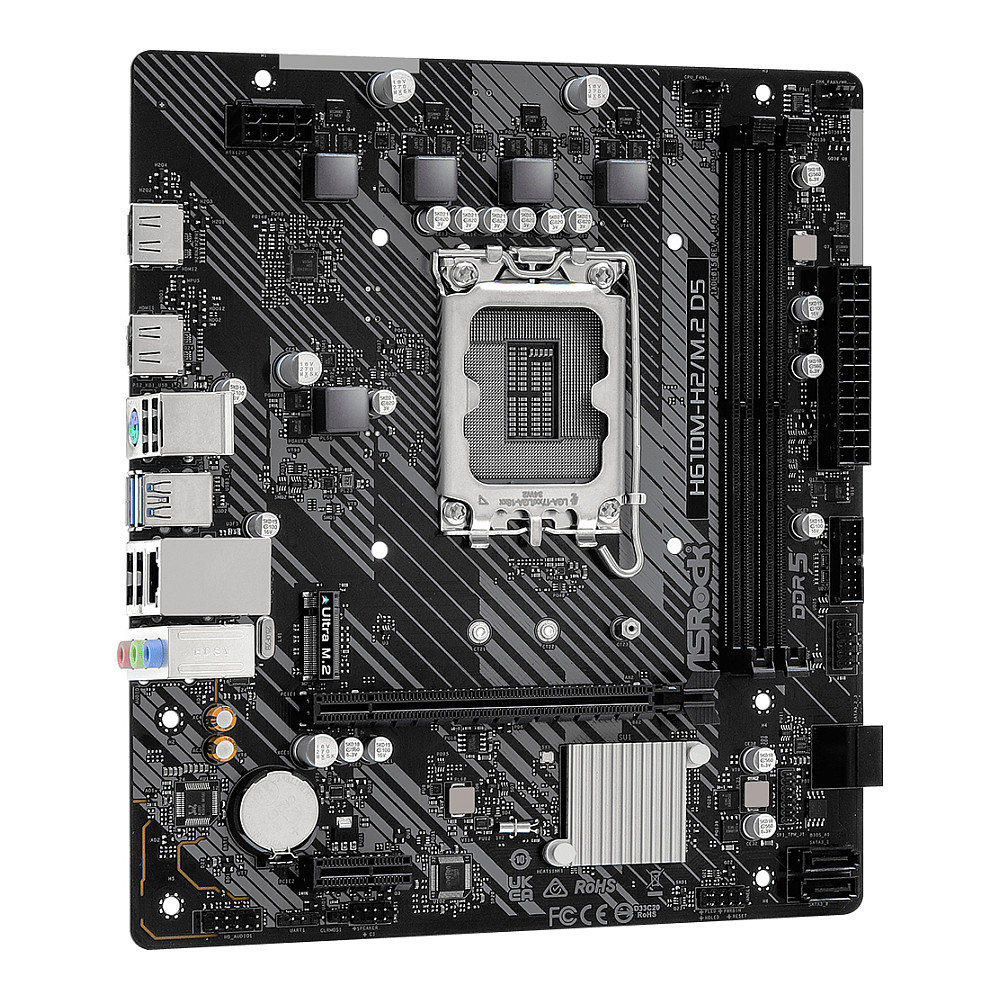

ASRock H610M-H2/M.2 D5 1700 mATX HDMI DDR5 retail
Pre-Order
€59.99
VAT (19%) included
Description
Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 3+1+1 Phase Power Design Supports DDR5 5600MHz* 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: 2 HDMI Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN Supports ASRock Auto Driver Installer
Technical Specifications
SKU
K90-MXBML0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Maximum Internal Memory
96 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
5
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
2
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek 8111H
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel H610
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Width
220 mm
Depth
193 mm
